OEM Ground Distribution: Grounds

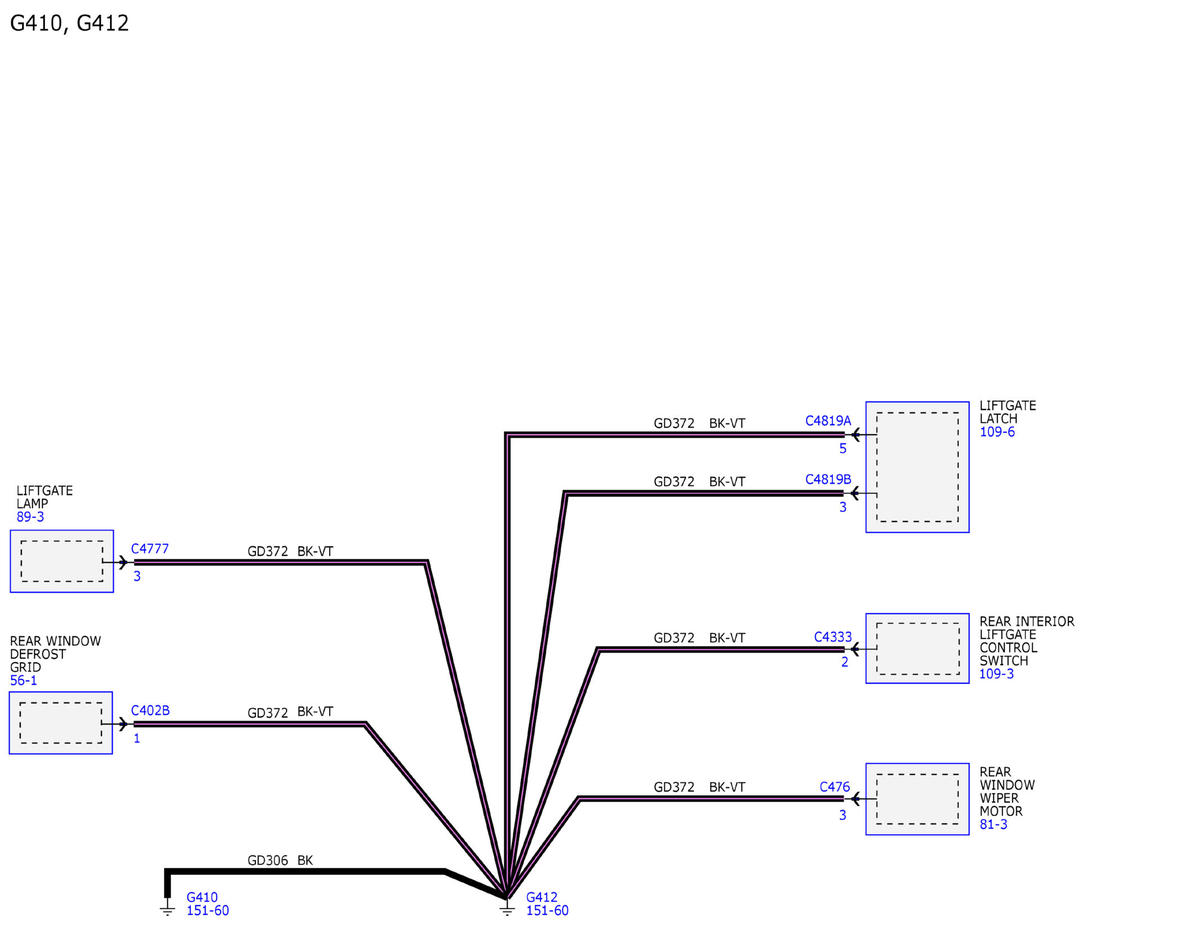

GFDWR110745Courtesy of FORD MOTOR COMPANY

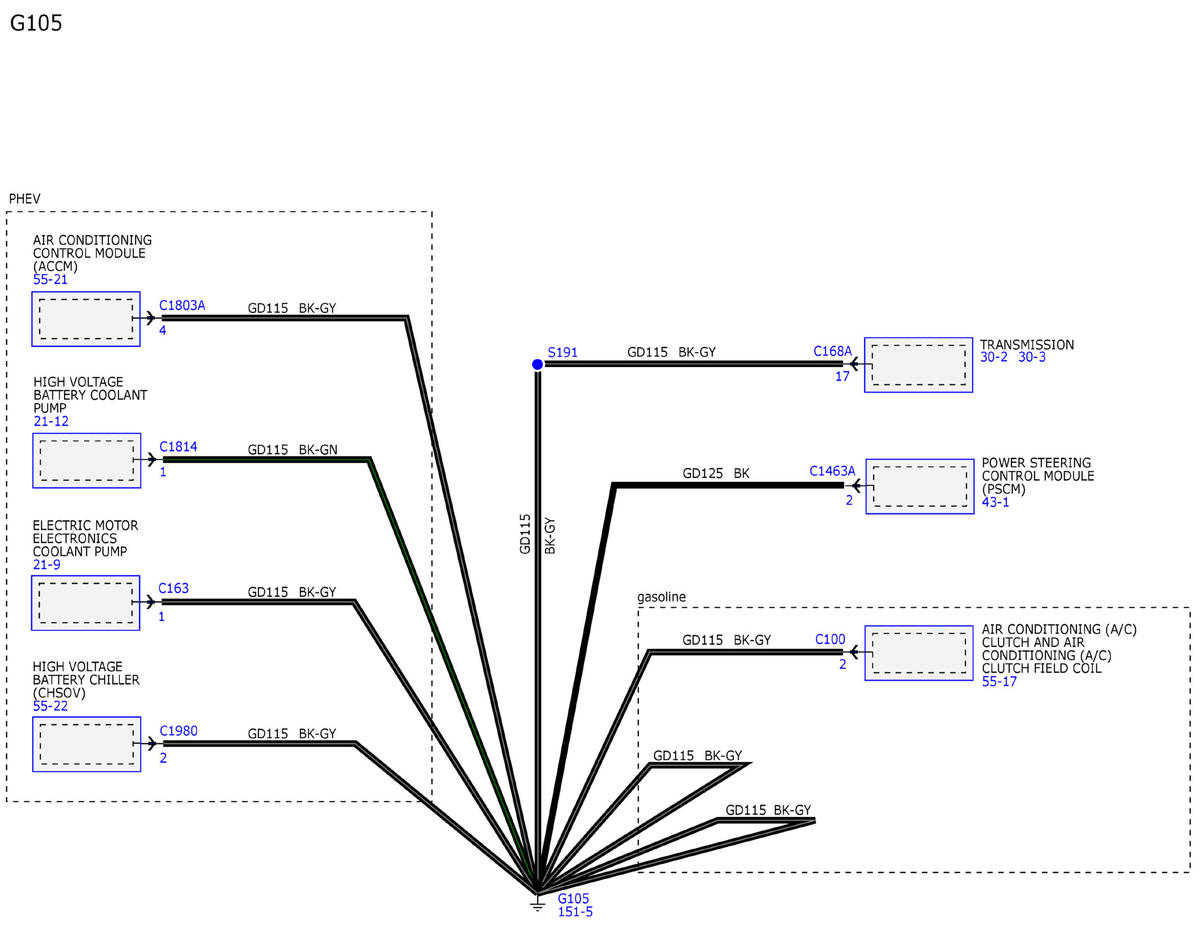

GFDWR110746Courtesy of FORD MOTOR COMPANY

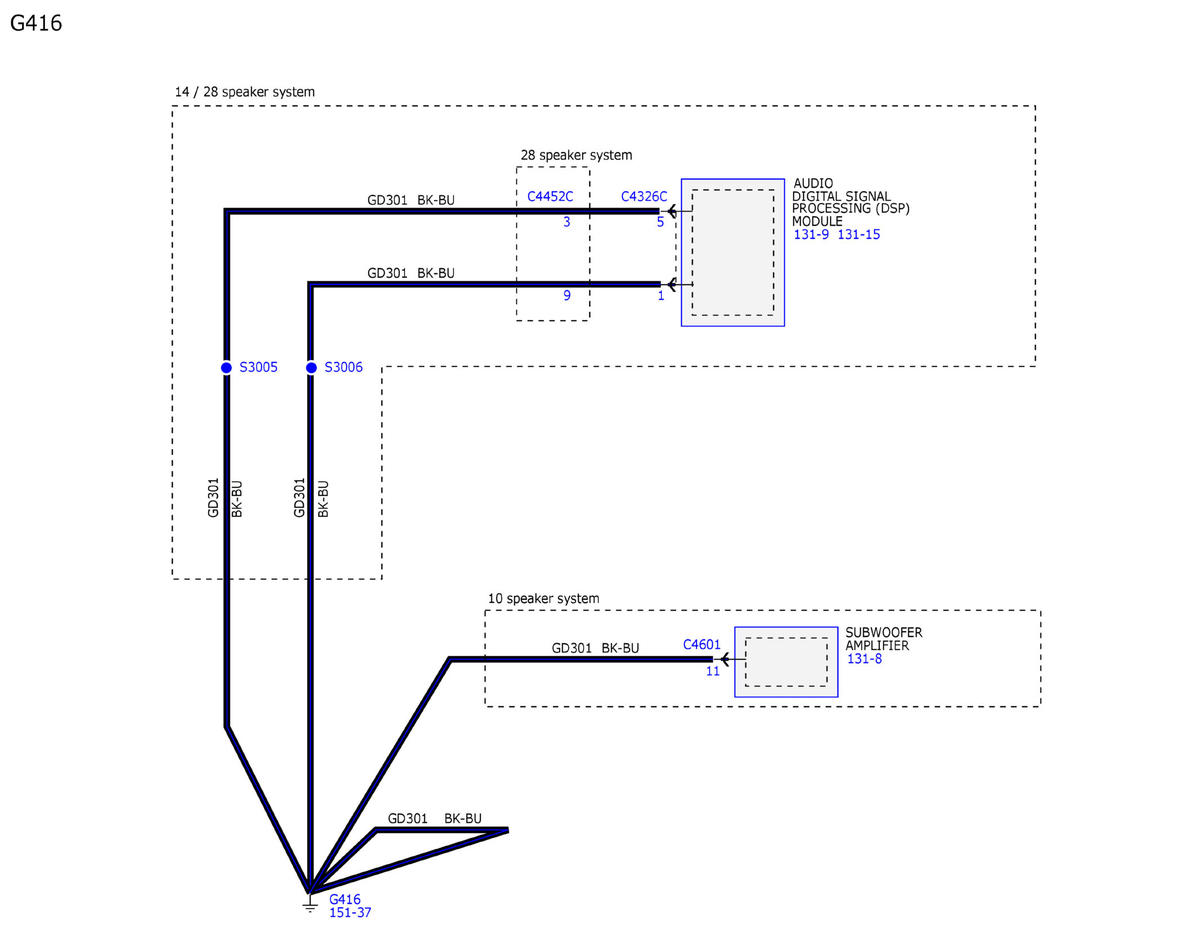

GFDWR110747Courtesy of FORD MOTOR COMPANY

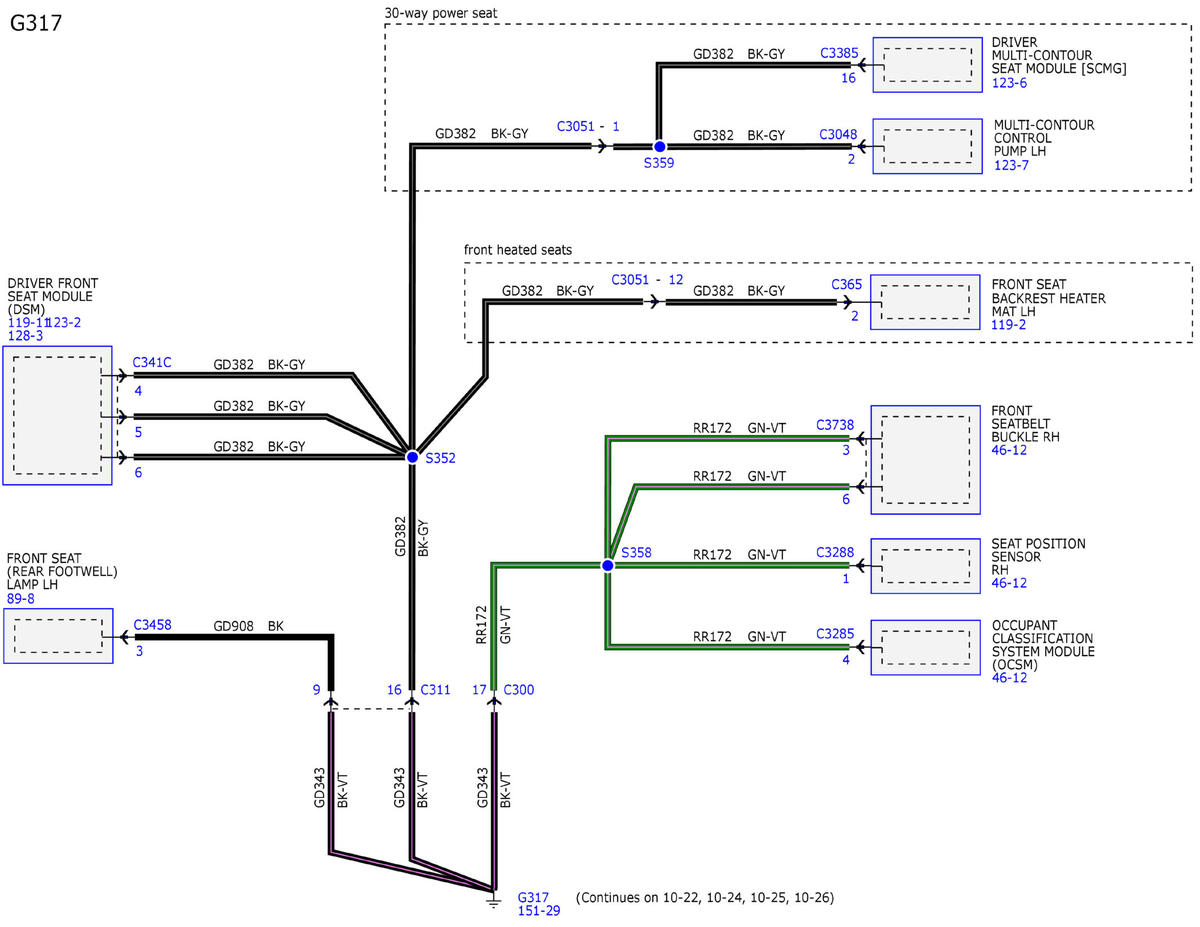

GFDWR110748Courtesy of FORD MOTOR COMPANY

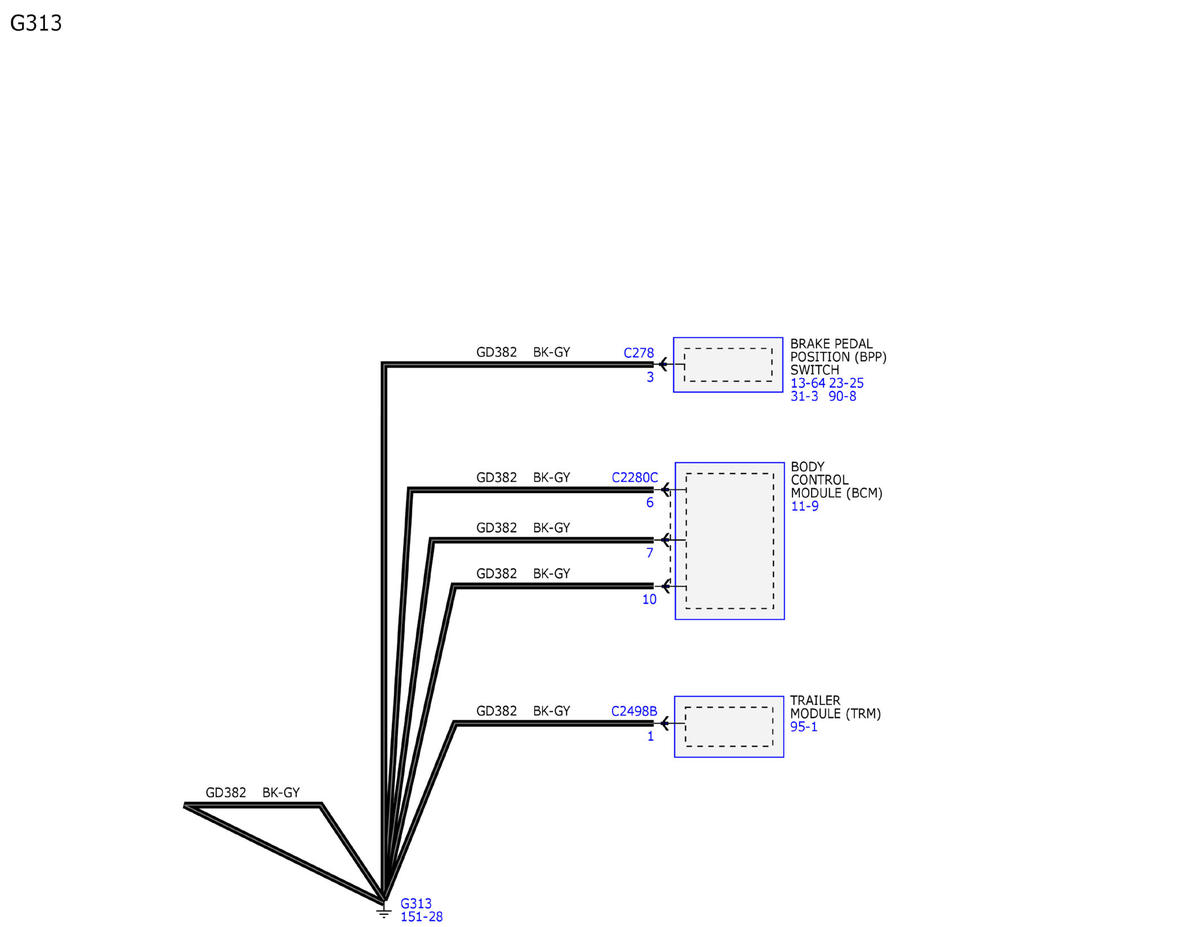

GFDWR110749Courtesy of FORD MOTOR COMPANY

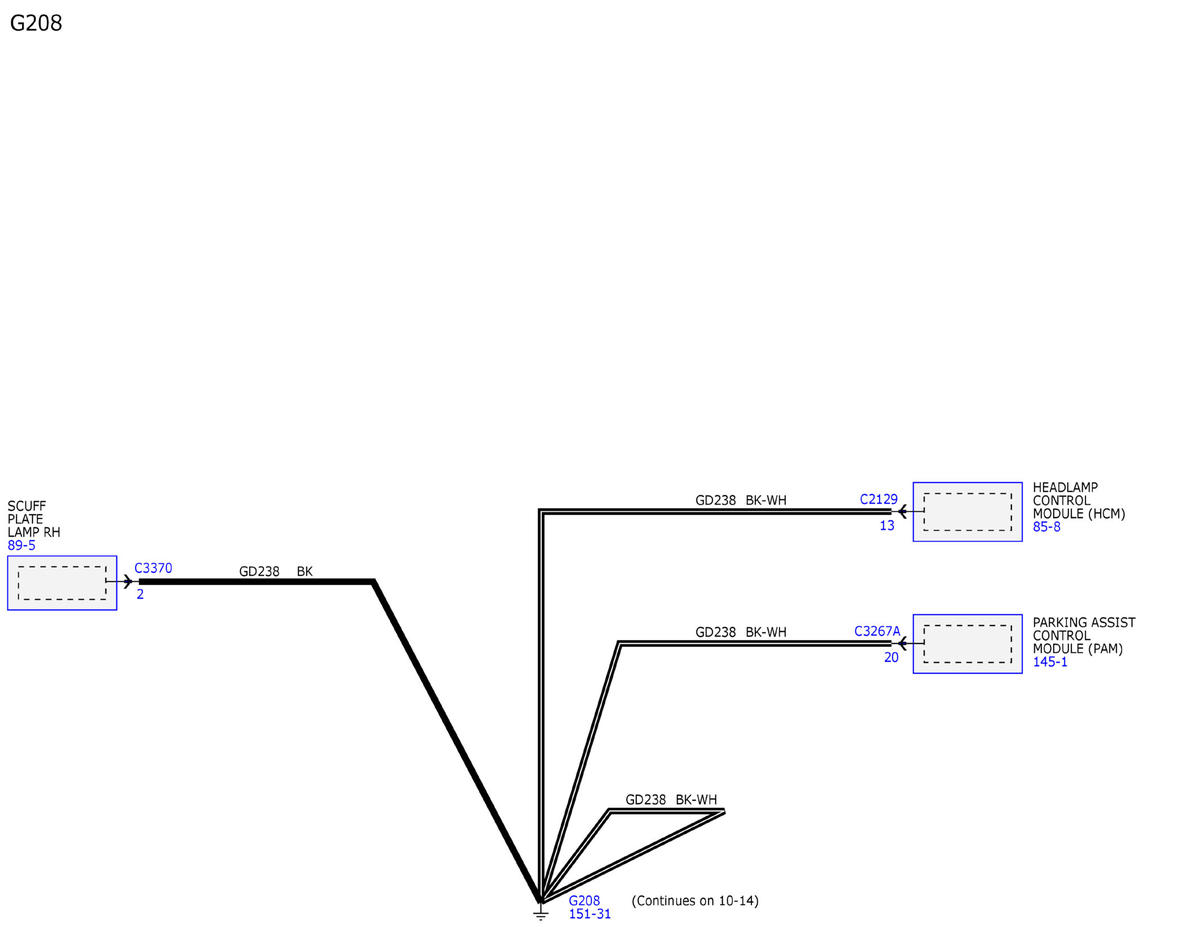

GFDWR110750Courtesy of FORD MOTOR COMPANY

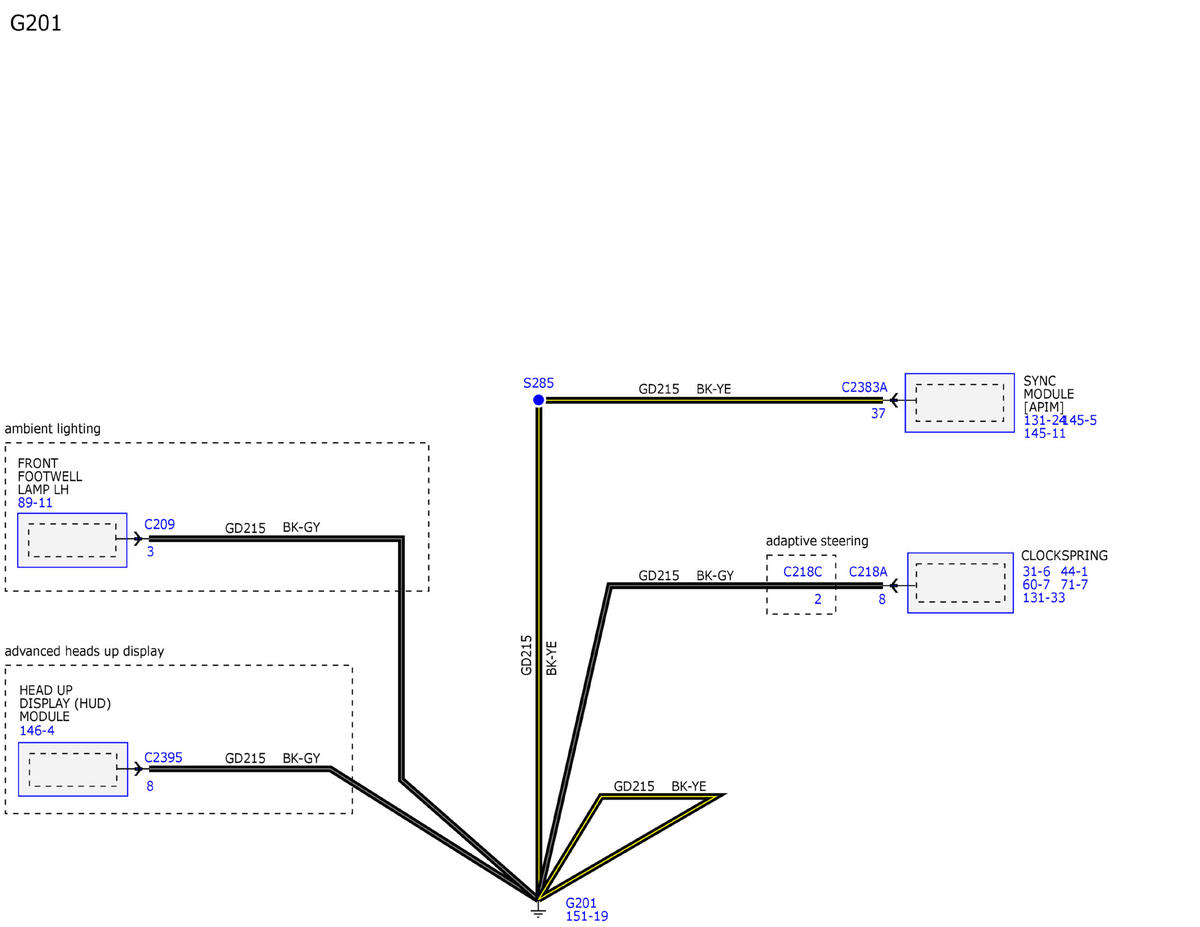

GFDWR110751Courtesy of FORD MOTOR COMPANY

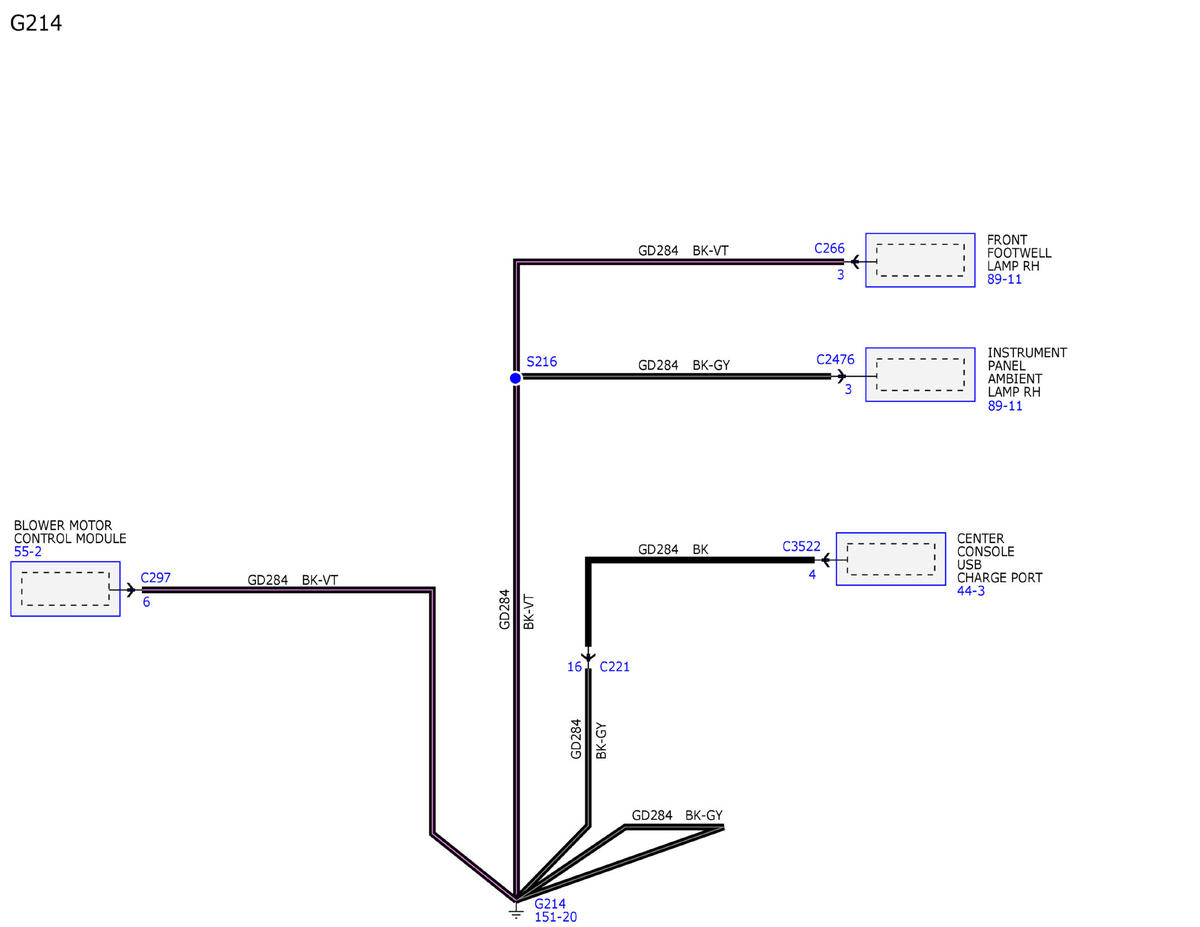

GFDWR110752Courtesy of FORD MOTOR COMPANY

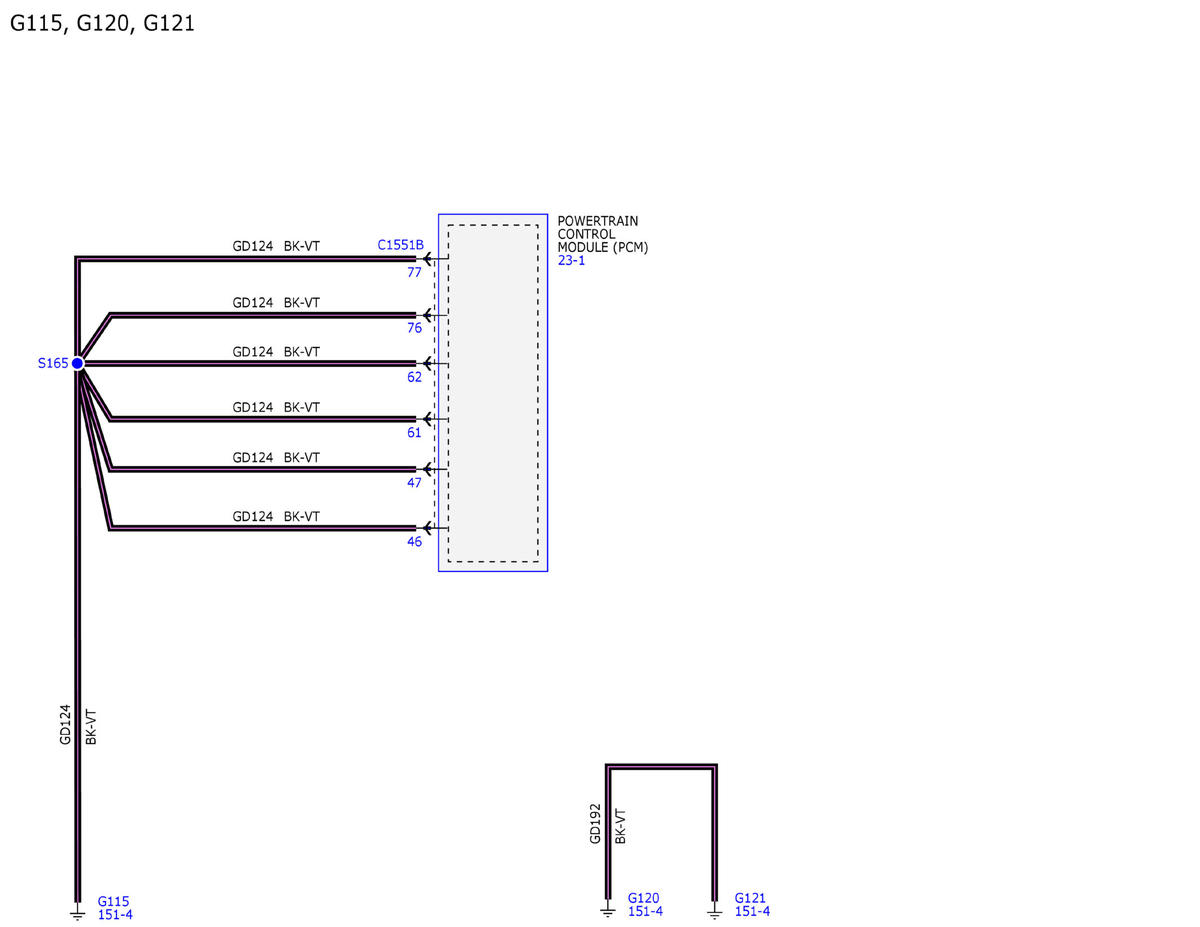

GFDWR110753Courtesy of FORD MOTOR COMPANY

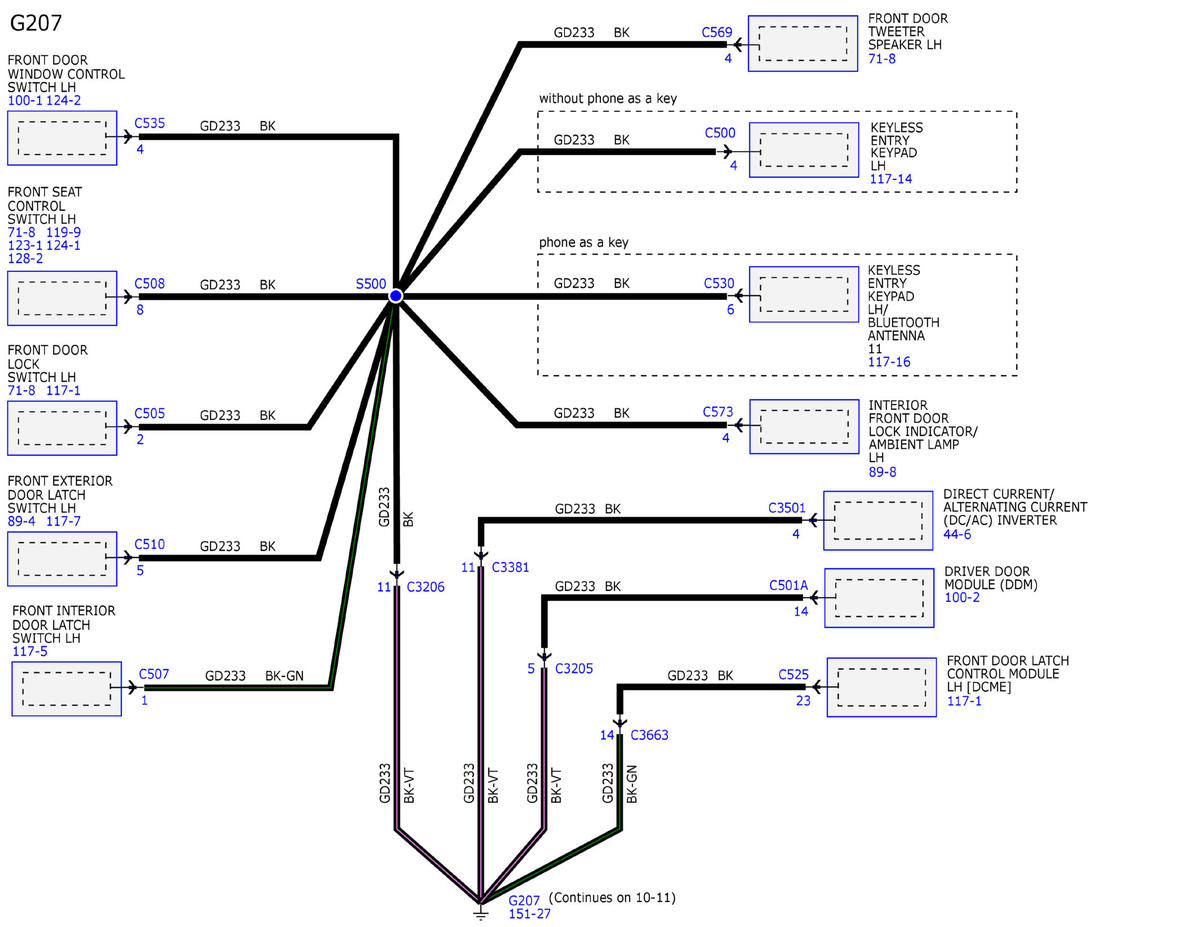

GFDWR110754Courtesy of FORD MOTOR COMPANY

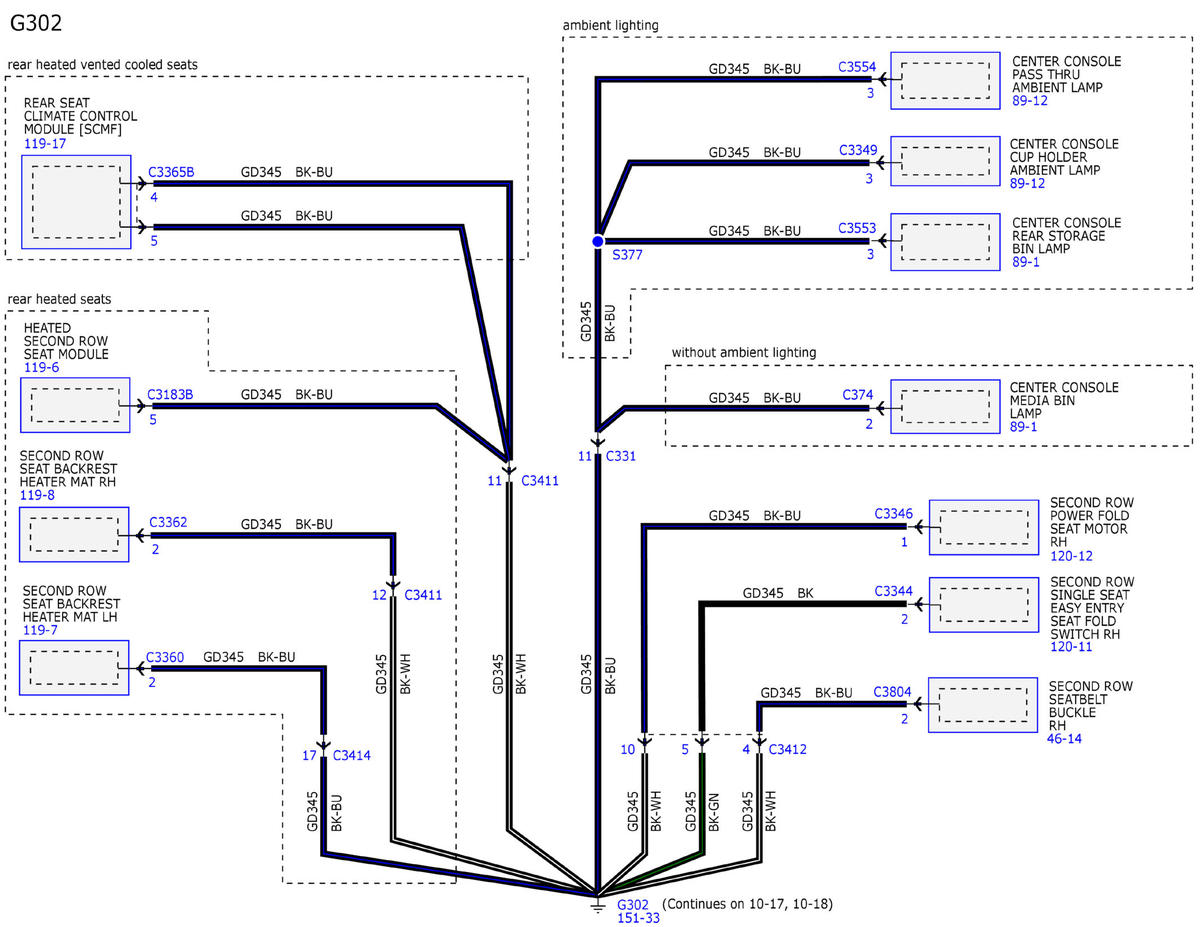

GFDWR110755Courtesy of FORD MOTOR COMPANY

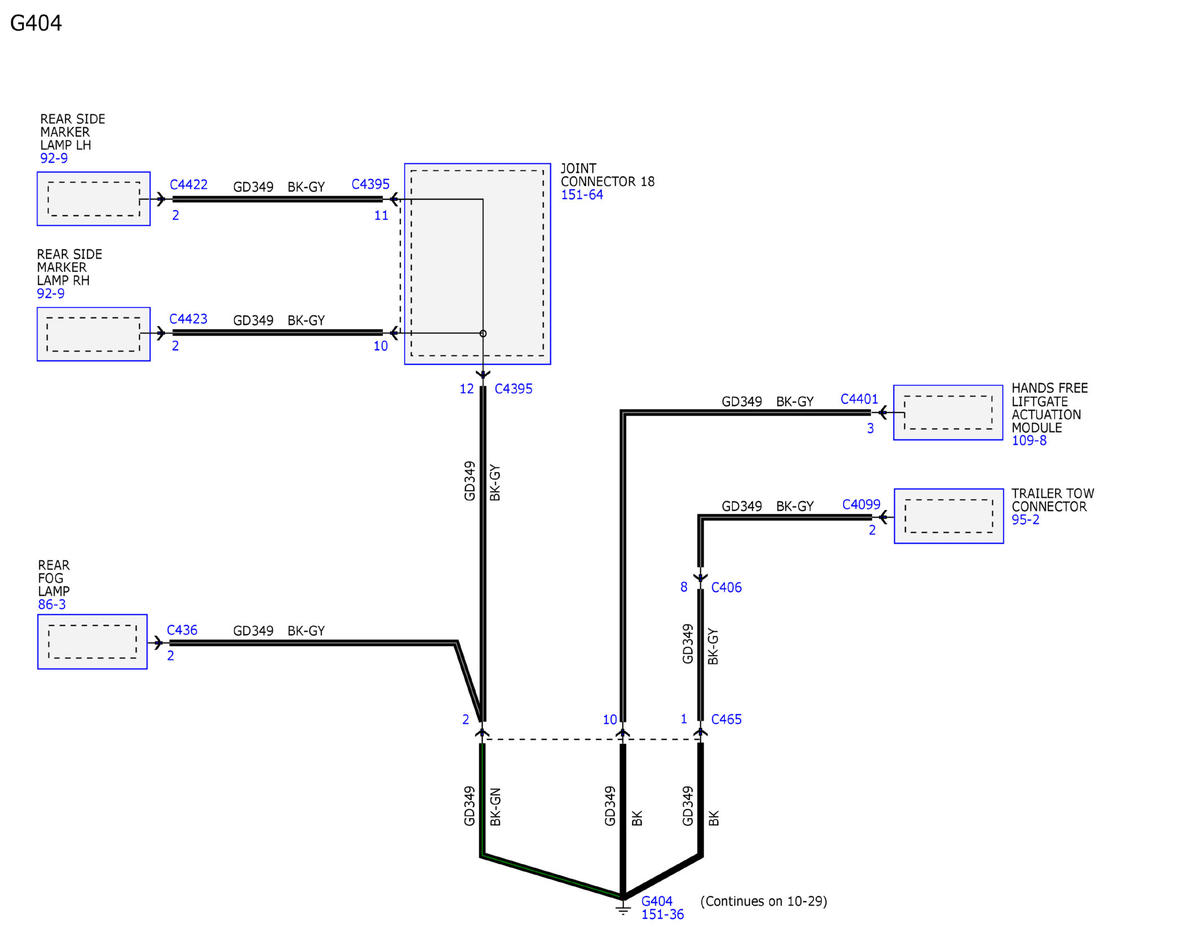

GFDWR110756Courtesy of FORD MOTOR COMPANY

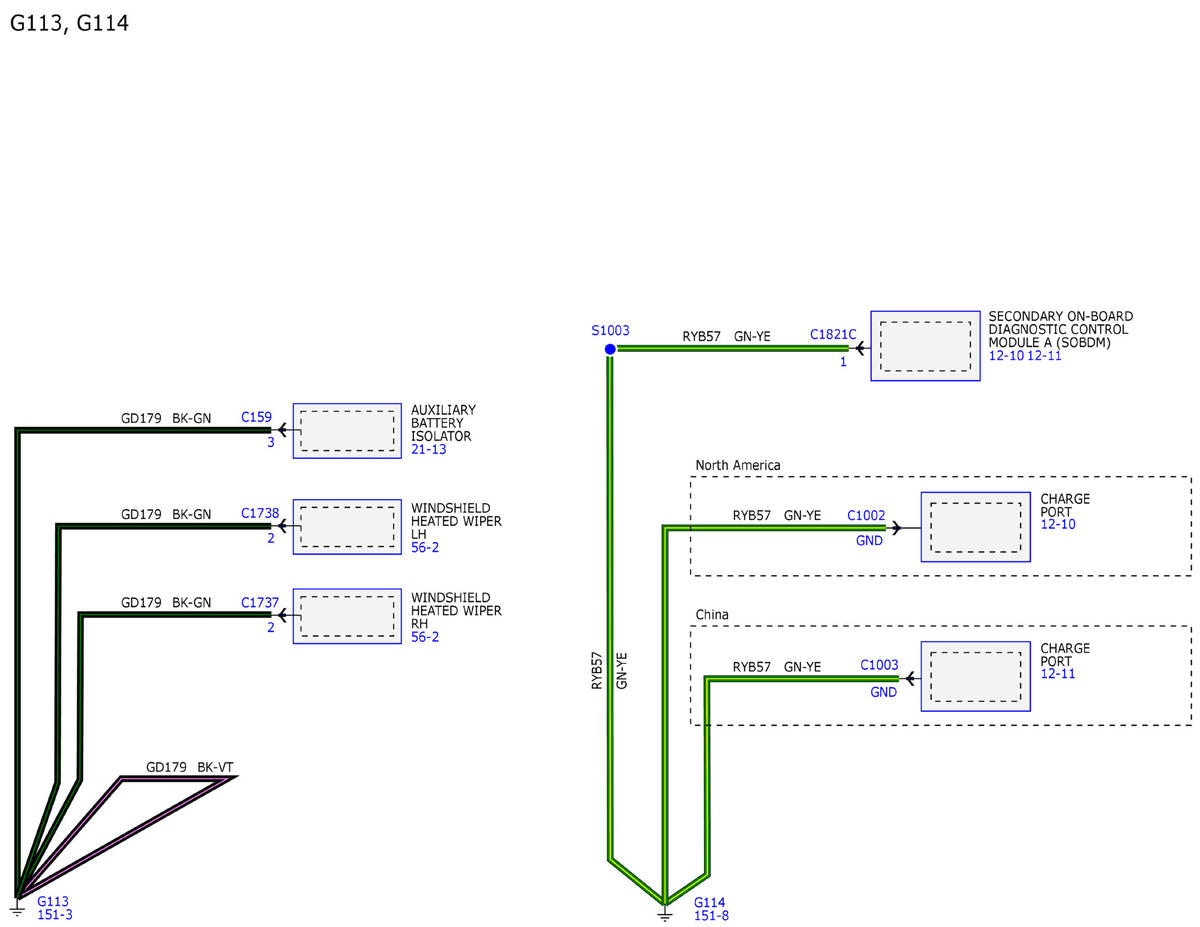

GFDWR110757Courtesy of FORD MOTOR COMPANY

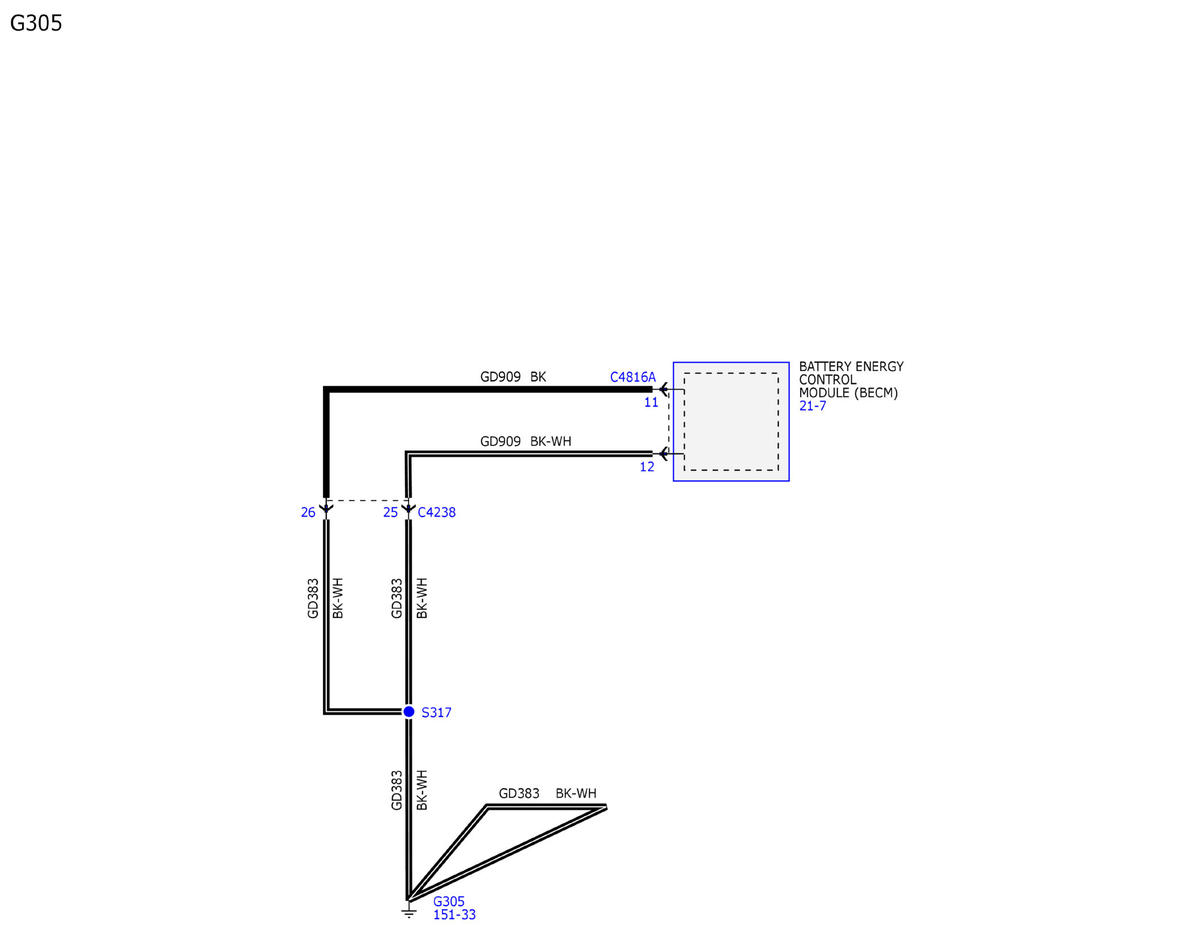

GFDWR110758Courtesy of FORD MOTOR COMPANY

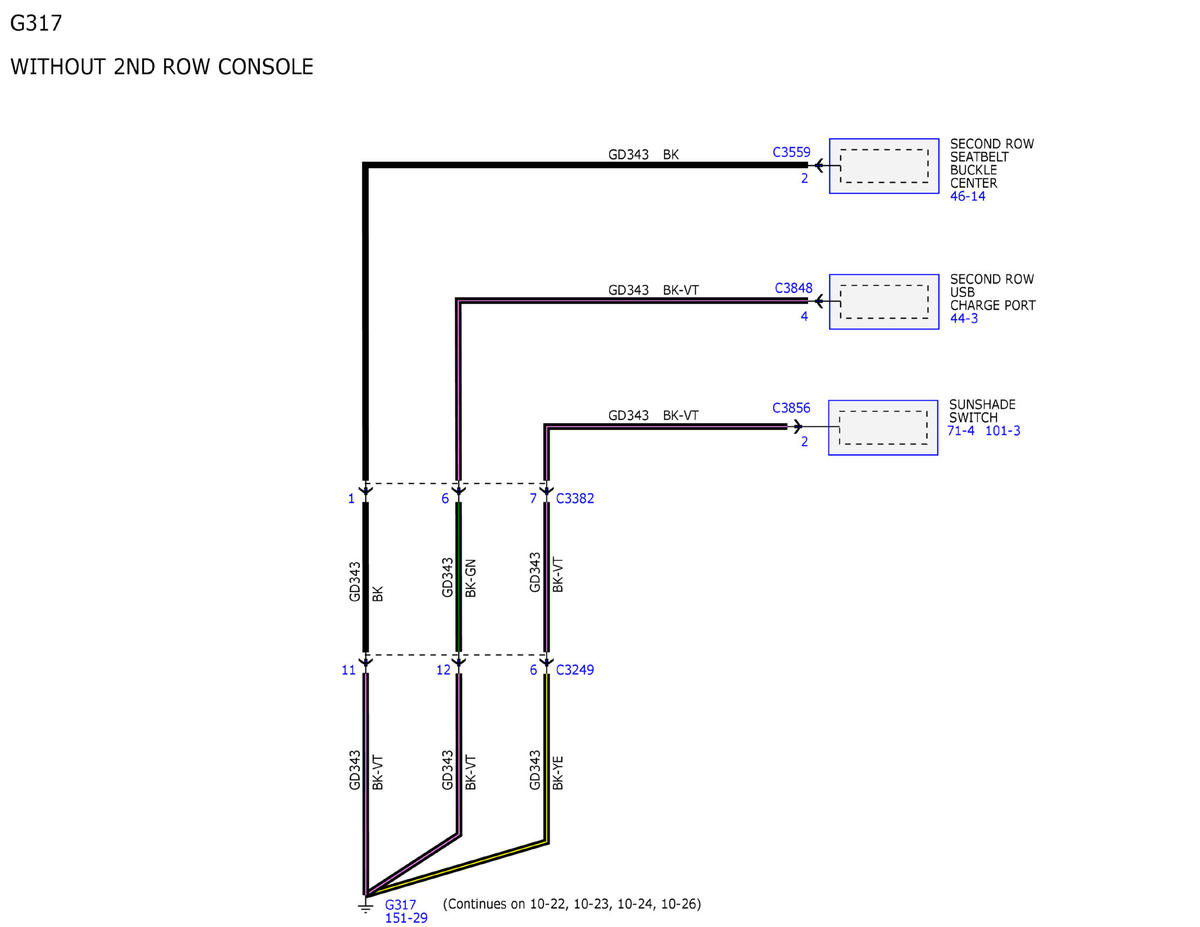

GFDWR110759Courtesy of FORD MOTOR COMPANY

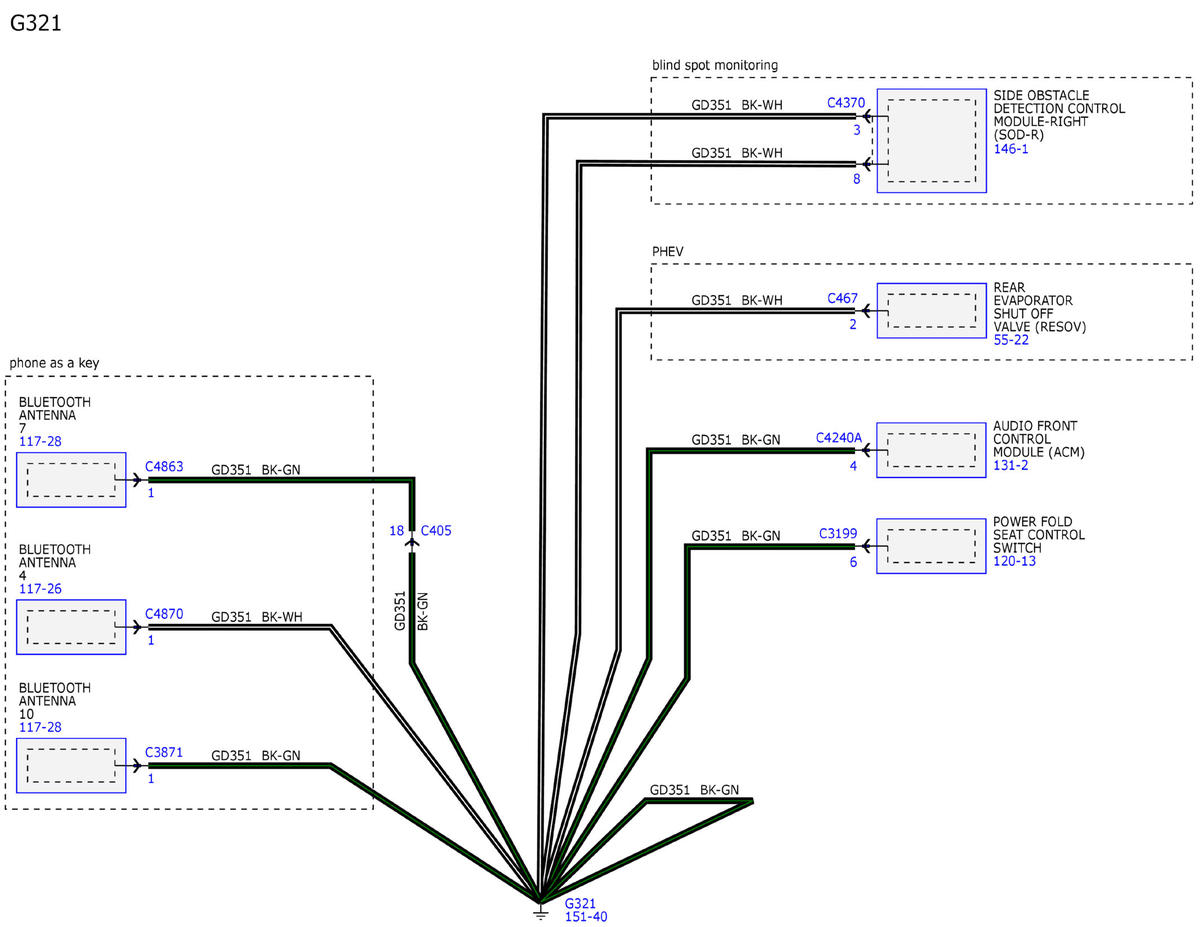

GFDWR110760Courtesy of FORD MOTOR COMPANY

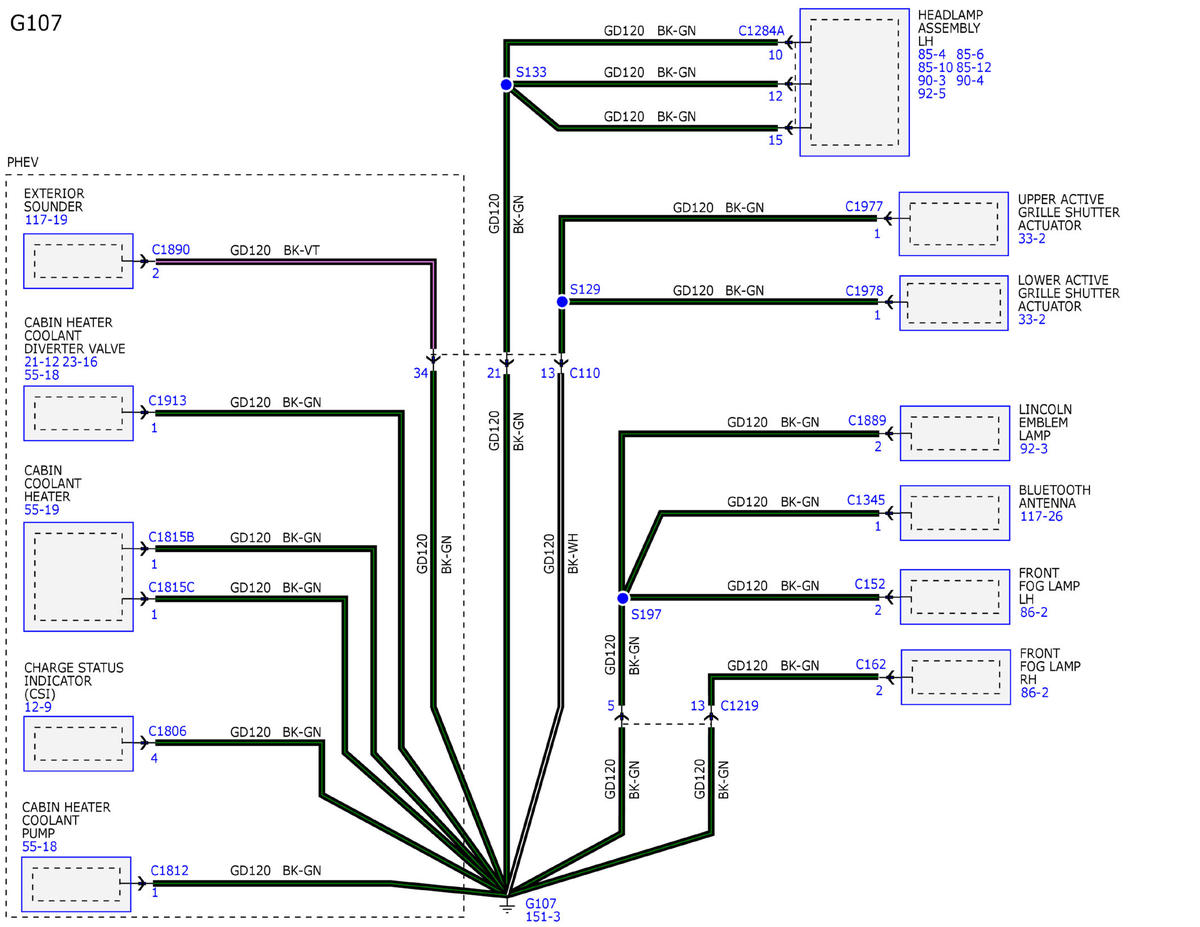

GFDWR110761Courtesy of FORD MOTOR COMPANY

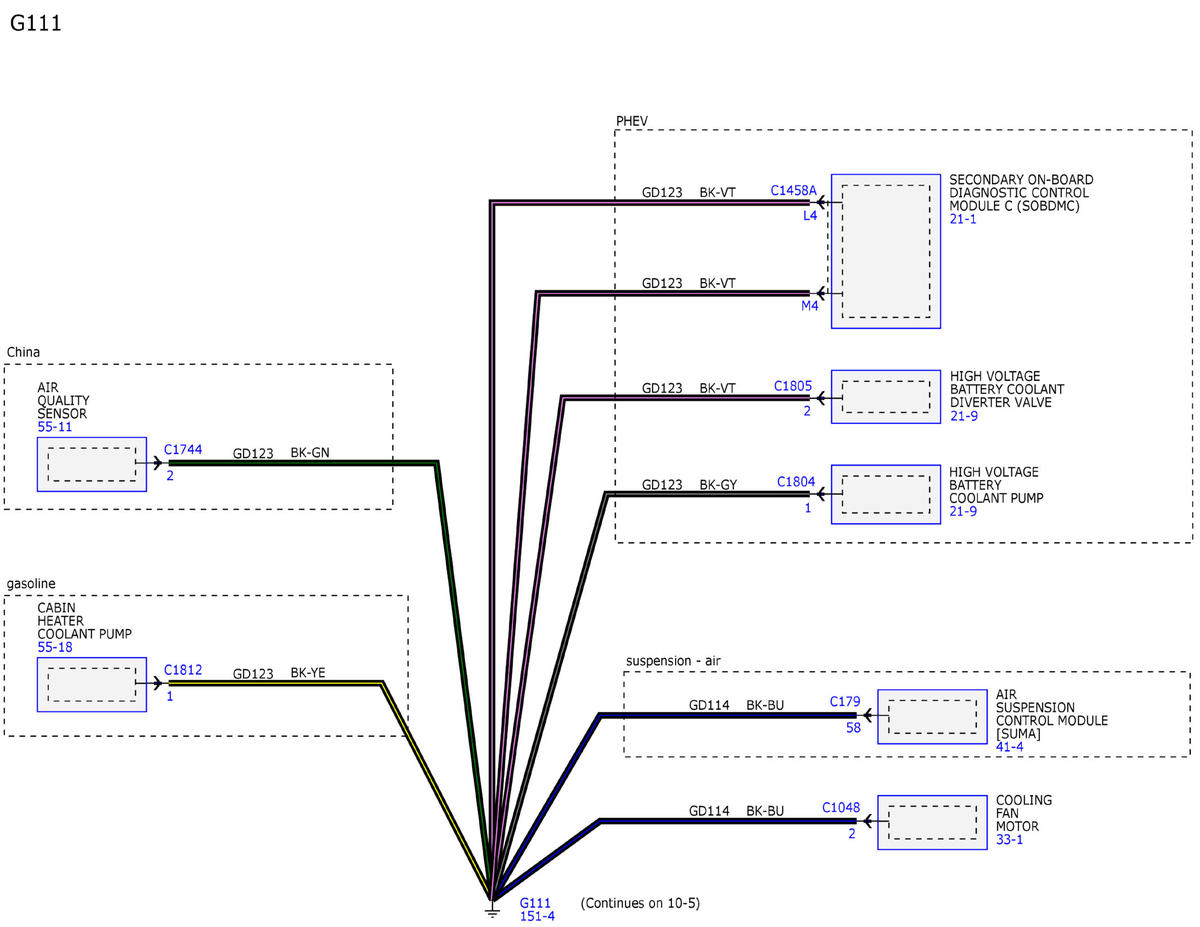

GFDWR110762Courtesy of FORD MOTOR COMPANY

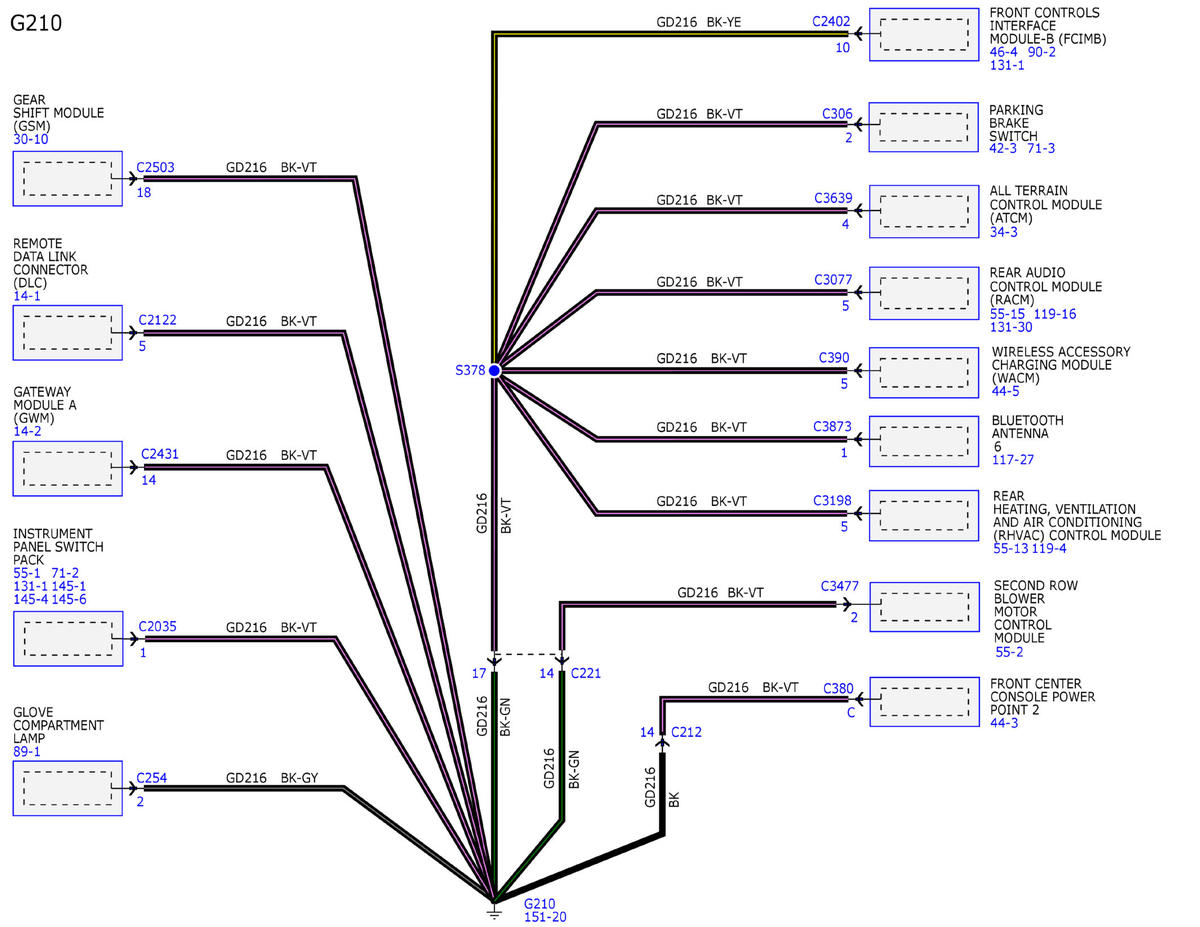

GFDWR110763Courtesy of FORD MOTOR COMPANY

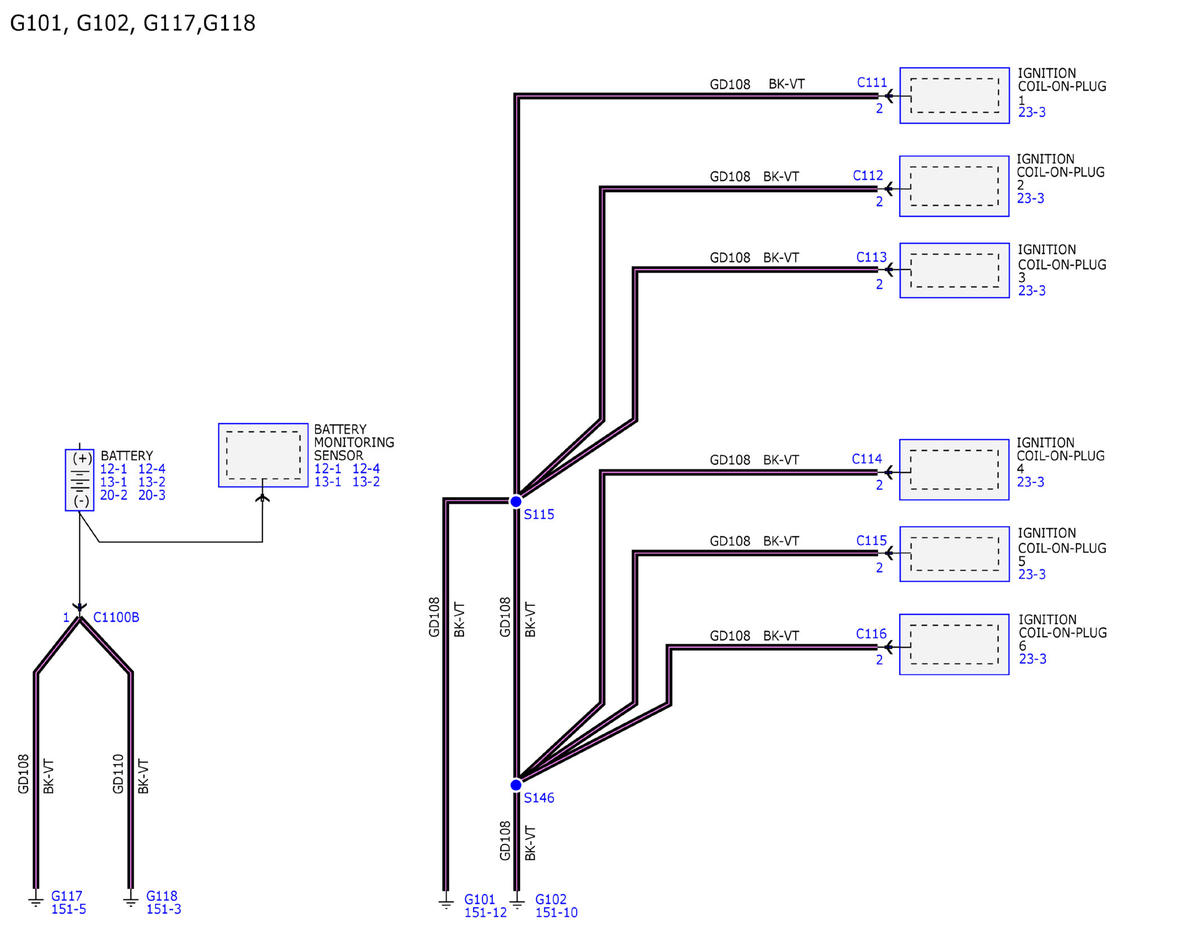

GFDWR110764Courtesy of FORD MOTOR COMPANY

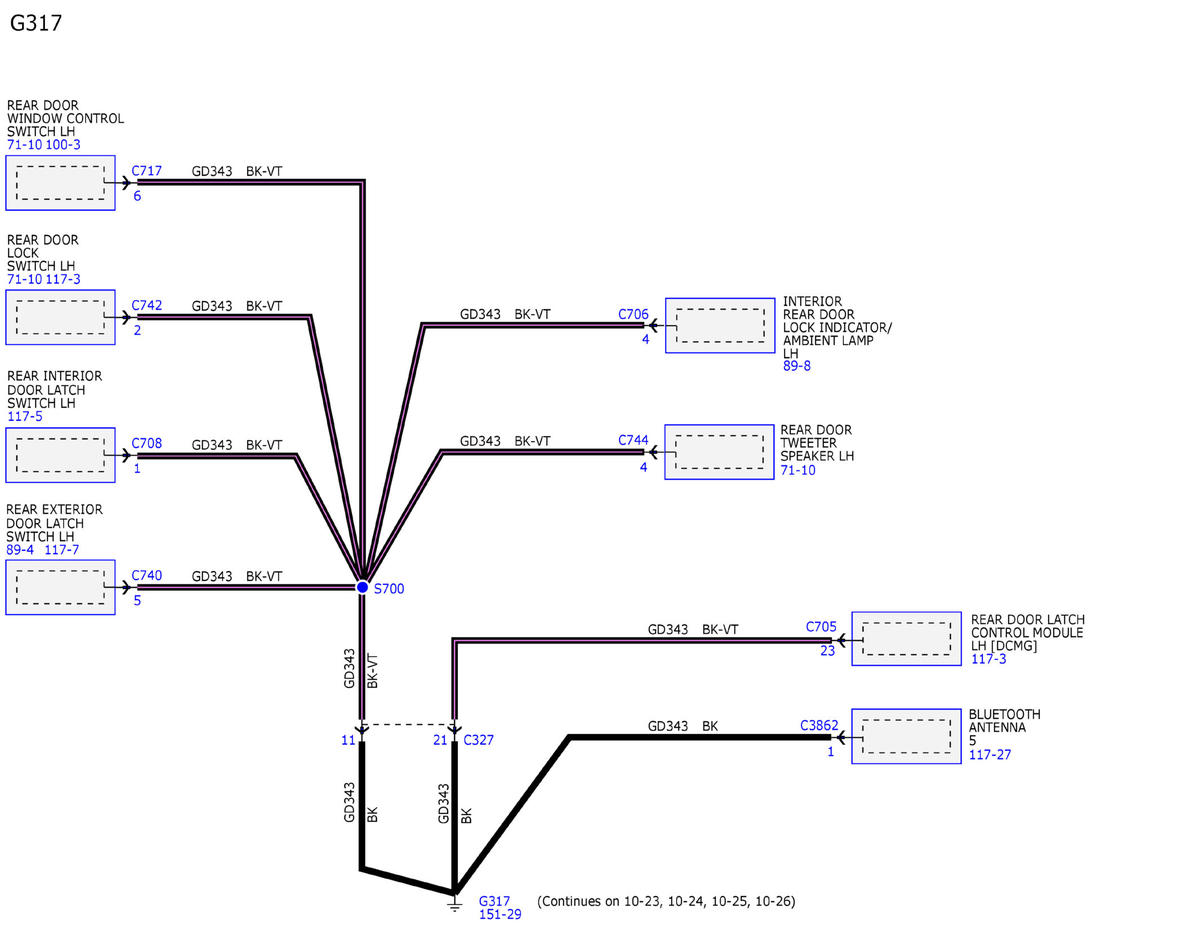

GFDWR110765Courtesy of FORD MOTOR COMPANY

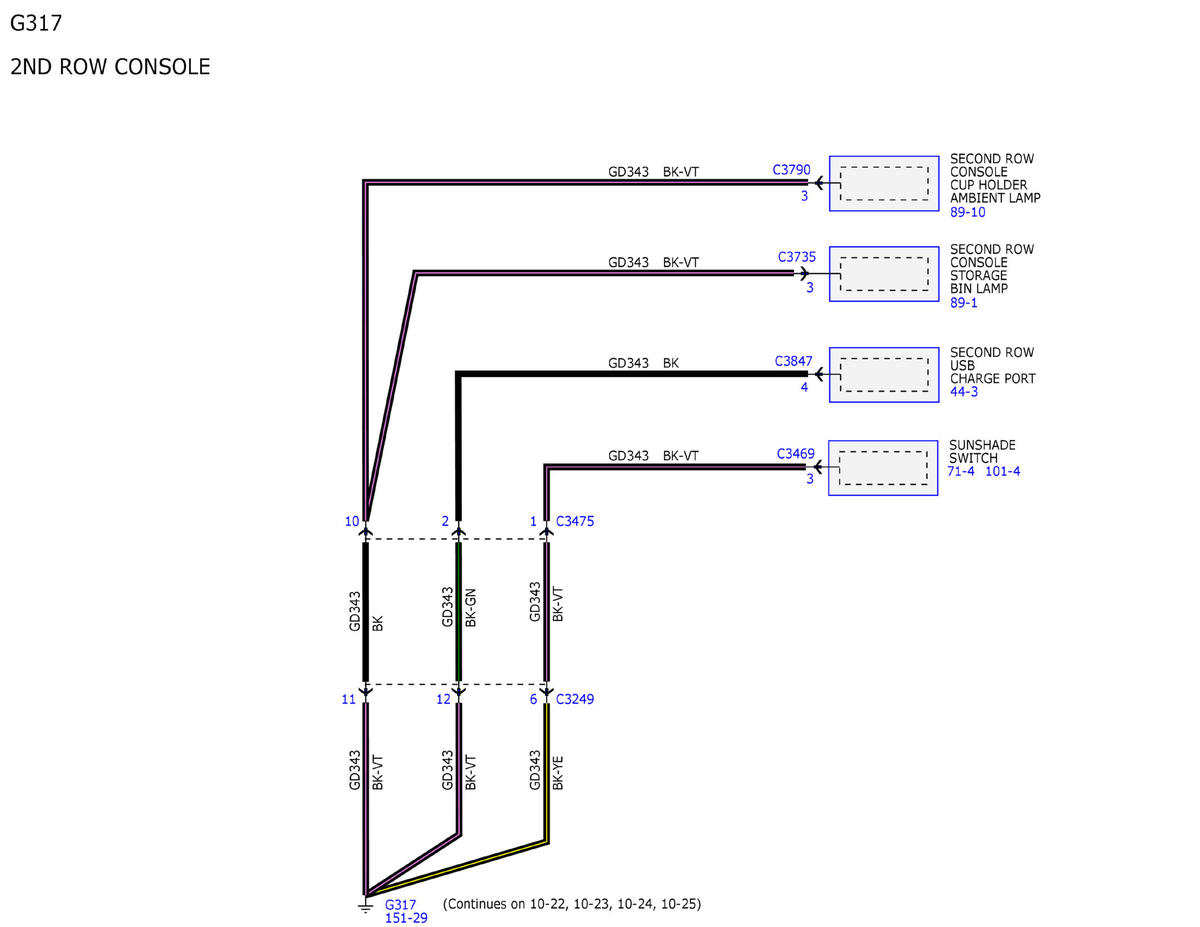

GFDWR110766Courtesy of FORD MOTOR COMPANY

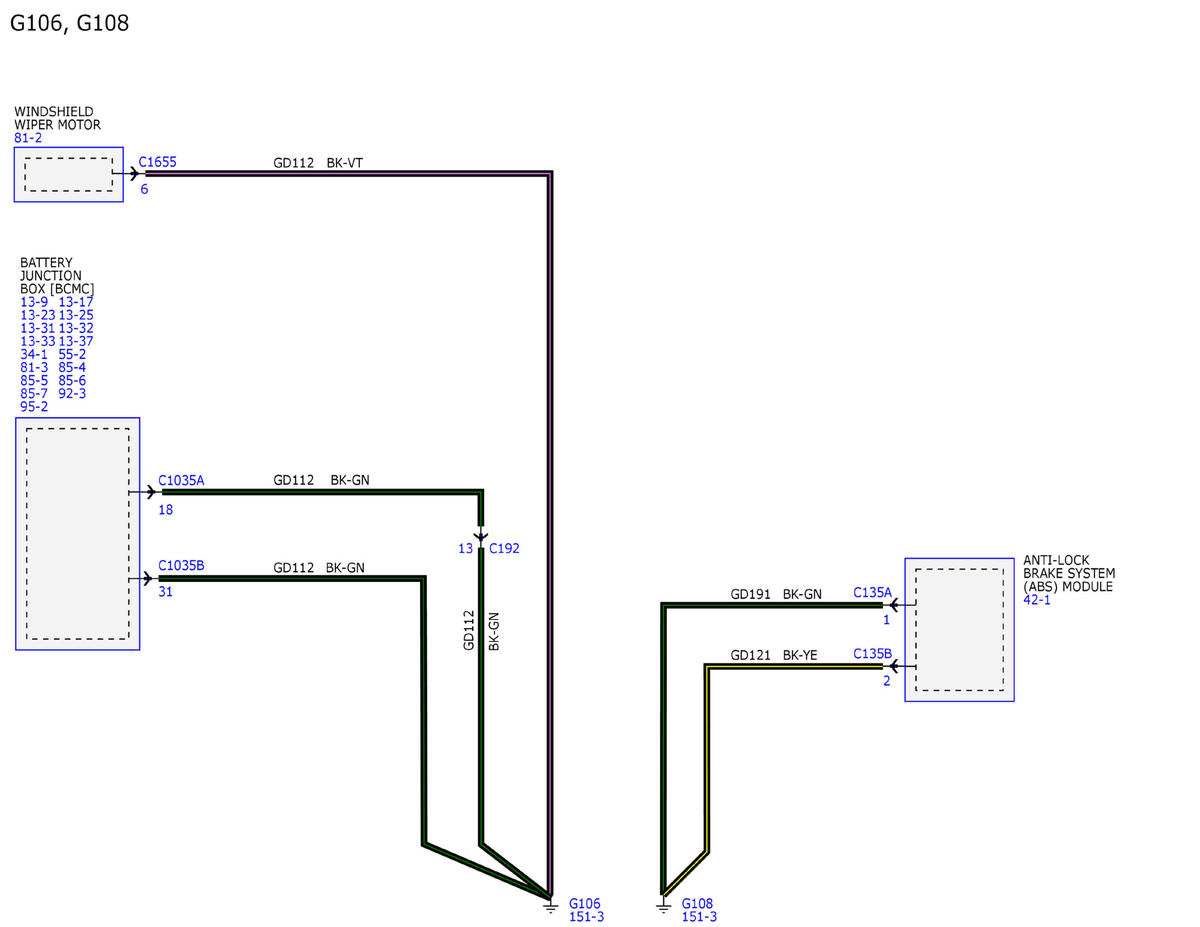

GFDWR110767Courtesy of FORD MOTOR COMPANY

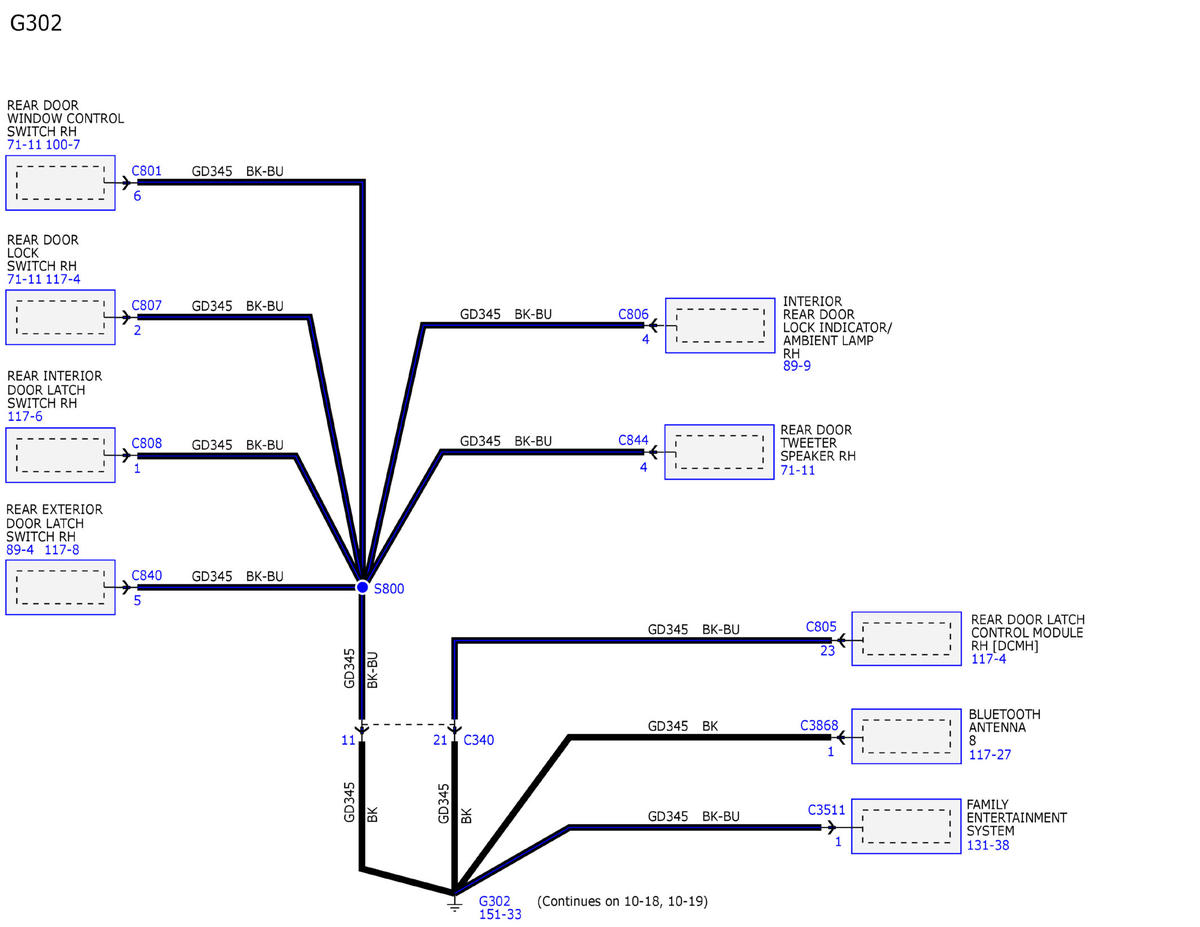

GFDWR110768Courtesy of FORD MOTOR COMPANY

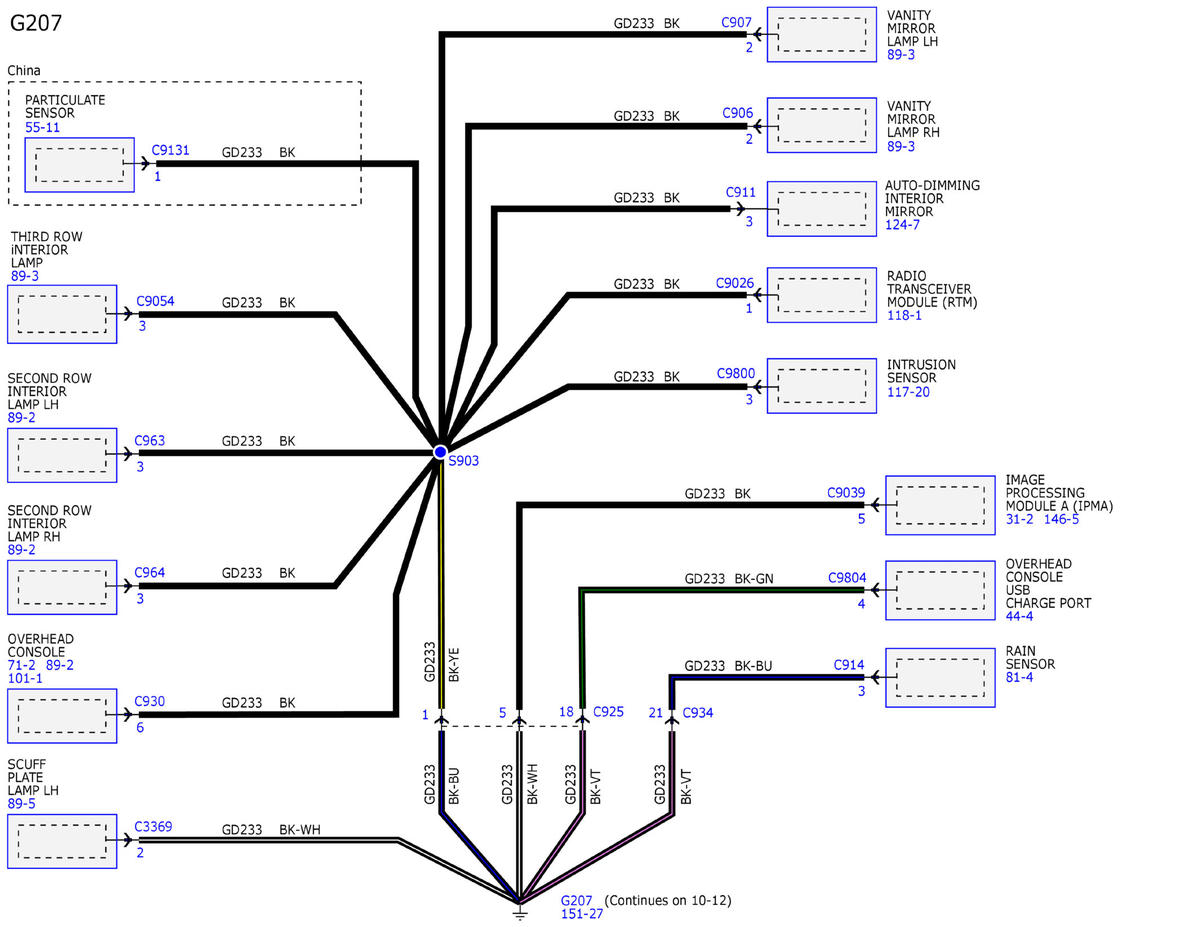

GFDWR110769Courtesy of FORD MOTOR COMPANY

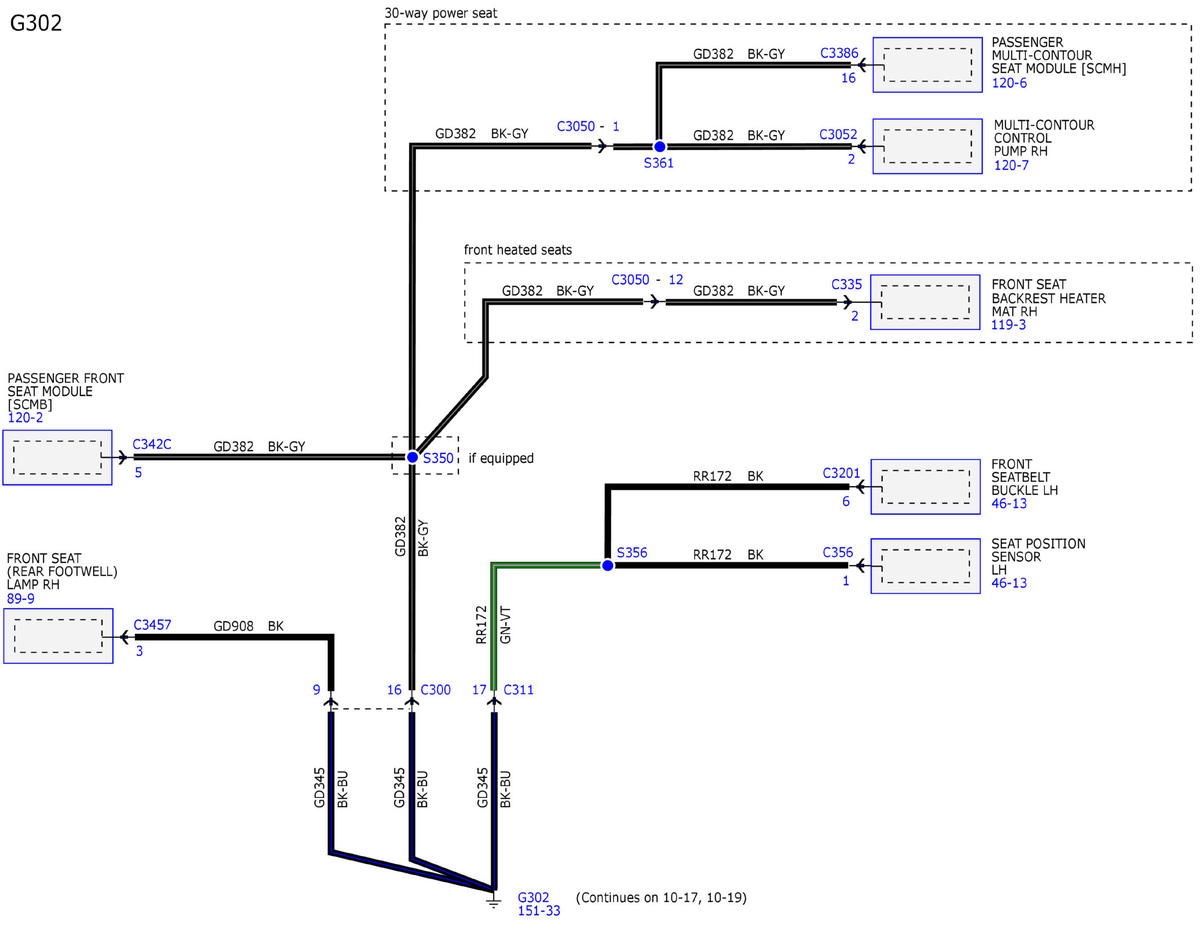

GFDWR110770Courtesy of FORD MOTOR COMPANY

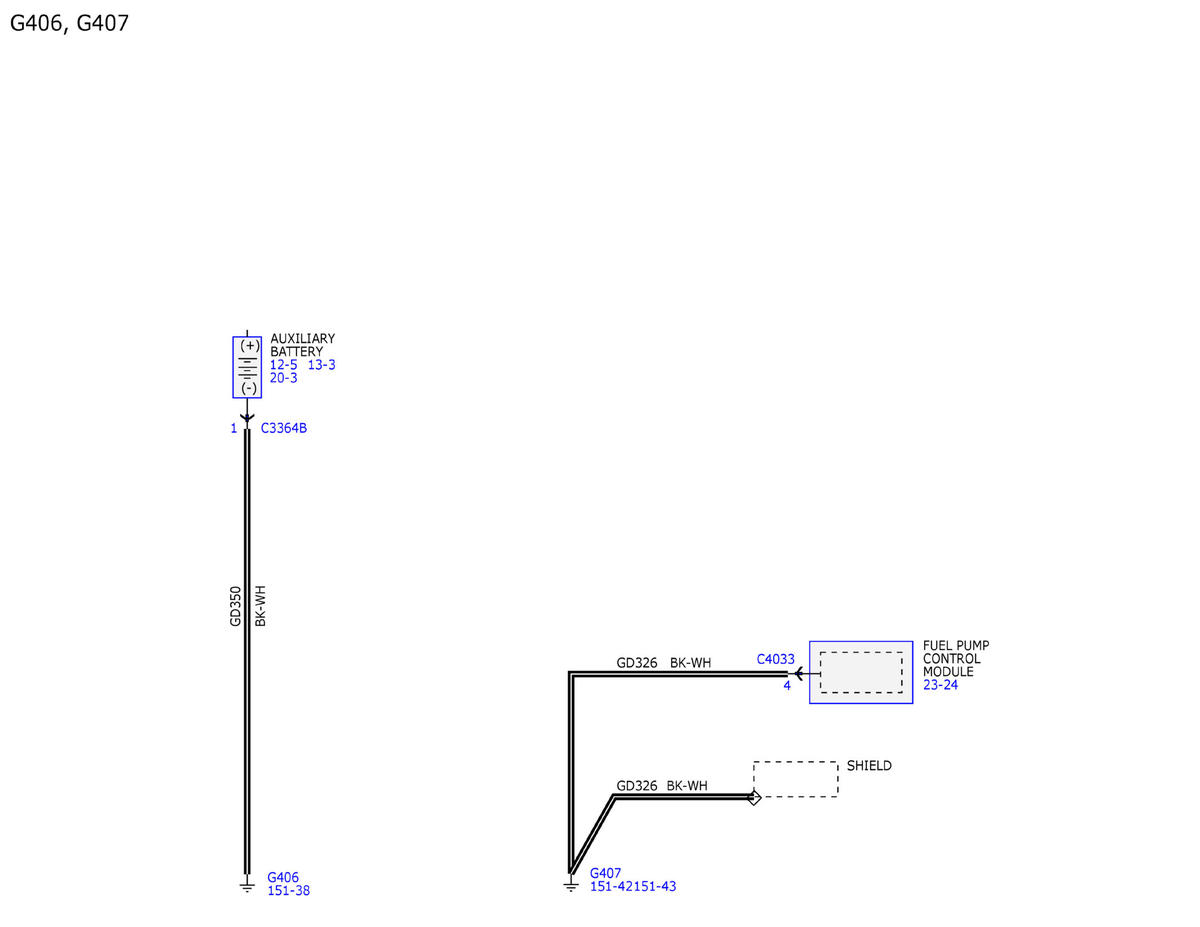

GFDWR110771Courtesy of FORD MOTOR COMPANY

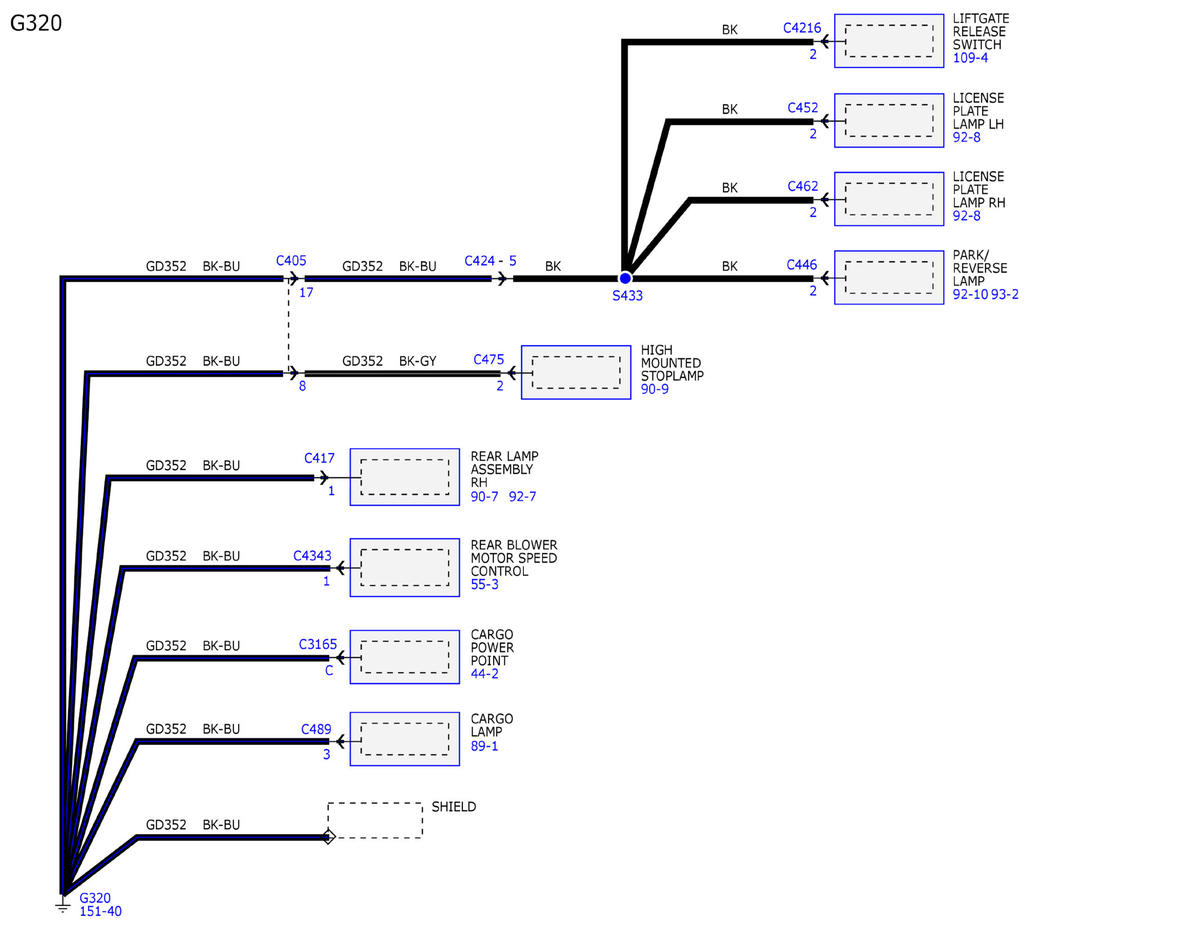

GFDWR110772Courtesy of FORD MOTOR COMPANY

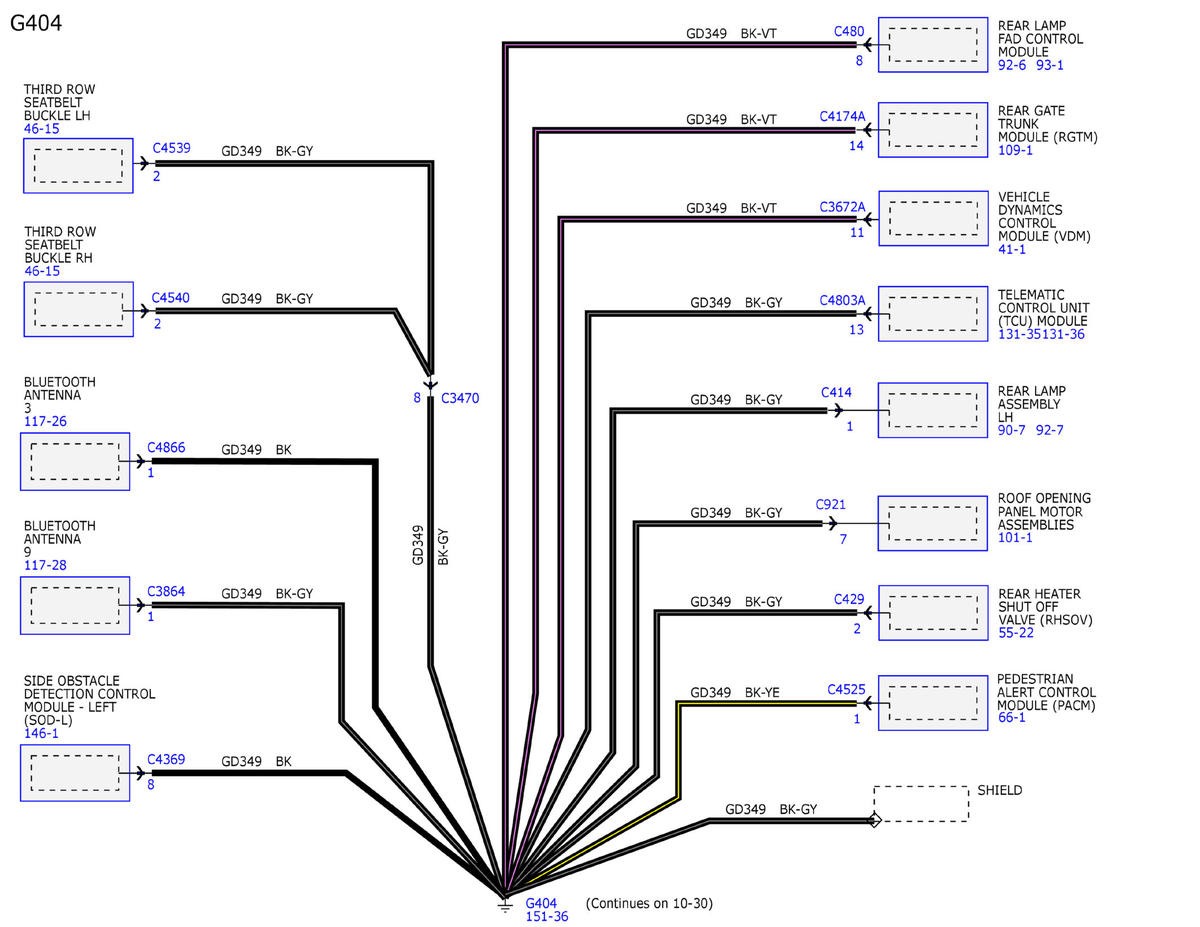

GFDWR110773Courtesy of FORD MOTOR COMPANY

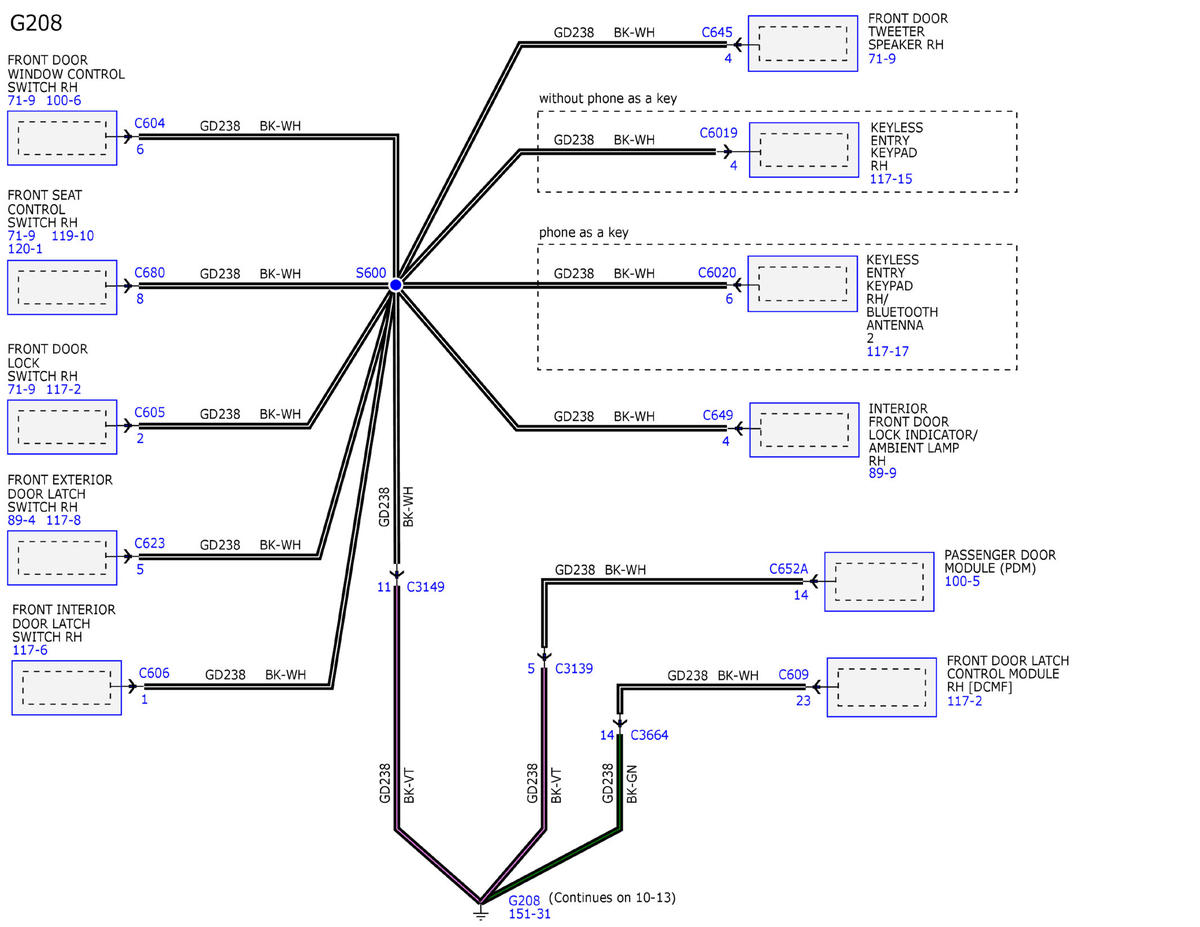

GFDWR110774Courtesy of FORD MOTOR COMPANY

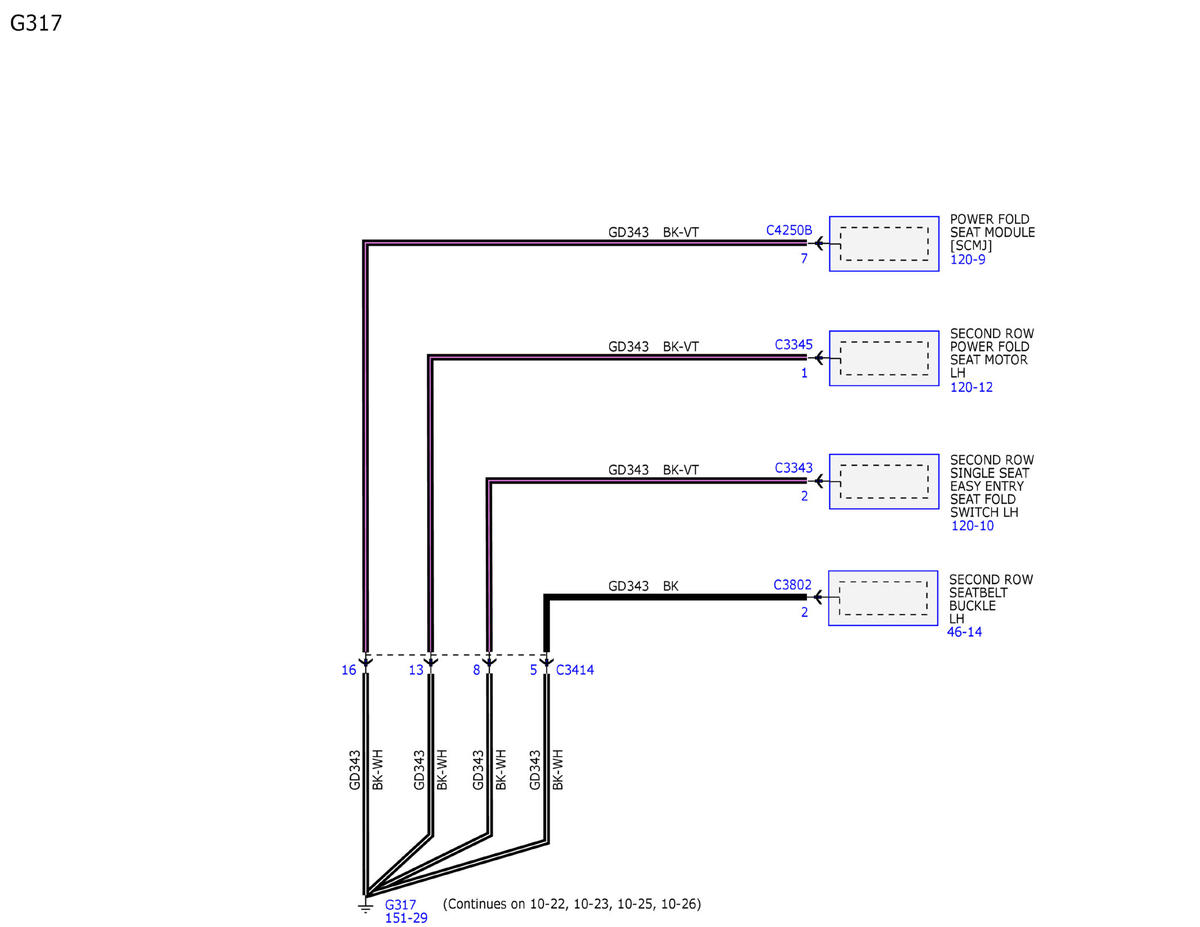

GFDWR110775Courtesy of FORD MOTOR COMPANY

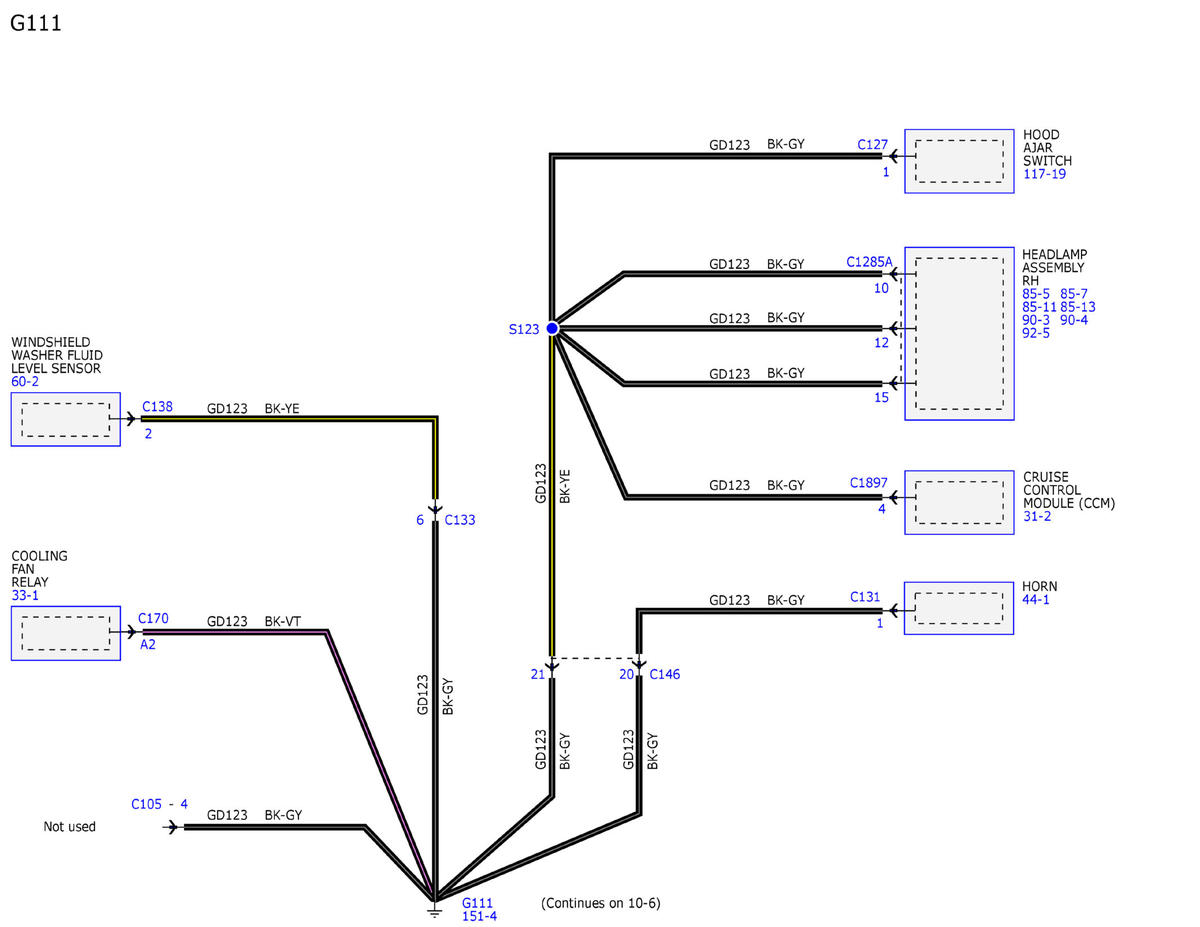

GFDWR110776Courtesy of FORD MOTOR COMPANY

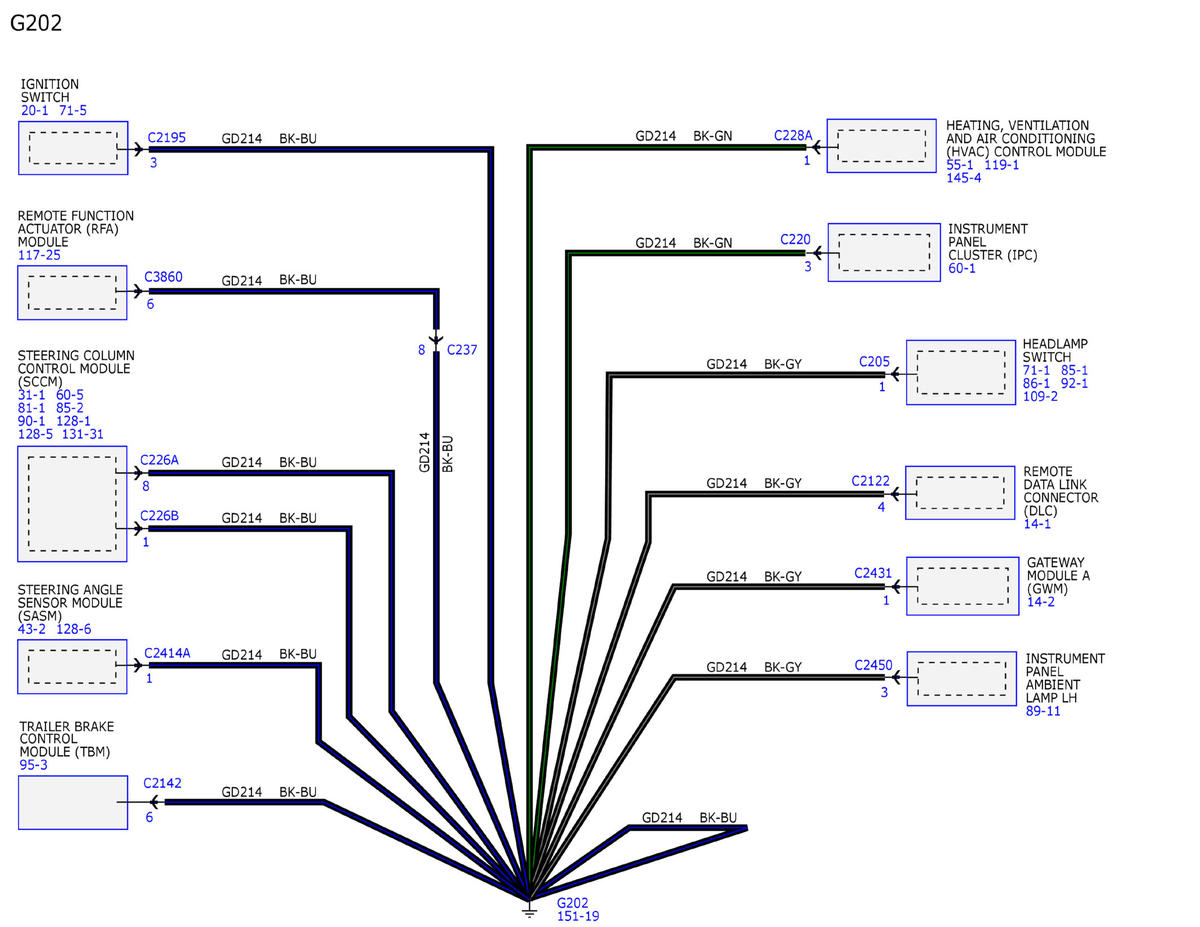

GFDWR110777Courtesy of FORD MOTOR COMPANY
