Module Controlled Functions - Component Location

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

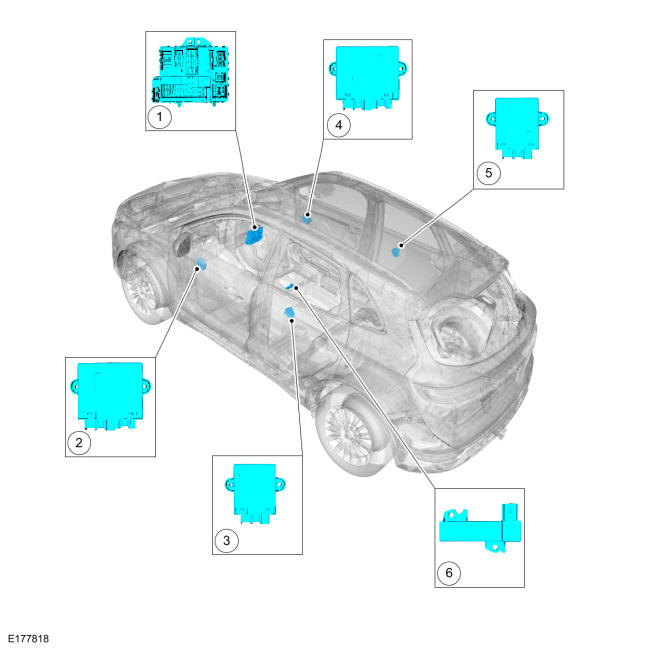

GFD229961Courtesy of FORD MOTOR COMPANY
Item Description
1 BCM
2 DDM
3 Driver Rear Door Module (DRDM)
4 PDM
5 Passenger Rear Door Module (PRDM)
6 RTM
