Connector Repair Procedures

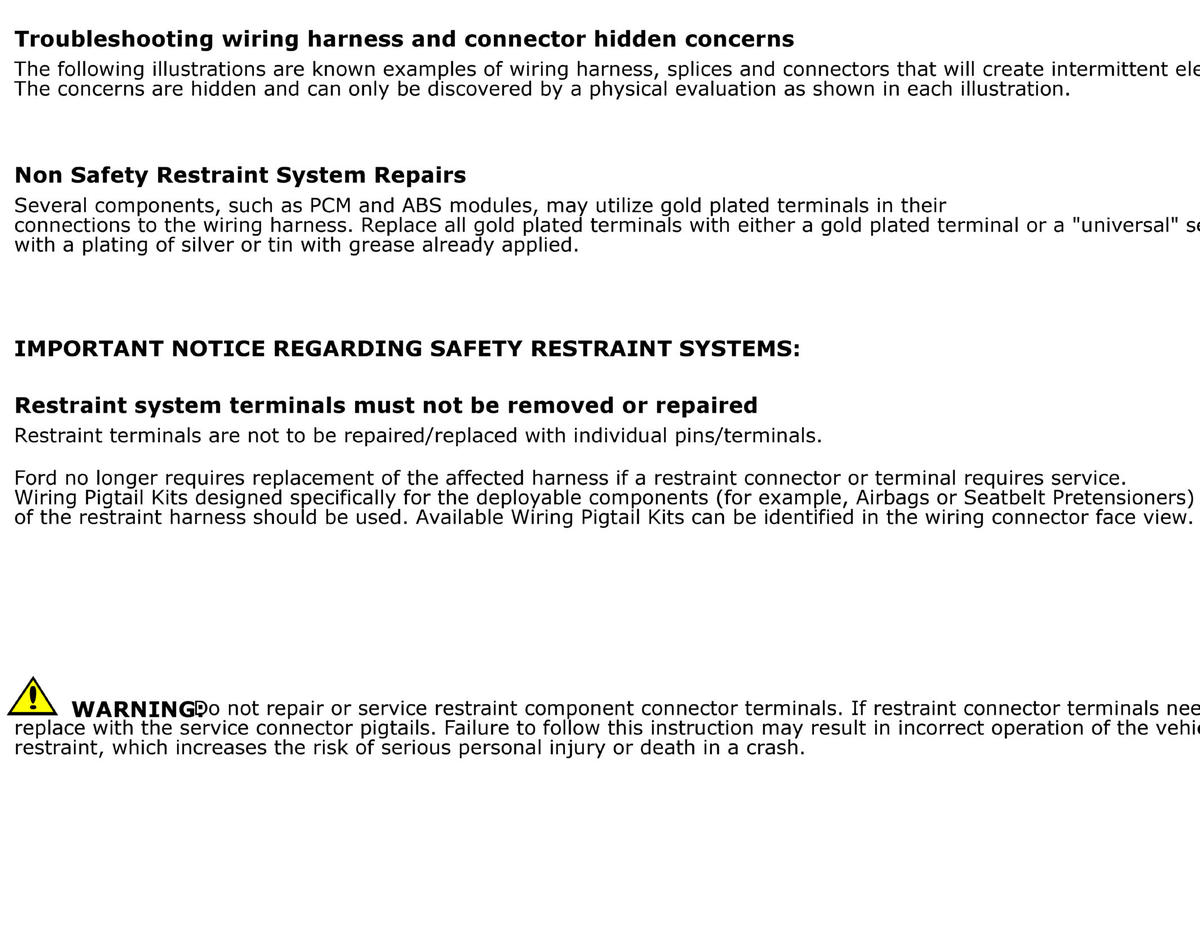

GFDWR112761Courtesy of FORD MOTOR COMPANY

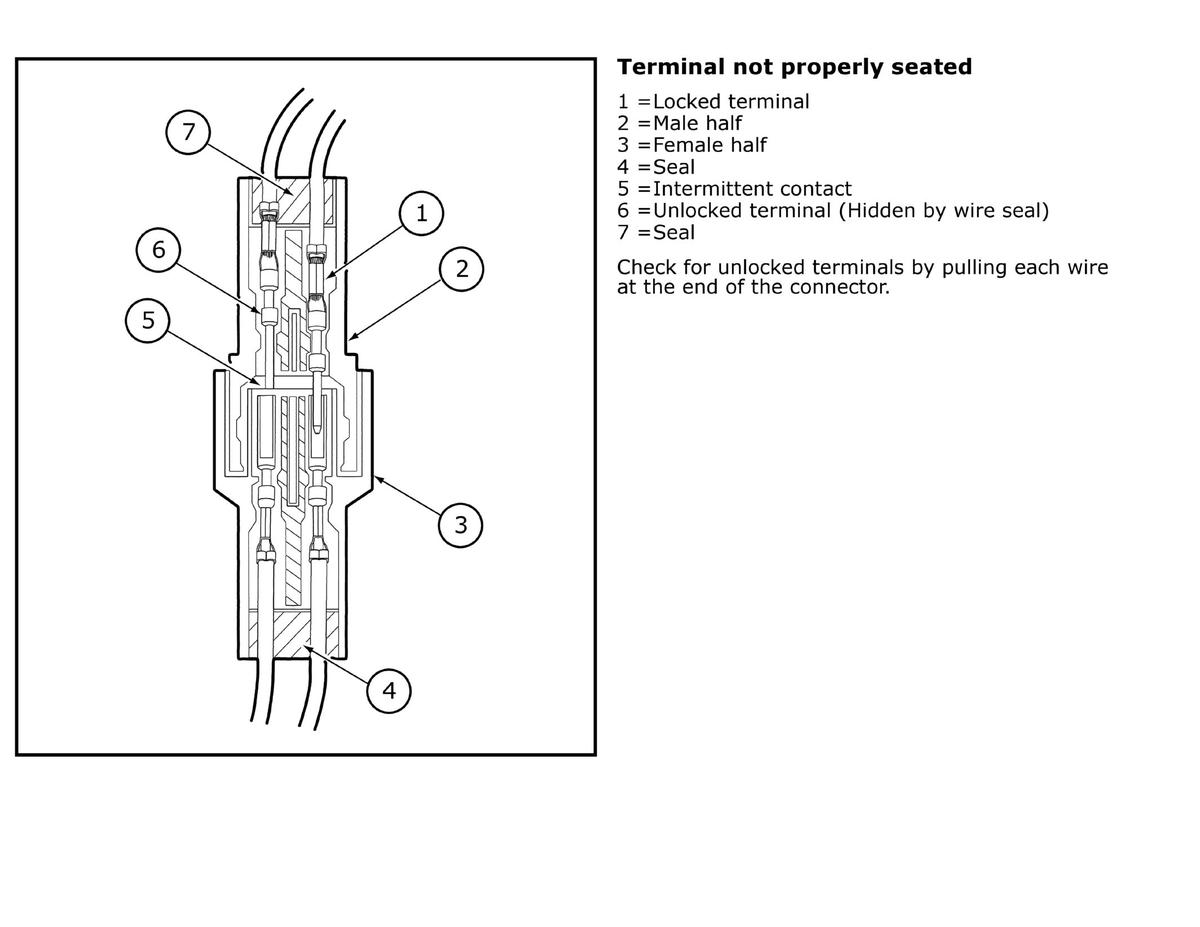

GFDWR112755Courtesy of FORD MOTOR COMPANY

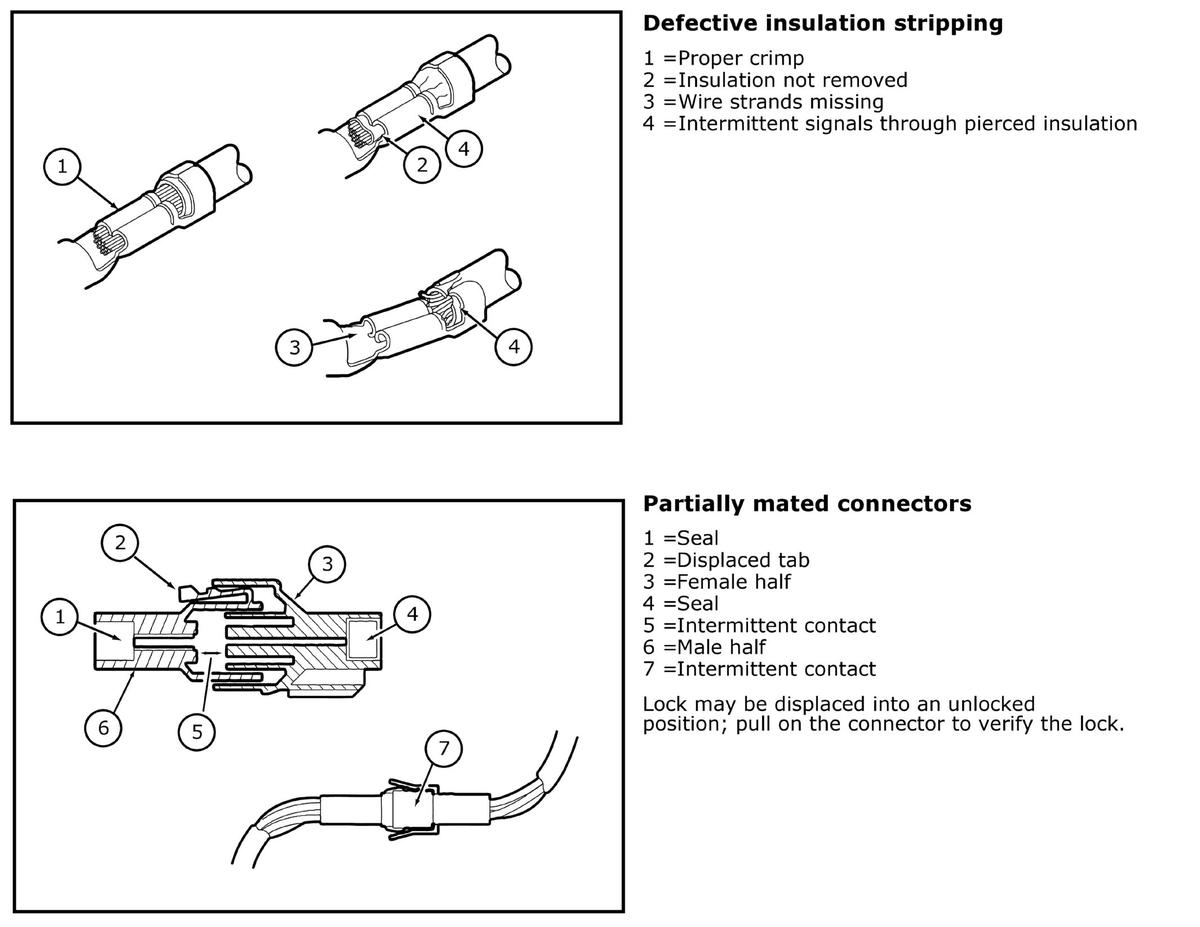

GFDWR112759Courtesy of FORD MOTOR COMPANY

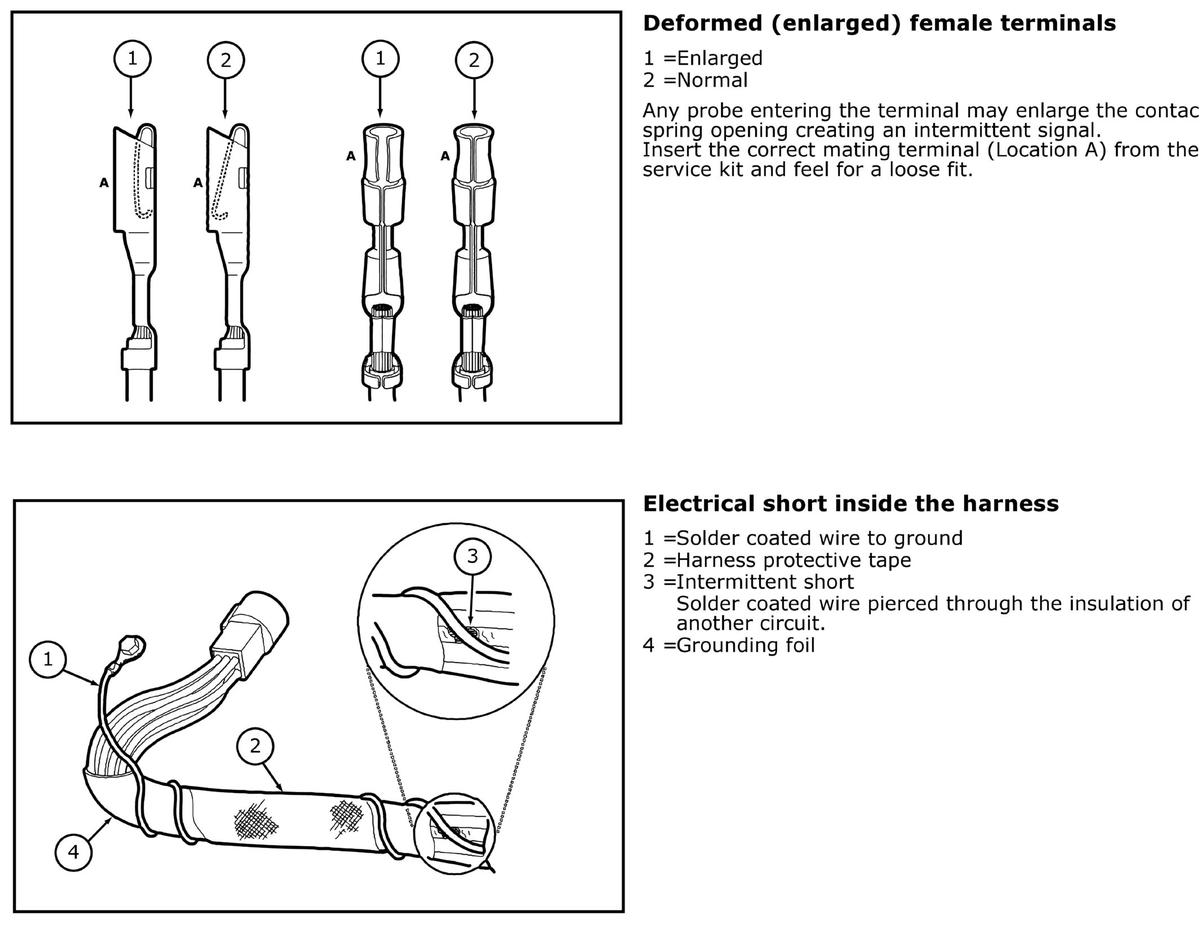

GFDWR112762Courtesy of FORD MOTOR COMPANY

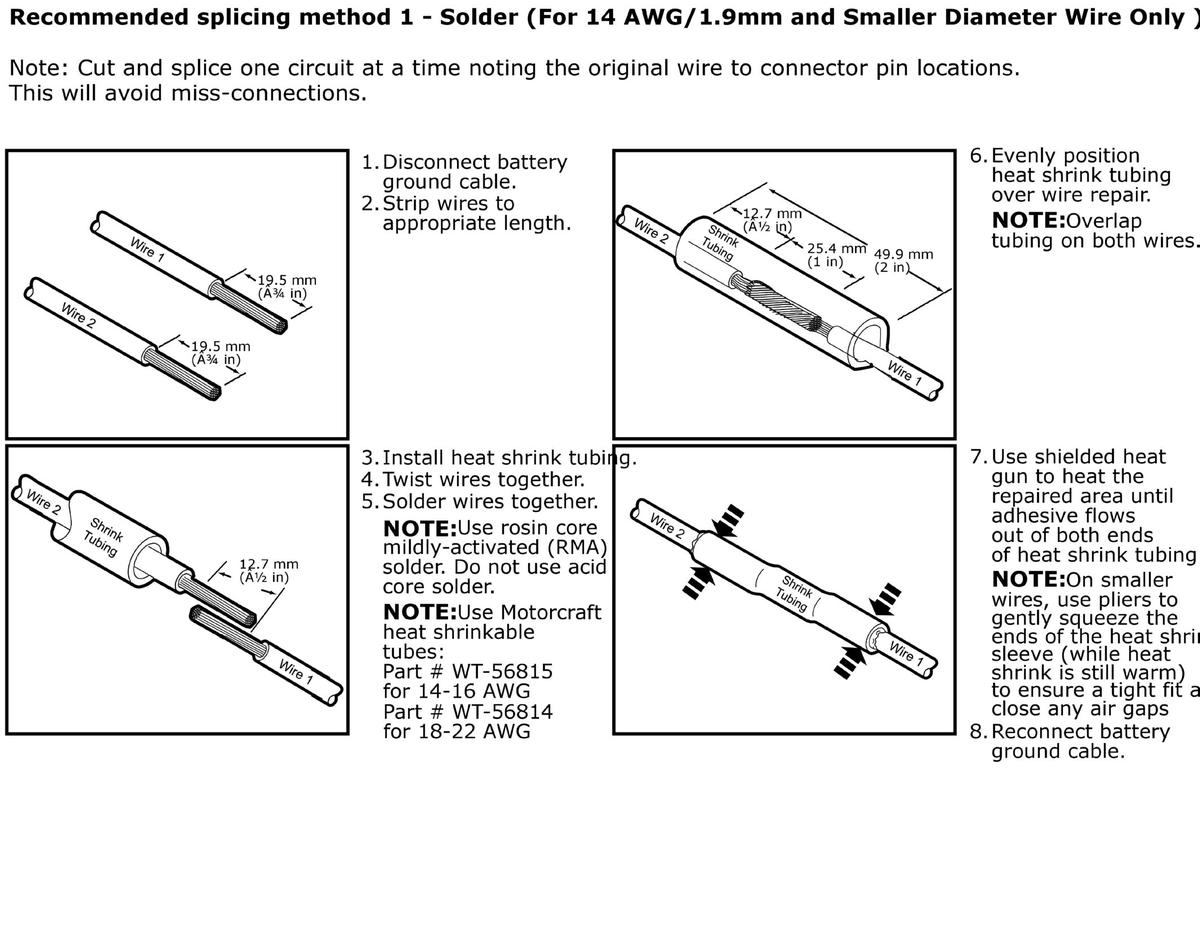

GFDWR112763Courtesy of FORD MOTOR COMPANY

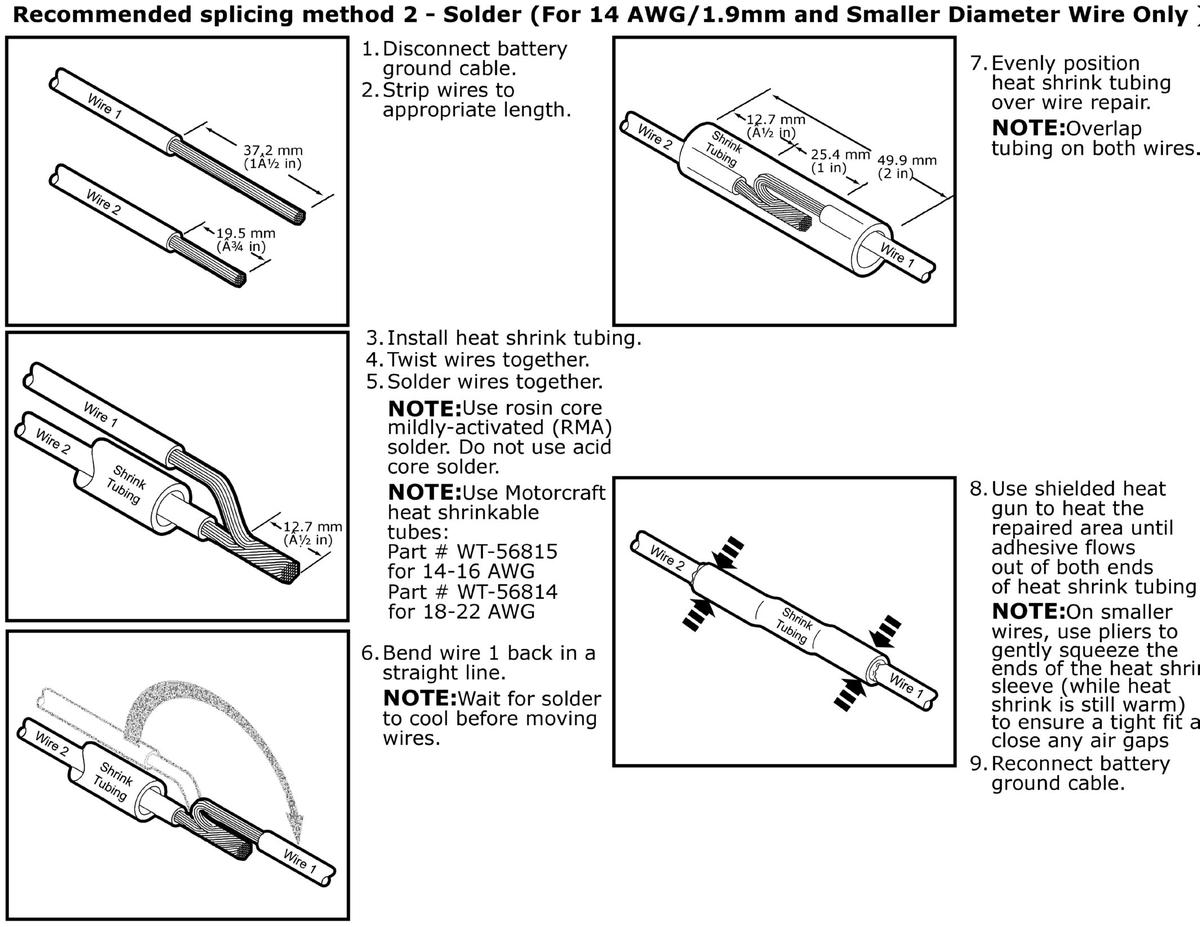

GFDWR112760Courtesy of FORD MOTOR COMPANY

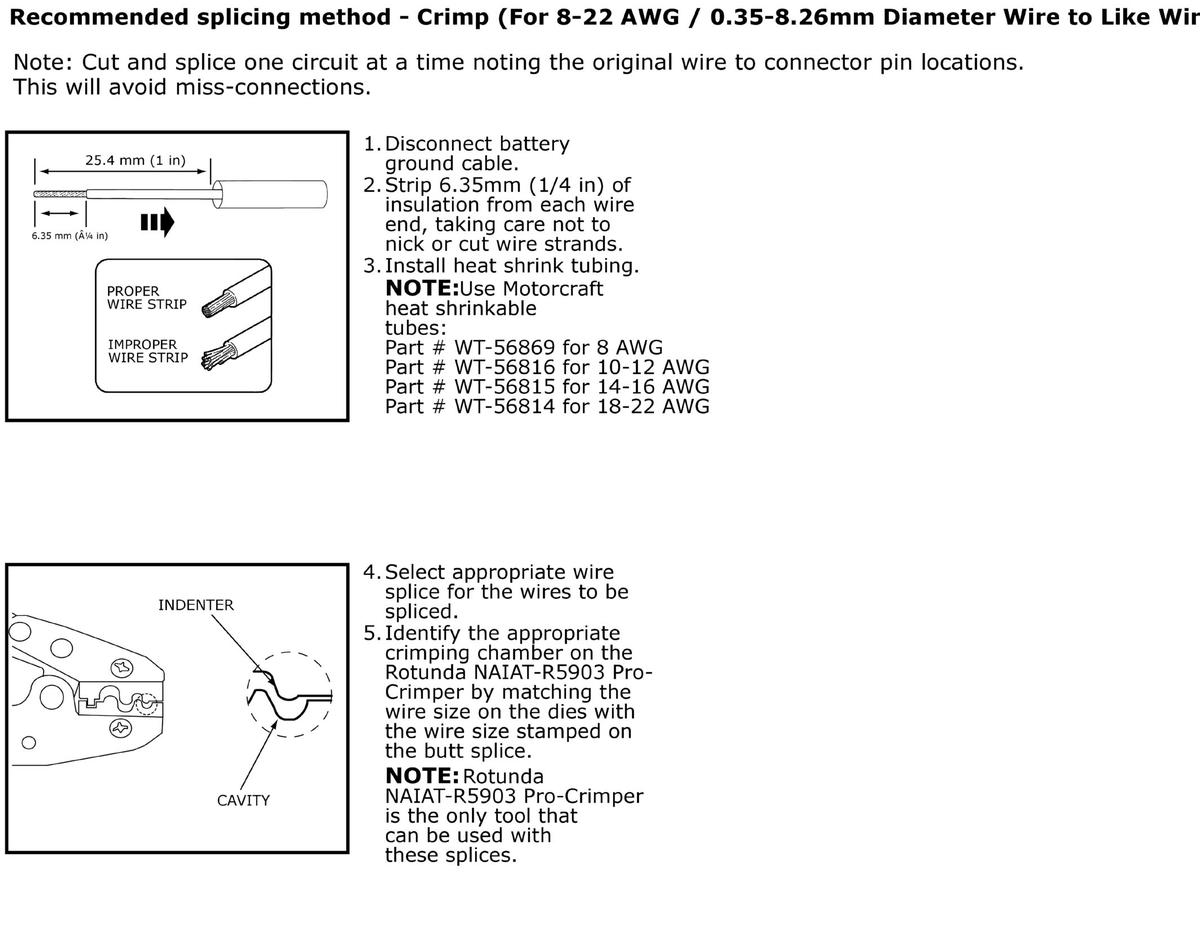

GFDWR112758Courtesy of FORD MOTOR COMPANY

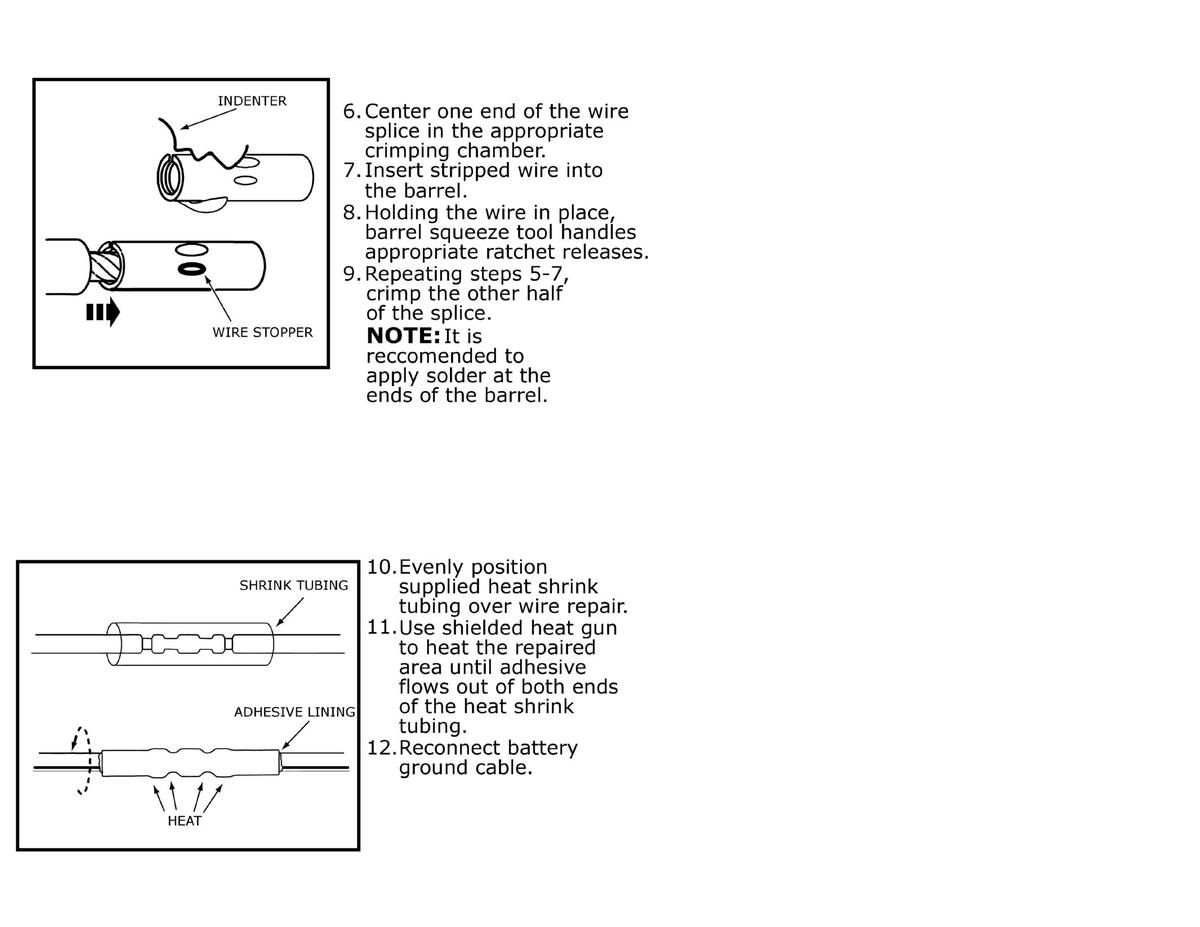

GFDWR112757Courtesy of FORD MOTOR COMPANY

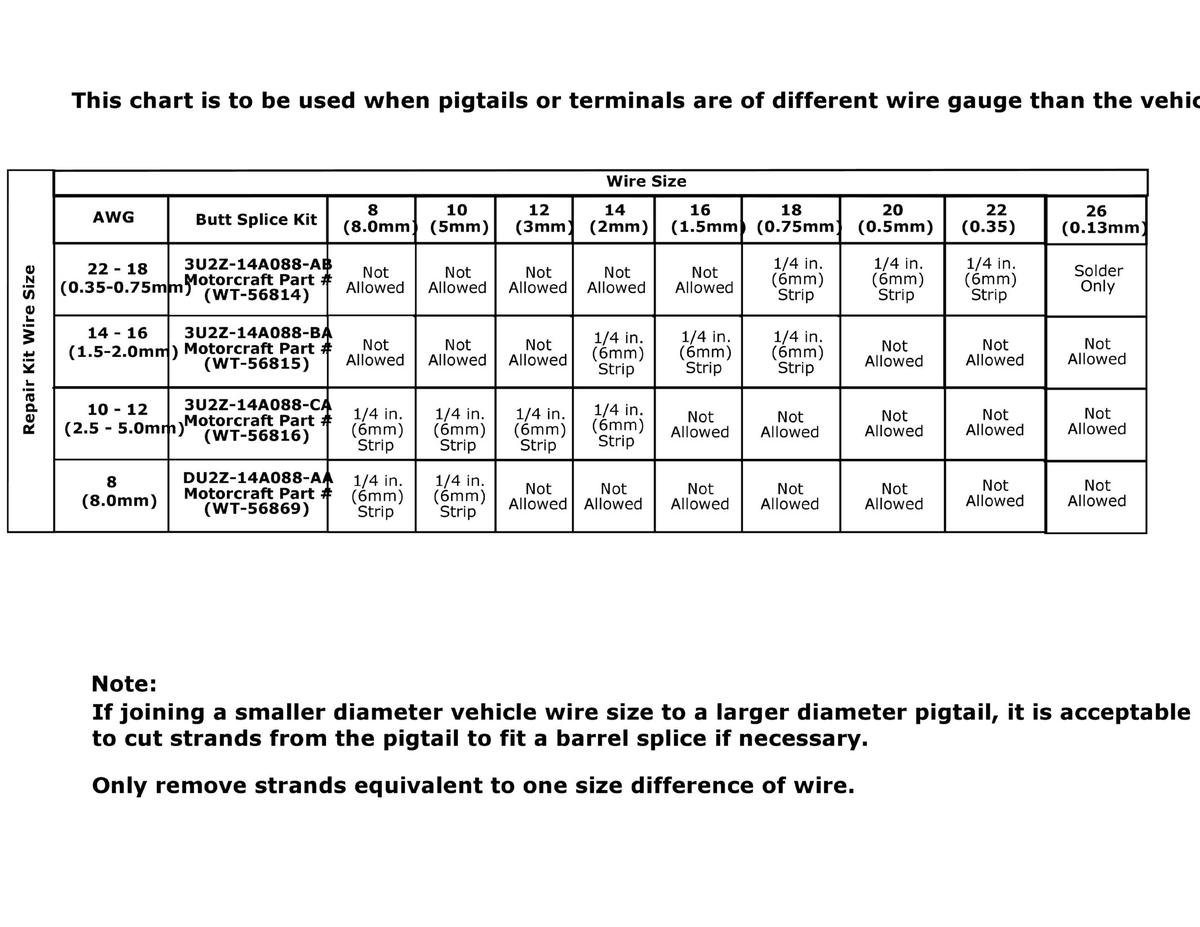

GFDWR112756Courtesy of FORD MOTOR COMPANY
