Front Door Alignment

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Inspection

1. Check front door to body dimensions. Refer to: Body and Frame .

   Adjustment

   NOTE: Removal steps in this procedure may contain installation details.
   NOTE: LH shown, RH similar.

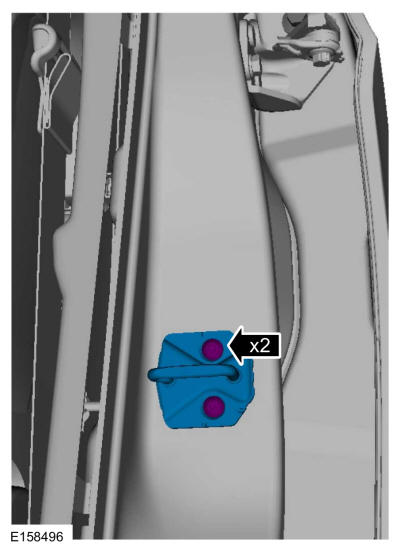

   All alignments

   Courtesy of FORD MOTOR COMPANY

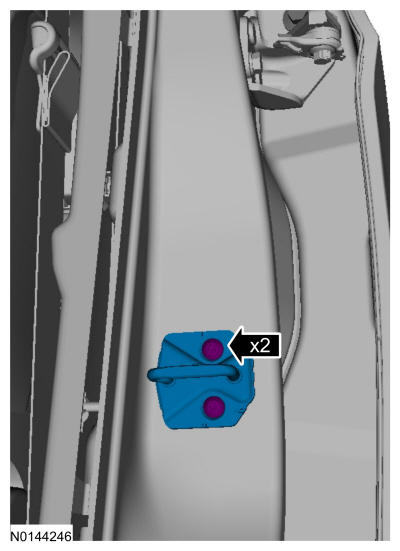

   Front door in and out, up and down alignment

2. Torque:

   41 lb.ft (55 Nm)

   Courtesy of FORD MOTOR COMPANY

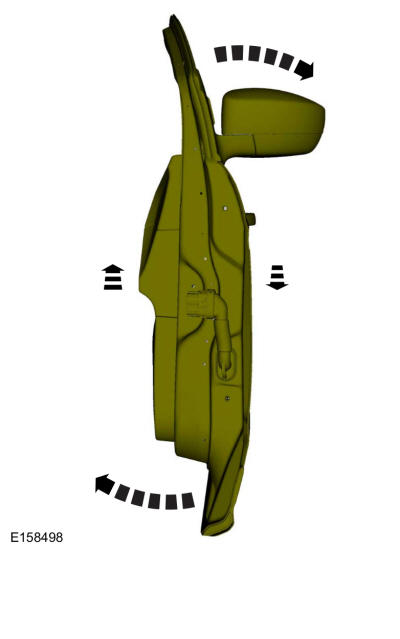

3. Adjust door to specification. Refer to: Body and Frame .

   Courtesy of FORD MOTOR COMPANY

   Front door fore, aft and tilt alignment

4. Remove the following items:
   1. Driver door only. Refer to: Front Seat .
   2. Driver door only. Refer to: Instrument Panel Lower Trim Panel .
   3. Driver door only. Refer to: Driver Knee Airbag .
   4. Passenger door only. Refer to: Glove Compartment .
   5. On both sides. Refer to: Fender Splash Shield .

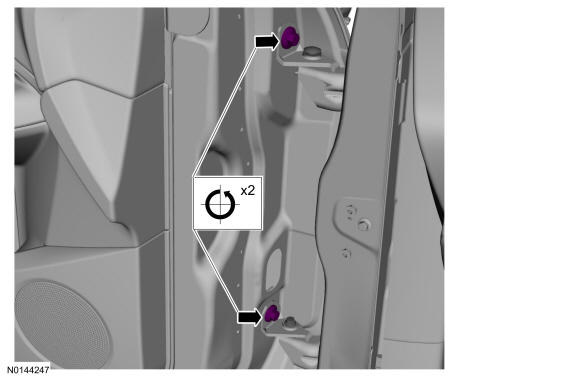

5. NOTE: Instrument panel removed for clarity.
   NOTE: Driver side shown, passenger side similar.

   Torque: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

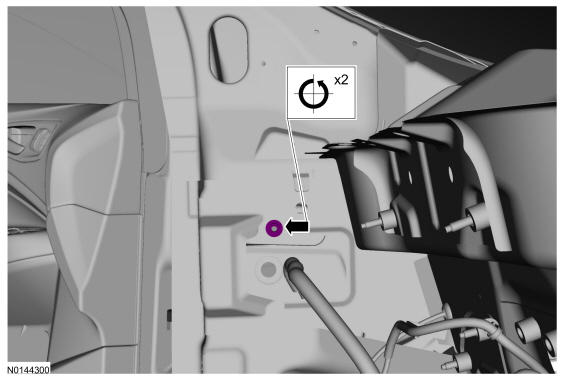

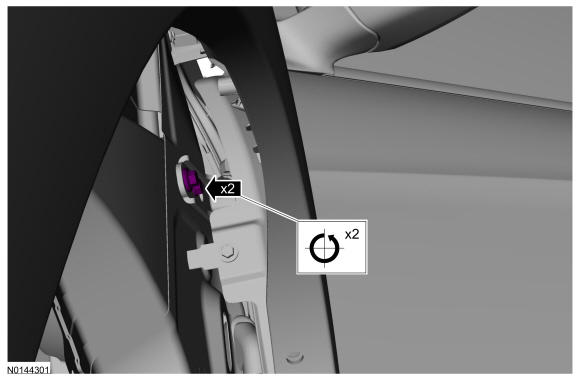

6. NOTE: Driver side shown, passenger side similar.

   Torque: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

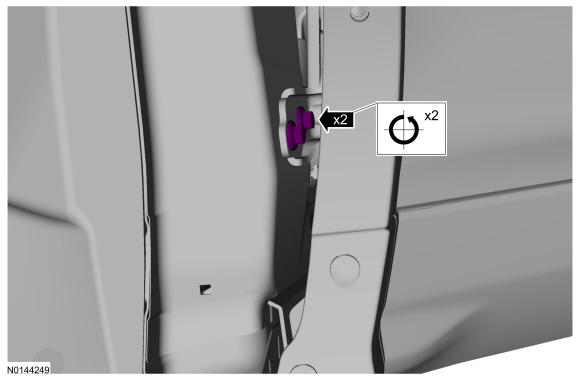

7. NOTE: Driver side shown, passenger side similar.

   Torque: 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

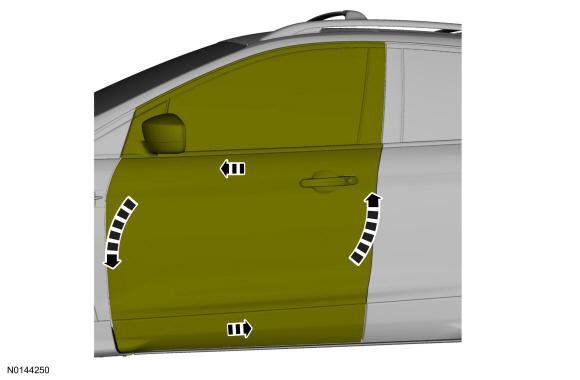

8. NOTE: Driver side shown, passenger side similar.

   Adjust door to specification. Refer to: Body and Frame .

   Courtesy of FORD MOTOR COMPANY

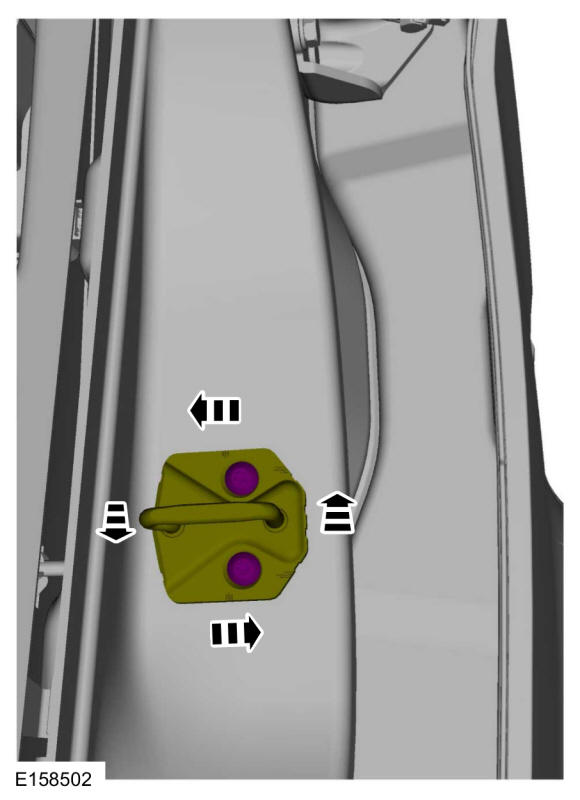

   All alignments

   Courtesy of FORD MOTOR COMPANY

9. Check body to front door dimensions. Refer to: Body and Frame .

   Torque: 177 lb.in (20 Nm)

   Courtesy of FORD MOTOR COMPANY

   Front door fore, aft and tilt alignment

10. Install the following items:
    1. Driver door only. Refer to: Driver Knee Airbag .
    2. Driver door only. Refer to: Instrument Panel Lower Trim Panel .
    3. Driver door only. Refer to: Front Seat .
    4. Passenger door only. Refer to: Glove Compartment .
    5. On both sides. Refer to: Fender Splash Shield .
