Roof Opening Panel Alignment
WARNING: This page is about a different car, the 2019 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING
Adjustment
NOTE:
Rear Fixed Glass Panel
NOTE:
If both glass panels are being aligned, align the rear fixed glass panel before aligning the front sliding glass panel.
The front sliding glass panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time the roof opening panel motor has been removed, the roof opening panel glass (rear fixed or front sliding) has been removed or adjusted, or if the roof opening panel frame has been removed.

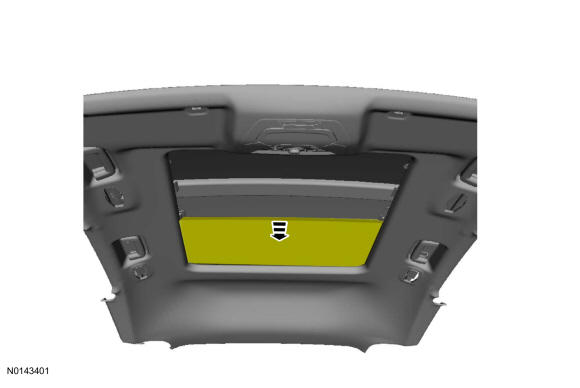

 Courtesy of FORD MOTOR COMPANY
|

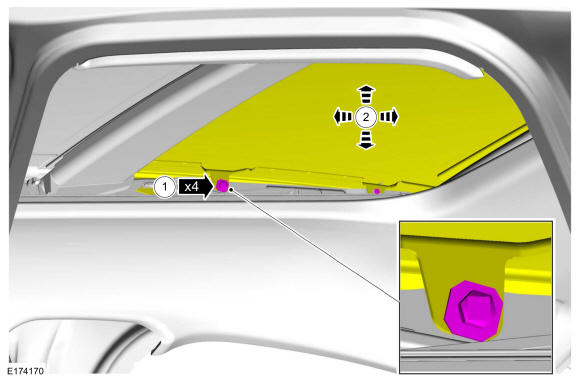

 Courtesy of FORD MOTOR COMPANY
|

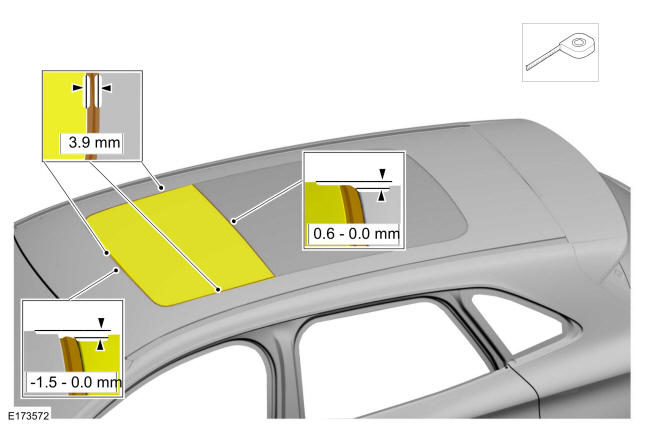

 Courtesy of FORD MOTOR COMPANY
|
If necessary, loosen only for adjustment.
Torque:
44 lb.in (5 Nm)
 Courtesy of FORD MOTOR COMPANY
|
If the rear fixed glass alignment was adjusted and the front sliding glass panel does not
need adjustment, initialize the front sliding glass panel. Refer to: GENERAL PROCEDURES
Adjustment
NOTE:
Front Sliding Glass Panel
NOTE:
The front sliding glass panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time the roof opening panel motor has been removed, the roof opening panel glass (rear fixed or front sliding) has been removed or adjusted, or if the roof opening panel frame has been removed.

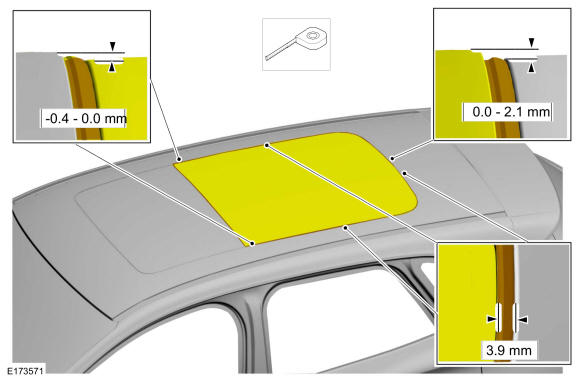

Courtesy of FORD MOTOR COMPANY
|

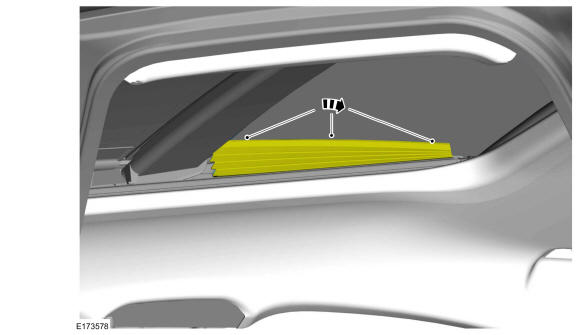

 Courtesy of FORD MOTOR COMPANY
|
If necessary.

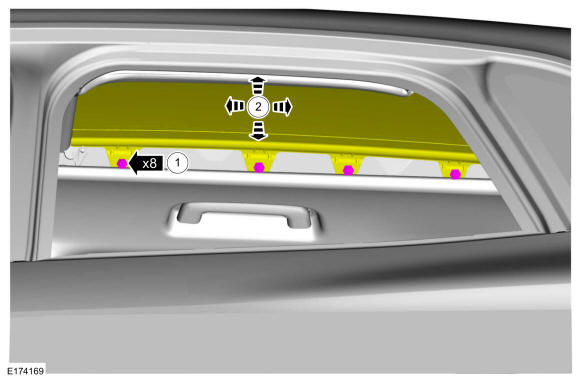

Courtesy of FORD MOTOR COMPANY
|
If necessary.
 Courtesy of FORD MOTOR COMPANY
|
NOTE:
Blind removed for clarity
If necessary, loosen only for adjustment.
Torque:
44 lb.in (5 Nm)
 Courtesy of FORD MOTOR COMPANY
|
If any adjustment was made on the front sliding or rear fixed glass panels, initialize the front sliding glass panel. Refer to: Power Roof Opening Panel Initialization
.
