Component Testing

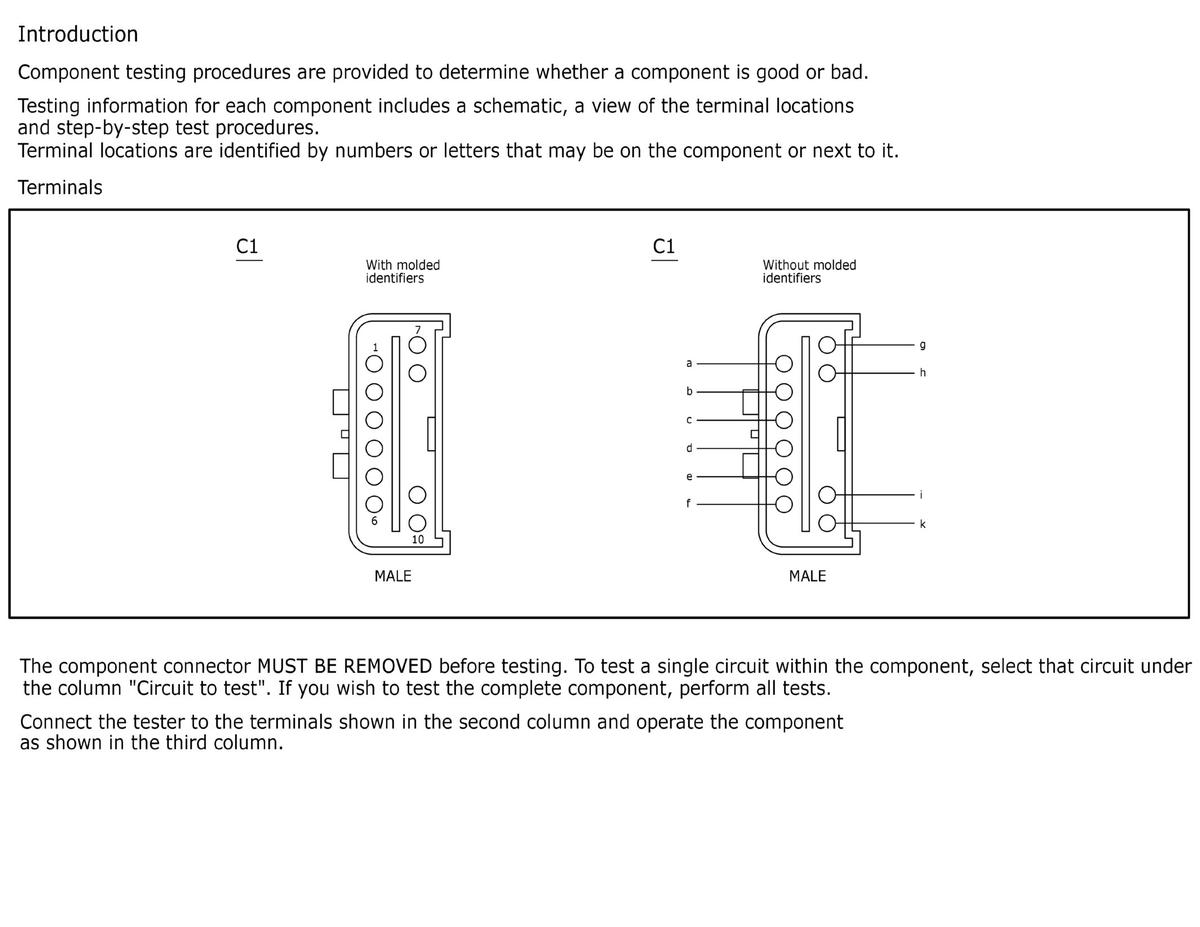

Fig 1: Component Testing Introduction
GFDWR111269Courtesy of FORD MOTOR COMPANY

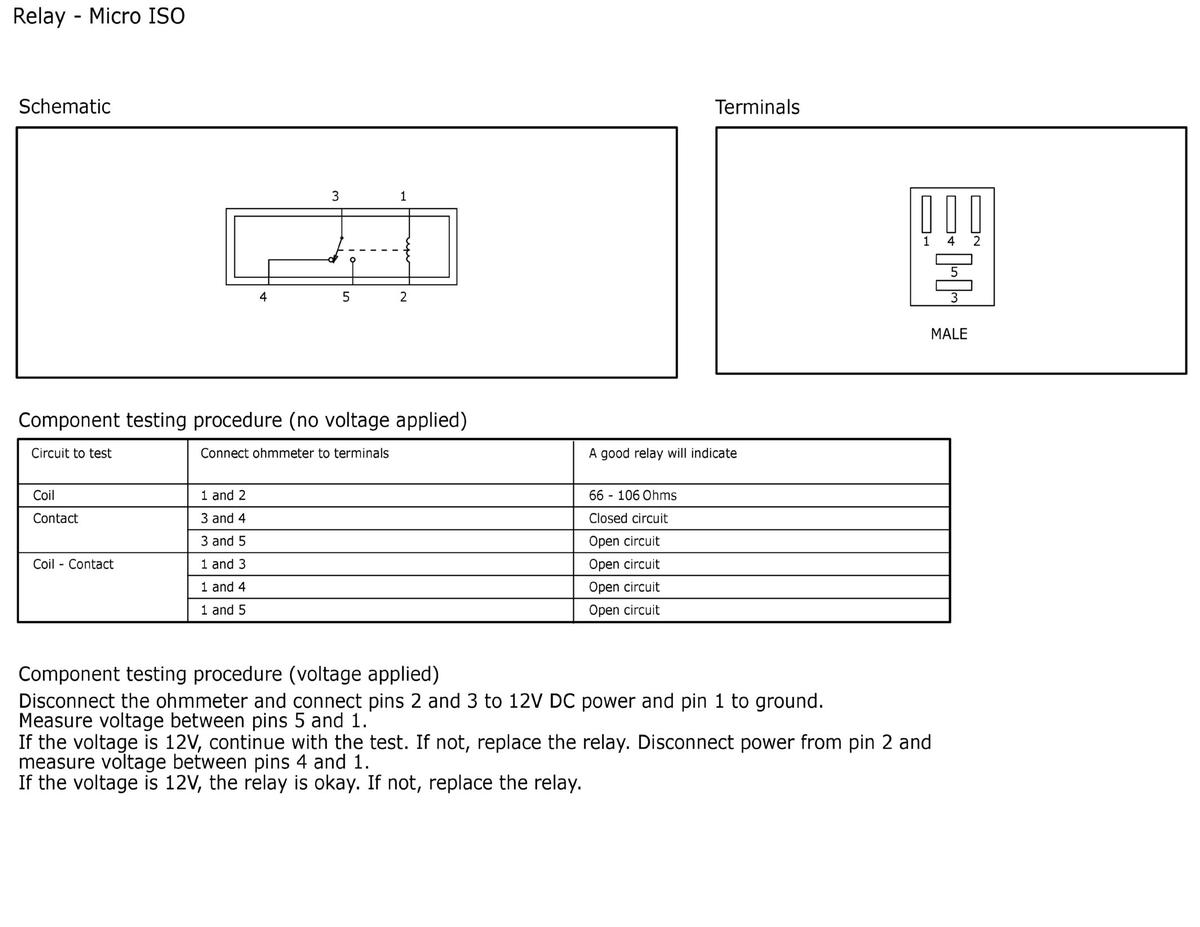

Fig 2: Relay - Micro ISO Component Testing
GFDWR111267Courtesy of FORD MOTOR COMPANY

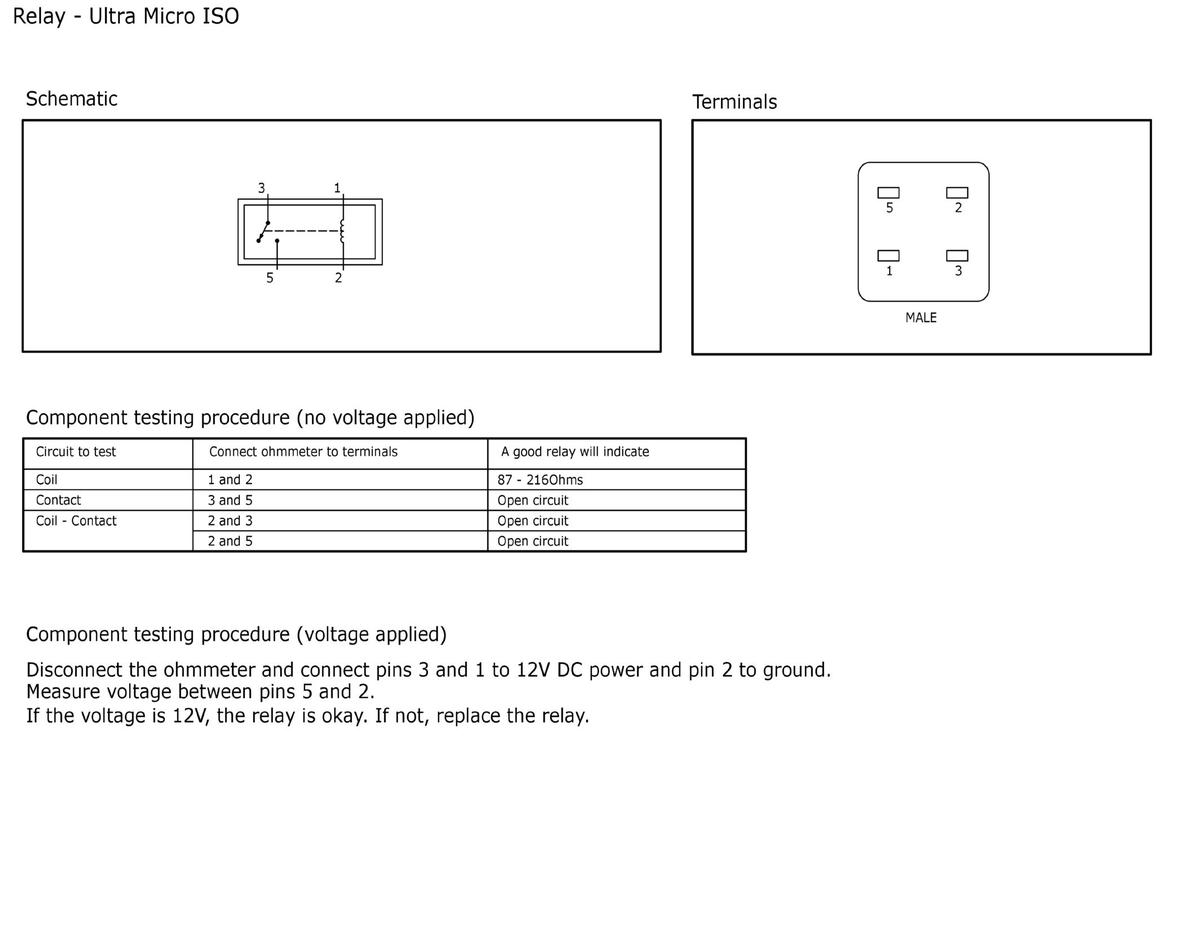

Fig 3: Relay - Ultra Micro ISO Component Testing
GFDWR111268Courtesy of FORD MOTOR COMPANY

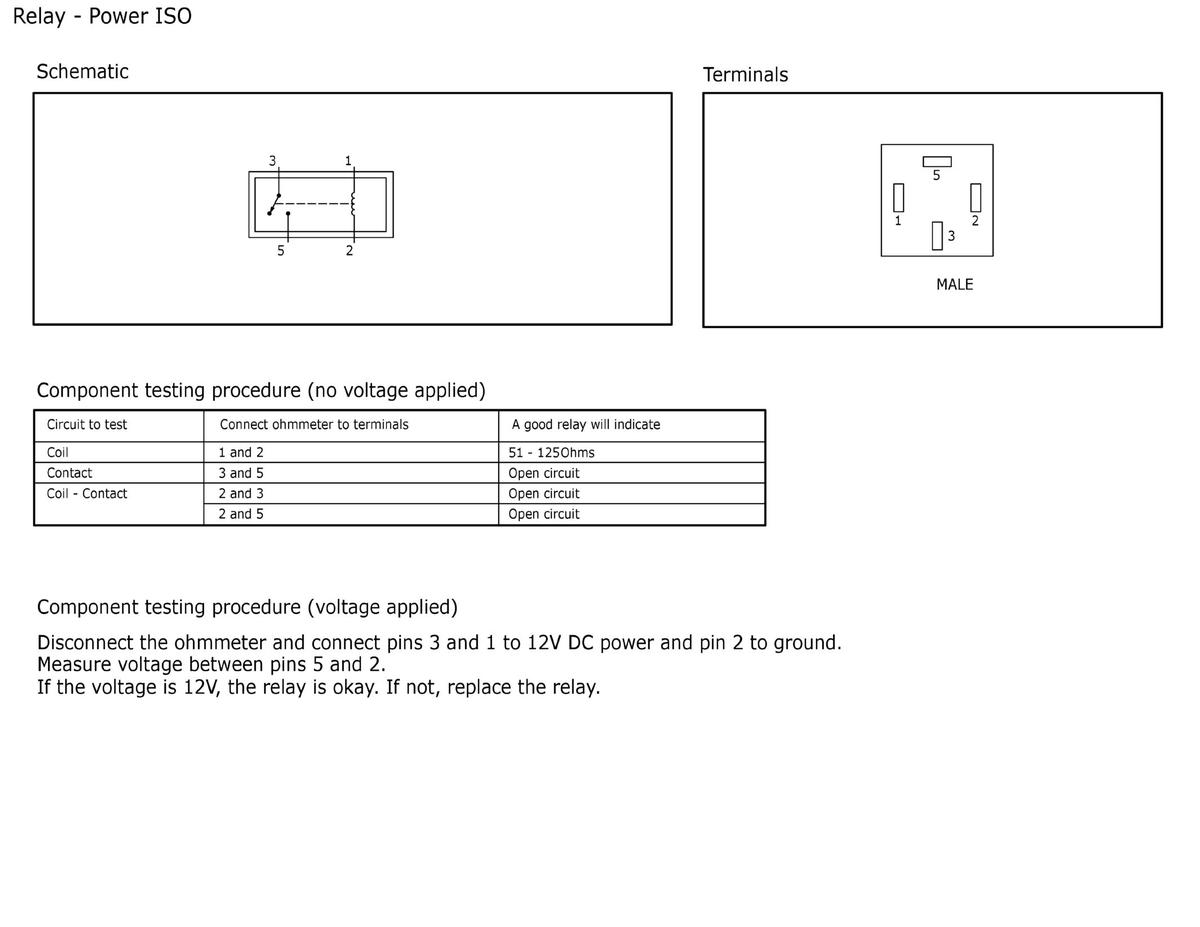

Fig 4: Relay Power ISO Component Testing
GFDWR111270Courtesy of FORD MOTOR COMPANY
