Quick Release Coupling

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 1
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

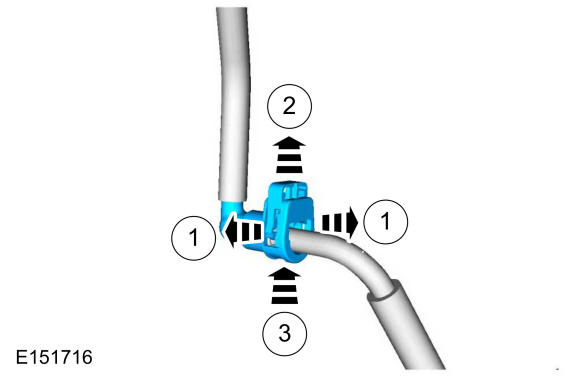

  3. GFD533330Courtesy of FORD MOTOR COMPANY
  4. GFD533331Courtesy of FORD MOTOR COMPANY

Connect

  1. Push the quick release coupling onto the tube.
    GFD533332Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

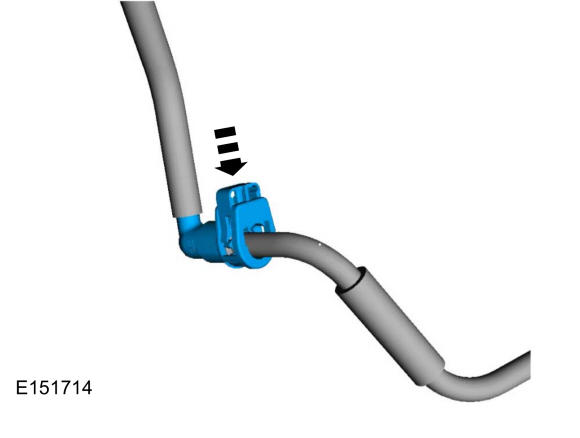

    GFD533333Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 2
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .
  3. GFD533334Courtesy of FORD MOTOR COMPANY
  4. GFD533335Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533336Courtesy of FORD MOTOR COMPANY
  2. GFD533337Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 3
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

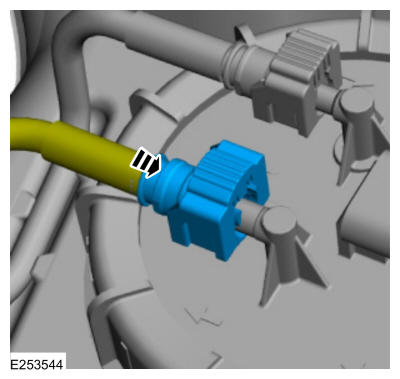

  3. GFD533338Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533339Courtesy of FORD MOTOR COMPANY
  2. GFD533340Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 4
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

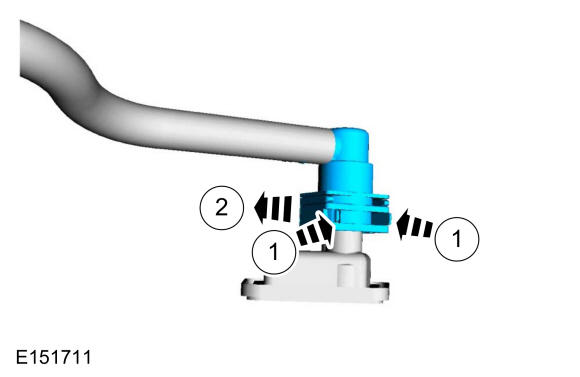

  3. GFD533341Courtesy of FORD MOTOR COMPANY

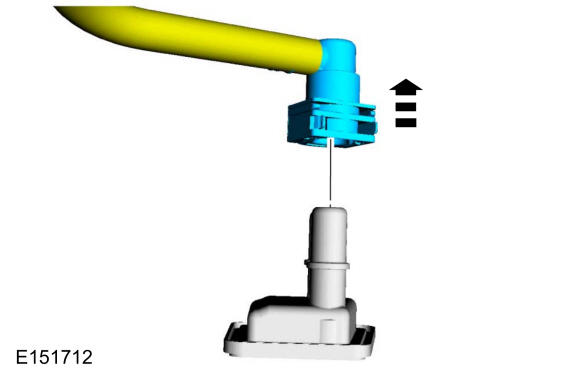

  4. GFD533342Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533343Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 5
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .
  3. GFD533344Courtesy of FORD MOTOR COMPANY
  4. GFD533345Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533346Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 6
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .
  3. Press the tabs of the rear retainer clip and pull it to the outward position.

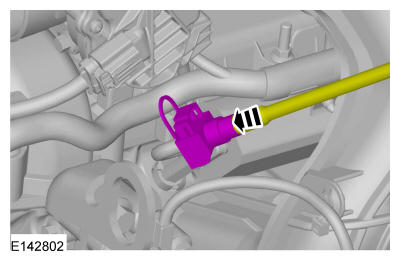

    GFD533347Courtesy of FORD MOTOR COMPANY
  4. GFD533348Courtesy of FORD MOTOR COMPANY

Connect

  1. Pull on the quick release coupling to make sure it is securely fastened.
    GFD533349Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 7
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

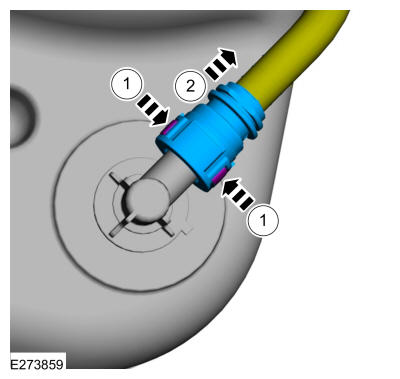

  3. GFD533350Courtesy of FORD MOTOR COMPANY
  4. GFD533351Courtesy of FORD MOTOR COMPANY

Connect

  1. Pull on the quick connect coupling to make sure it is securely fastened.
    GFD533352Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 8
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .
  3. GFD533344Courtesy of FORD MOTOR COMPANY
  4. GFD533345Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533346Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 9
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .
    1. Release the secondary locking tab.
    2. Depress the primary locking tab.
    3. Separate the quick release coupling from the tube.

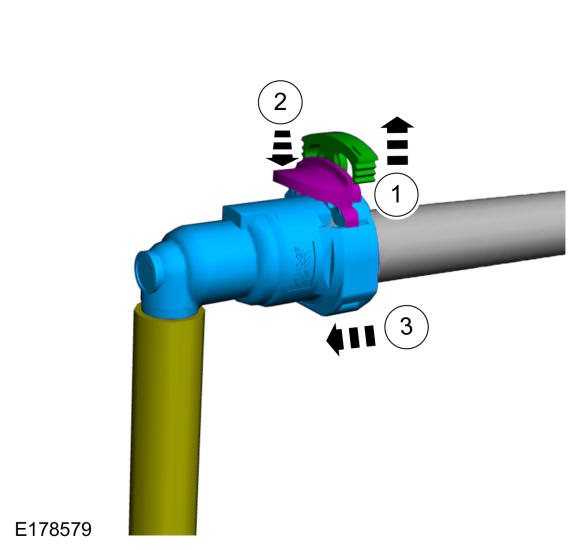

GFD533353Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the quick release coupling onto the tube.
    2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Lock the secondary locking tab.

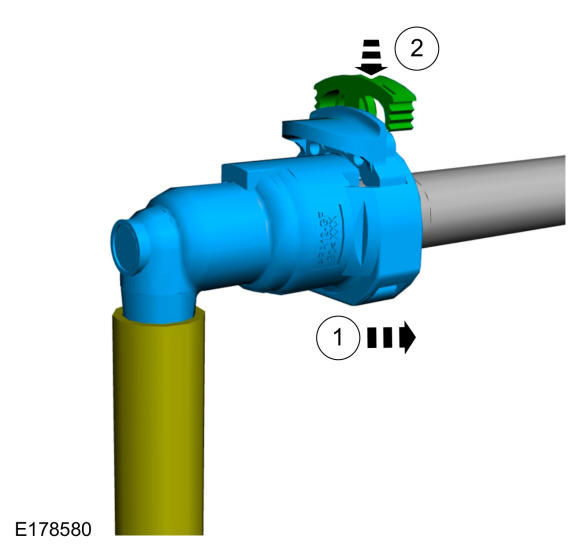

    GFD533354Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 10
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .
    1. Push on the locking tab.
    2. Lift the clip.

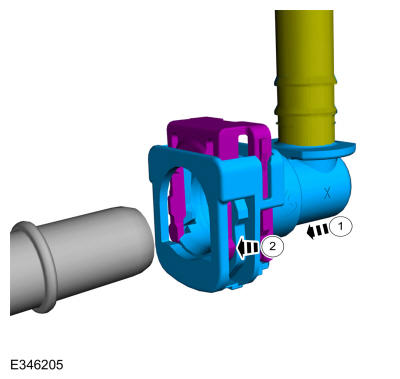

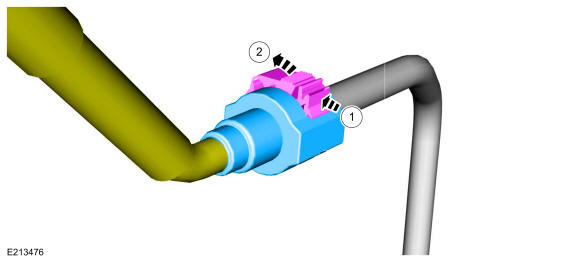

    GFD533355Courtesy of FORD MOTOR COMPANY
    1. Depress the tabs inward.
    2. Push the clip downward.
    3. Separate the quick release coupling from the fuel line.

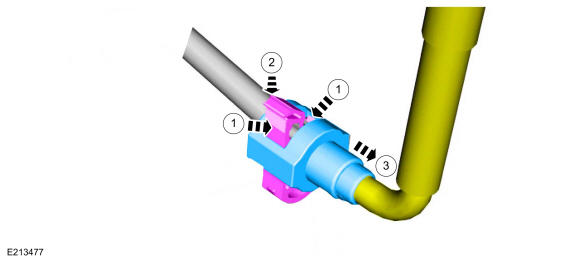

GFD533356Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the quick release coupling onto the tube.
    2. Push the clip down into the quick release coupling.
    3. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

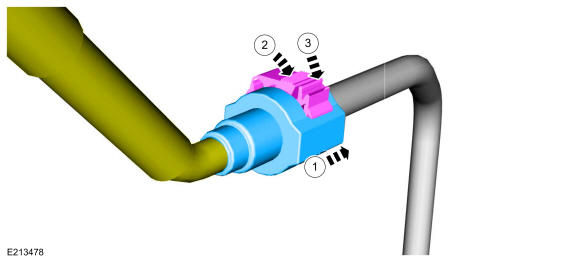

    GFD533357Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 11
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

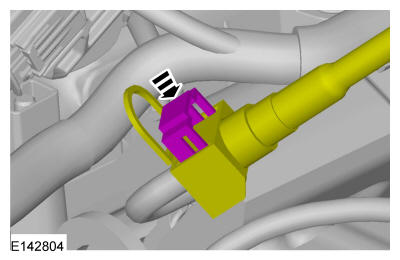

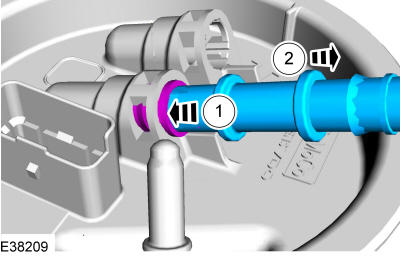

  3. GFD533358Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533358Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 12
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

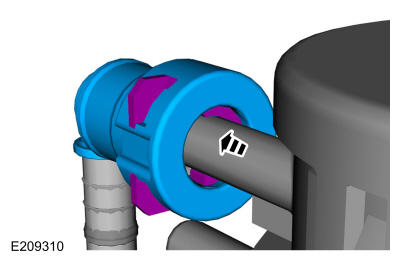

  3. GFD533359Courtesy of FORD MOTOR COMPANY
  4. GFD533360Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533361Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 13
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .
  3. GFD533362Courtesy of FORD MOTOR COMPANY

Connect

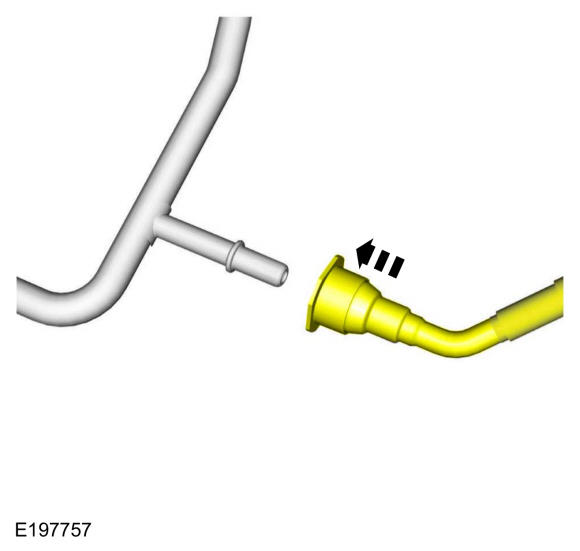

  1. GFD533363Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 14
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .
  3. GFD533364Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533365Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 15
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Press both retaining tabs inward and remove quick release coupling from fuel tube.
    GFD533366Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Inspect and clean both quick release coupling ends.

    Install the quick release coupling onto the tube until it is fully seated.

    GFD533367Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 16
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

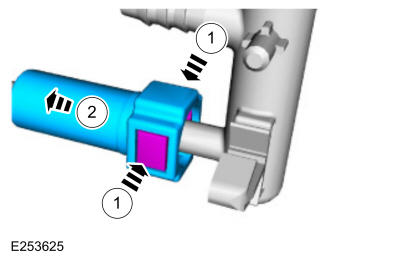

  3. GFD533368Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533368Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 17
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .
  3. GFD533369Courtesy of FORD MOTOR COMPANY

Connect

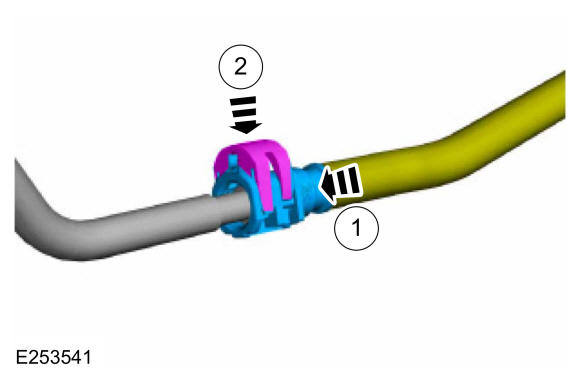

  1. GFD533370Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 18
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

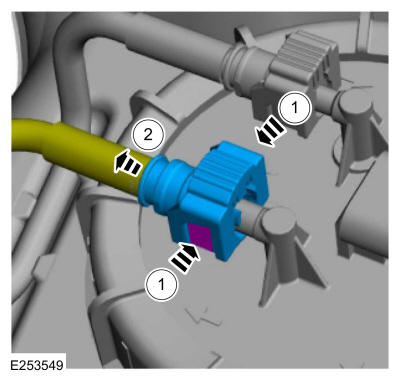

  3. GFD533371Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533372Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 19
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

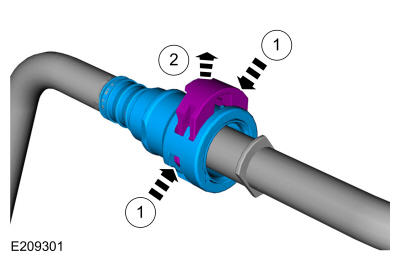

  3. GFD533373Courtesy of FORD MOTOR COMPANY

Connect

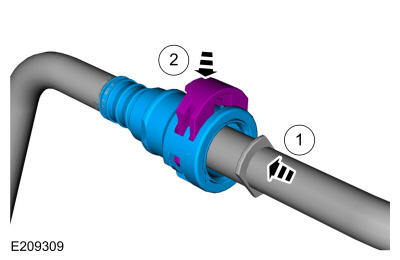

  1. GFD533374Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 20
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

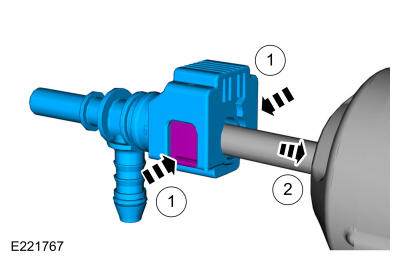

  3. GFD533375Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533376Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 21
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

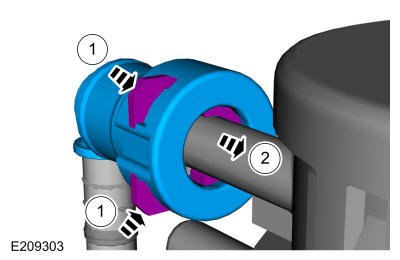

  3. GFD533377Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533378Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 22
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

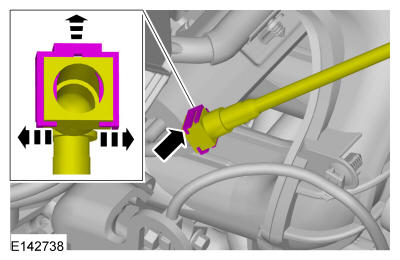

  3. GFD533379Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533380Courtesy of FORD MOTOR COMPANY
  2. GFD533381Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  3. NOTE: Make sure that all fuel connections are checked for leaks.
    NOTE: This step is only necessary if a new component is installed.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

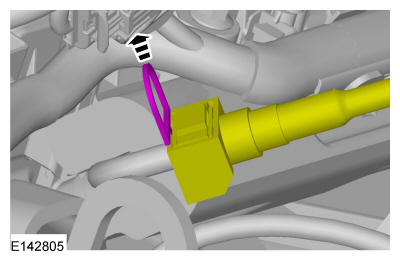

    GFD533382Courtesy of FORD MOTOR COMPANY
  4. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 23
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

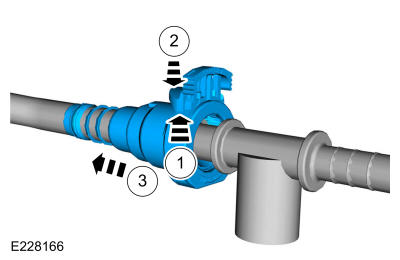

  3. GFD533383Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD533384Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 24
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .
  3. GFD533385Courtesy of FORD MOTOR COMPANY

Connect

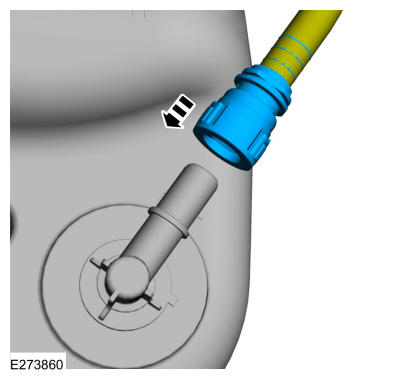

  1. GFD533386Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 25
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .
    1. Depress the clip into the quick release coupling.
    2. Separate the quick release coupling from the tube.
    GFD533387Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533388Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 26
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .
    1. Remove the quick release coupling from the tube.

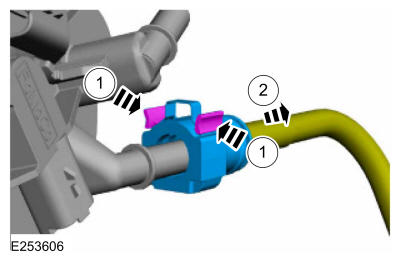

    GFD533389Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533390Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 27
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .

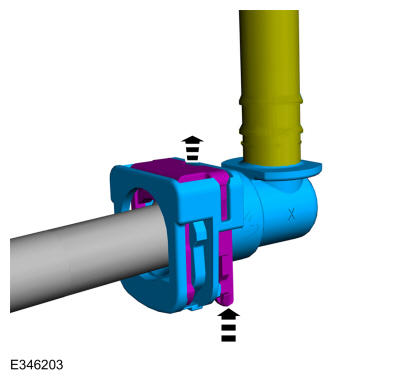

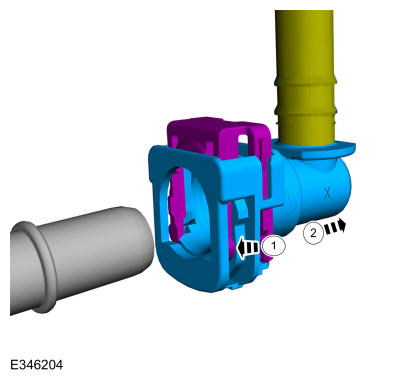

  3. GFD533391Courtesy of FORD MOTOR COMPANY
  4. Remove the quick release coupling from the tube.
    GFD533392Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD533393Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Cables - 3.0L Ecoboost .
scientia non olet · About LEMON Manuals
