Driver Status Monitor Camera Module [CMR]: Removal

All vehicles

1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.
   NOTE: Removal steps in this procedure may contain installation details.

   Using a diagnostic scan tool, begin the PMI process for the driver status monitor camera module following the on-screen instructions.

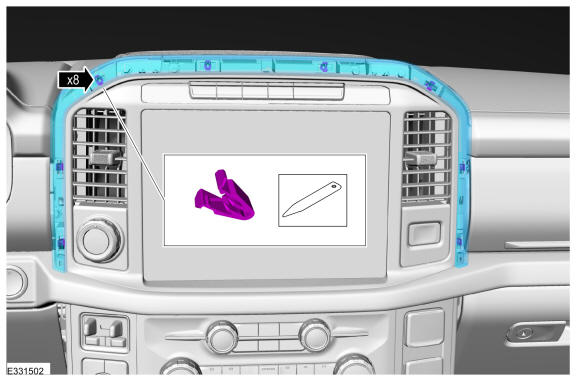

2. Release the clips and remove the upper centerstack bezel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

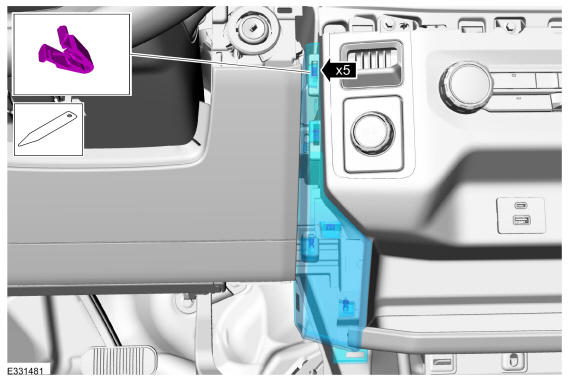

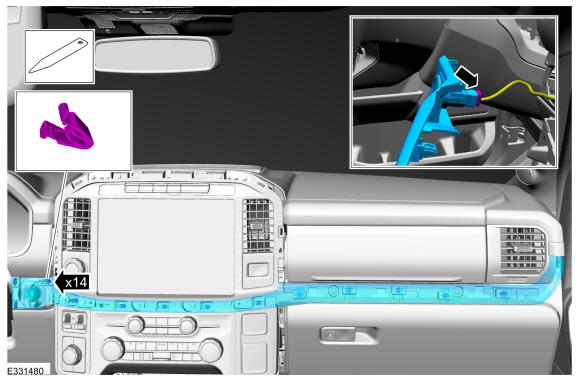

3. Release the clips and remove the RH instrument center trim panel.
   • On vehicles equipped with push button start disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

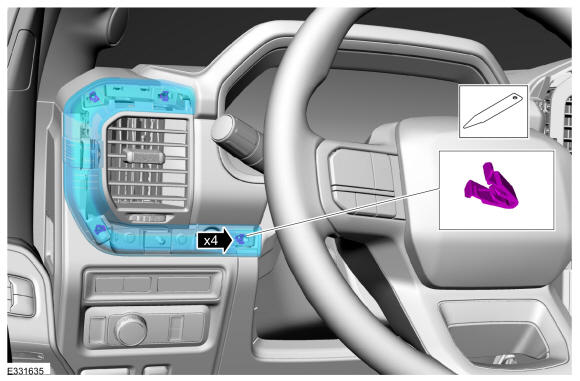

4. Release the clips and remove the LH instrument center trim panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

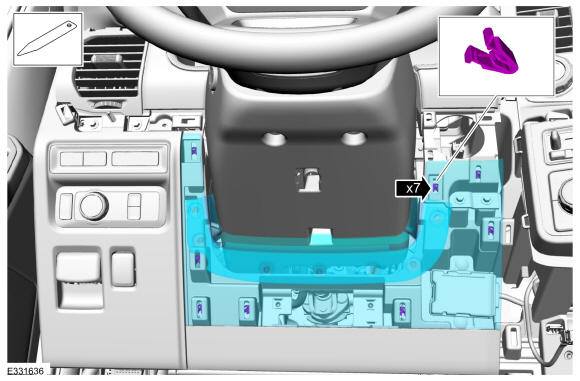

5. Release the clips and remove the lower steering column closeout panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

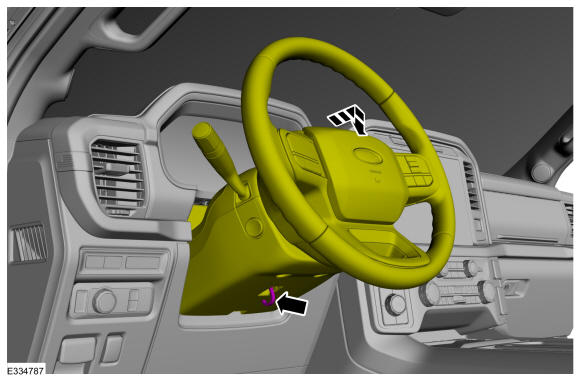

6. Fully extend and lower the steering column.

   Courtesy of FORD MOTOR COMPANY

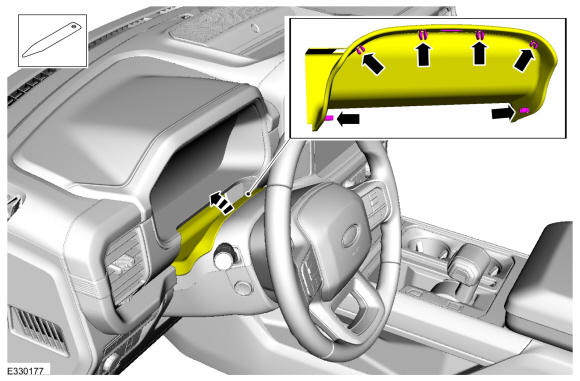

7. Release the tabs and disconnect the gap hider from the upper steering column shroud. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

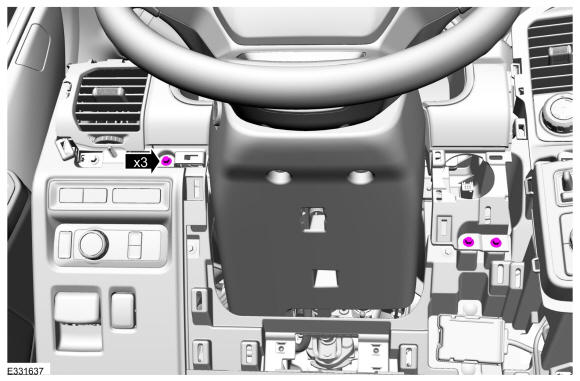

8. Remove the screws.

   Torque

   : 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

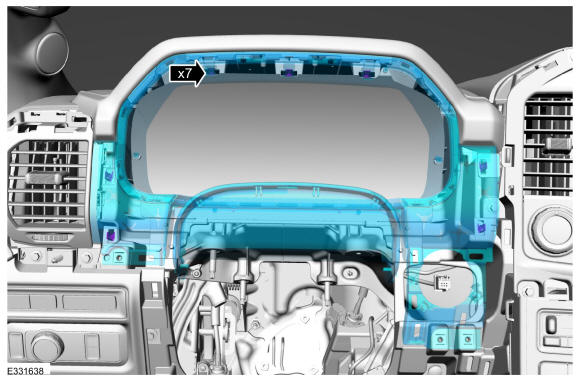

9. Release the clips and remove the instrument cluster panel bezel.

   Courtesy of FORD MOTOR COMPANY

   Vehicles equipped with a floor console

10. Remove the floor console. Refer to: Floor Console .

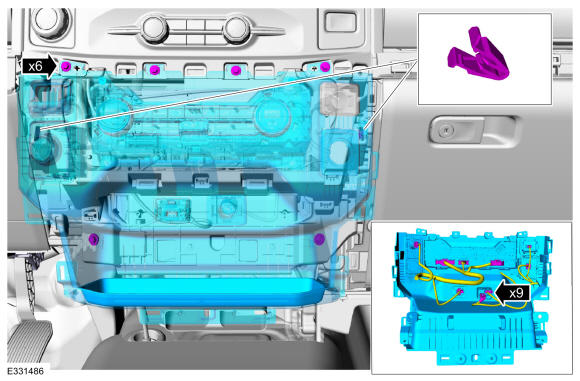

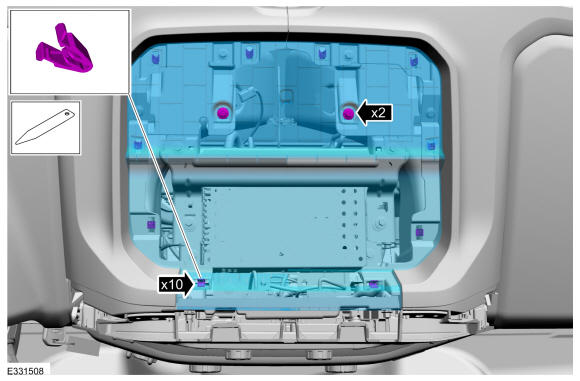

11. Remove the lower centerstack trim panel.
    • Remove the bolts.

      Torque

      : 22 lb.in (2.5 Nm)

    • Release the clips.
    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

    Vehicles without a floor console

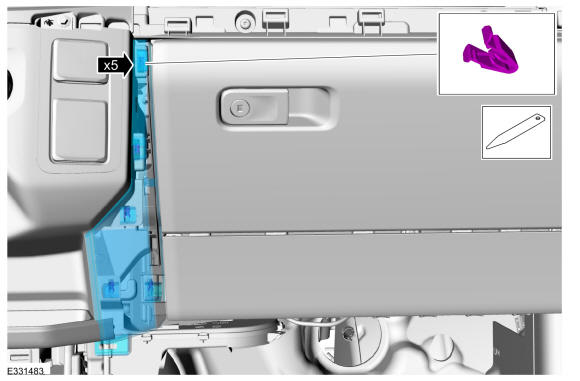

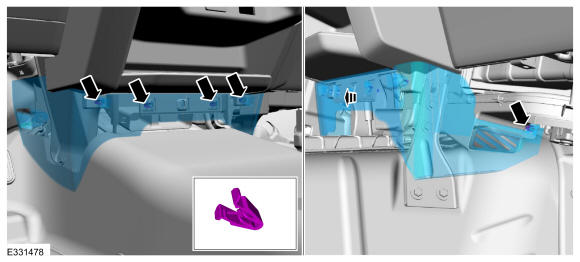

12. Remove the pin-type retainers and the RH lower instrument panel closeout trim panel.

    Courtesy of FORD MOTOR COMPANY

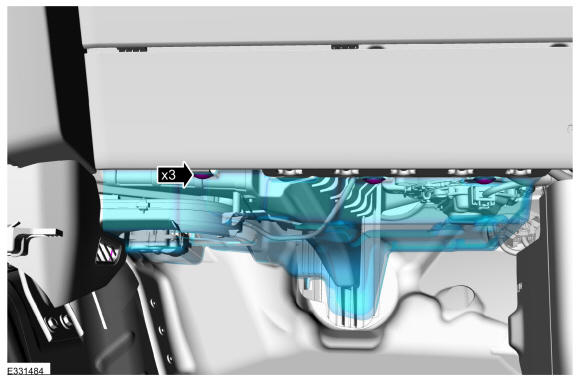

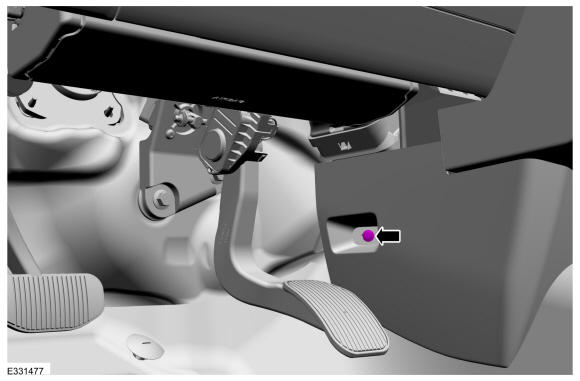

13. Remove the bolt.

    Torque

    : 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Release the clips and remove the instrument panel lower trim panel.

    Courtesy of FORD MOTOR COMPANY

15. Release the clips and remove the LH lower centerstack trim panel.

    Courtesy of FORD MOTOR COMPANY

16. Release the clips and remove the RH lower centerstack trim panel.

    Courtesy of FORD MOTOR COMPANY

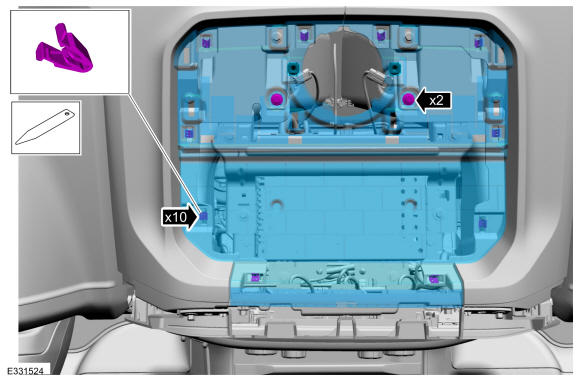

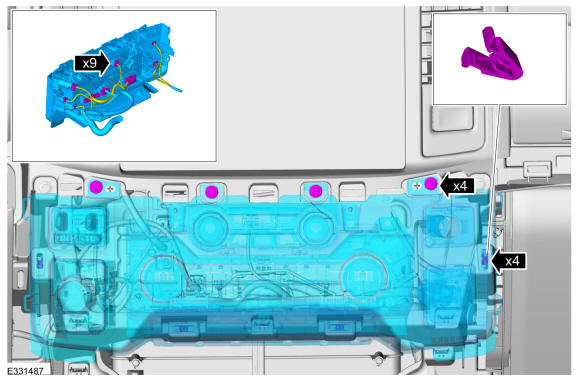

17. Remove the lower centerstack trim panel.
    • Remove the bolts.

      Torque

      : 22 lb.in (2.5 Nm)

    • Release the clips.
    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with an instrument panel center speaker

18. Remove the instrument panel center speaker. Refer to: Instrument Panel Center Speaker .
19. Remove the screws, release the clips and remove the instrument panel center speaker mounting plate.

    Courtesy of FORD MOTOR COMPANY

    Vehicles not equipped with an instrument panel center speaker

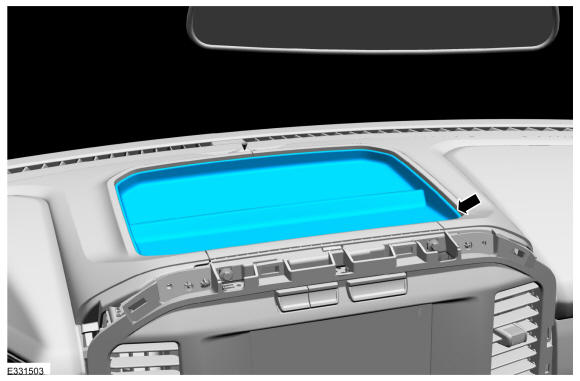

20. Remove the upper instrument panel tray liner.

    Courtesy of FORD MOTOR COMPANY

21. Remove the screws, release the clips and remove the upper instrument panel tray.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

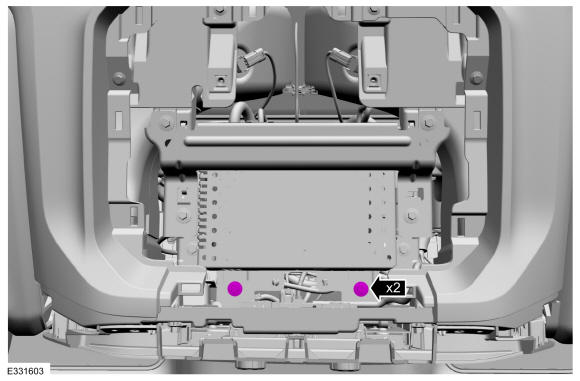

22. Remove the bolts.

    Torque

    : 55 lb.in (6.2 Nm)

    Courtesy of FORD MOTOR COMPANY

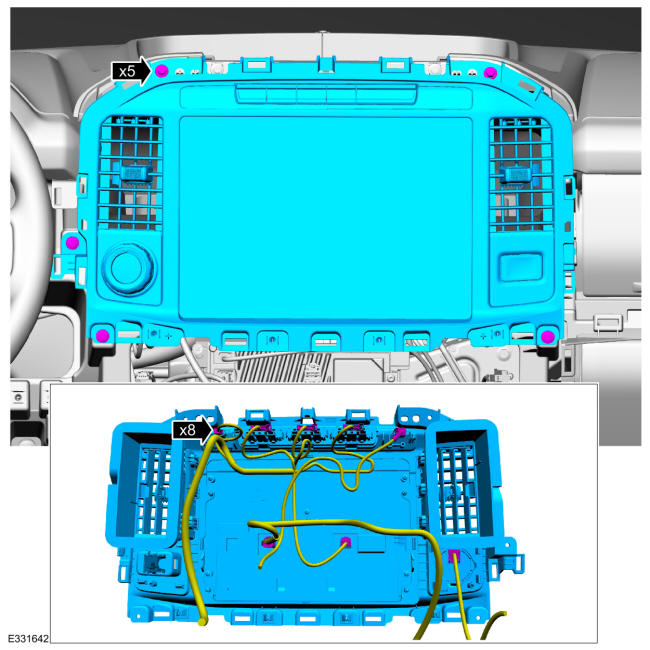

23. Remove the bolts, disconnect the electrical connectors and remove the FDIM and centerstack trim panel as an assembly.

    Torque

    : 55 lb.in (6.2 Nm)

    Courtesy of FORD MOTOR COMPANY

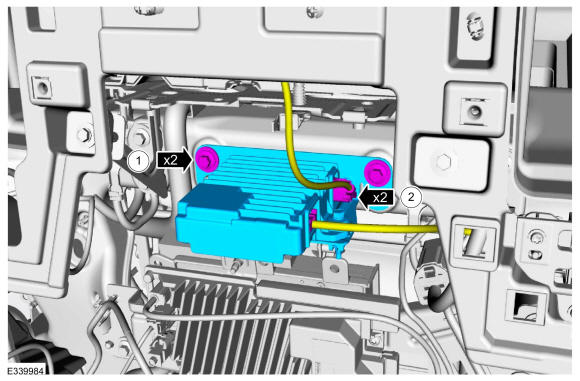

24. Remove the driver status monitor camera module.
    1. Remove the driver status monitor camera module bolts.

       Torque

       : 93 lb.in (10.5 Nm)

    2. Disconnect the driver status monitor camera module electrical connectors.

Courtesy of FORD MOTOR COMPANY
