Boost Pressure Sensor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the right front wheel and tire. Refer to: Wheel and Tire .

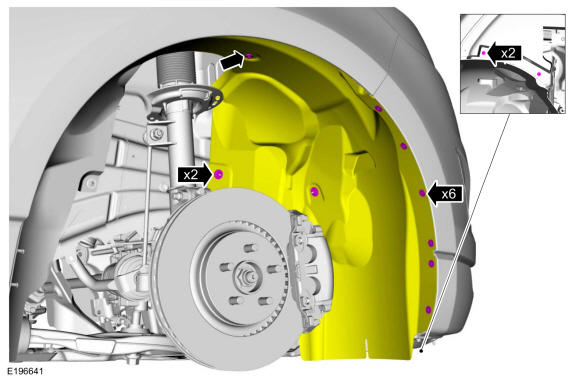

- Remove the fasteners and position the splash shield aside.

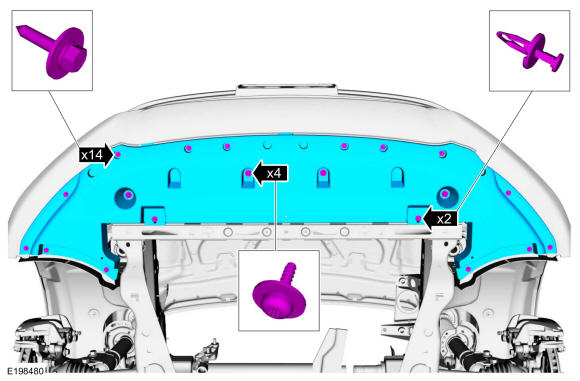

- Remove the retainers and the front underbody shield.

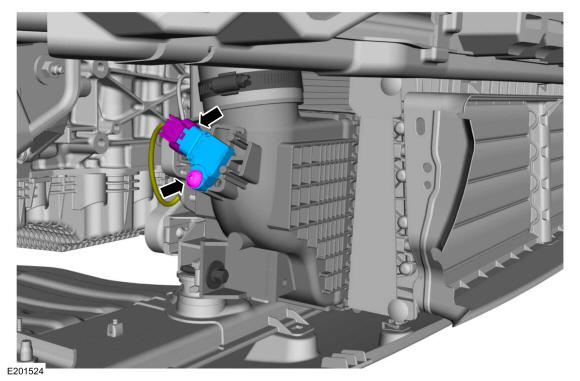

- Disconnect the electrical connector, remove retainer and the turbocharger boost pressure sensor.
Torque: 44 lb.in (5 Nm)
