Connector Repair Procedures

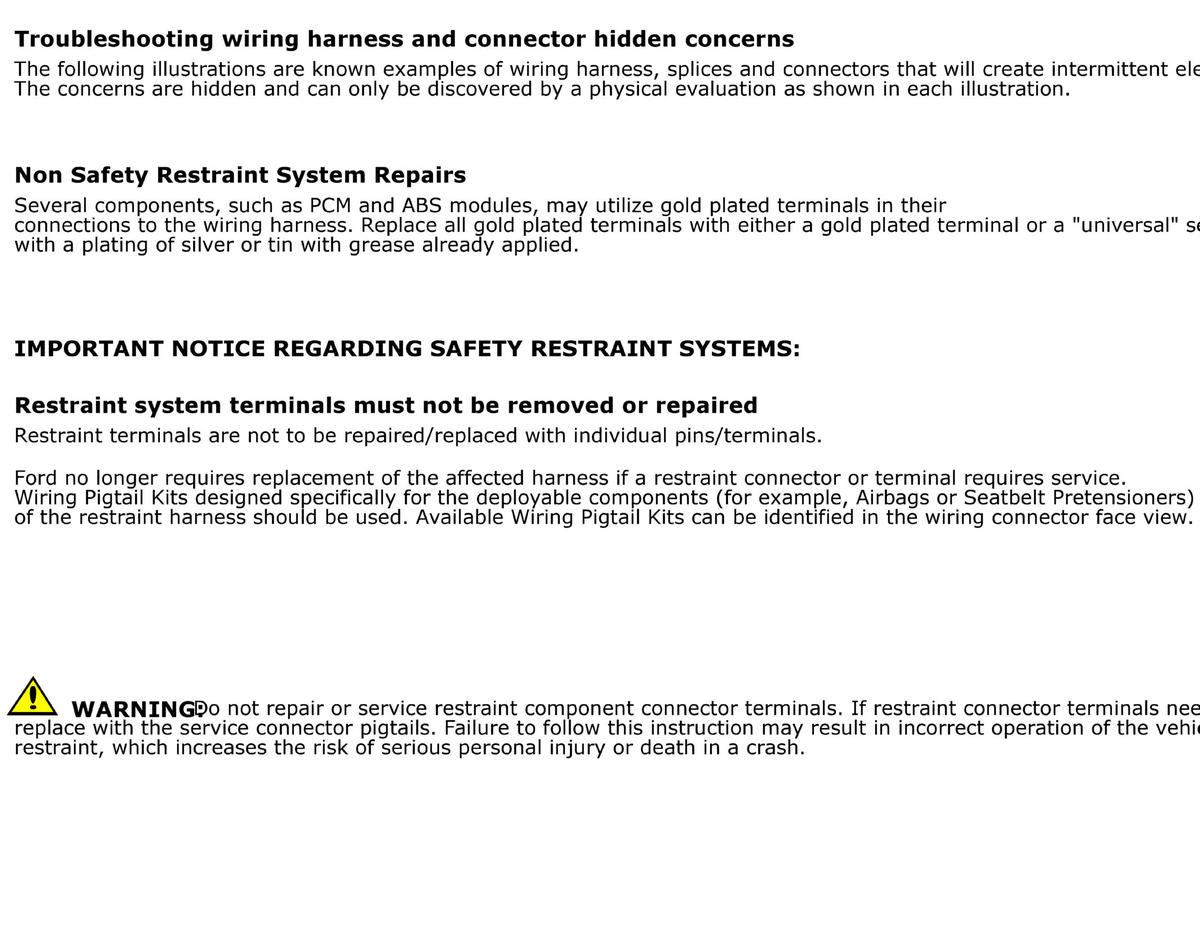

GFDWR115443Courtesy of FORD MOTOR COMPANY

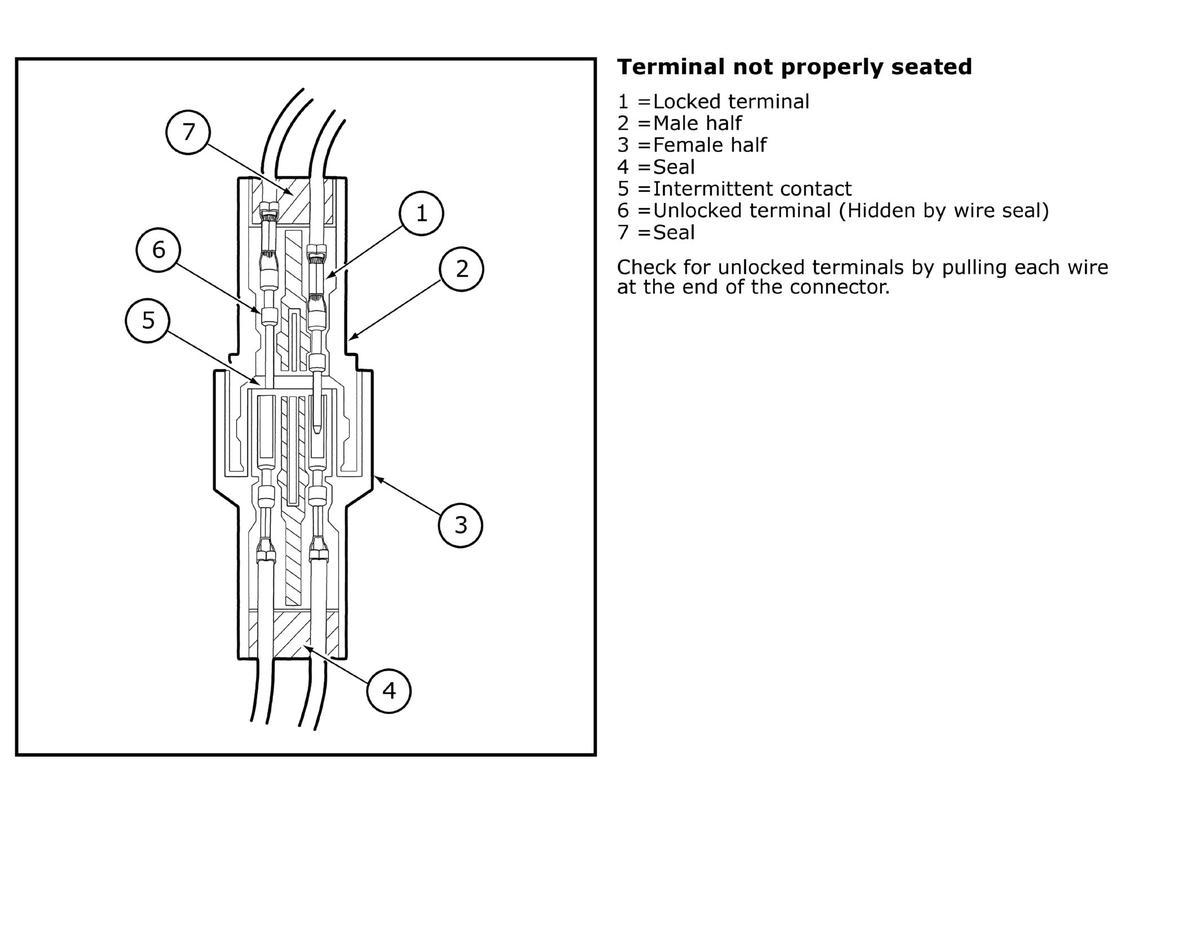

GFDWR115437Courtesy of FORD MOTOR COMPANY

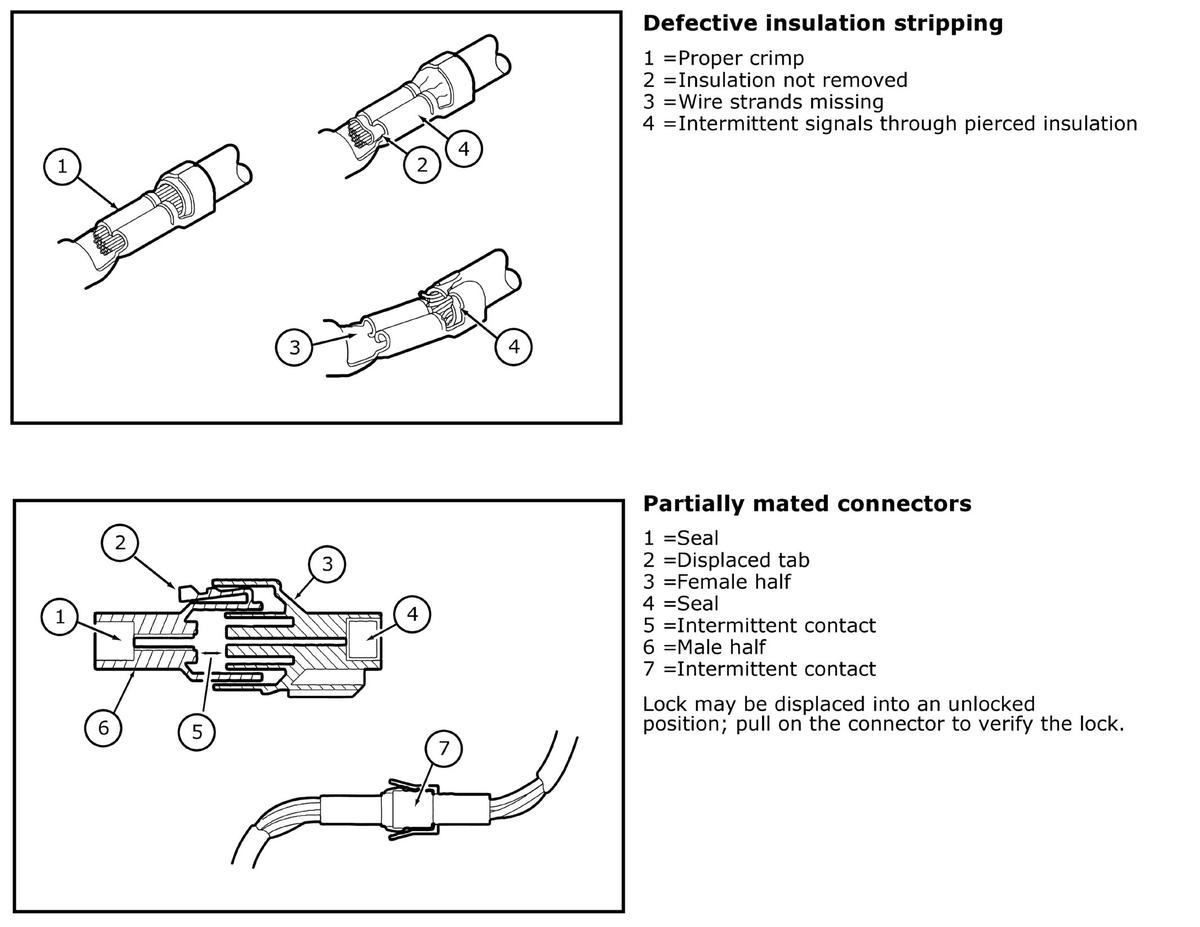

GFDWR115441Courtesy of FORD MOTOR COMPANY

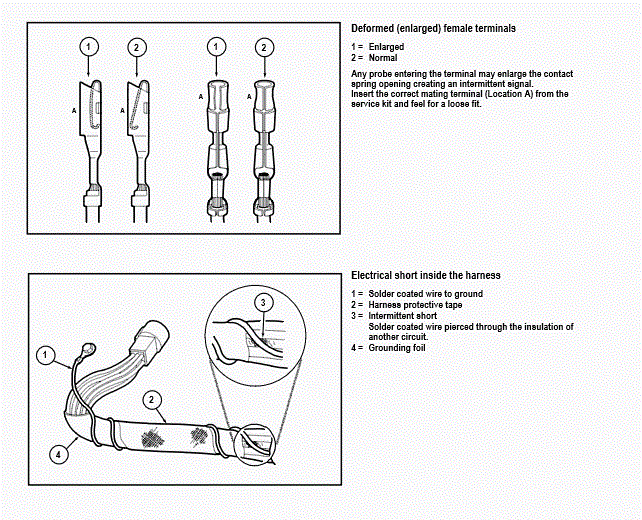

GFDWR115444Courtesy of FORD MOTOR COMPANY

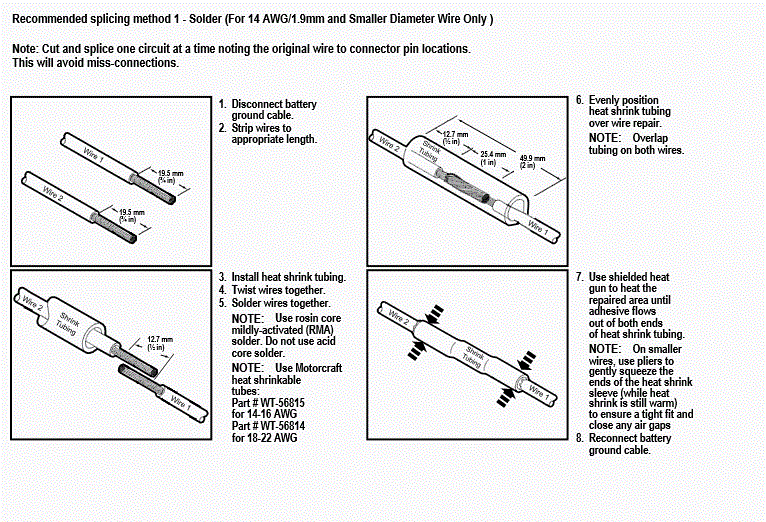

GFDWR115445Courtesy of FORD MOTOR COMPANY

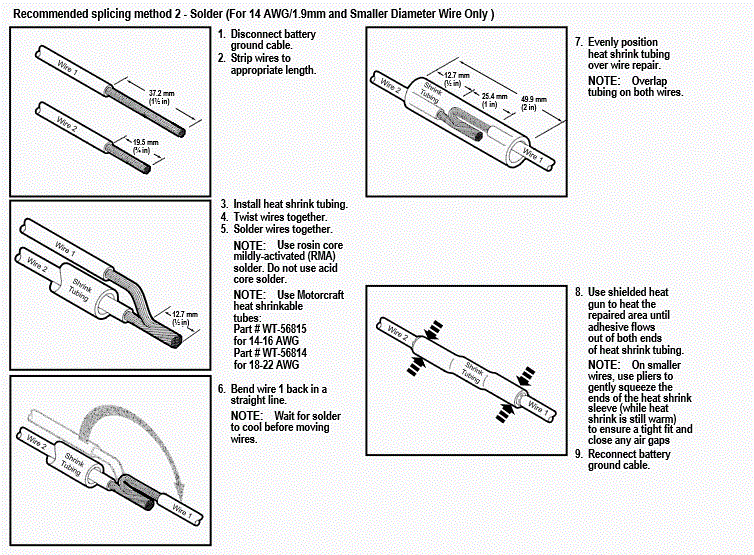

GFDWR115442Courtesy of FORD MOTOR COMPANY

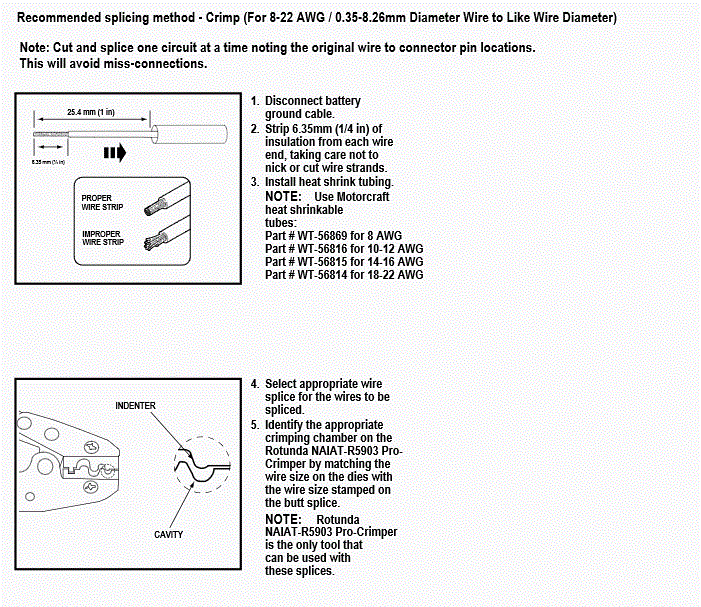

GFDWR115440Courtesy of FORD MOTOR COMPANY

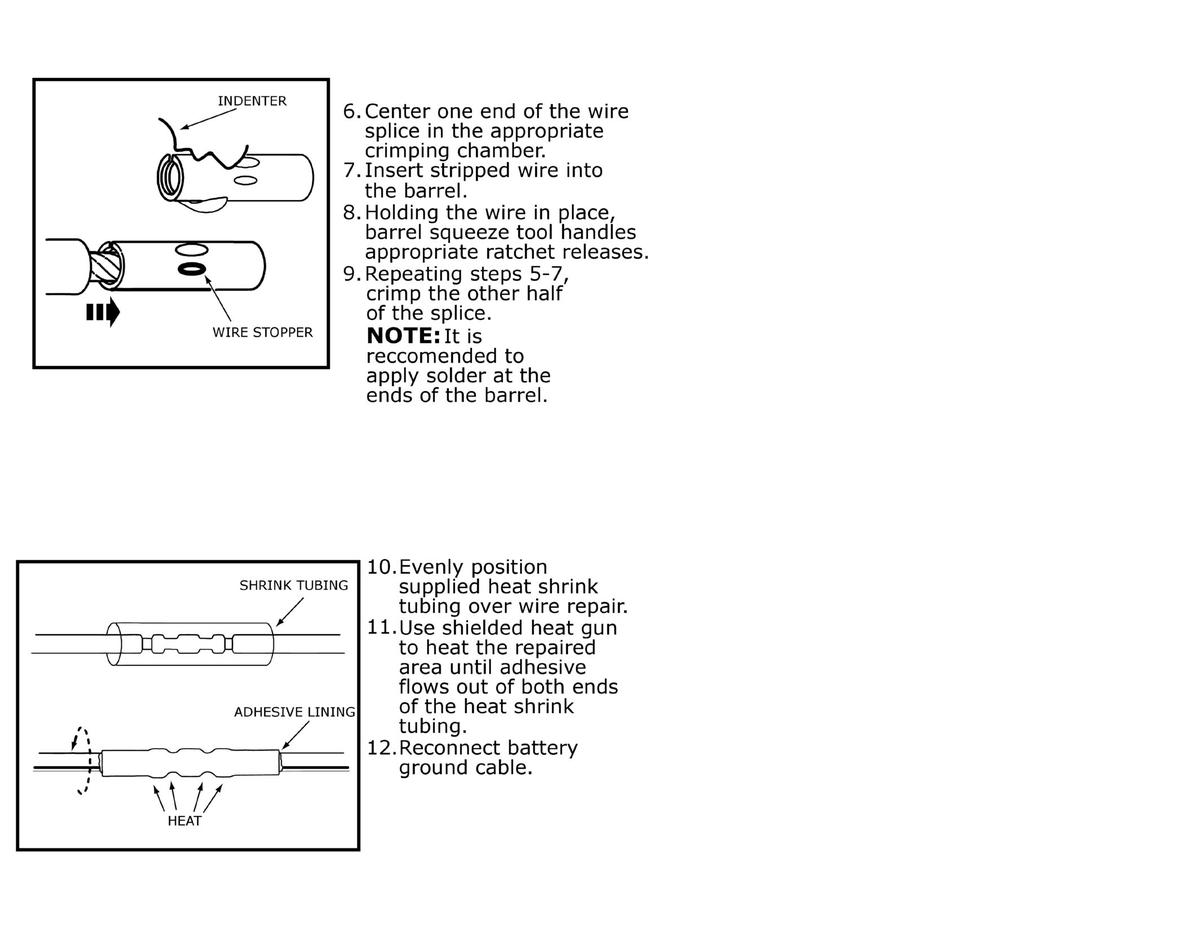

GFDWR115439Courtesy of FORD MOTOR COMPANY

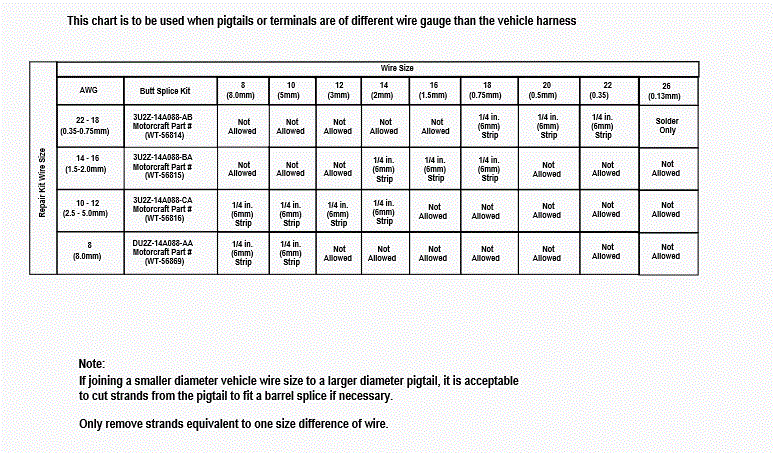

GFDWR115438Courtesy of FORD MOTOR COMPANY
