Image Processing Module A (IPMA): Removal

If a new IPMA is being installed, using a diagnostic scan tool, begin the PMI process for the IPMA following the on-screen instructions.

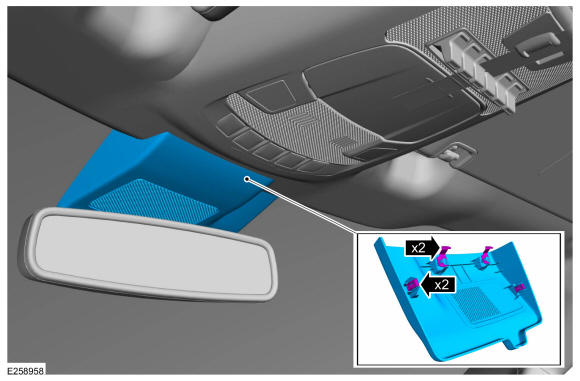

Release the clips and remove the IPMA cover.

Courtesy of FORD MOTOR COMPANY

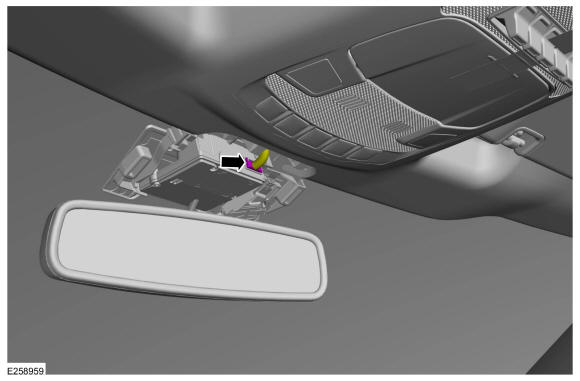

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

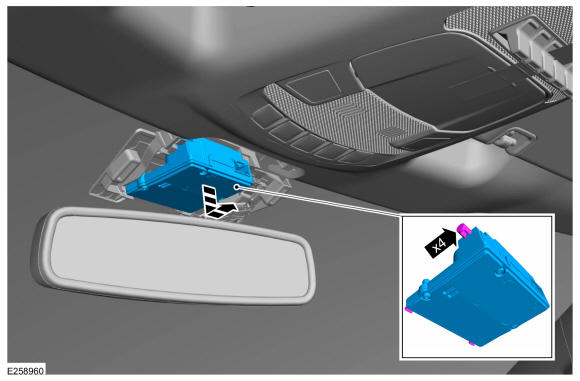

Release the tabs, remove the IPMA.

Courtesy of FORD MOTOR COMPANY
