Module Communications Network

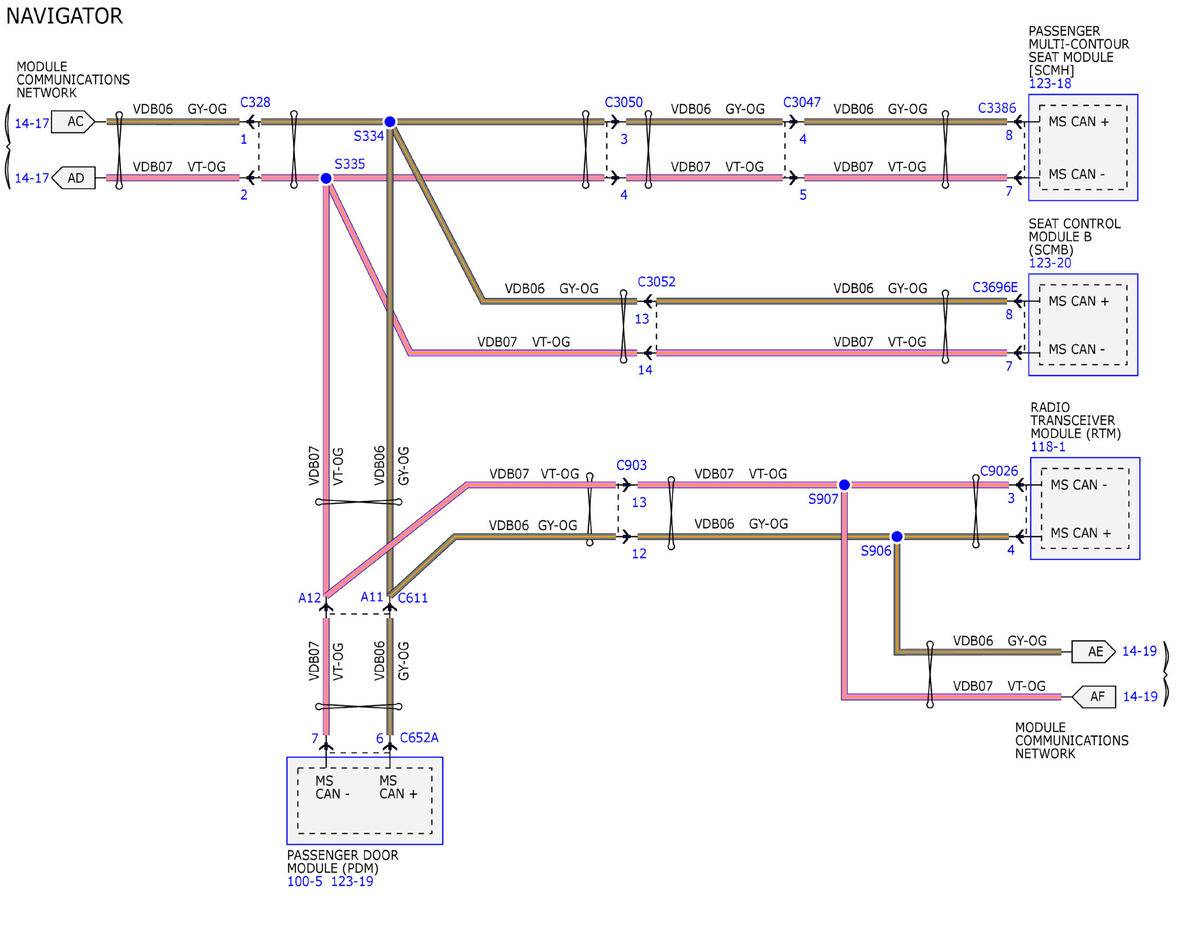

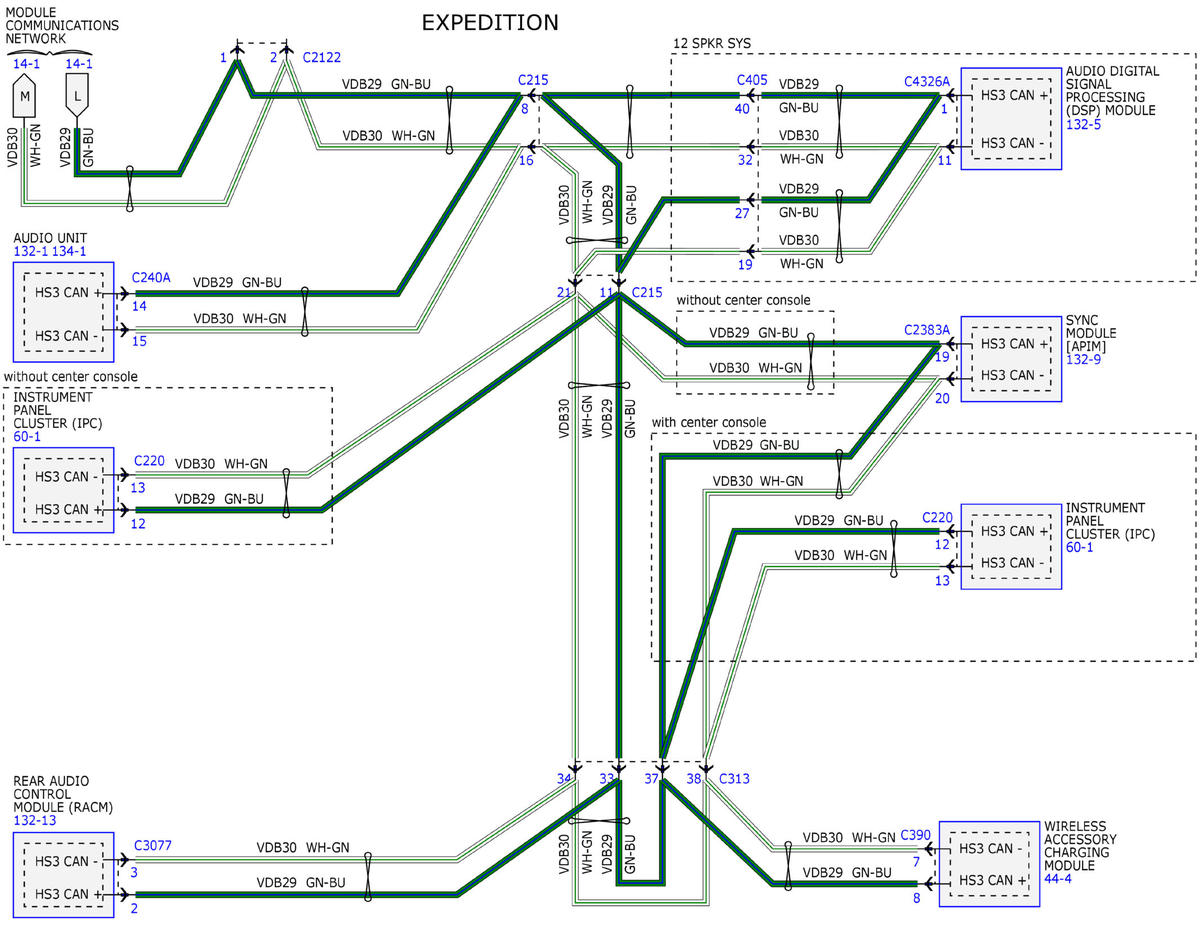

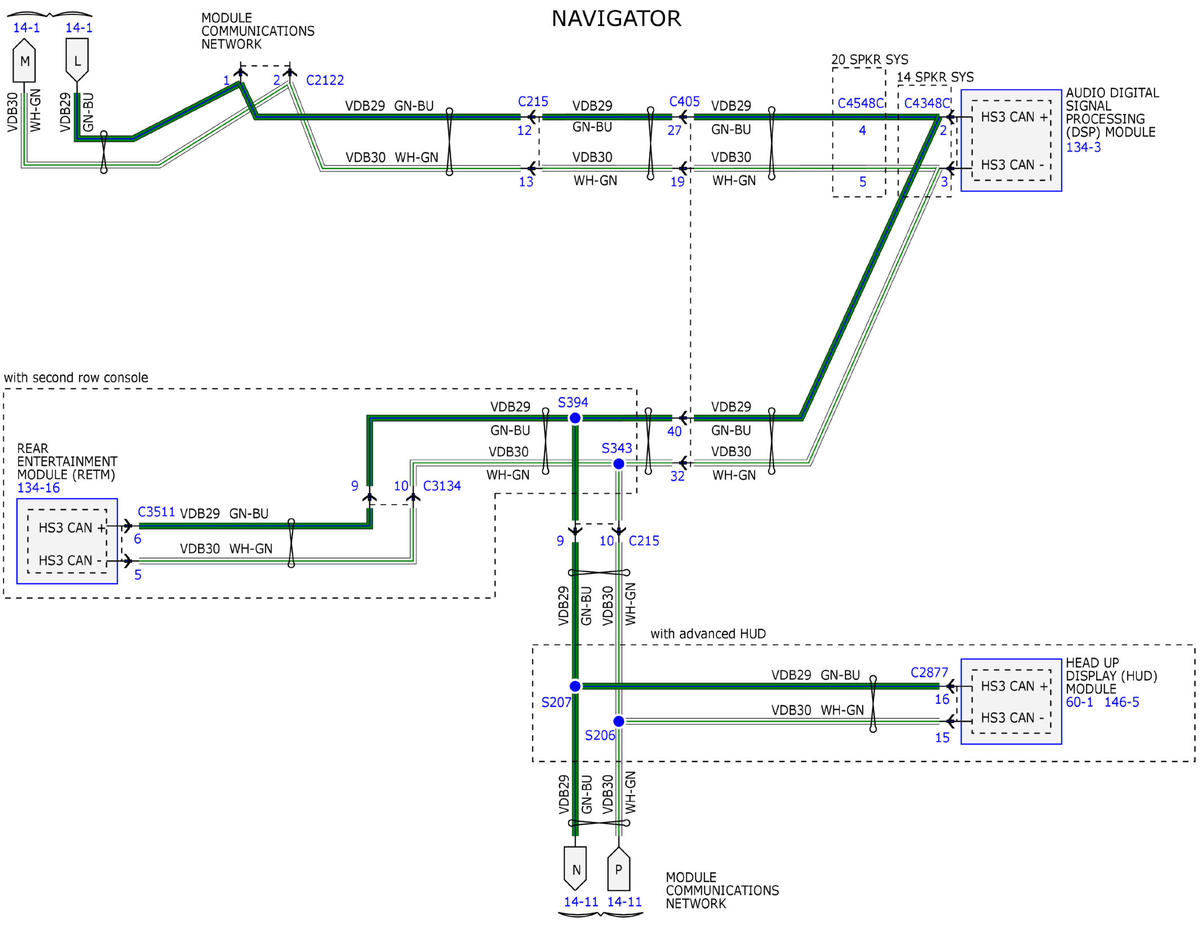

Fig 1: Module Communications Network Wiring Diagram (1 Of 20)
Courtesy of FORD MOTOR COMPANY

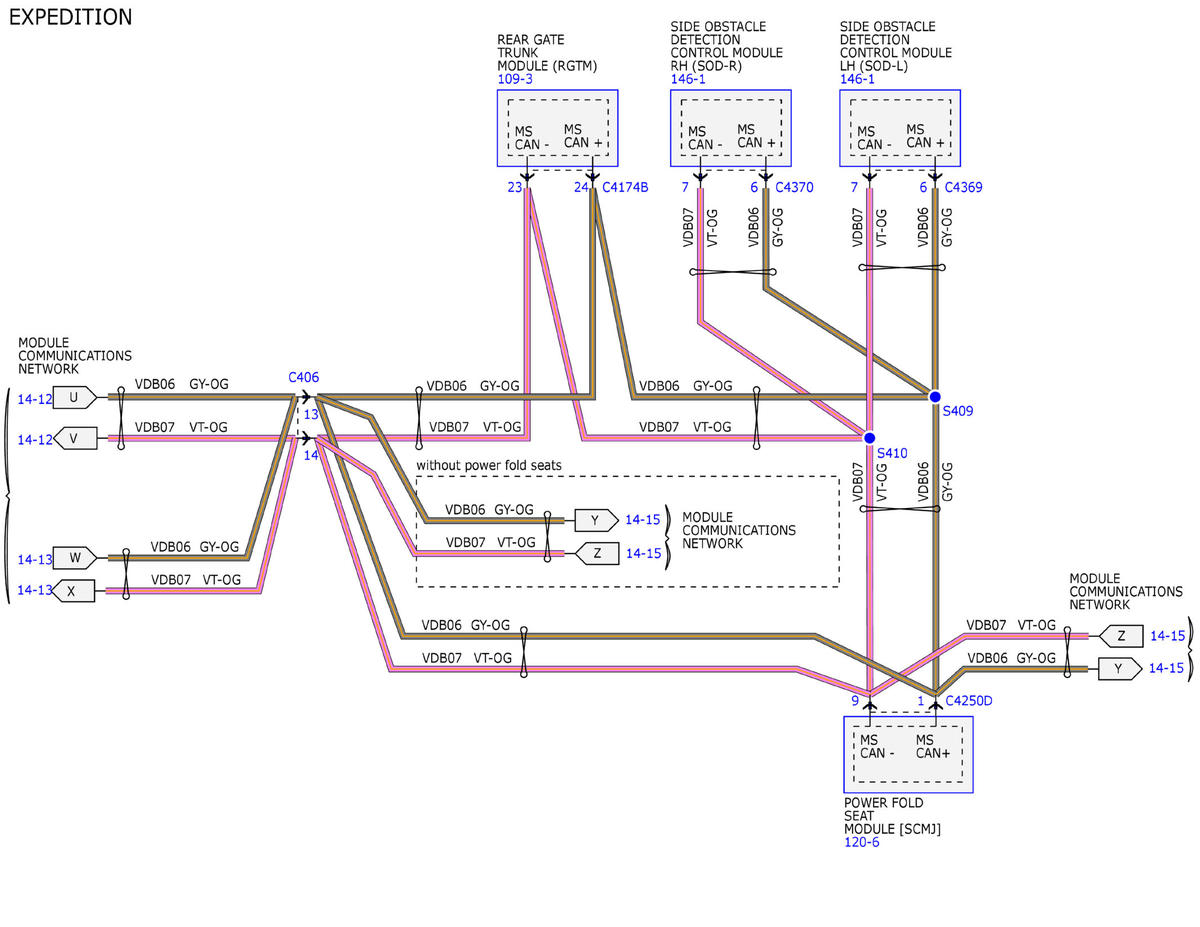

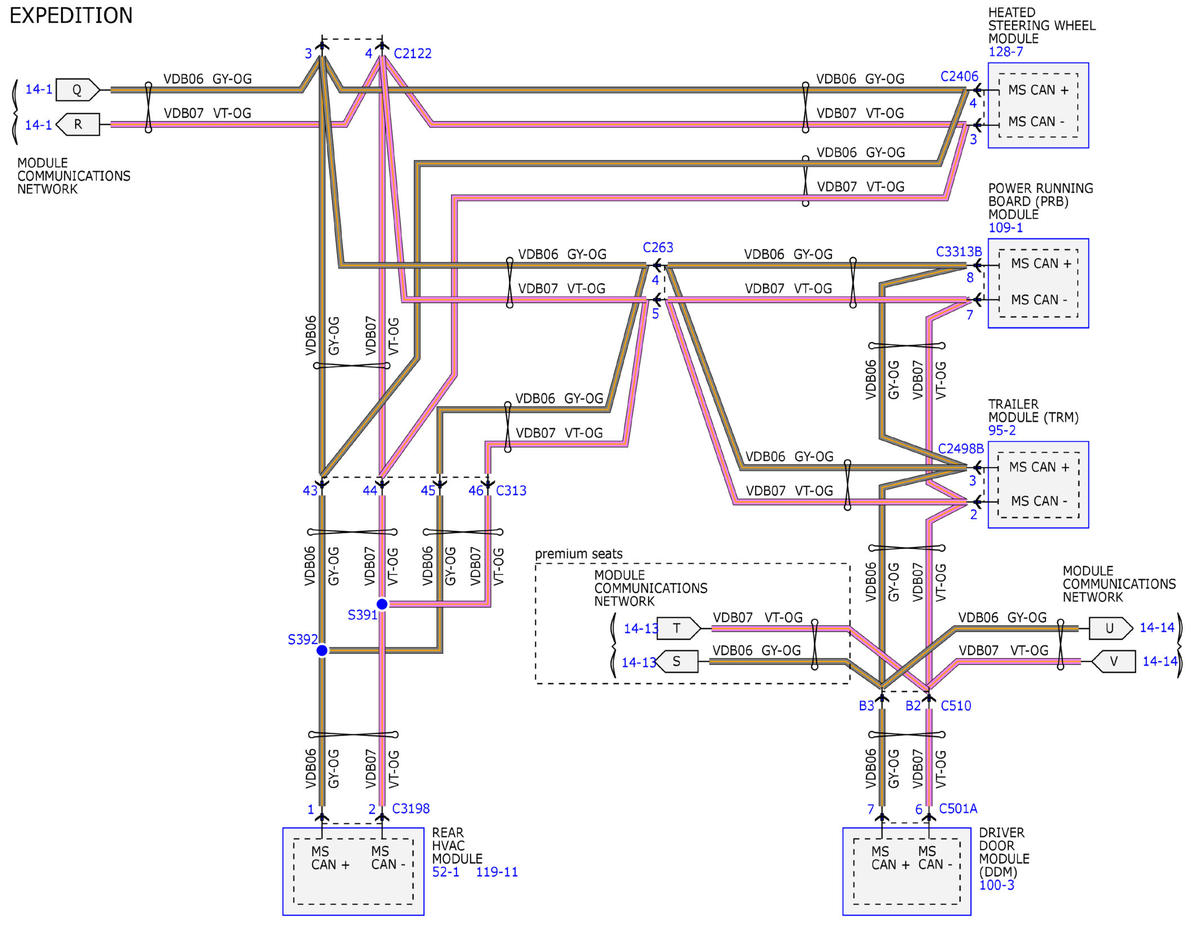

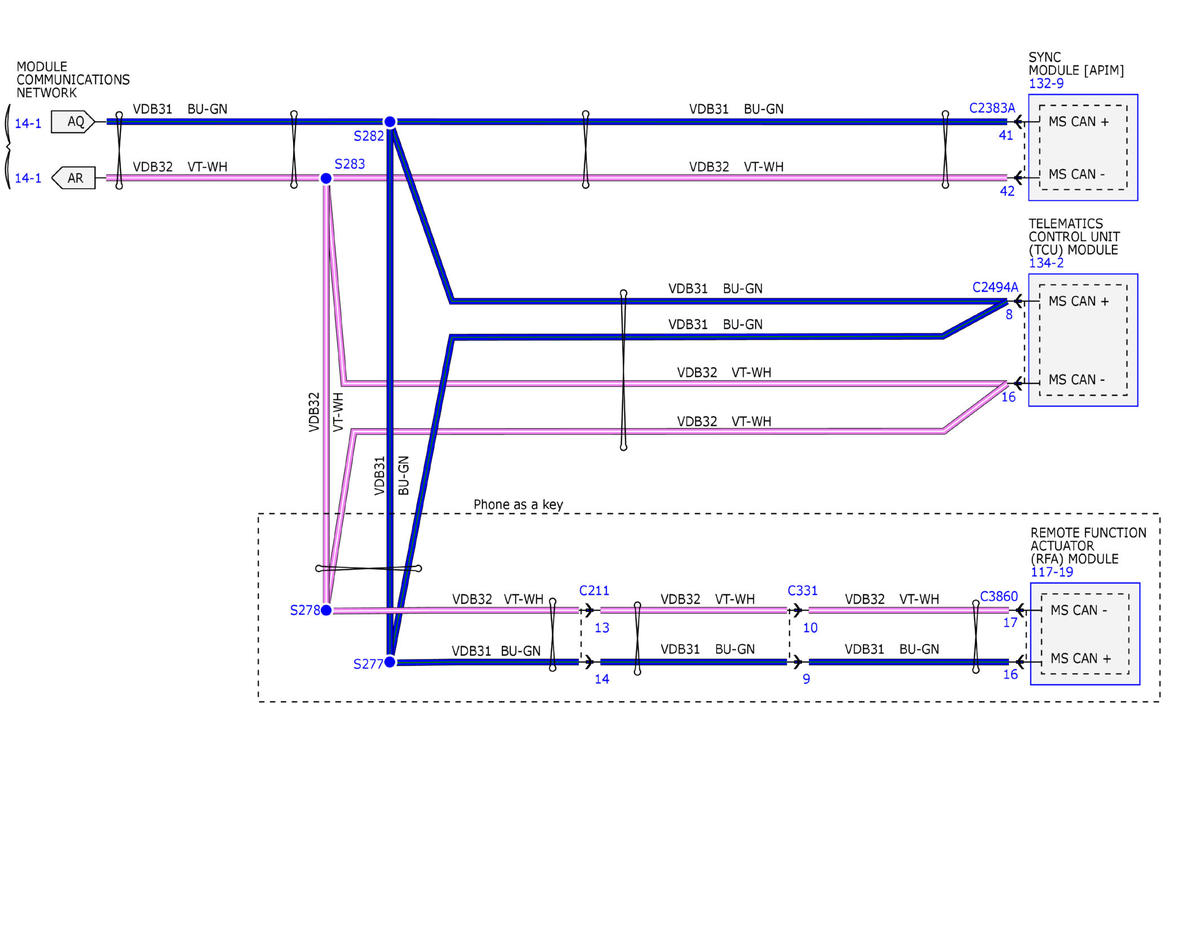

Fig 2: Module Communications Network Wiring Diagram (2 Of 20)
Courtesy of FORD MOTOR COMPANY

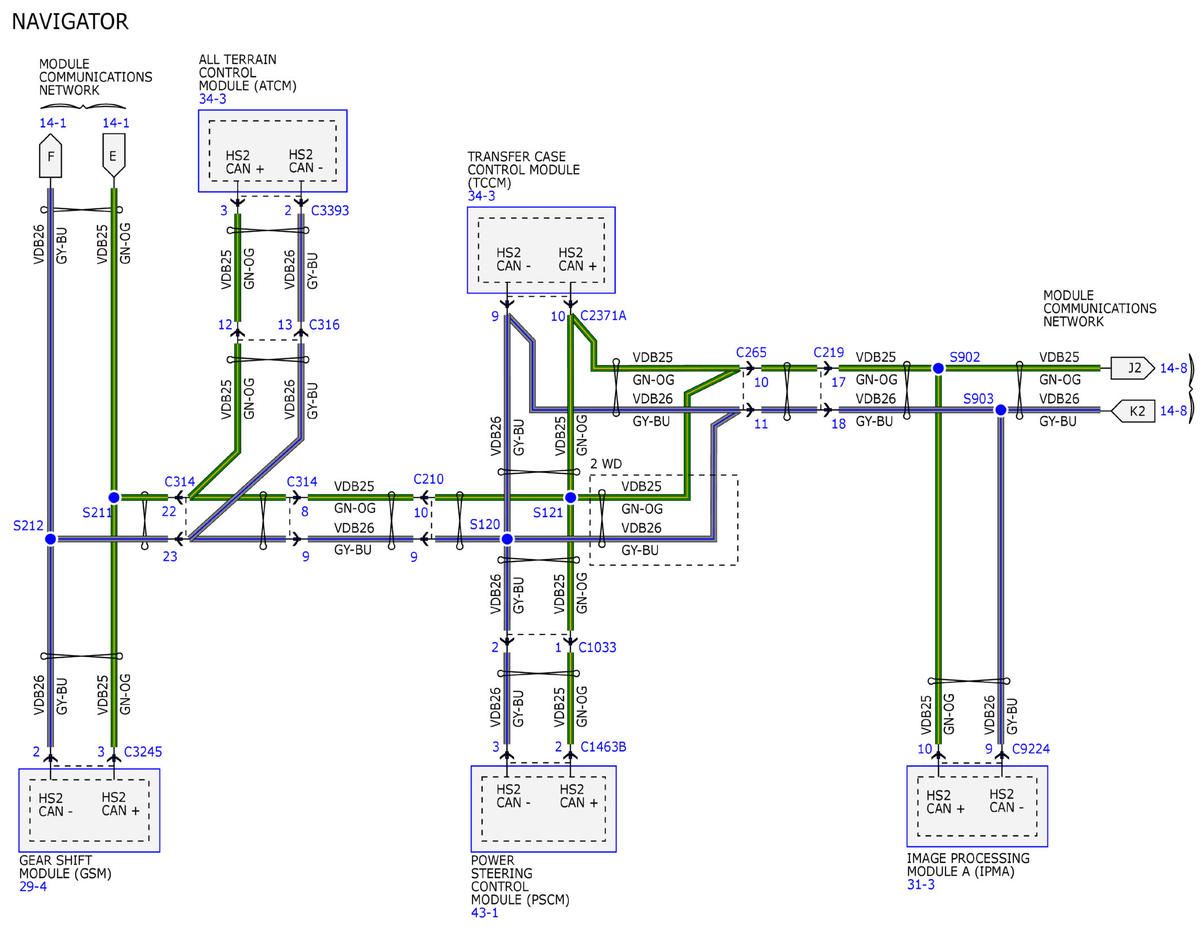

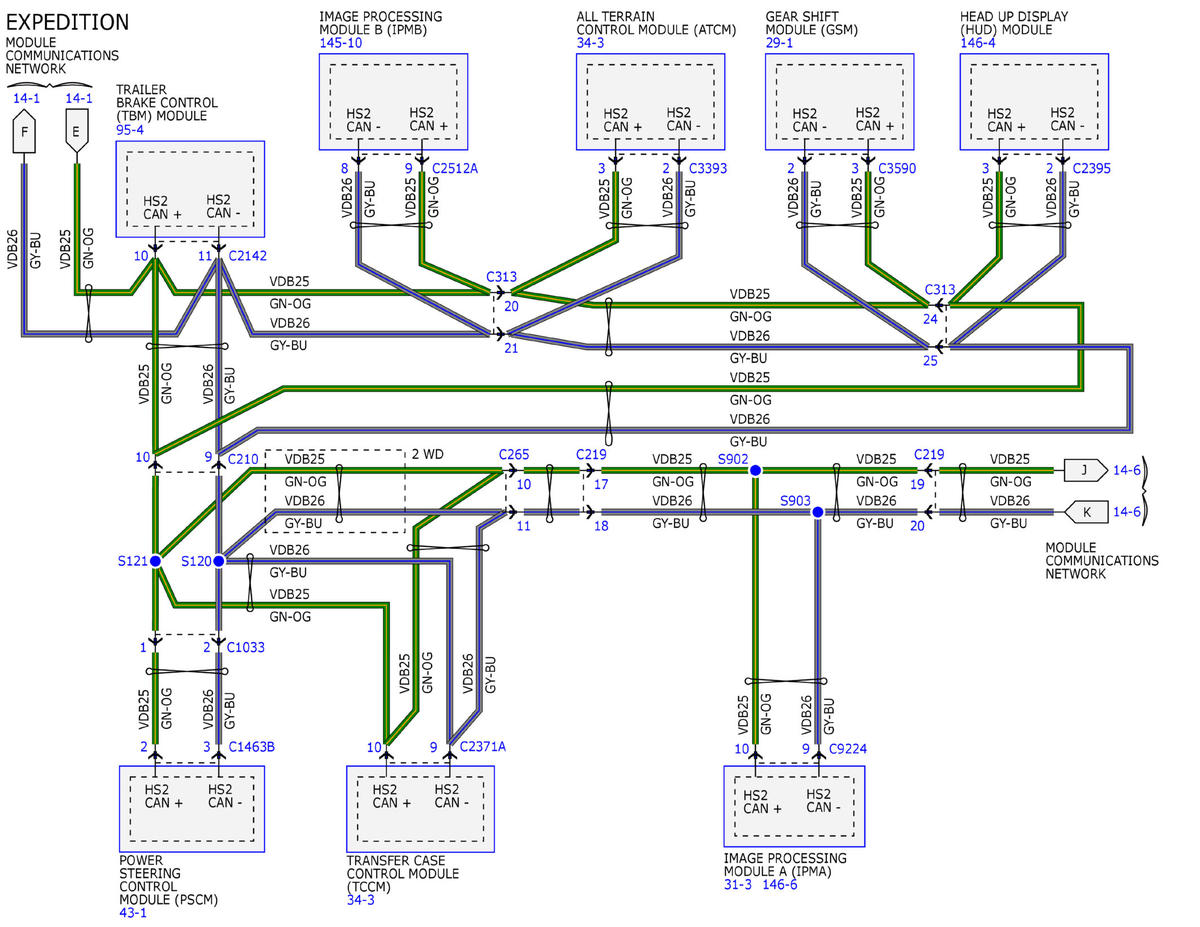

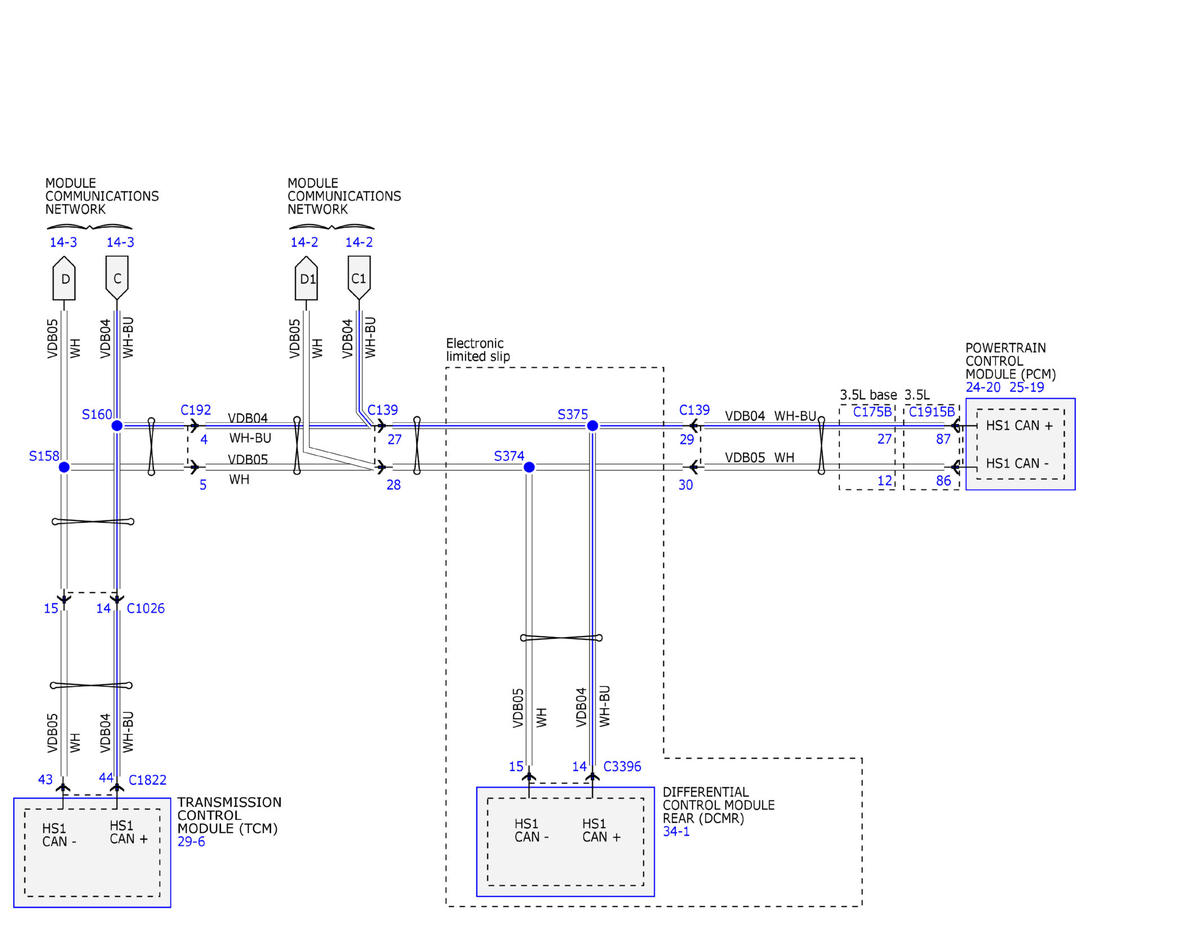

Fig 3: Module Communications Network Wiring Diagram (3 Of 20)
Courtesy of FORD MOTOR COMPANY

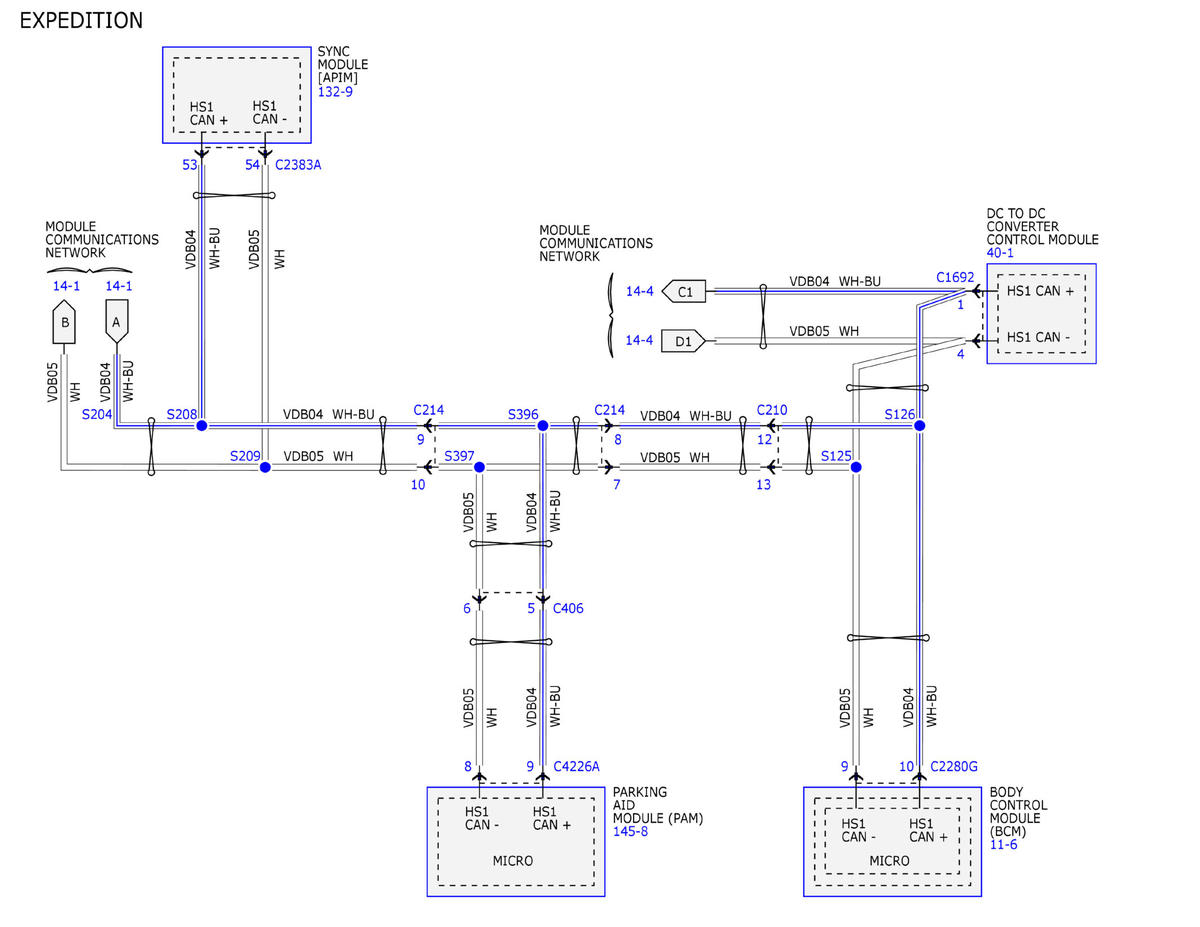

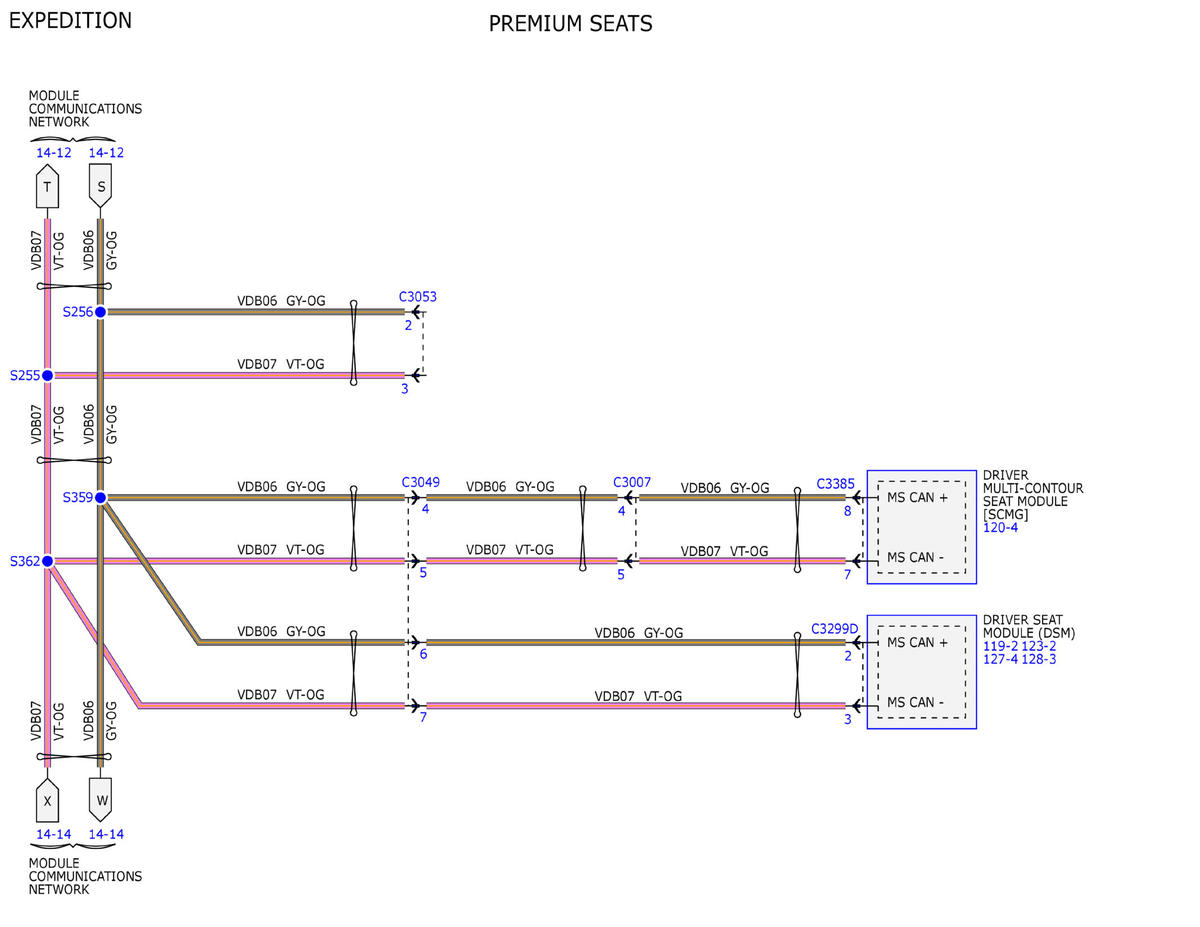

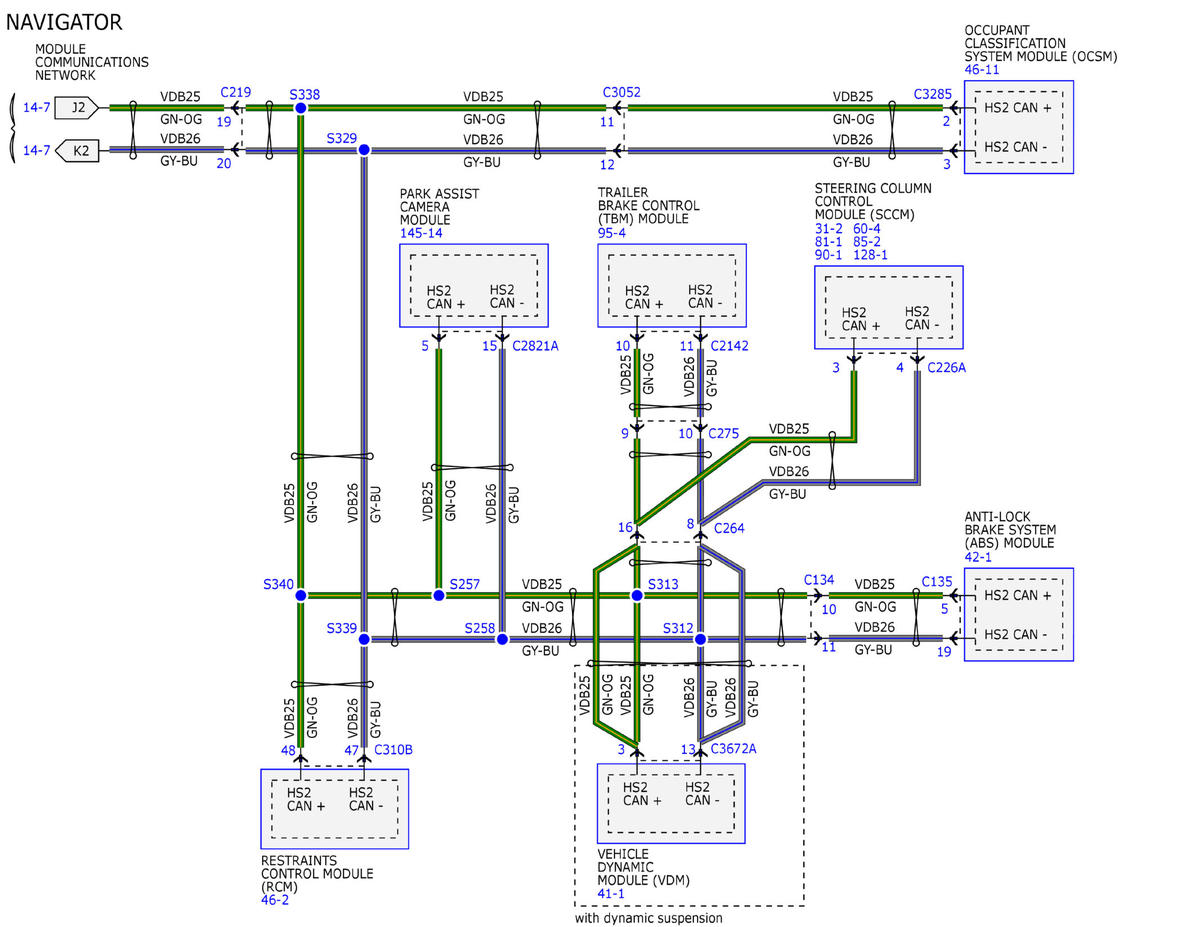

Fig 4: Module Communications Network Wiring Diagram (4 Of 20)
Courtesy of FORD MOTOR COMPANY

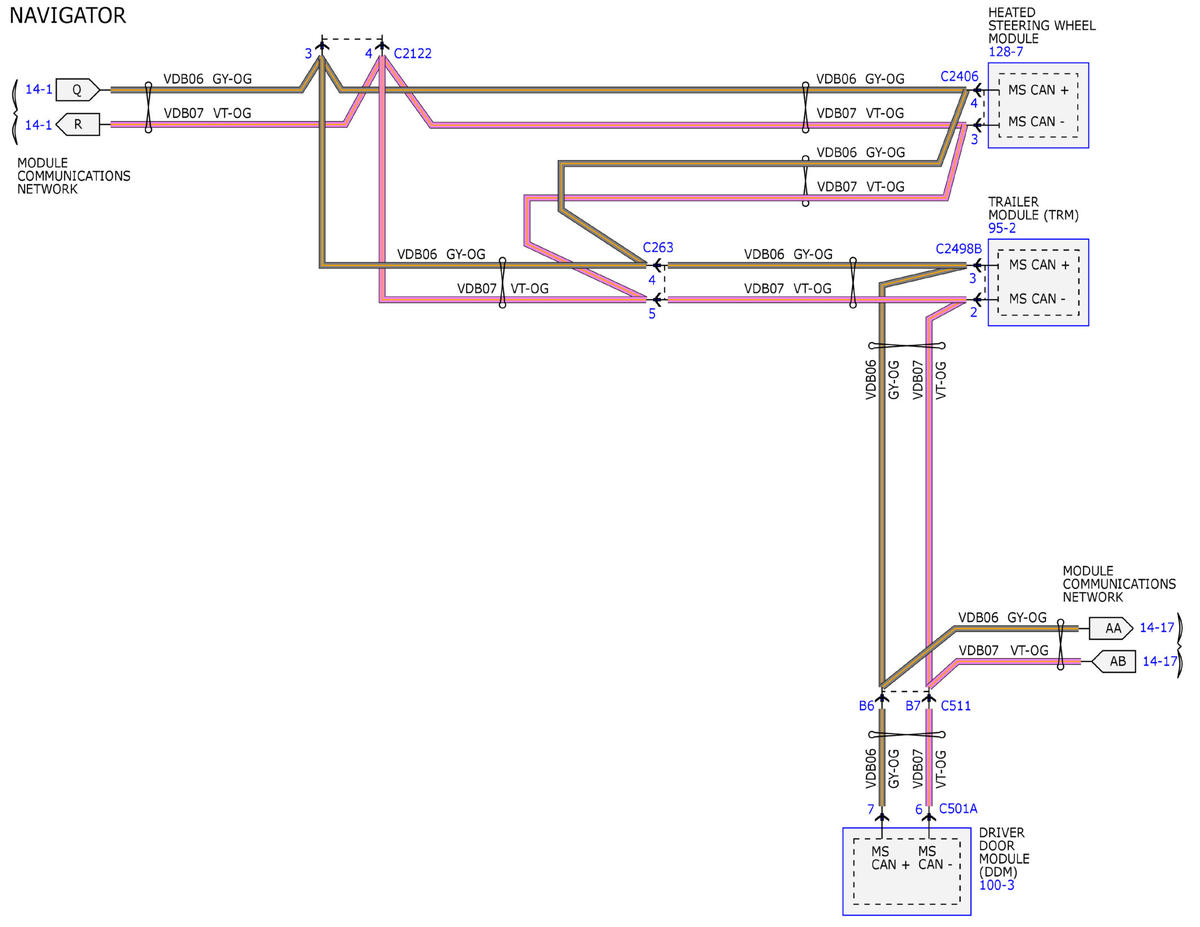

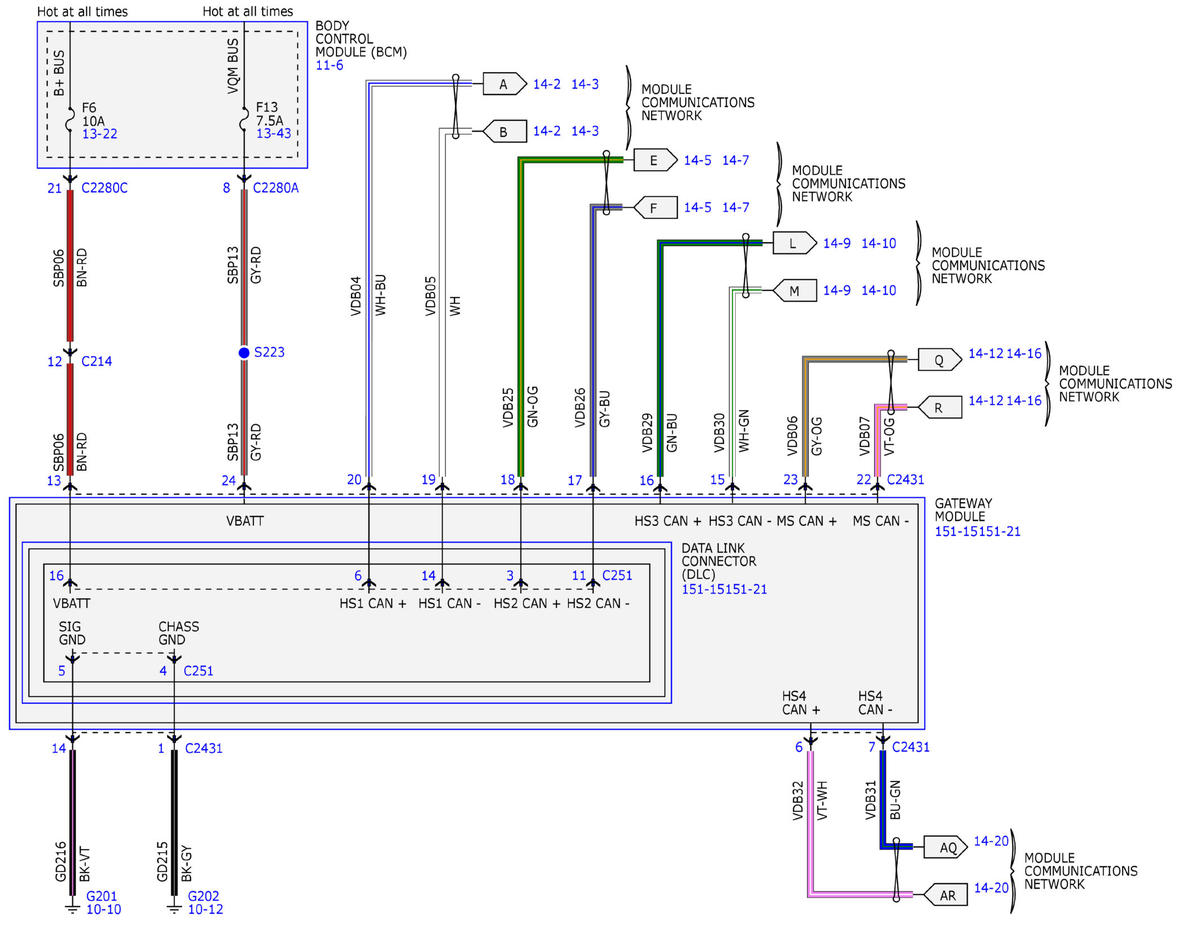

Fig 5: Module Communications Network Wiring Diagram (5 Of 20)
Courtesy of FORD MOTOR COMPANY

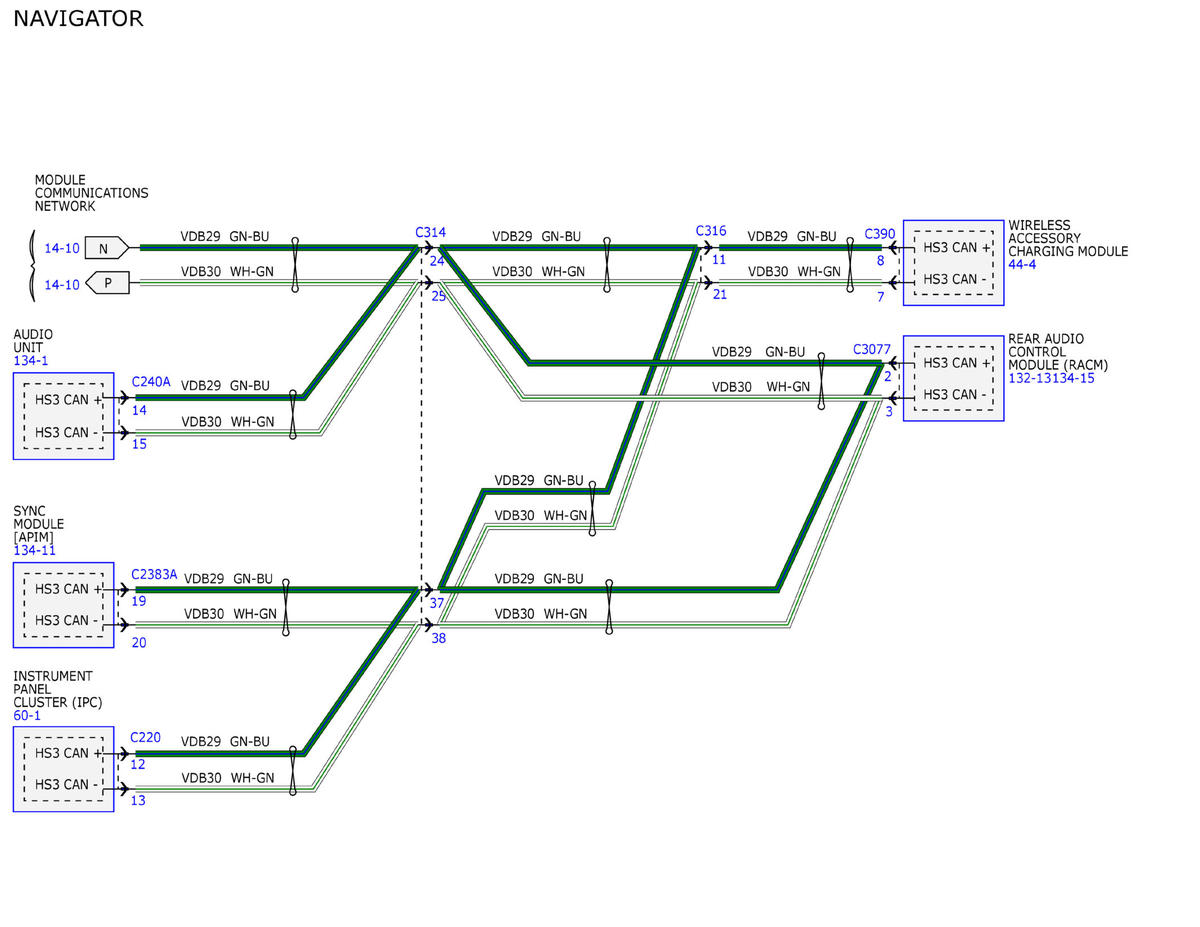

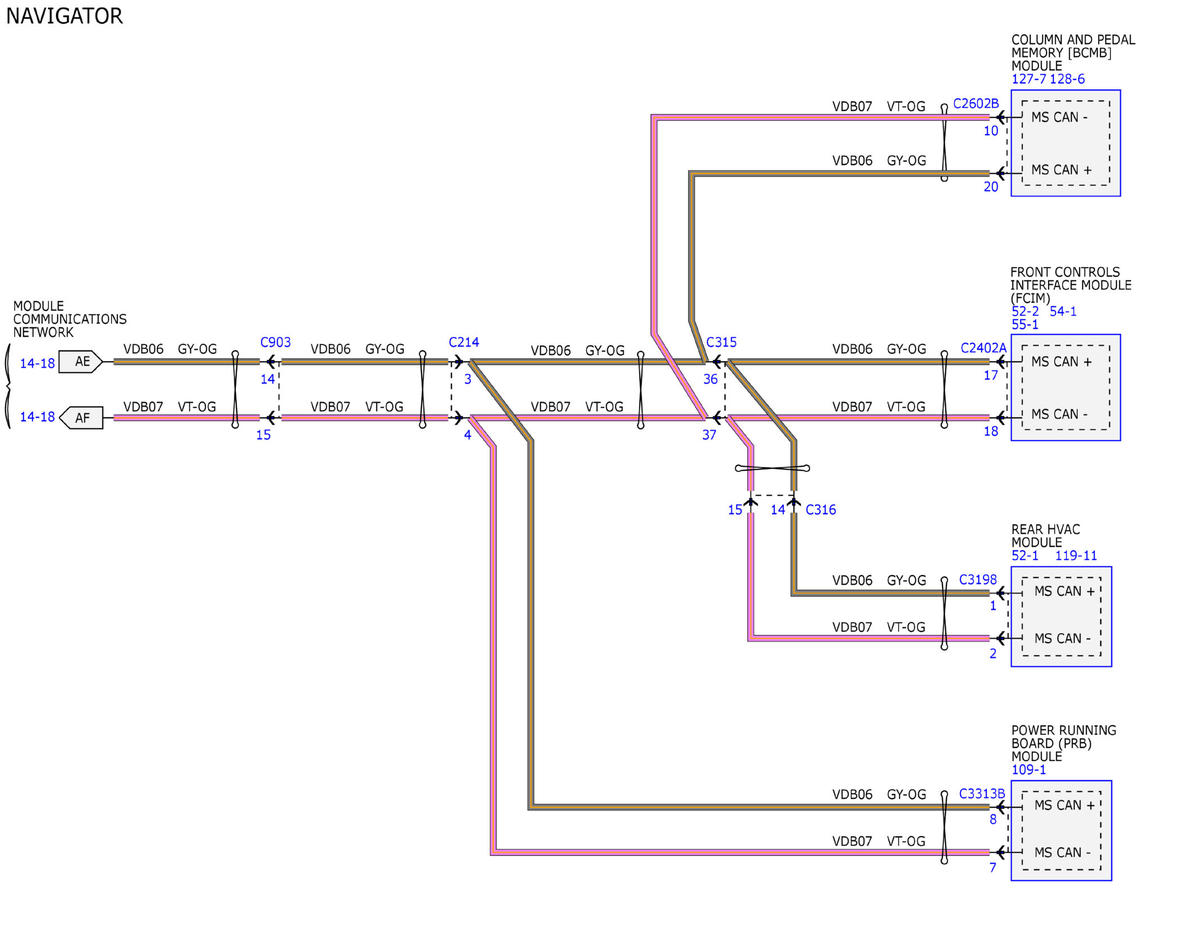

Fig 6: Module Communications Network Wiring Diagram (6 Of 20)
Courtesy of FORD MOTOR COMPANY

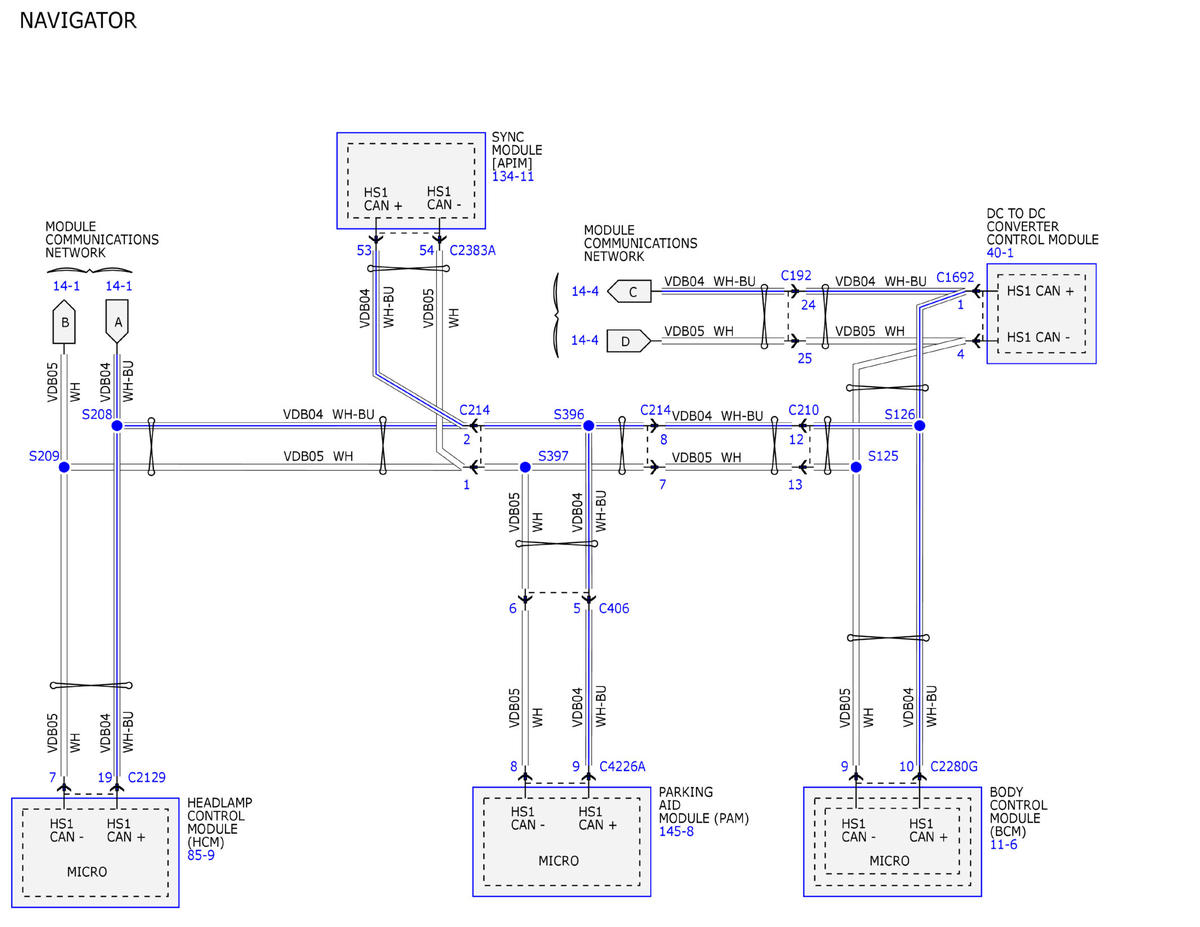

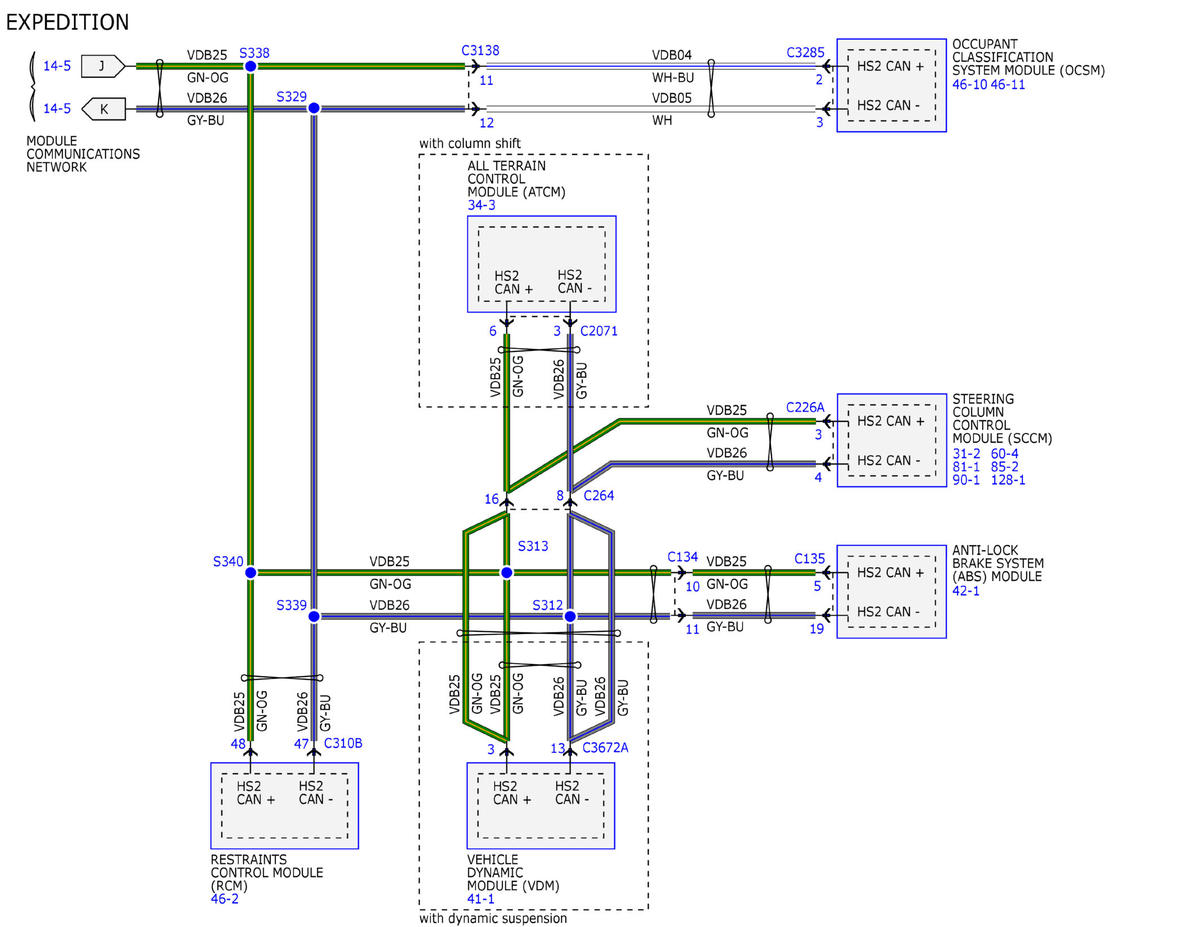

Fig 7: Module Communications Network Wiring Diagram (7 Of 20)
Courtesy of FORD MOTOR COMPANY

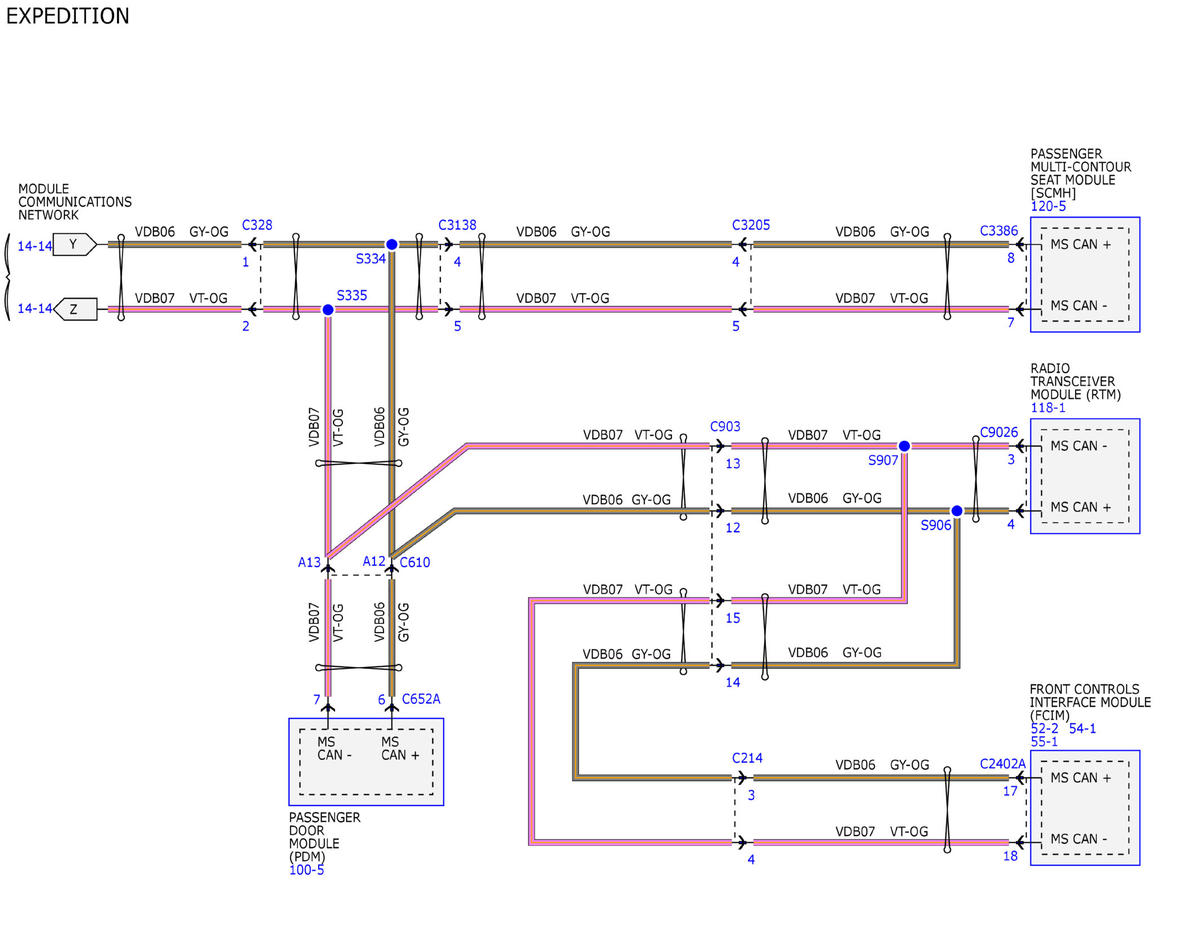

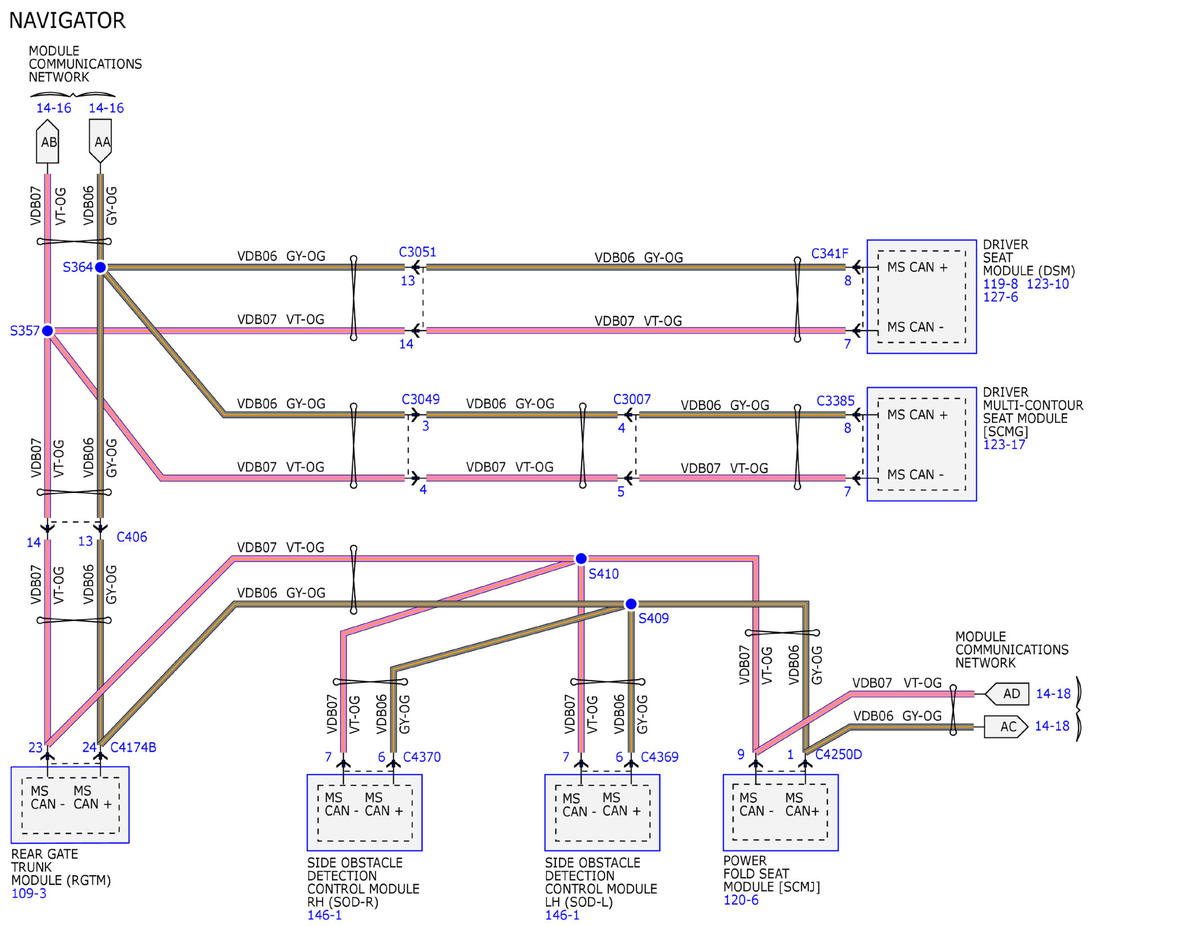

Fig 8: Module Communications Network Wiring Diagram (8 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 9: Module Communications Network Wiring Diagram (9 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 10: Module Communications Network Wiring Diagram (10 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 11: Module Communications Network Wiring Diagram (11 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 12: Module Communications Network Wiring Diagram (12 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 13: Module Communications Network Wiring Diagram (13 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 14: Module Communications Network Wiring Diagram (14 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 15: Module Communications Network Wiring Diagram (15 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 16: Module Communications Network Wiring Diagram (16 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 17: Module Communications Network Wiring Diagram (17 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 18: Module Communications Network Wiring Diagram (18 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 19: Module Communications Network Wiring Diagram (19 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 20: Module Communications Network Wiring Diagram (20 Of 20)
Courtesy of FORD MOTOR COMPANY
