Fuel Pump Driver Module (FPDM): Installation

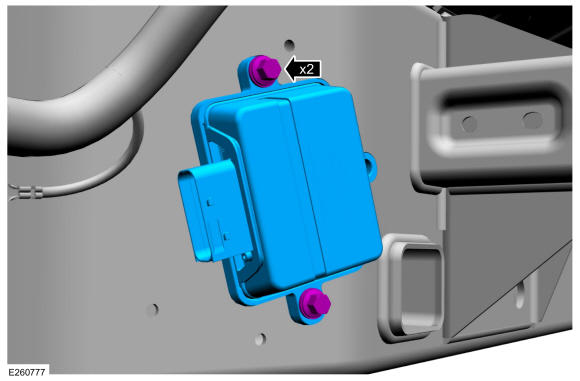

  1. Install the fuel pump driver module, then install and tighten the fuel pump driver module bolts.

    Torque

    : 133 lb.in (15 Nm)

    GFD543301Courtesy of FORD MOTOR COMPANY

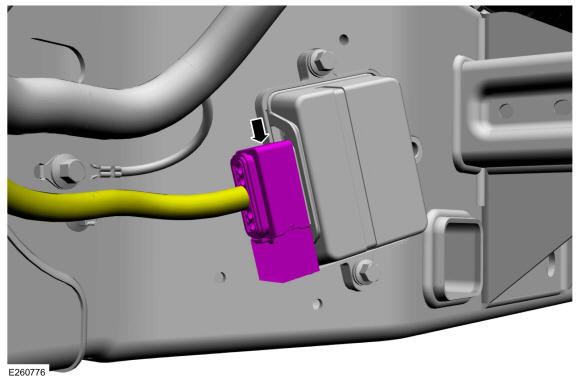

  2. Connect the fuel pump driver module electrical connector.
    GFD543300Courtesy of FORD MOTOR COMPANY

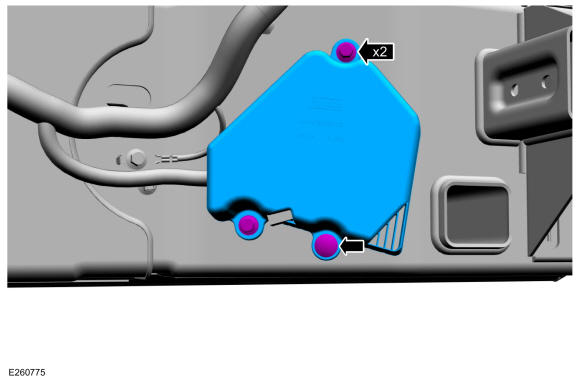

  3. Install the fuel pump driver module cover, then install and tighten the fuel pump driver module cover retainers.

    Torque

    : 133 lb.in (15 Nm)

GFD543299Courtesy of FORD MOTOR COMPANY
