Front Wheel Speed Sensor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the wheel and tire. Refer to: Wheel and Tire .

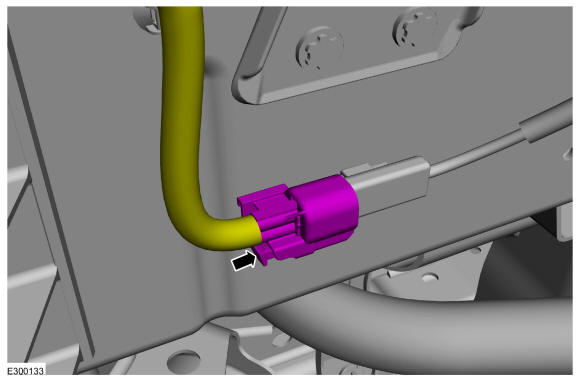

- Disconnect the electrical connector.
-

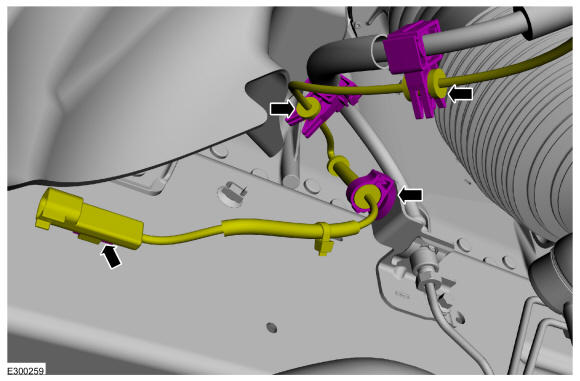

NOTE: Route the wheel speed sensor harness as shown or contact with the wheel may occur causing damage to the harness.
Detach the wiring retainers.
-

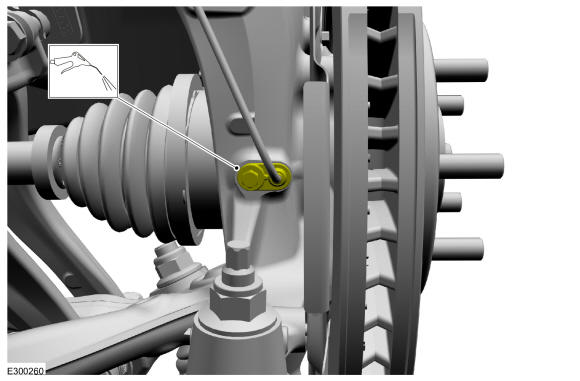

NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.
Using compressed air, clean the sensor housing area.

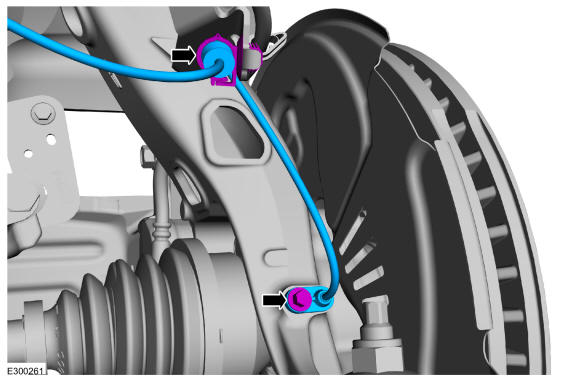

- Detach the wiring retainer, remove the bolt and the front wheel speed sensor
Torque: 106 lb.in (12 Nm)
