Quick Release Coupling

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 1
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

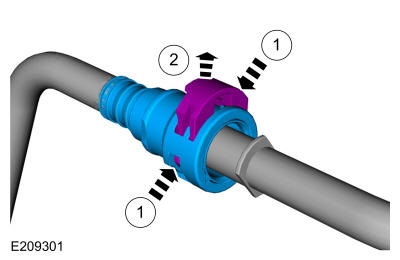

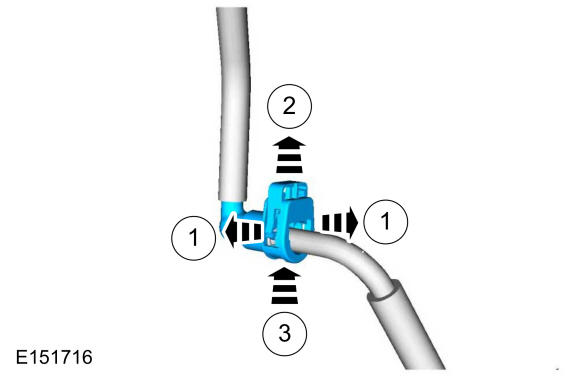

GFD798463Courtesy of FORD MOTOR COMPANY
GFD798464Courtesy of FORD MOTOR COMPANY

Connect

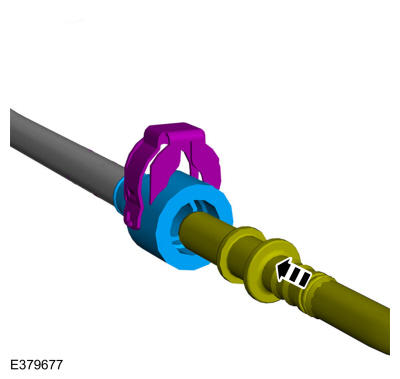

  1. Push the quick release coupling onto the tube.
    GFD798465Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

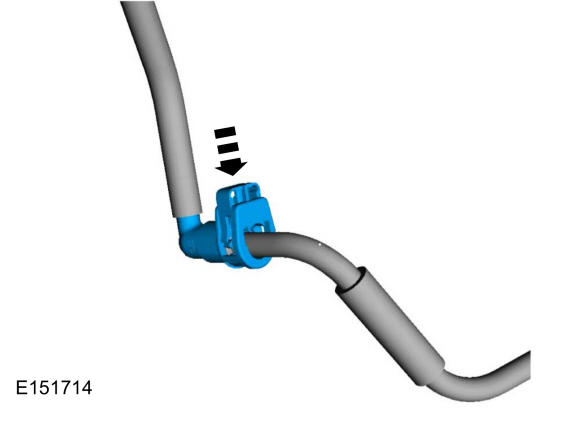

    GFD798466Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 2
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

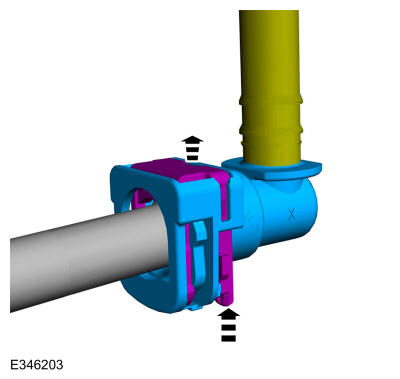

    GFD798467Courtesy of FORD MOTOR COMPANY
    GFD798468Courtesy of FORD MOTOR COMPANY

    Connect

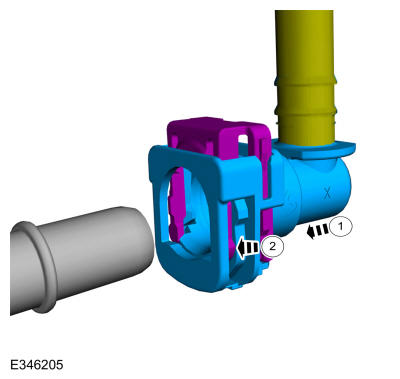

    GFD798469Courtesy of FORD MOTOR COMPANY
    GFD798470Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 3
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

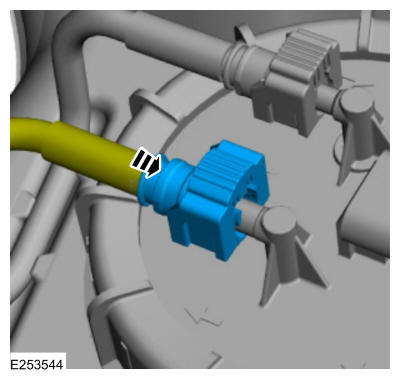

    GFD798471Courtesy of FORD MOTOR COMPANY

    Connect

    GFD798472Courtesy of FORD MOTOR COMPANY
    GFD798473Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 4
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

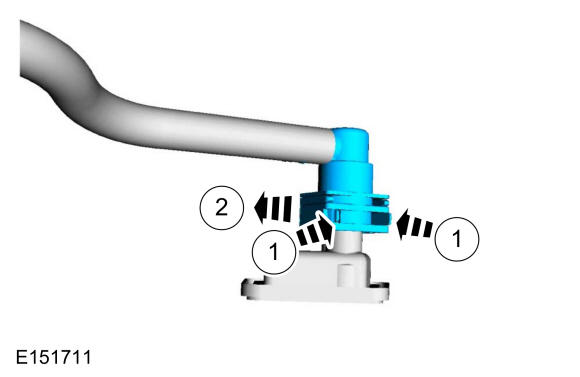

    GFD798474Courtesy of FORD MOTOR COMPANY
    GFD798475Courtesy of FORD MOTOR COMPANY

    Connect

    GFD798476Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 5
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

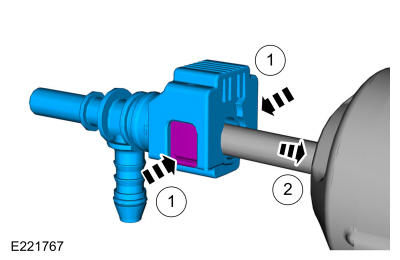

    GFD798477Courtesy of FORD MOTOR COMPANY
    GFD798478Courtesy of FORD MOTOR COMPANY

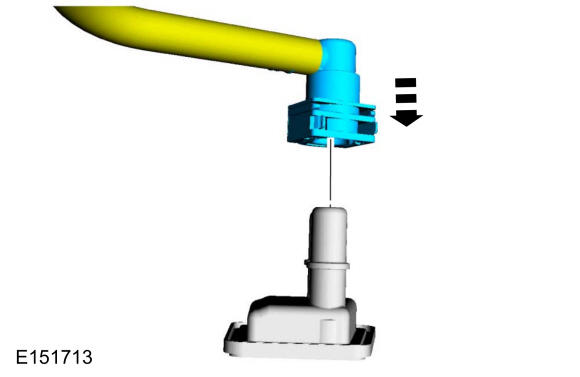

    Connect

    GFD798479Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 6
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  3. Press the tabs of the rear retainer clip and pull it to the outward position.

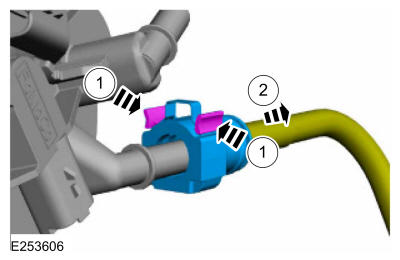

GFD798480Courtesy of FORD MOTOR COMPANY
GFD798481Courtesy of FORD MOTOR COMPANY

Connect

  1. Pull on the quick release coupling to make sure it is securely fastened.
    GFD798482Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 7
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
GFD798483Courtesy of FORD MOTOR COMPANY
GFD798484Courtesy of FORD MOTOR COMPANY

Connect

  1. Pull on the quick connect coupling to make sure it is securely fastened.
    GFD798485Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 8
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    GFD798477Courtesy of FORD MOTOR COMPANY
    GFD798478Courtesy of FORD MOTOR COMPANY

    Connect

    GFD798479Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 9
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    1. Release the secondary locking tab.
    2. Depress the primary locking tab.
    3. Separate the quick release coupling from the tube.

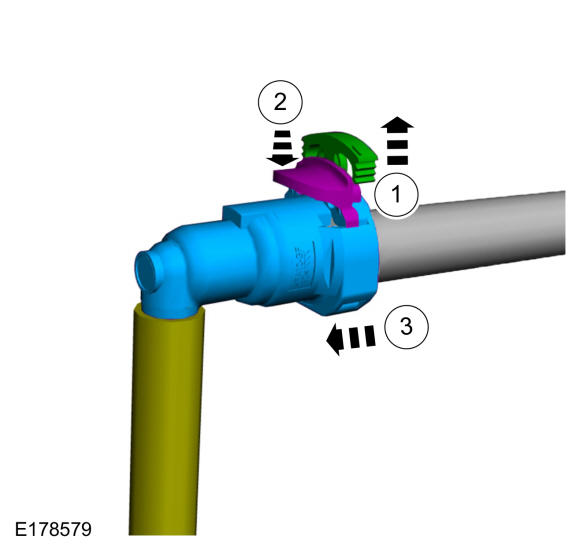

GFD798486Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the quick release coupling onto the tube.
    2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Lock the secondary locking tab.

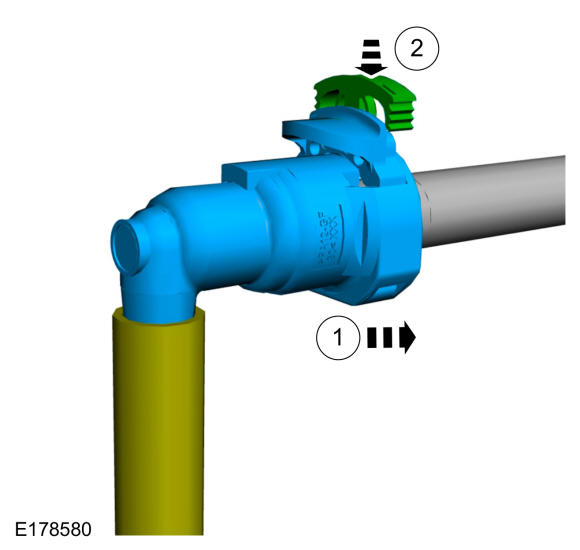

    GFD798487Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 10
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

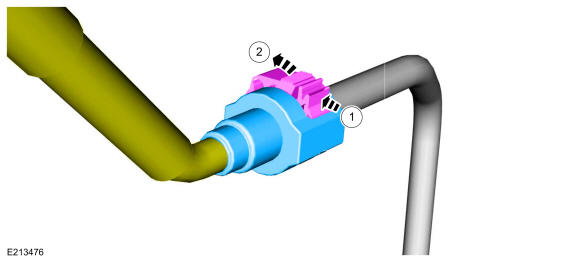

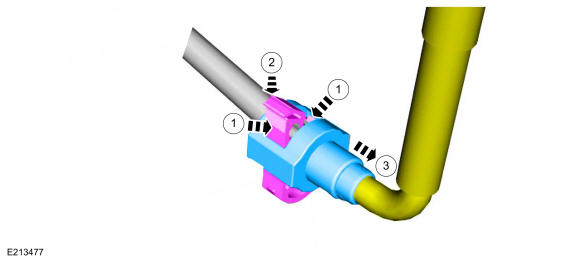

    1. Push on the locking tab.
    2. Lift the clip.
    GFD798488Courtesy of FORD MOTOR COMPANY
    1. Depress the tabs inward.
    2. Push the clip downward.
    3. Separate the quick release coupling from the fuel line.
GFD798489Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the quick release coupling onto the tube.
    2. Push the clip down into the quick release coupling.
    3. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

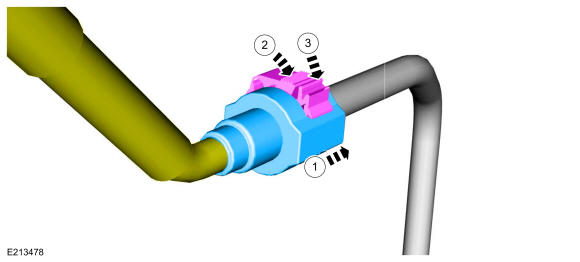

    GFD798490Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 11
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

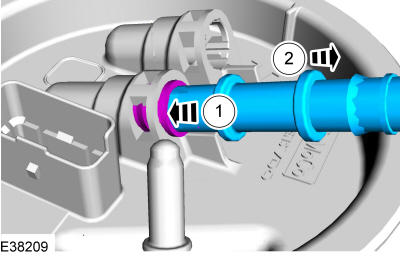

GFD798491Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD798491Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 12
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
GFD798492Courtesy of FORD MOTOR COMPANY
GFD798493Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD798494Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 13
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

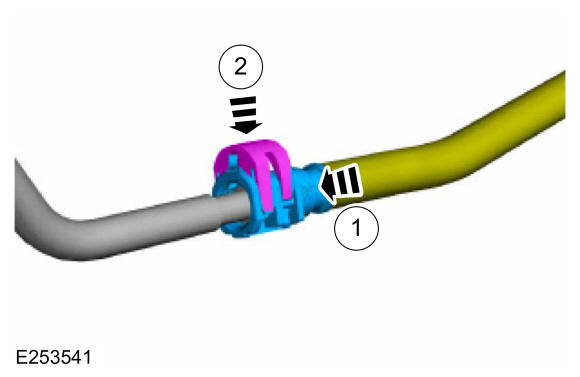

GFD798495Courtesy of FORD MOTOR COMPANY

Connect

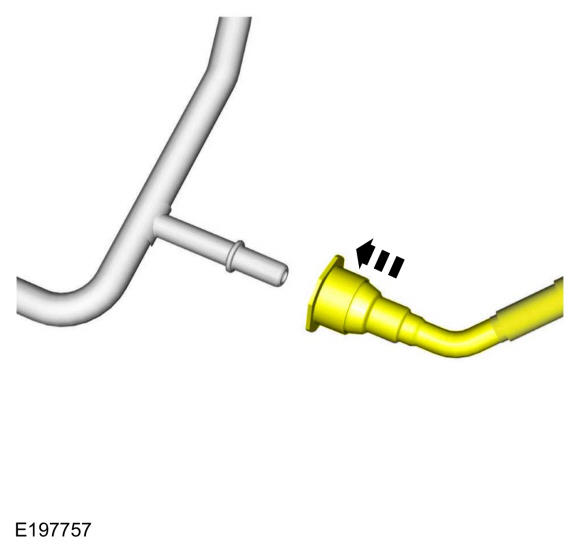

  1. GFD798496Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 14
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    GFD798497Courtesy of FORD MOTOR COMPANY

    Connect

    GFD798498Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 15
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Press both retaining tabs inward and remove quick release coupling from fuel tube.
GFD798499Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Inspect and clean both quick release coupling ends.

    Install the quick release coupling onto the tube until it is fully seated.

    GFD798500Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 16
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
GFD798501Courtesy of FORD MOTOR COMPANY

Connect

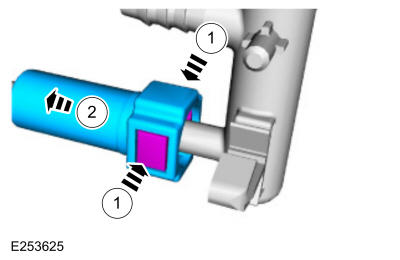

  1. GFD798501Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 17
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
GFD798502Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD798503Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 18
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

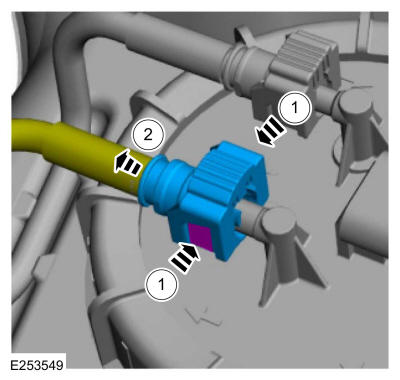

GFD798504Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD798505Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 19
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
GFD798506Courtesy of FORD MOTOR COMPANY

Connect

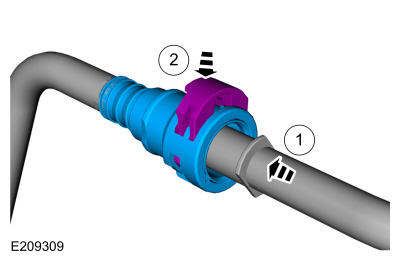

  1. GFD798507Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 20
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
GFD798508Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD798509Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 21
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

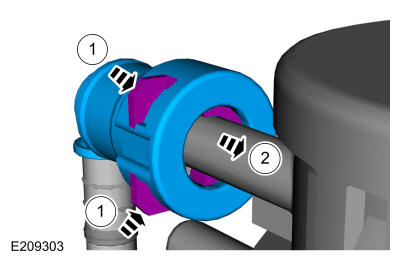

GFD798510Courtesy of FORD MOTOR COMPANY

Connect

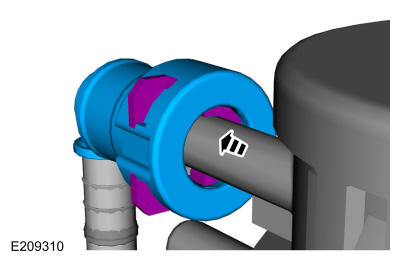

  1. GFD798511Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 22
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

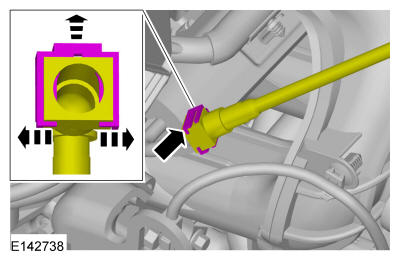

    GFD798512Courtesy of FORD MOTOR COMPANY

    Connect

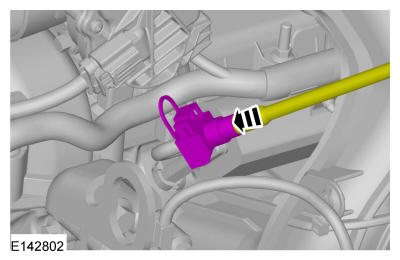

    GFD798513Courtesy of FORD MOTOR COMPANY

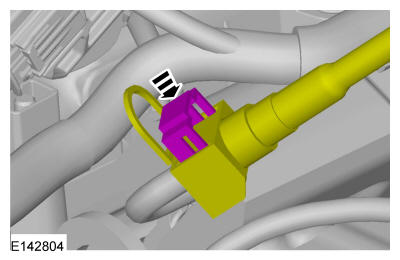

  3. GFD798514Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  4. NOTE: Make sure that all fuel connections are checked for leaks.
    NOTE: This step is only neccessary if a new component is installed.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

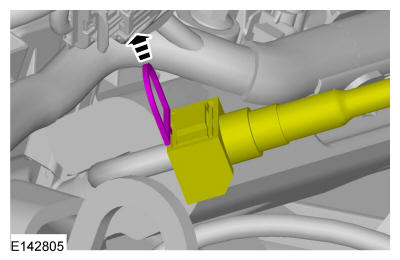

    GFD798515Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 23
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

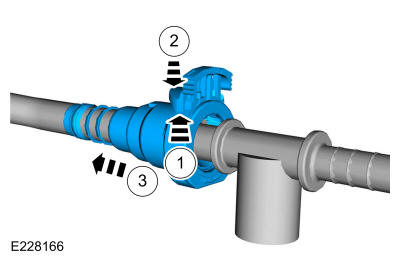

GFD798516Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD798517Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 24
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
GFD798518Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD798519Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 25
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    1. Depress the clip into the quick release coupling.
    2. Separate the quick release coupling from the tube.

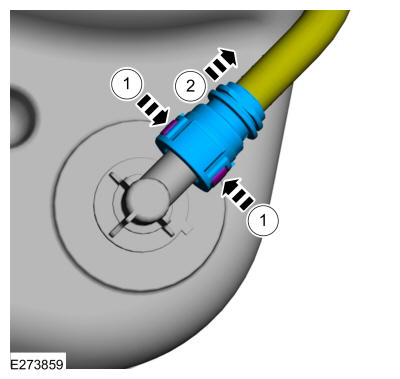

GFD798520Courtesy of FORD MOTOR COMPANY

Connect

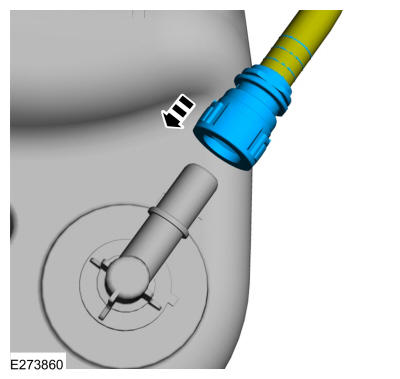

  1. GFD798521Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 26
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    1. Remove the quick release coupling from the tube.
GFD798522Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD798523Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 27
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    GFD798524Courtesy of FORD MOTOR COMPANY
  3. Remove the quick release coupling from the tube.

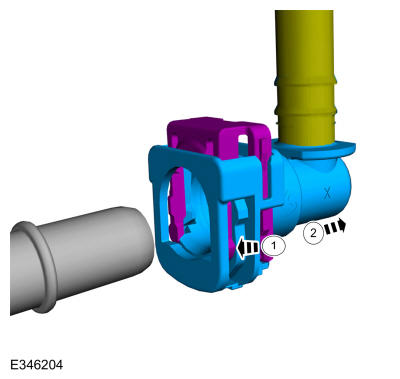

GFD798525Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD798526Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Quick connect retainer clip is a serviceable part and can be replaced if it is lost during assembly.
NOTE: Type 28
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release - 3.0L EcoBoost - Hybrid (BQ), .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    1. Dislodge the clip.
    2. Pulling out the clip upward.

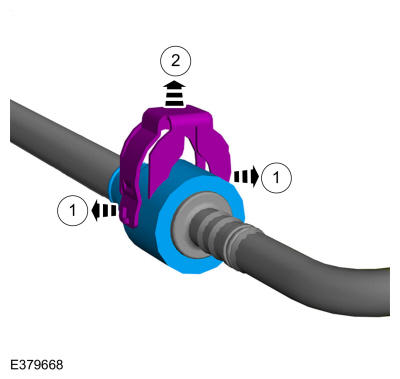

    GFD798527Courtesy of FORD MOTOR COMPANY
  4. Remove the tube.

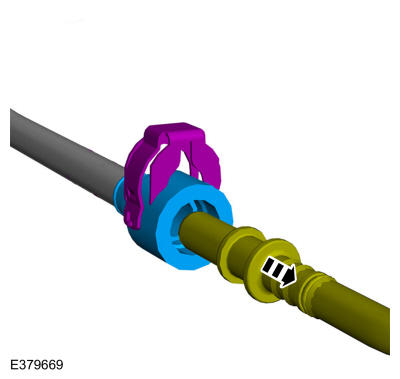

GFD798528Courtesy of FORD MOTOR COMPANY

Connect

  1. Insert the tube.
    GFD798529Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

    GFD798530Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
scientia non olet · About LEMON Manuals
