Frame Members-Rear Frame Section: Installation

Refer to: BODY SYSTEM - GENERAL INFORMATION
NOTE: Verify dimensional accuracy before performing any welding operations.

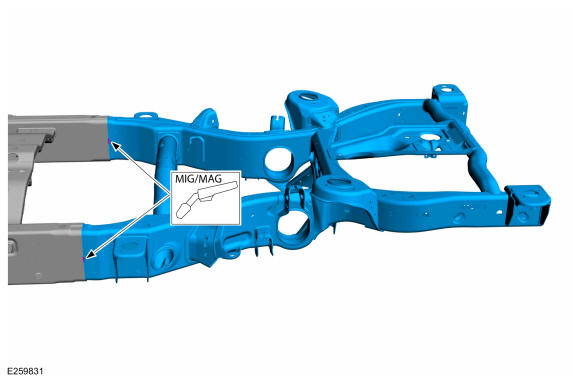

Install the new rear frame section into the mid rear section of the frame and tack weld the frame rails. Refer to: the appropriate Body and Frame article.

Courtesy of FORD MOTOR COMPANY

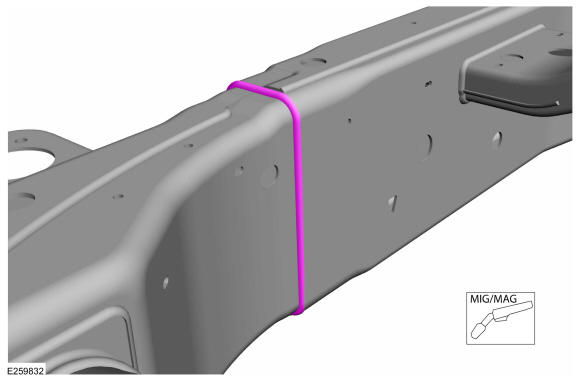

Perform a final measurement, then final weld the new rear section to the mid rear section on all overlap joints on both sides. Use the General Equipment: MIG/MAG Welding Equipment

Courtesy of FORD MOTOR COMPANY
Metal finish the joint area typical metal finishing techniques.
Metal finish the joint area typical metal finishing techniques.
Refinish using a Ford approved paint system.
Restore corrosion protection. Refer to: the appropriate Corrosion Prevention article.
NOTE: To avoid damage to the spare tire winch when installing the spare tire, DO NOT exceed 200 RPM if using power tool equipment.

Install the following items:
1. As equipped. Refer to: Fuel Tank Filler Pipe .
2. As equipped. Refer to: Muffler and Tailpipe .
3. Refer to: Shock Absorber and Spring Assembly .
4. Refer to: Rear Bumper .
