Connector Repair Procedures

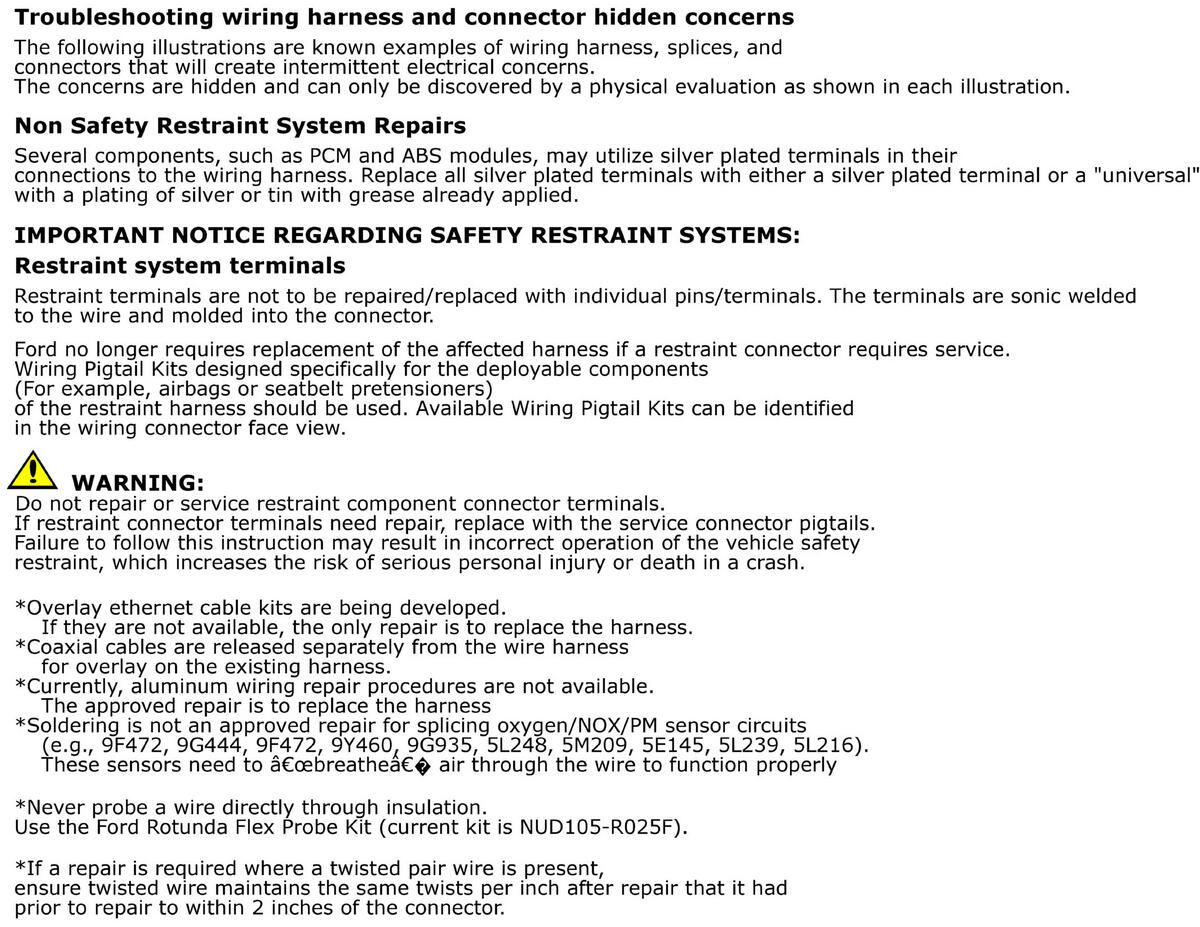

GFDWR266086Courtesy of FORD MOTOR COMPANY

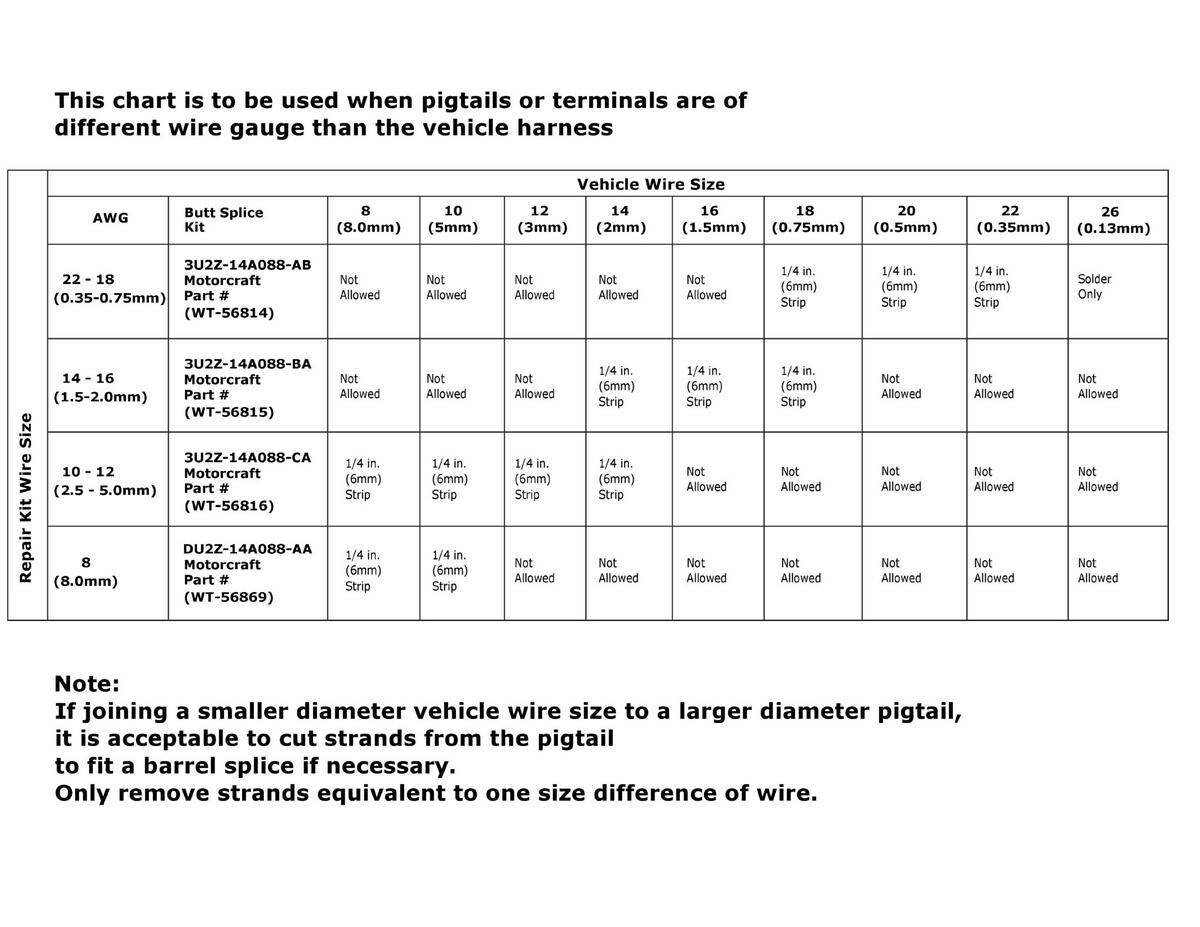

GFDWR266087Courtesy of FORD MOTOR COMPANY

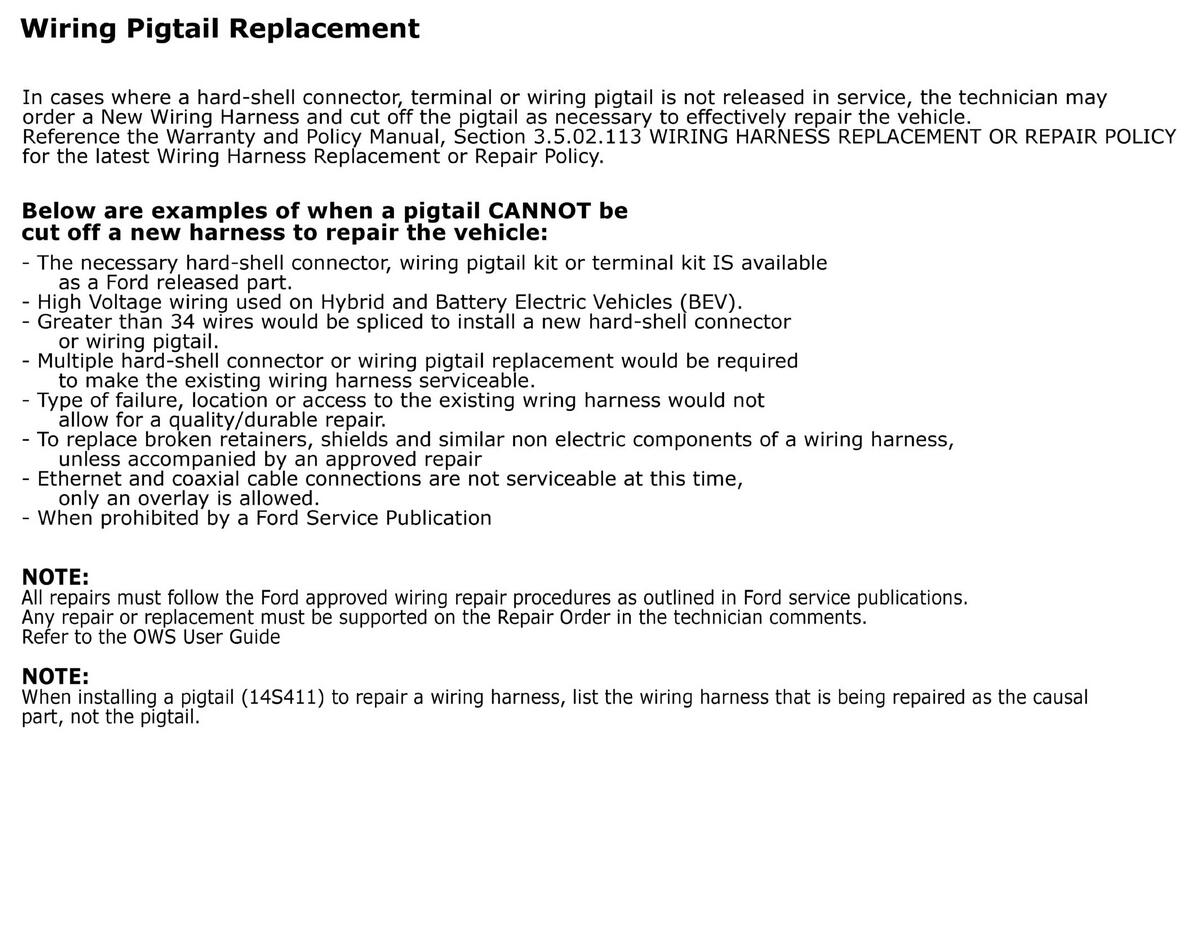

GFDWR266088Courtesy of FORD MOTOR COMPANY

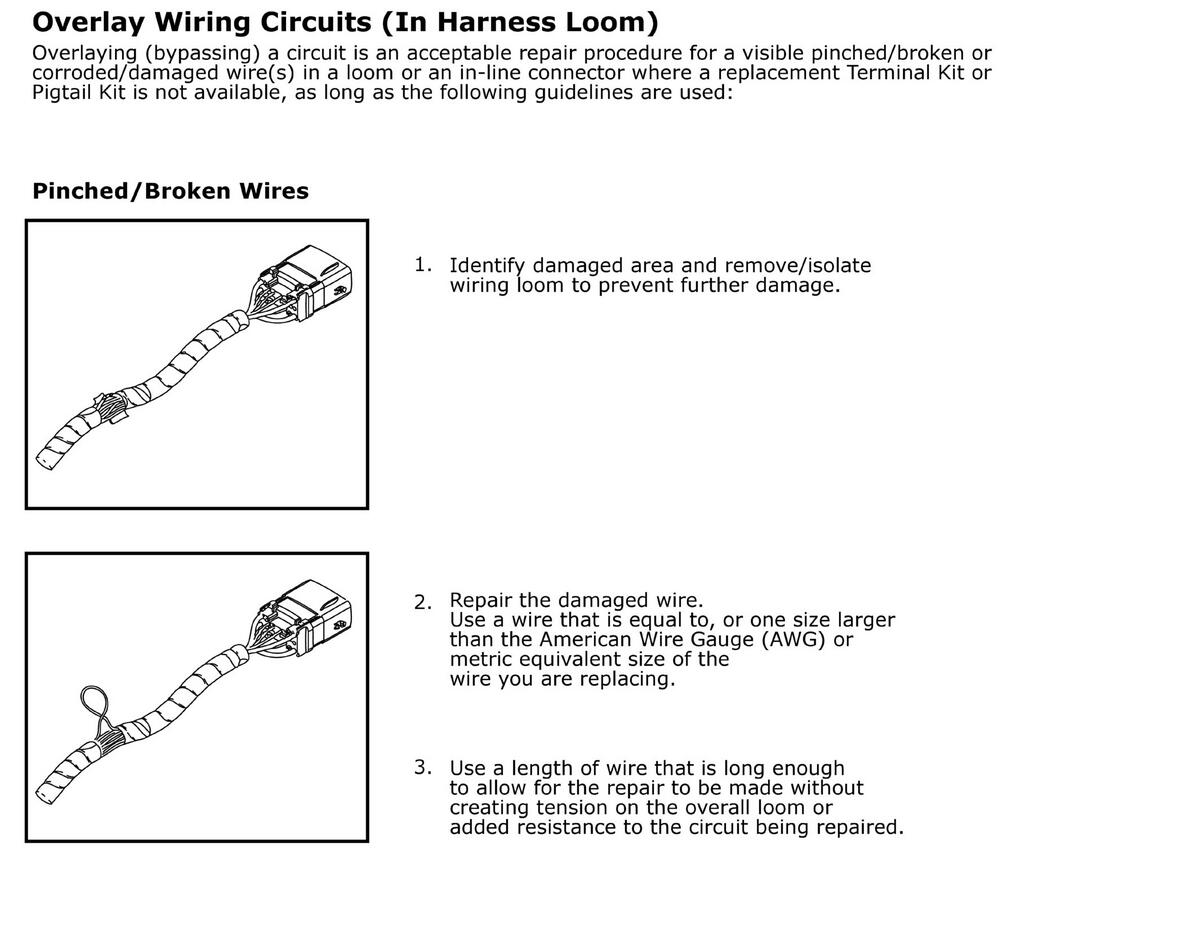

GFDWR266089Courtesy of FORD MOTOR COMPANY

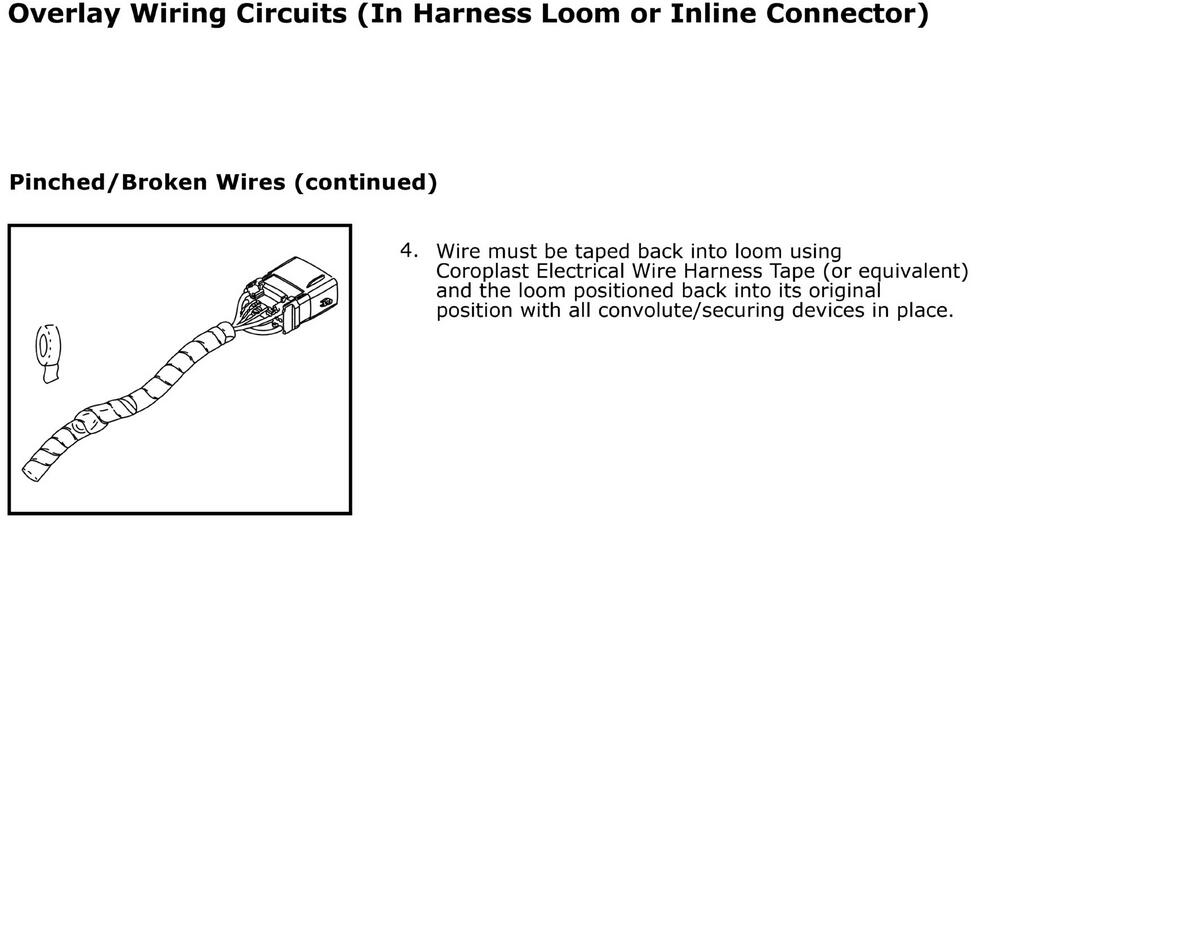

GFDWR266090Courtesy of FORD MOTOR COMPANY

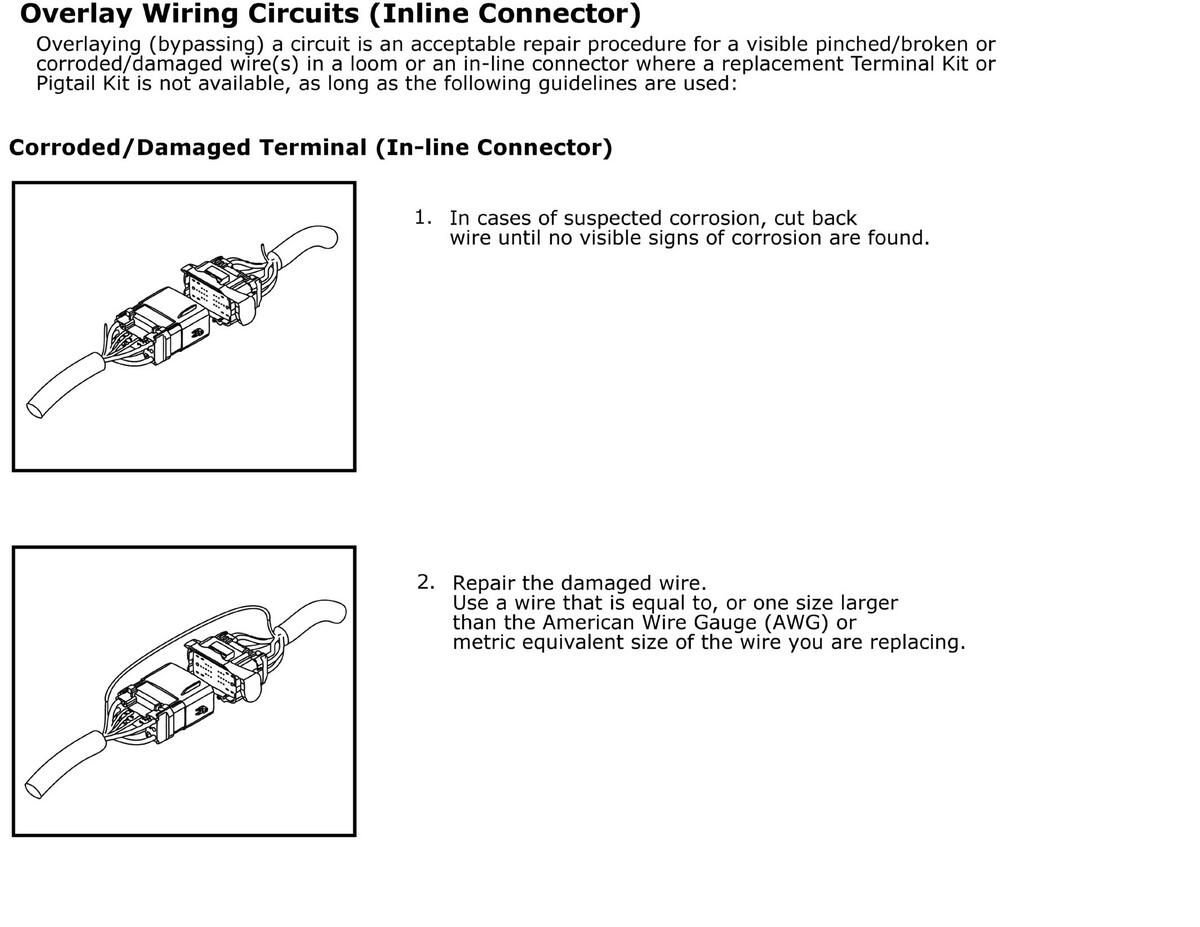

GFDWR266091Courtesy of FORD MOTOR COMPANY

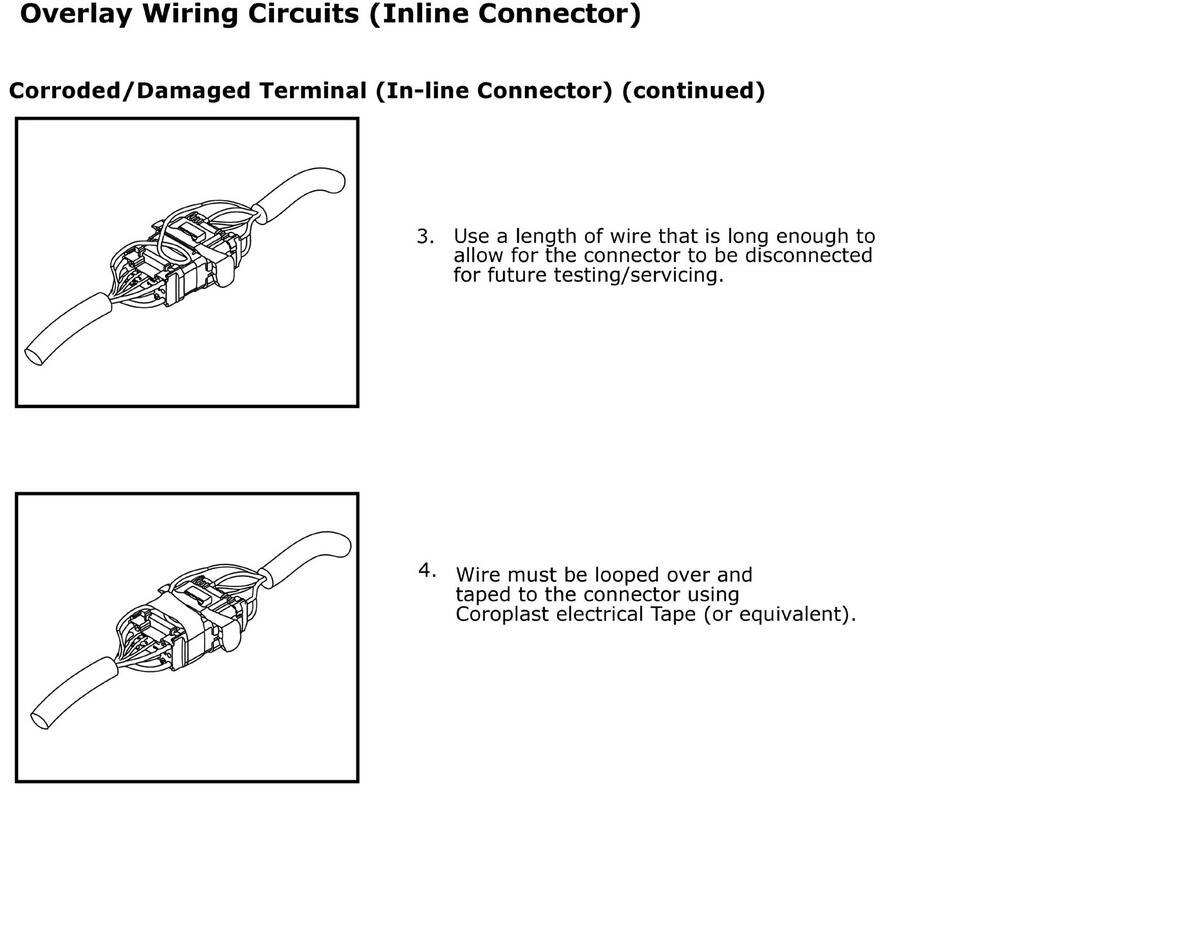

GFDWR266092Courtesy of FORD MOTOR COMPANY

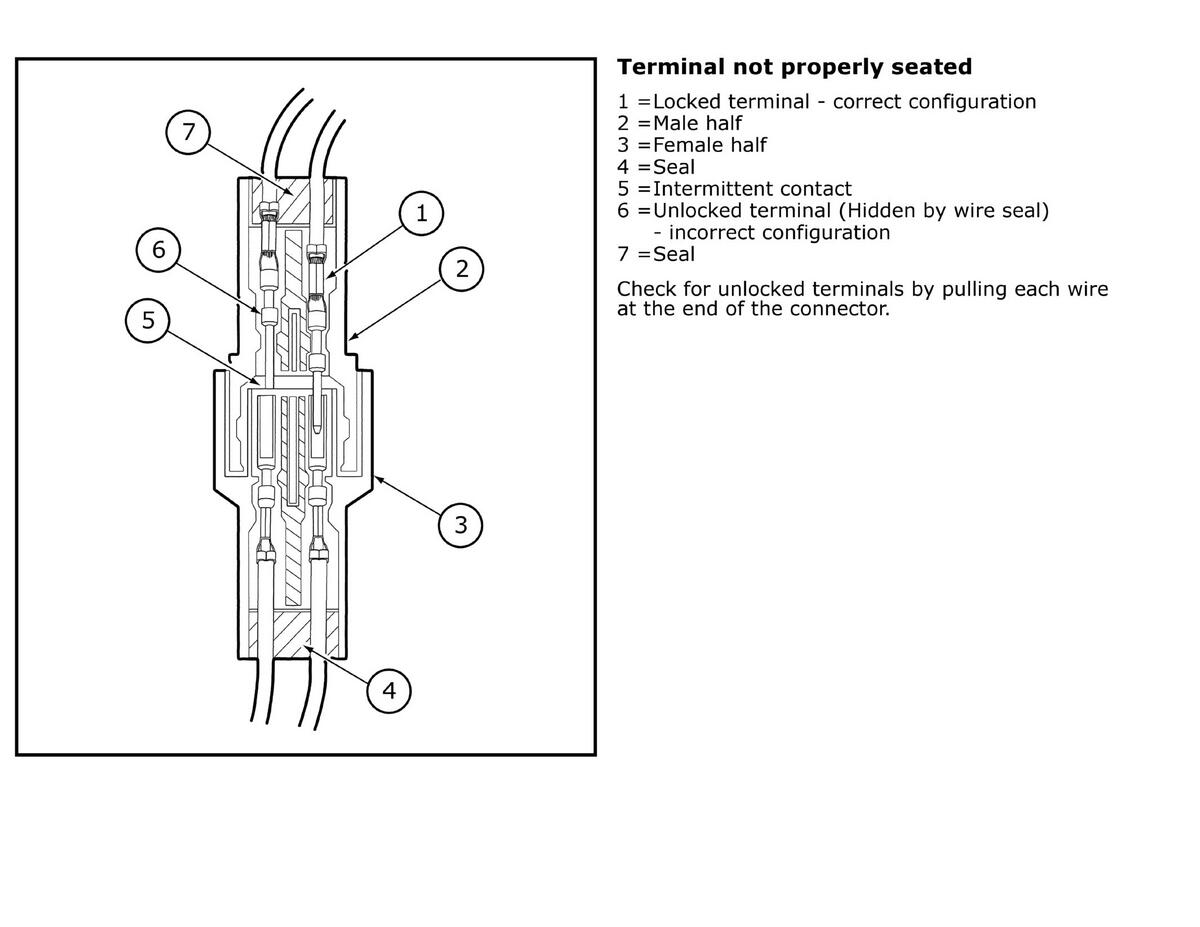

GFDWR266093Courtesy of FORD MOTOR COMPANY

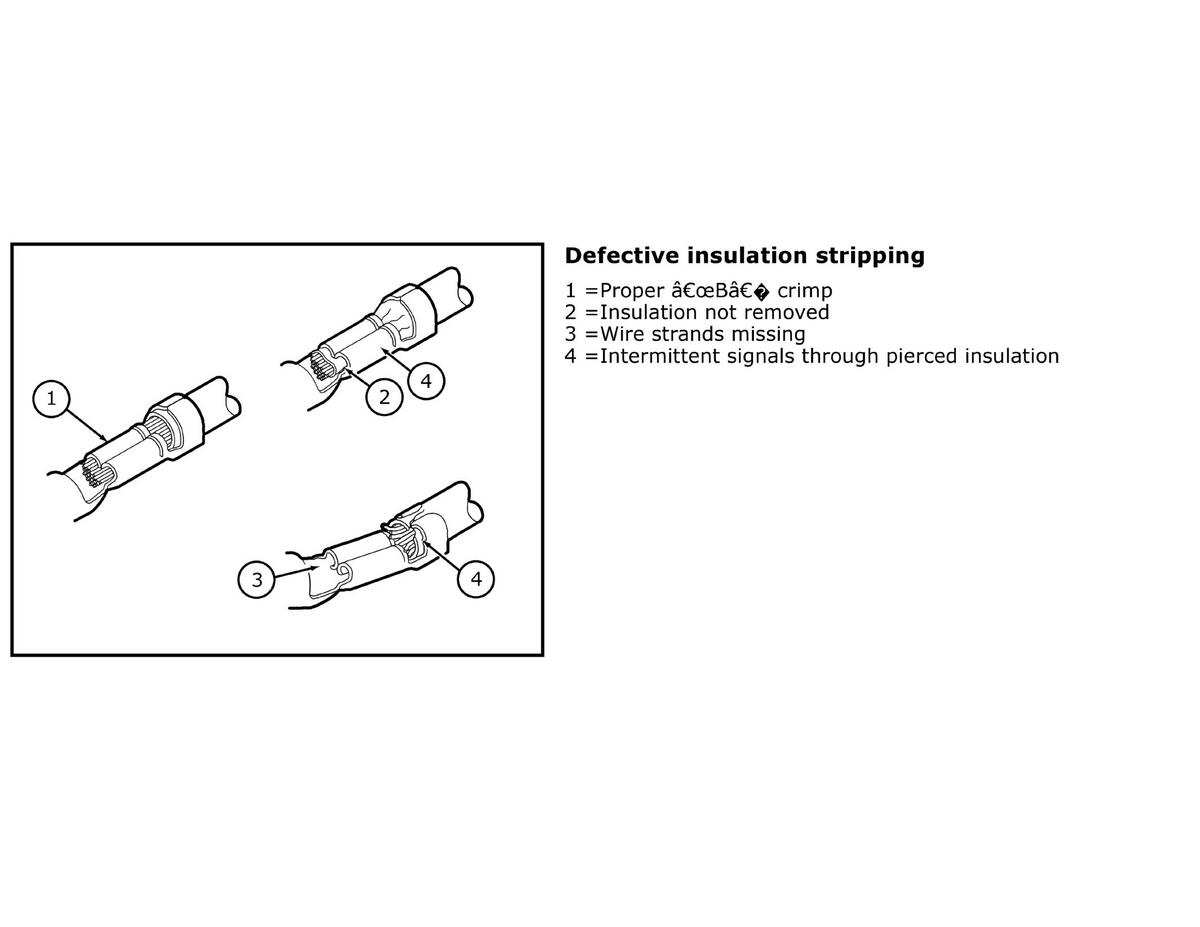

GFDWR266094Courtesy of FORD MOTOR COMPANY

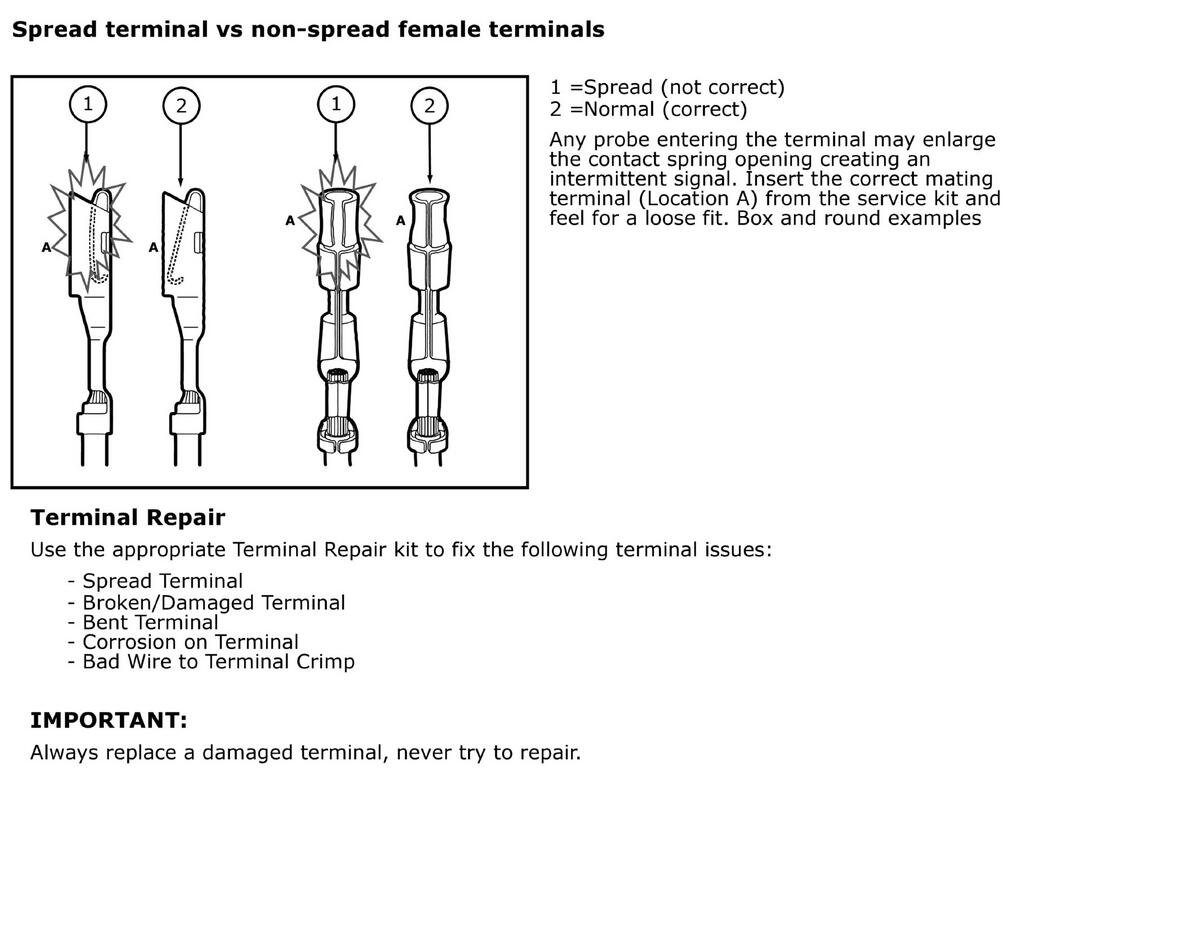

GFDWR266095Courtesy of FORD MOTOR COMPANY

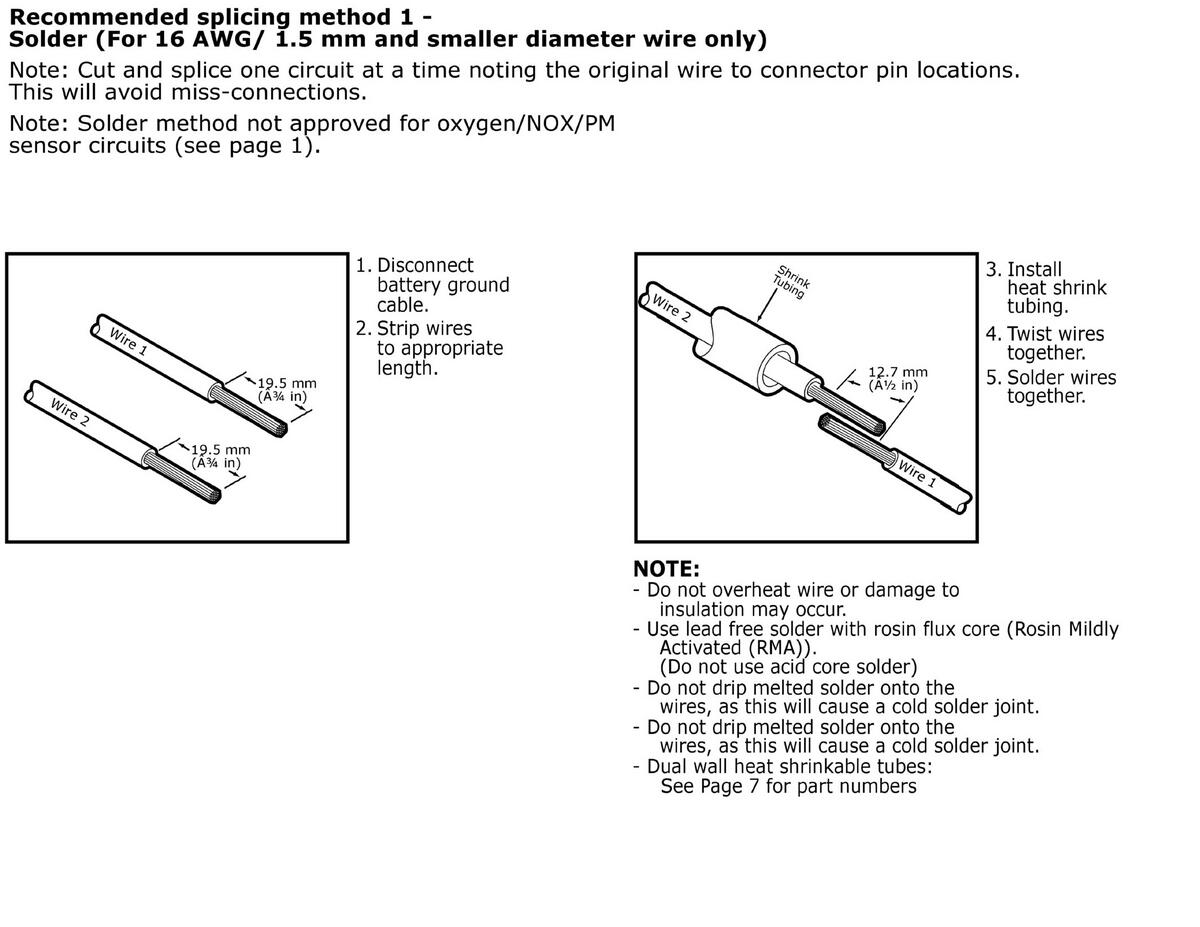

GFDWR266096Courtesy of FORD MOTOR COMPANY

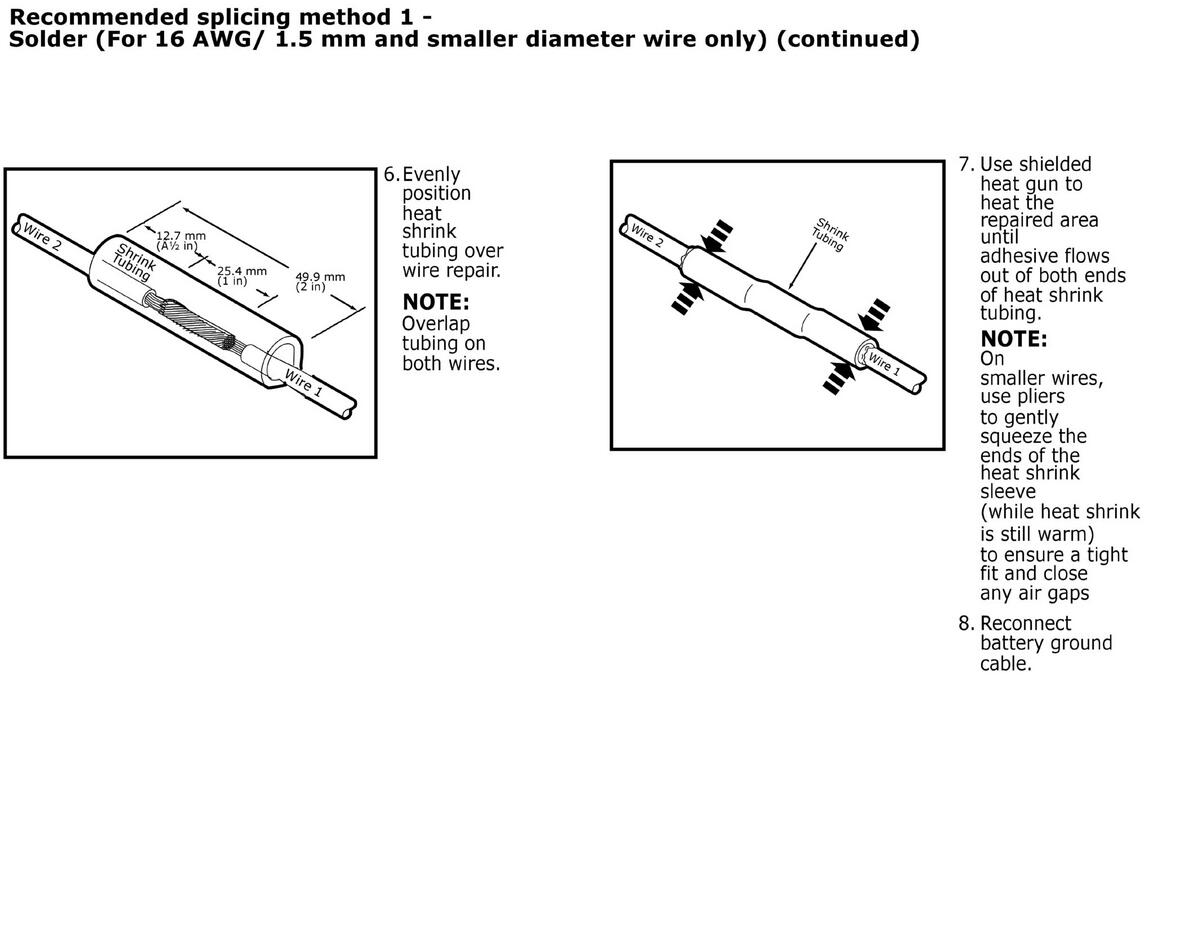

GFDWR266097Courtesy of FORD MOTOR COMPANY

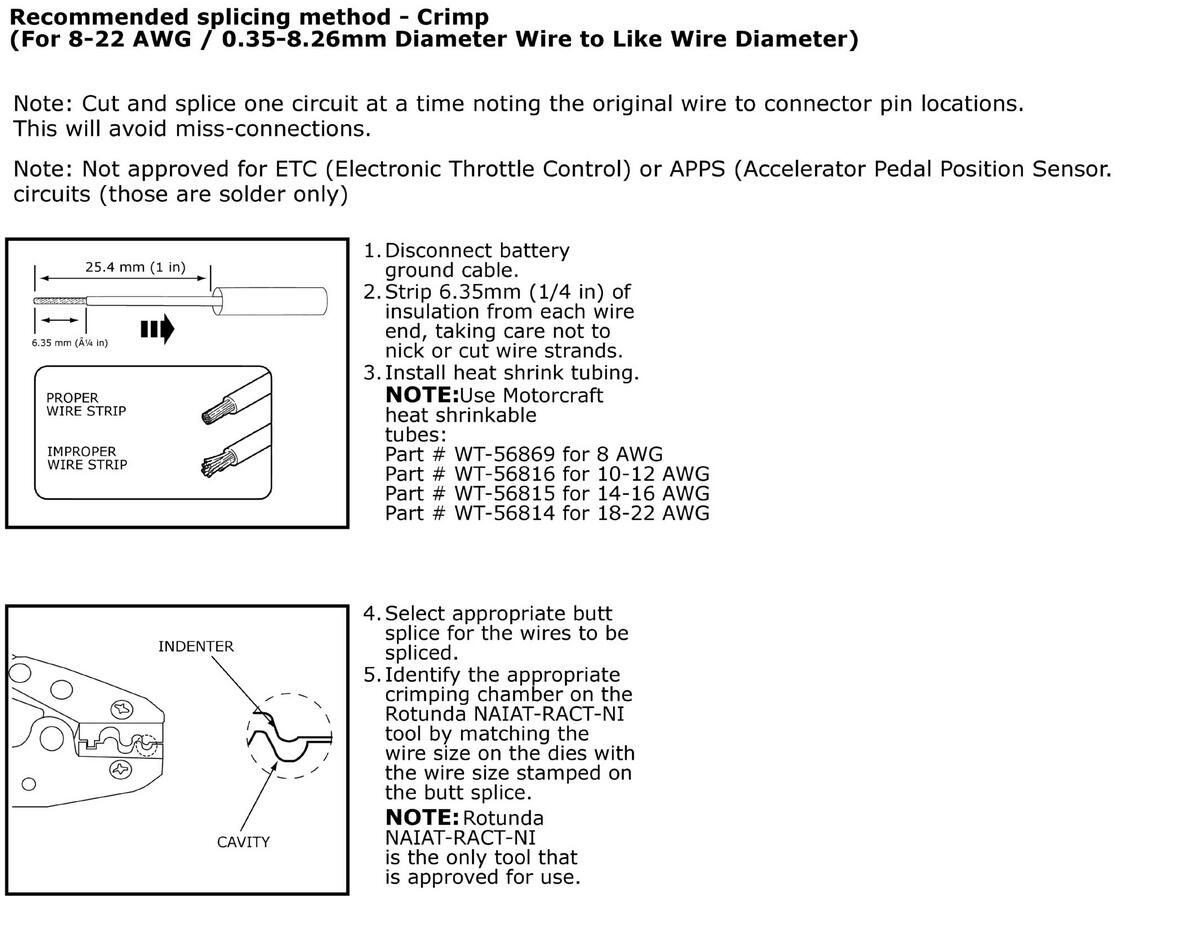

GFDWR266098Courtesy of FORD MOTOR COMPANY

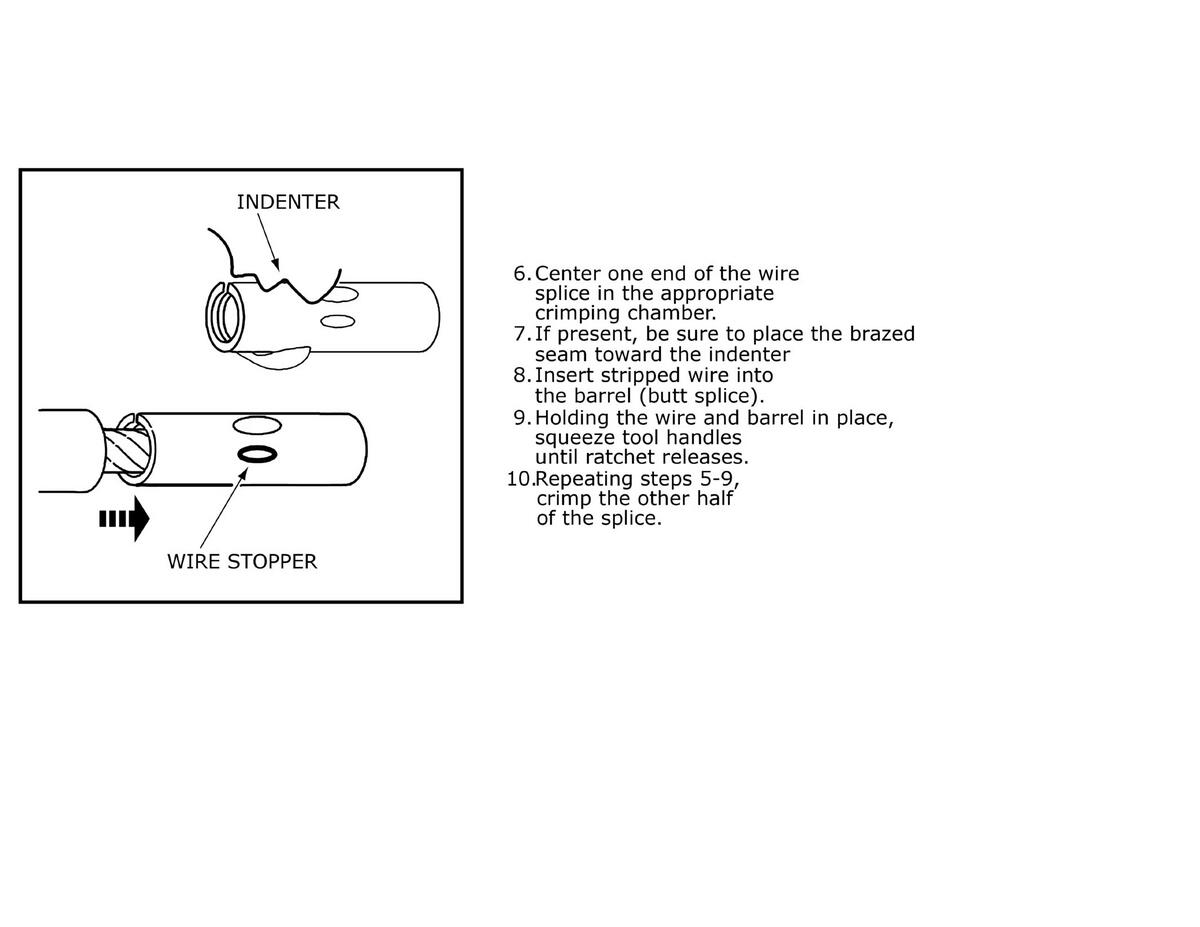

GFDWR266099Courtesy of FORD MOTOR COMPANY

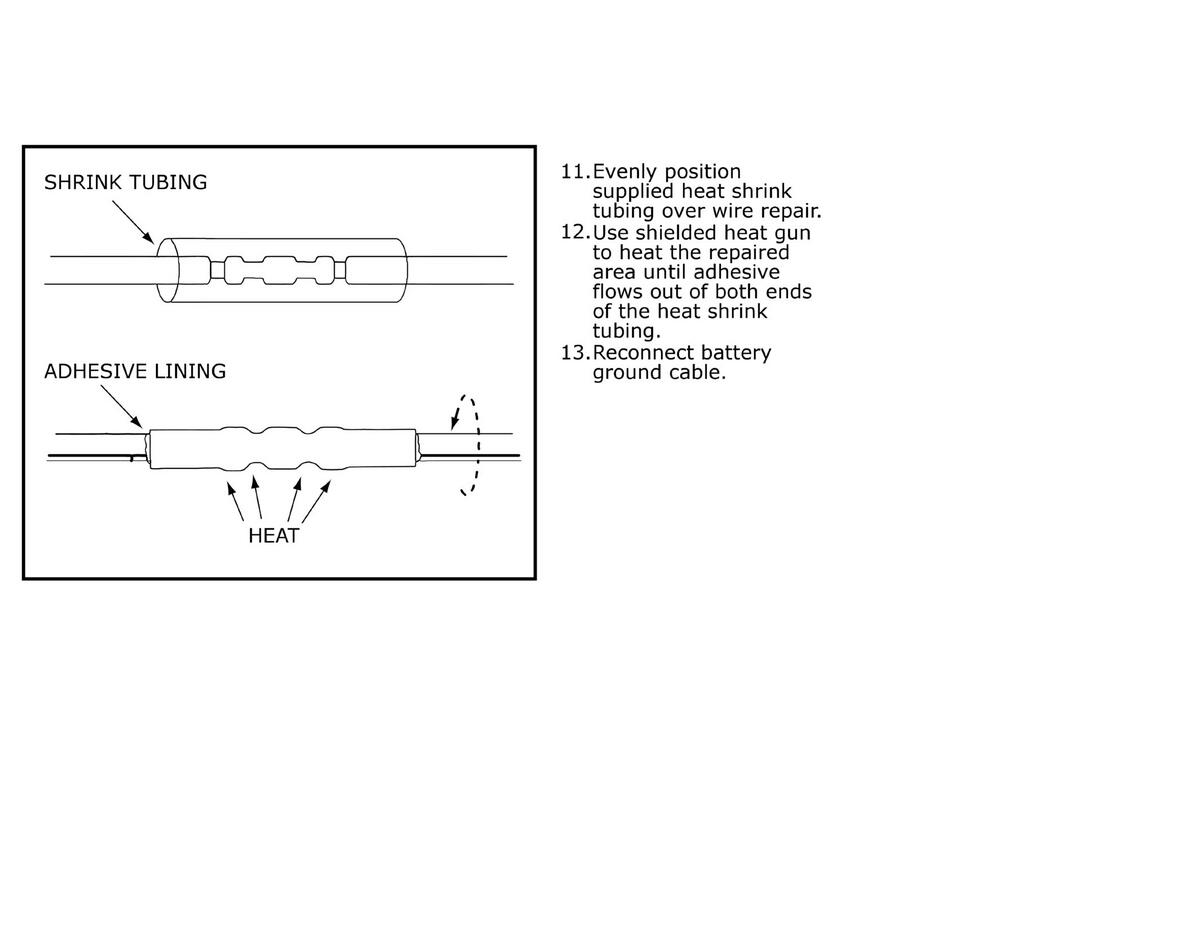

GFDWR266100Courtesy of FORD MOTOR COMPANY
