Alternators - LUCAS 1967-1972: Description
Construction of the Lucas "AC" type alternators is similar to the "ACR" type, except that a voltage regulator of micro-circuit construction is incorporated as an integral part of the "ACR" alternator. "AC" type alternators use an external regulator.

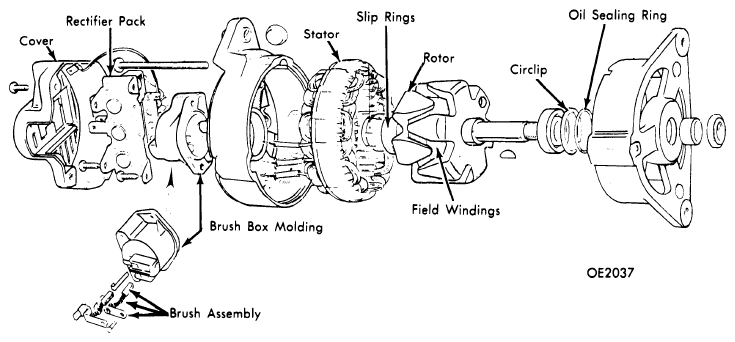

Both type alternators have stators consisting of three-phase, star-connected windings on a ring end cover and drive end bracket. The rotor is of eight or 12-pole construction (depending on model) and carries a field winding connected to two face-type slip rings. It is supported by a ball bearing in the drive end bracket and a needle roller bearing in the slip ring end cover. Two carbon brushes, one positive and one negative, bear against a pair of concentric brass slip rings. Slip ring end cover also carries six silicon diodes, connected in a three-phase bridge circuit to provide rectification of the generated alternating current output. On some models, field windings are isolated by means of a relay incorporated in the ignition switch circuit.
| Model | Lucas Model No. (Part No.) | |||||
|---|---|---|---|---|---|---|
| Austin America (1968-71) | 16ACR (....) | |||||
| Austin Marina (1973) | 17ACR (....) | |||||
| Capri (1970-73) | ||||||
| 1600cc (1970-72) | ||||||
| 28 Amp | 15ACR (23593-B | |||||
| 35 Amp | 17ACR (23647-A | |||||
| 2000cc (1971-73) | 16ACR (23653-A | |||||
| Cortina (1970) | 15ACR (....) | |||||
| Cricket (1971-72) | 16ACR (....) | |||||
| Jaguar (1969-73) | ||||||
| 6 Cyl | ||||||
| 1969 Early | 11 AC (23579 | |||||
| 1969 Late | 11 AC (23580 | |||||
| 1970 | ||||||
| XJ6 | 11 AC (23579-A | |||||
| XKE | 11AC (23580-B | |||||
| 1971 | 11AC (23579-A | |||||
| 1972-73 | ||||||
| W/O AC | 18ACR (....) | |||||
| W/AC | 20ACR (....) | |||||
| 12 Cyl | ||||||
| 1971 XKE W/O AC | 11AC (....) | |||||
| 1973 XJ12 | 11AC (....) | |||||
| MG (1968-73) | ||||||
| MGB & MGB GT | ||||||
| 1968-71 | 16ACR (23566-A | |||||
| 1972-73 | 16ACR (....) | |||||
| Rover (1967-73) | ||||||
| 2000 TC & SC | ||||||
| 1967-68 | (54021162) | |||||
| 1969 | (23549) | |||||
| 1970 | (23541-F) | |||||
| 3500S (1970-71) | 11AC (23545-D) | |||||
| Land Rover | ||||||
| 1971 | 11 AC (23549-D) | |||||
| 1972 | (1) 16ACR (23685) | |||||
| 1973 | (1) 16ACR (....) | |||||
| Sunbeam (1968-70) | ||||||
| 1968-69 | (23548) | |||||
| 1970 | (23606) | |||||
| Triumph (1968-73) | ||||||
| Stag (1971-73) | 11 AC (....) | |||||
| Spitfire Mk IV | ||||||
| 1971-72 | 15ACR (23634-A) | |||||
| 1973 | 16ACR (219267) | |||||
| GT6+ (1969-70) | 15ACR (23562-A) | |||||
| GT6Mk III (1971-73) | 15ACR (23636) | |||||
| TR250 (1968-69) | 15AC (23544) | |||||
| TR6 | ||||||
| 1970 | 15ACR (23636) | |||||
| 1971-73 | 17ACR (23635) | |||||
|
||||||
