Tune-Up - Rotary: Distributor

All models are equipped with electronic ignition with 2 pick-up coils. Air gap is non-adjustable, but should measure 0.020 - 0.035" (0.5 - 0.9 mm).

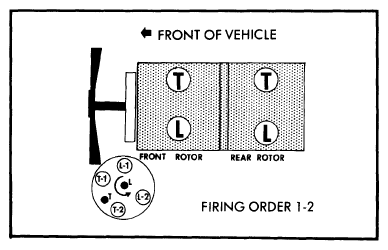

Fig 1: Firing Order and Distributor Rotation

Courtesy of MAZDA MOTORS CORP.
