Installing Front Rotor

Mount front housing on engine stand and place front rotor assembly on housing. Use care not to drop seal into port. Mesh internal and stationary gears so that one rotor apex is set to one of 4 positions shown in Fig 1.

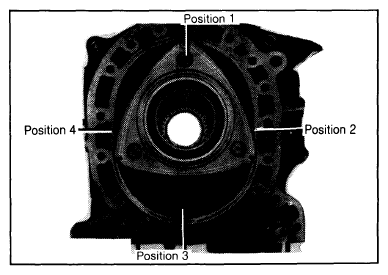

Fig 1: Positioning Rotor Apex for Reassembly

Courtesy of MAZDA MOTORS CORP.

Use care not to drop seal into Port.
