Emission Control Systems: Description and Operation

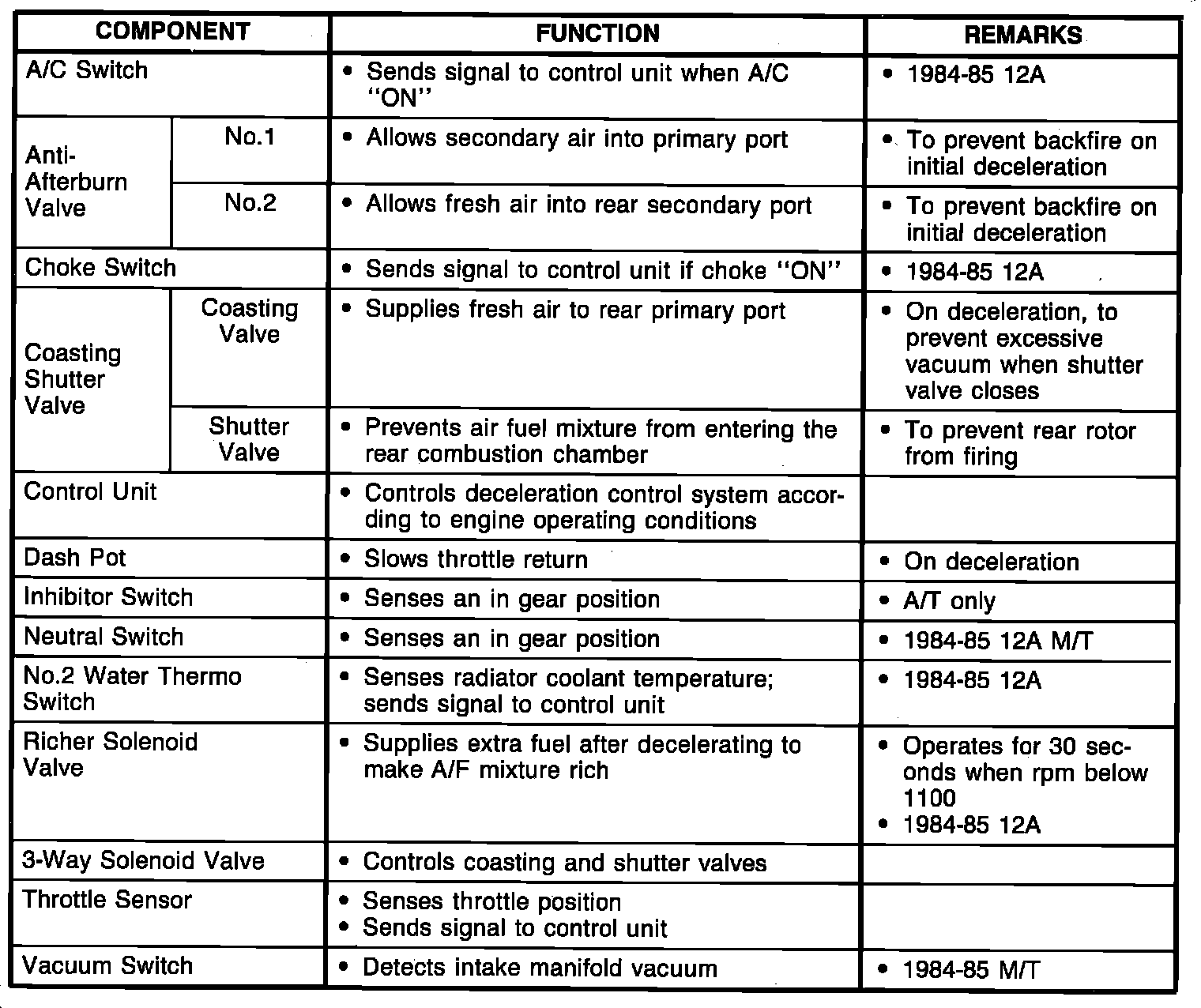

Fig. 9 Deceleration Control System Component Operation.:
