Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

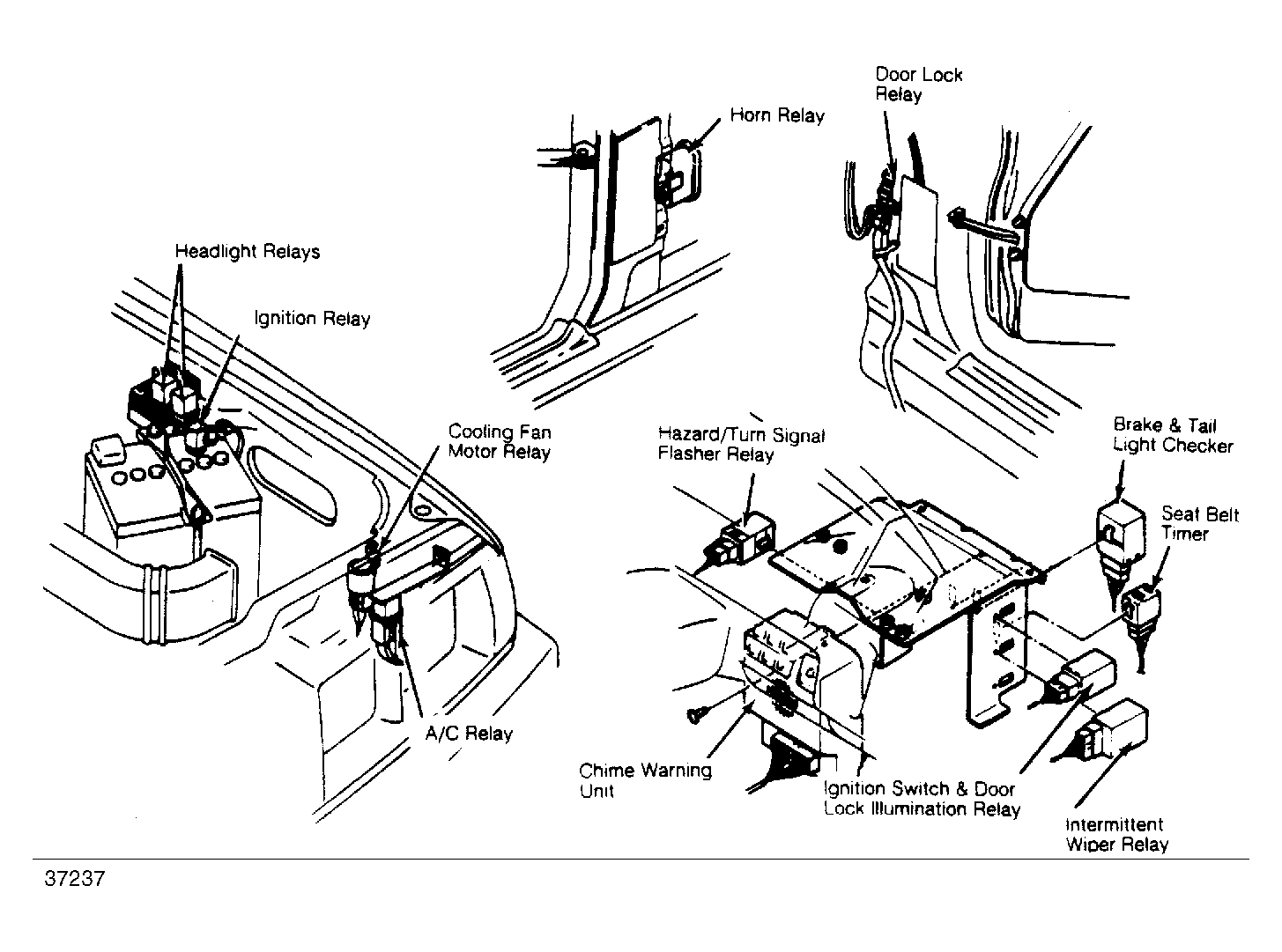

| Chime Warning Unit | Below left side of dash. See Figure & Figure . |

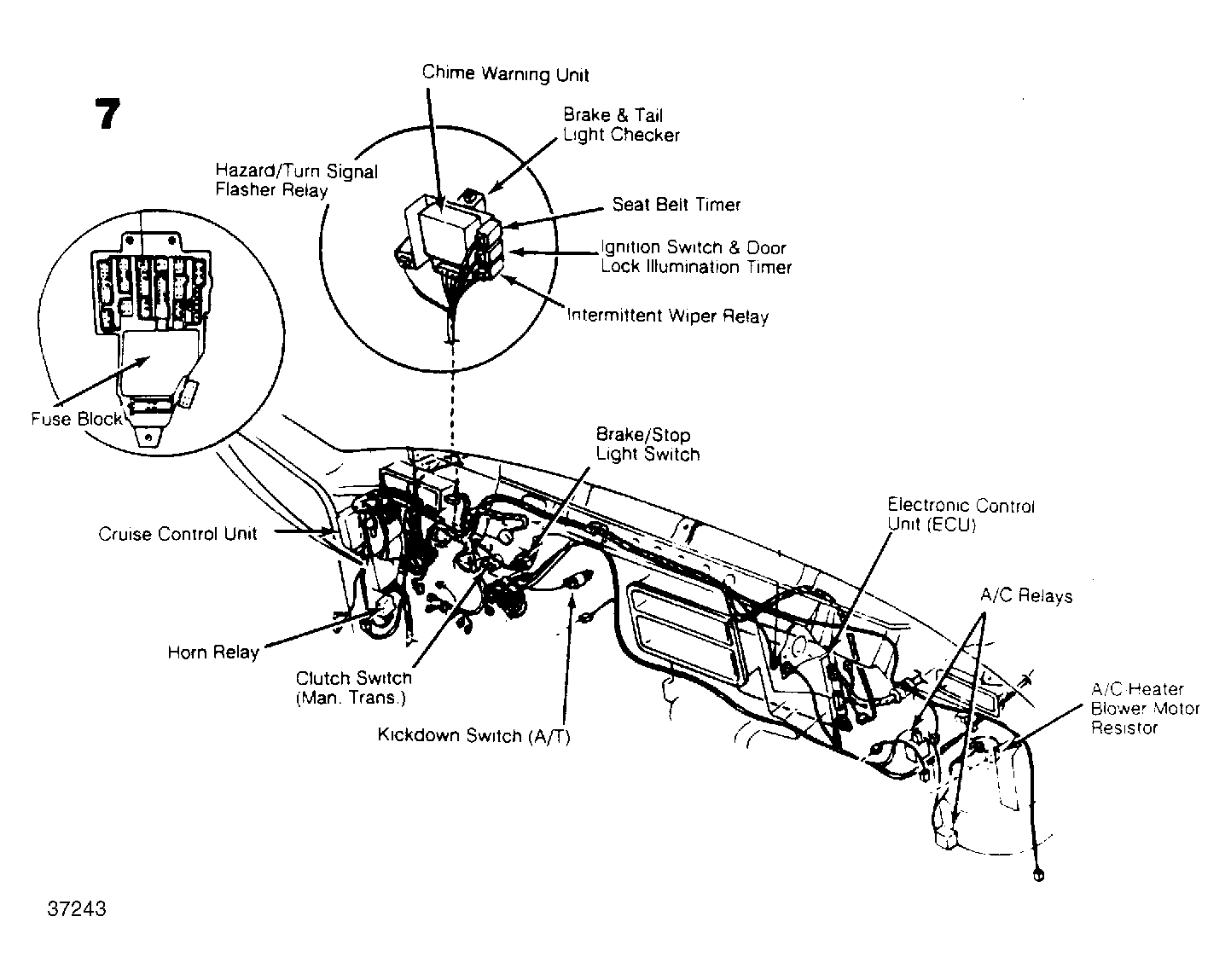

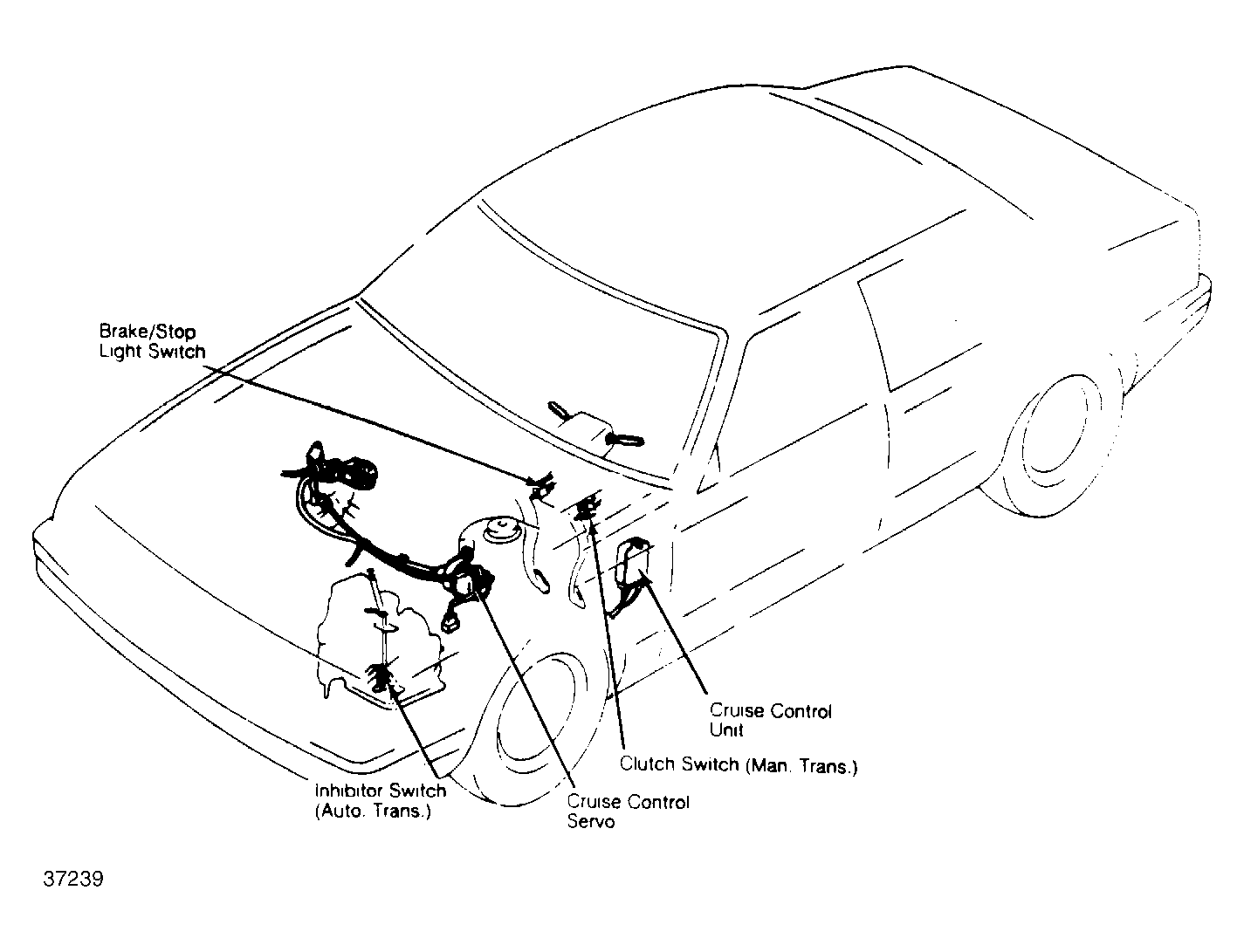

| Cruise Control Unit | On left side kick panel. See Figure & Figure . |

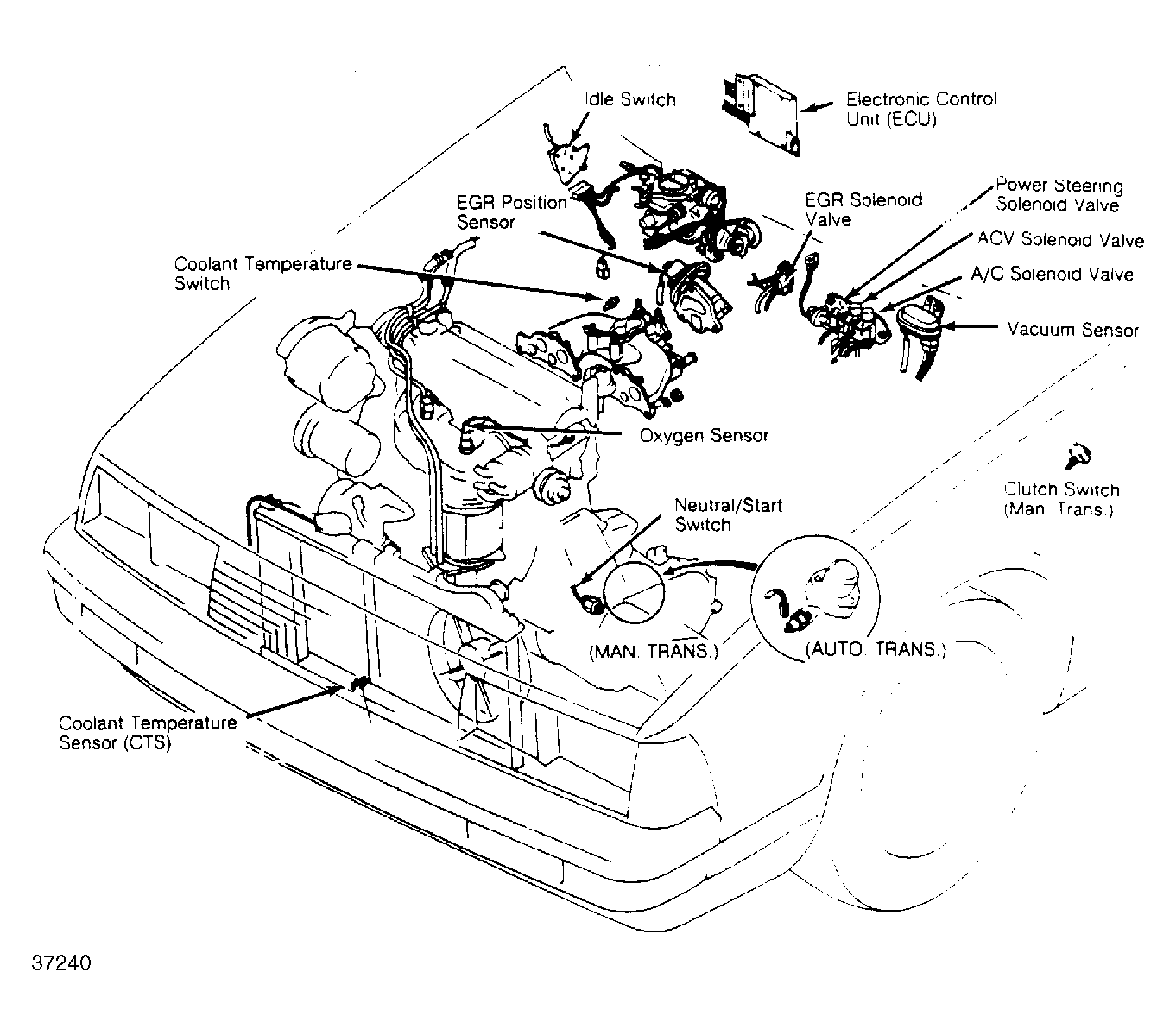

| Electronic Control Unit (ECU) | Below center of dash. See Figure & Figure . |

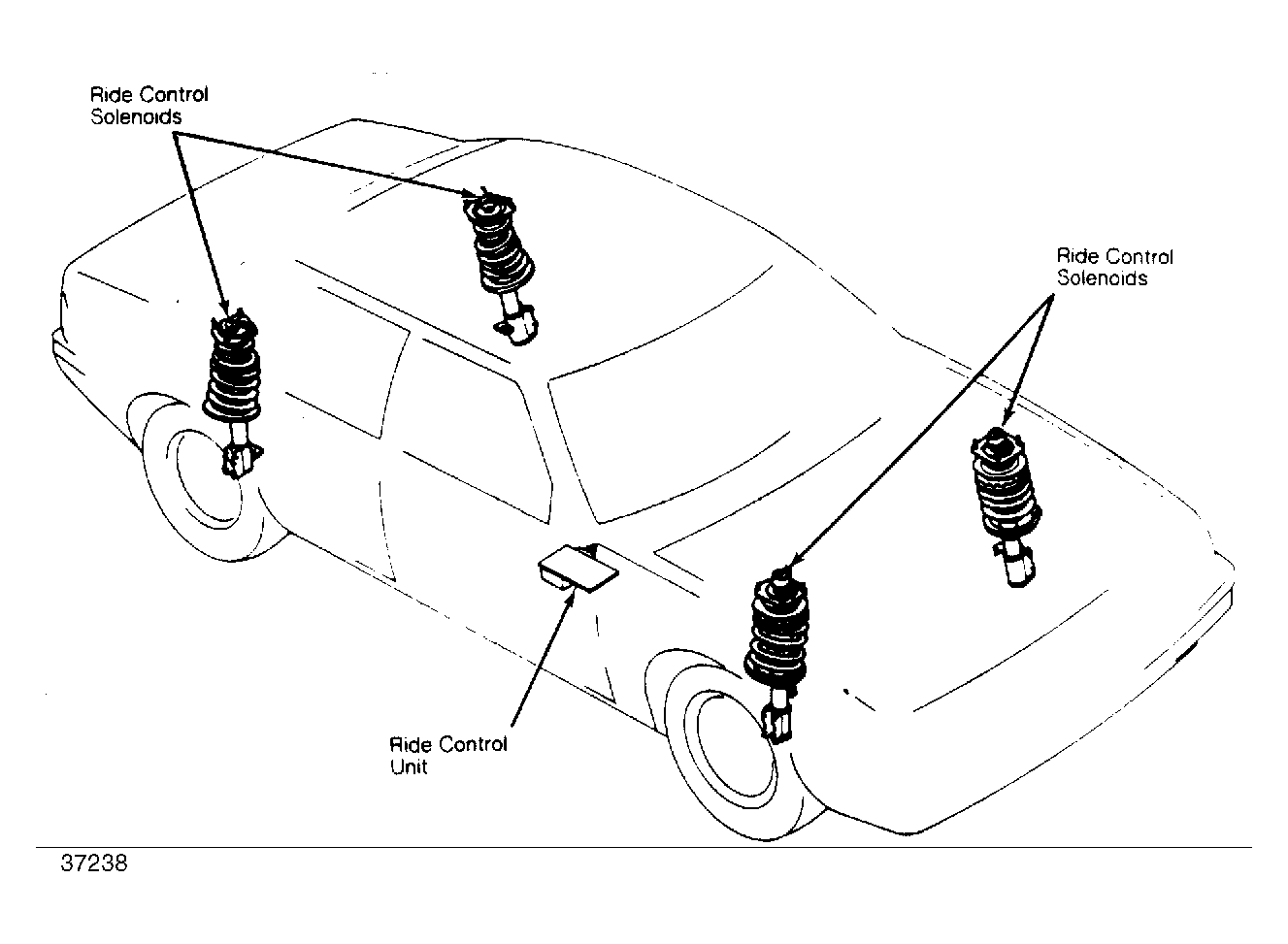

| Ride Control Unit | Below right side of dash. See Figure . |
