Neutral Switch

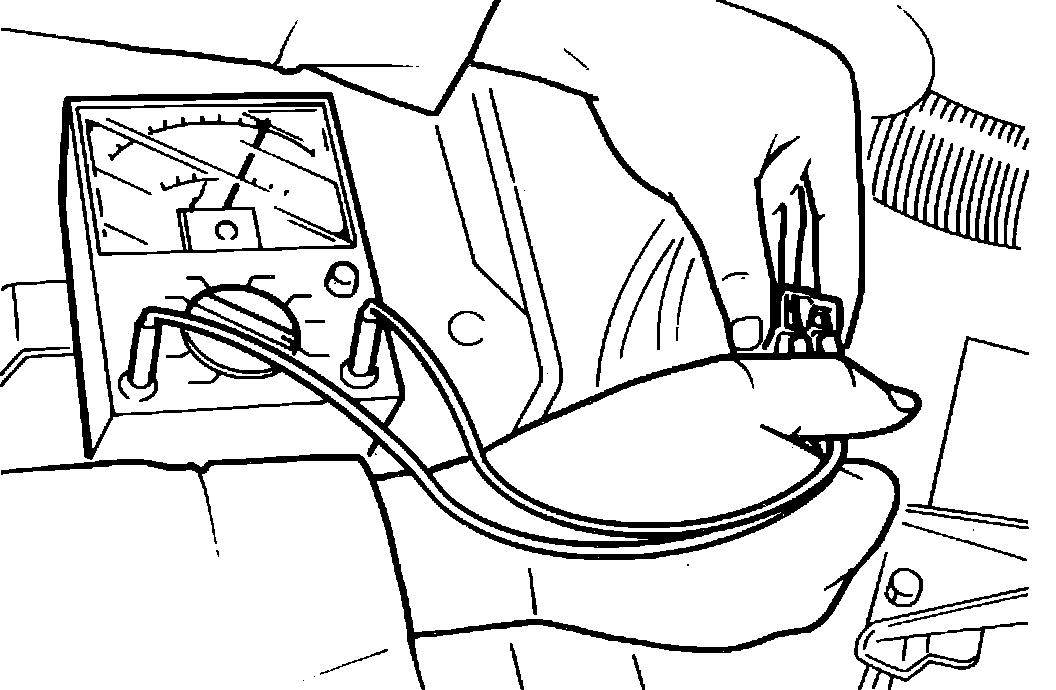

Fig. 13 Connecting A Circuit Tester To Neutral Switch:







1. Disconnect electrical connector from neutral switch.
2. Connect circuit tester to switch terminals Fig. 13.
3. Ensure continuity when shift lever is in neutral and no continuity when shift lever is in any other position.
