Spark Plug Cross-Reference Chart (NO. T-1-3)

Publication date: 1992-04-27
Reference number: NO. T-1-3

SPARK PLUG CROSS-REFERENCE CHART

TECHNICAL SERVICE BULLETIN

Reference Number(s): NO. T-1-3, Date of Issue: November 1, 1990(Revised - April 27, 1992)

Model: All Mazda

Date: November 1, 1990 (Revised - April 27, 1992)

No: T-1-3

Group: Parts

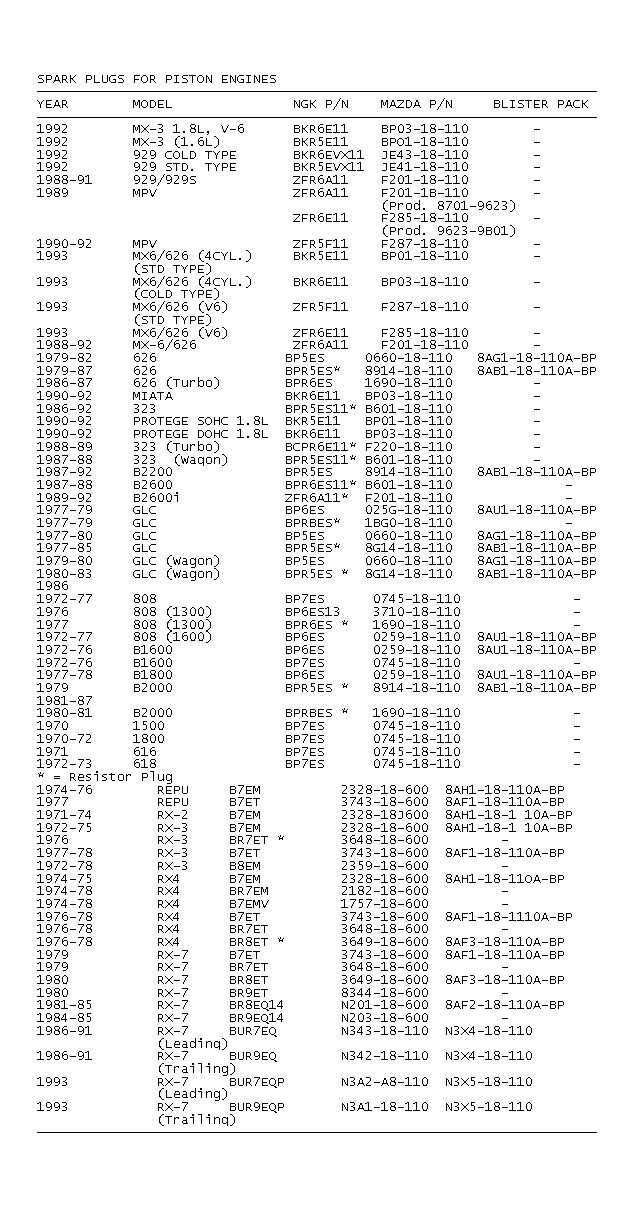

Fig 1: SPARK PLUGS FOR PISTON ENGINES

(See Fig 2 ).

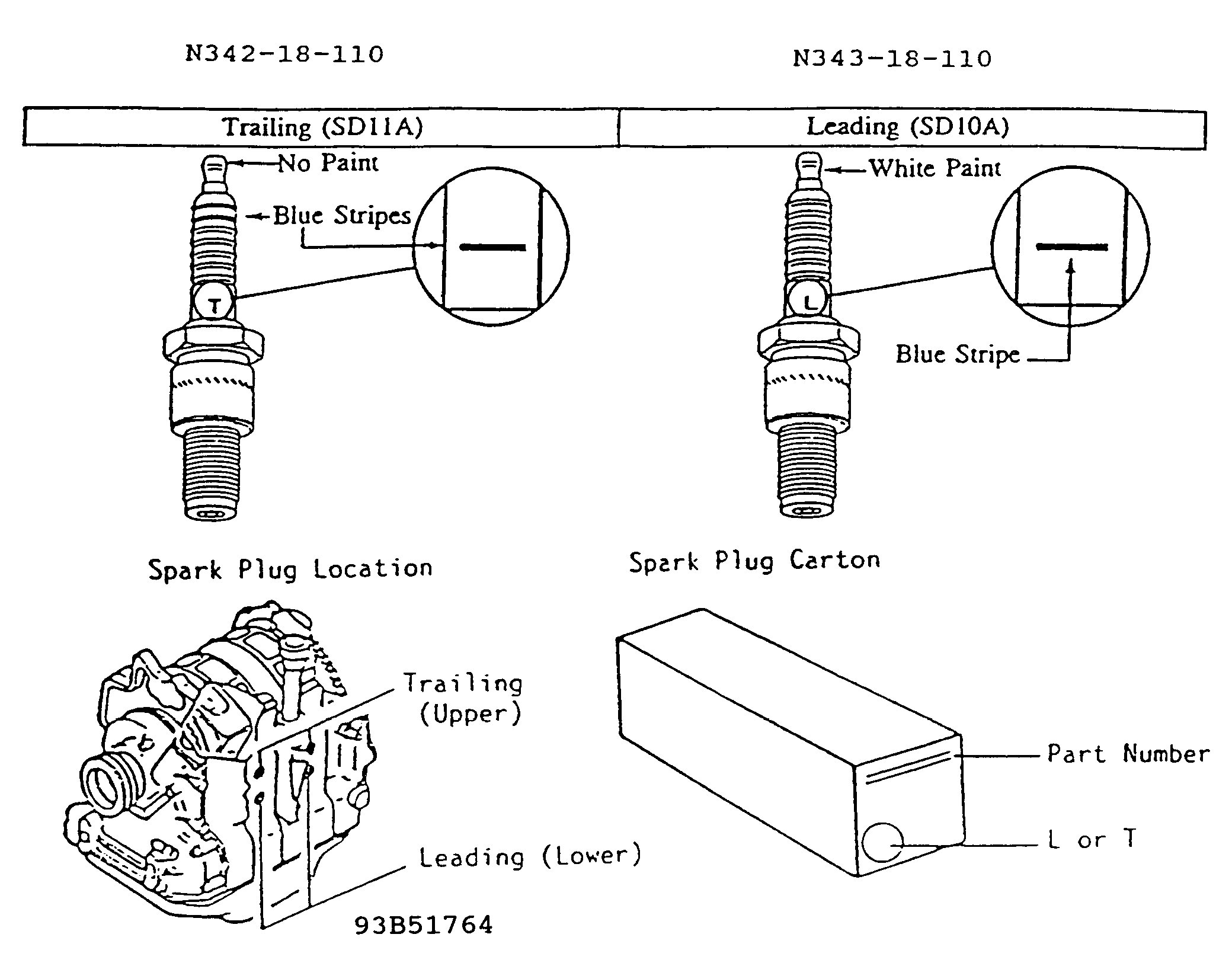

Fig 2: Spark Plug Identification for 1986-91 RX-7 Engines
