Interior Lighting Module

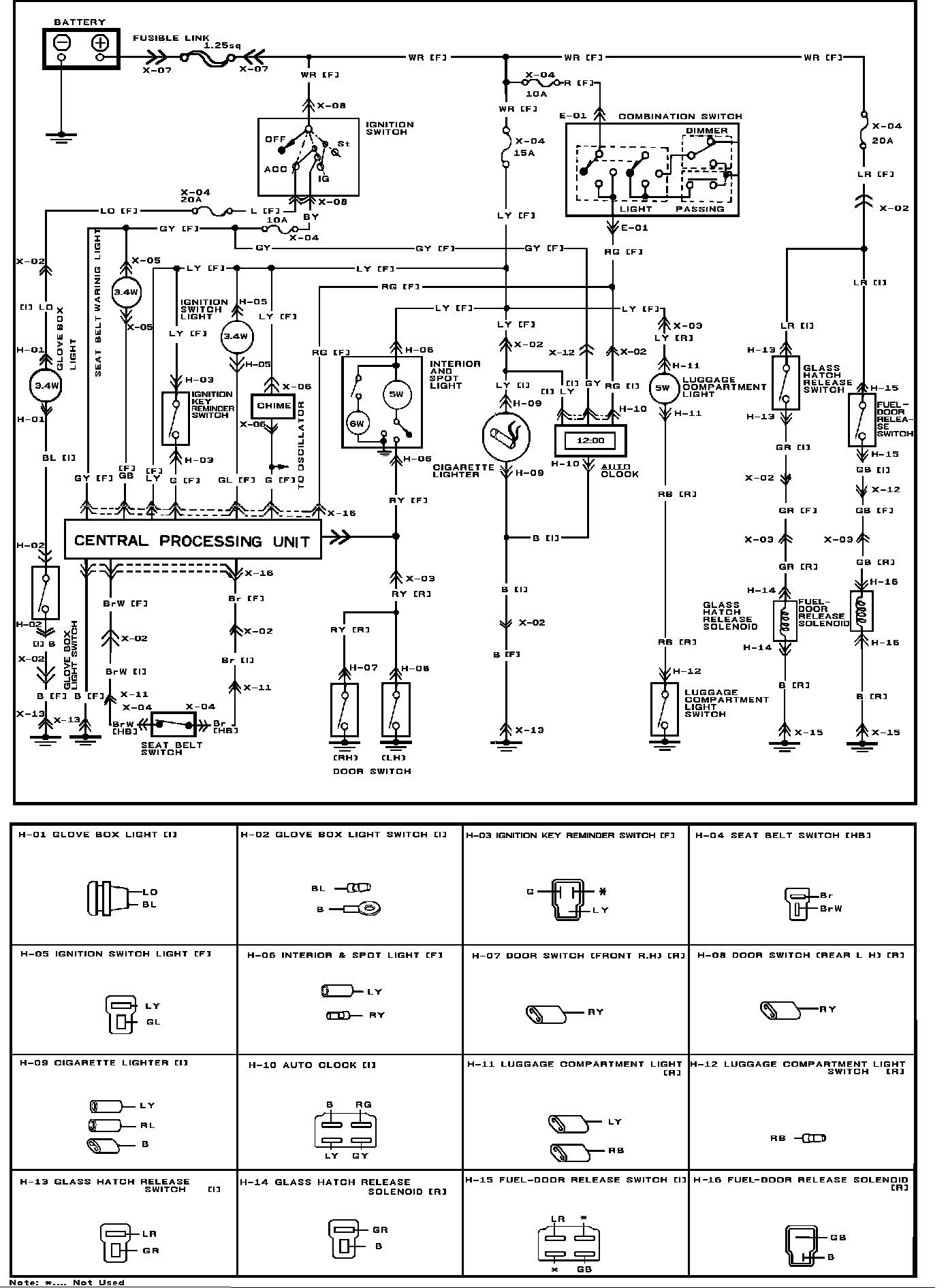

Fig. 26 Interior Lights, Hatch & Fuel Door Release, Lighter, Clock & Warning Chimes:
