Main Relay (Computer/Fuel System): Locations

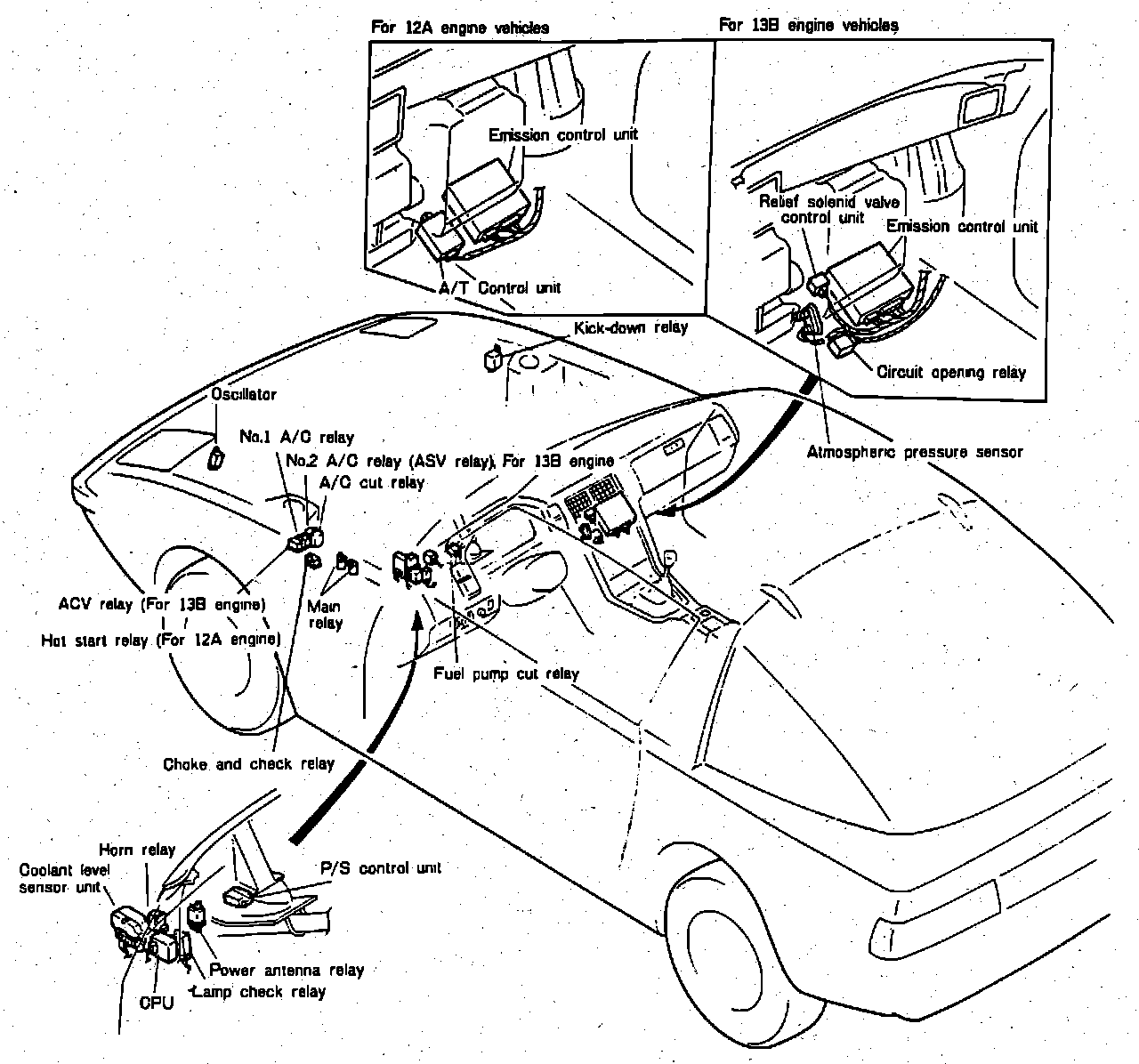

Relay Locations.:

LH Rear Of Engine Compartment

Applicable to: 1984 Models
