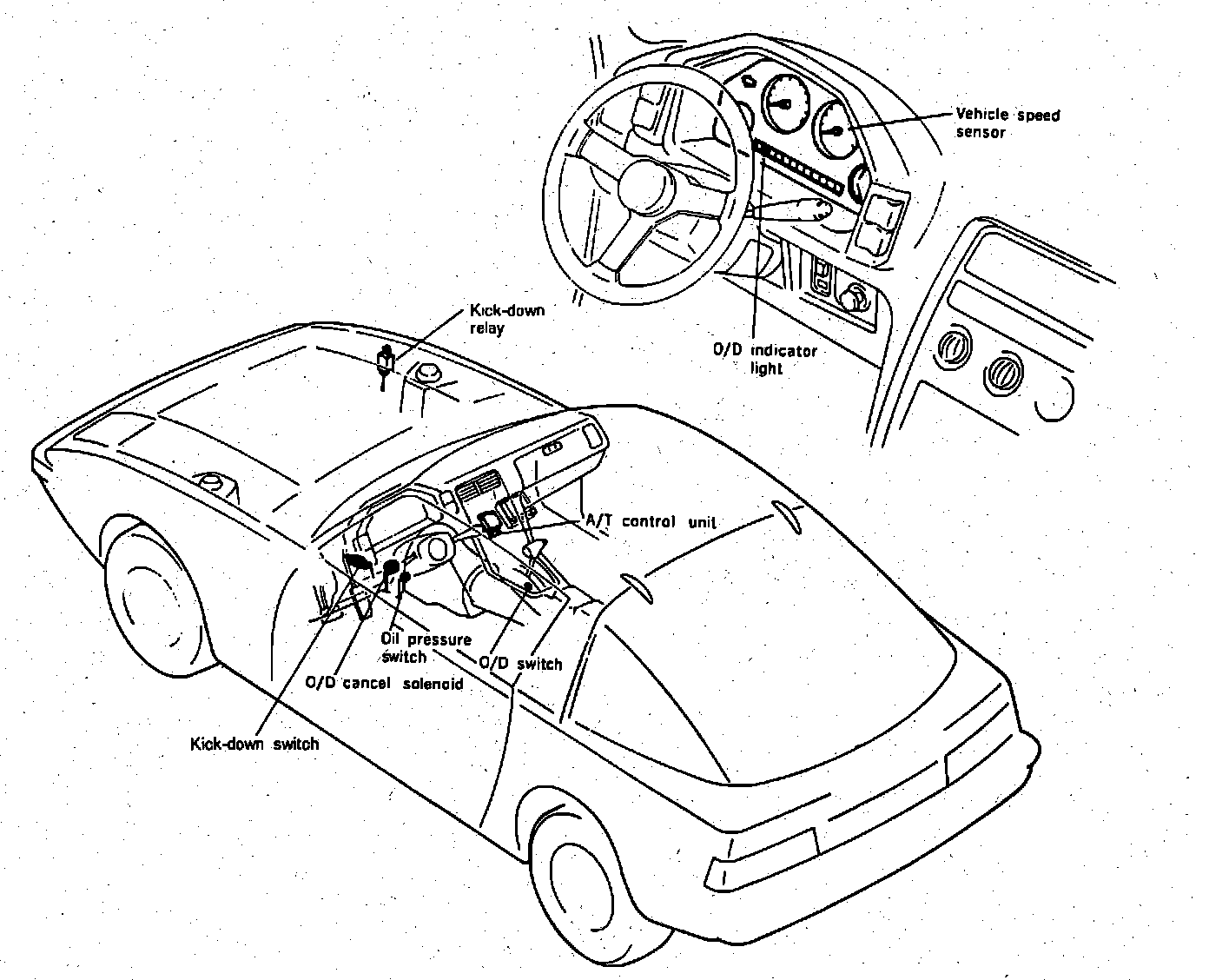

Control Module: Locations

Over Drive System.:




Behind Center Console

Relay Locations.:




Behind RH Side Of I/P

Applicable to: 1984 Models
