Torque Specifications

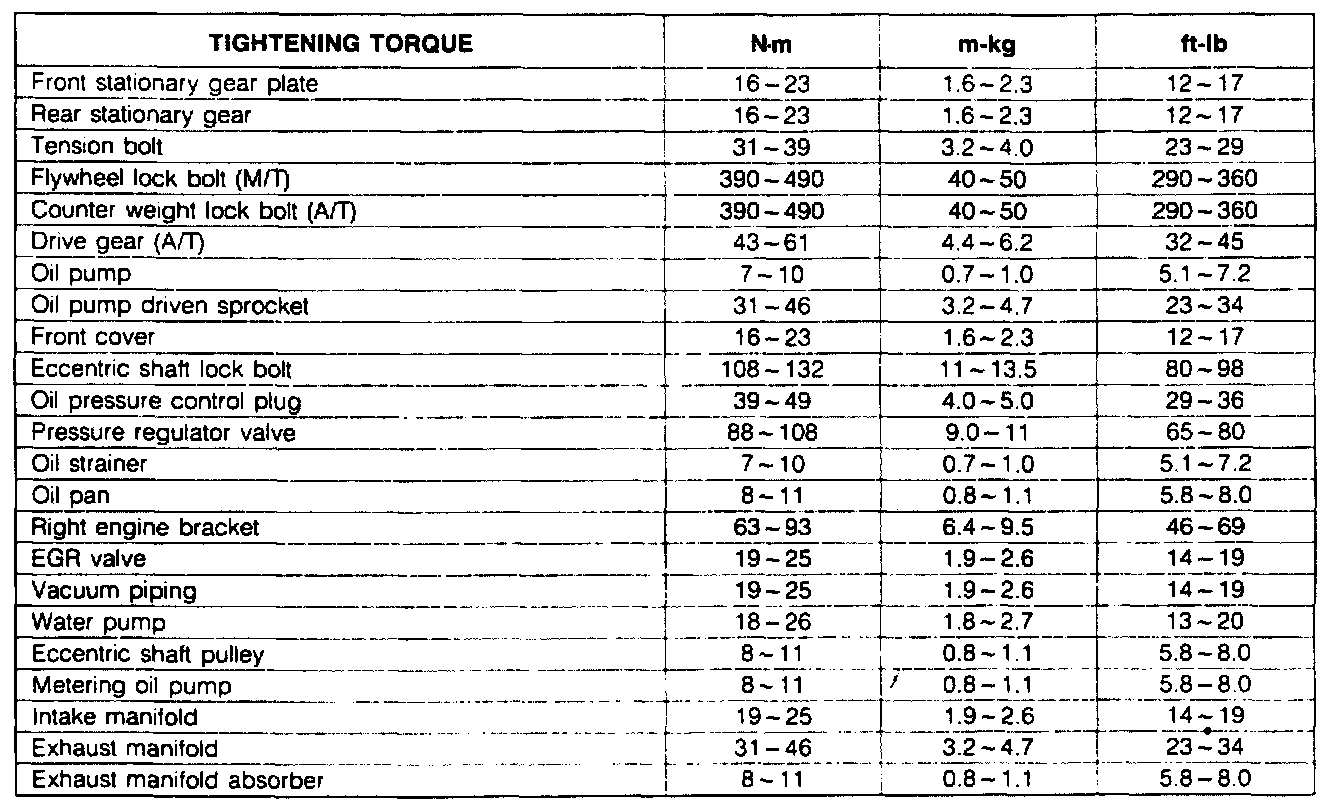

Torque Chart:






Case Bolt Removal:






Case Bolt Installation:

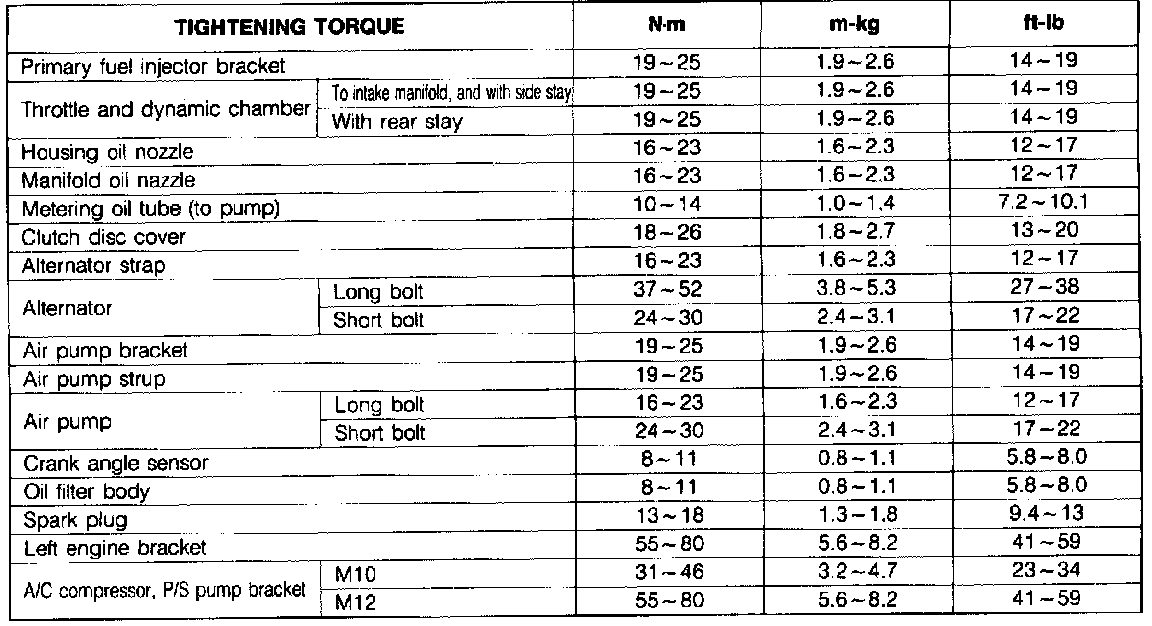

Torque Chart:







Torque Chart:








Torque Chart:






Torque Chart:
