Electrical Diagrams

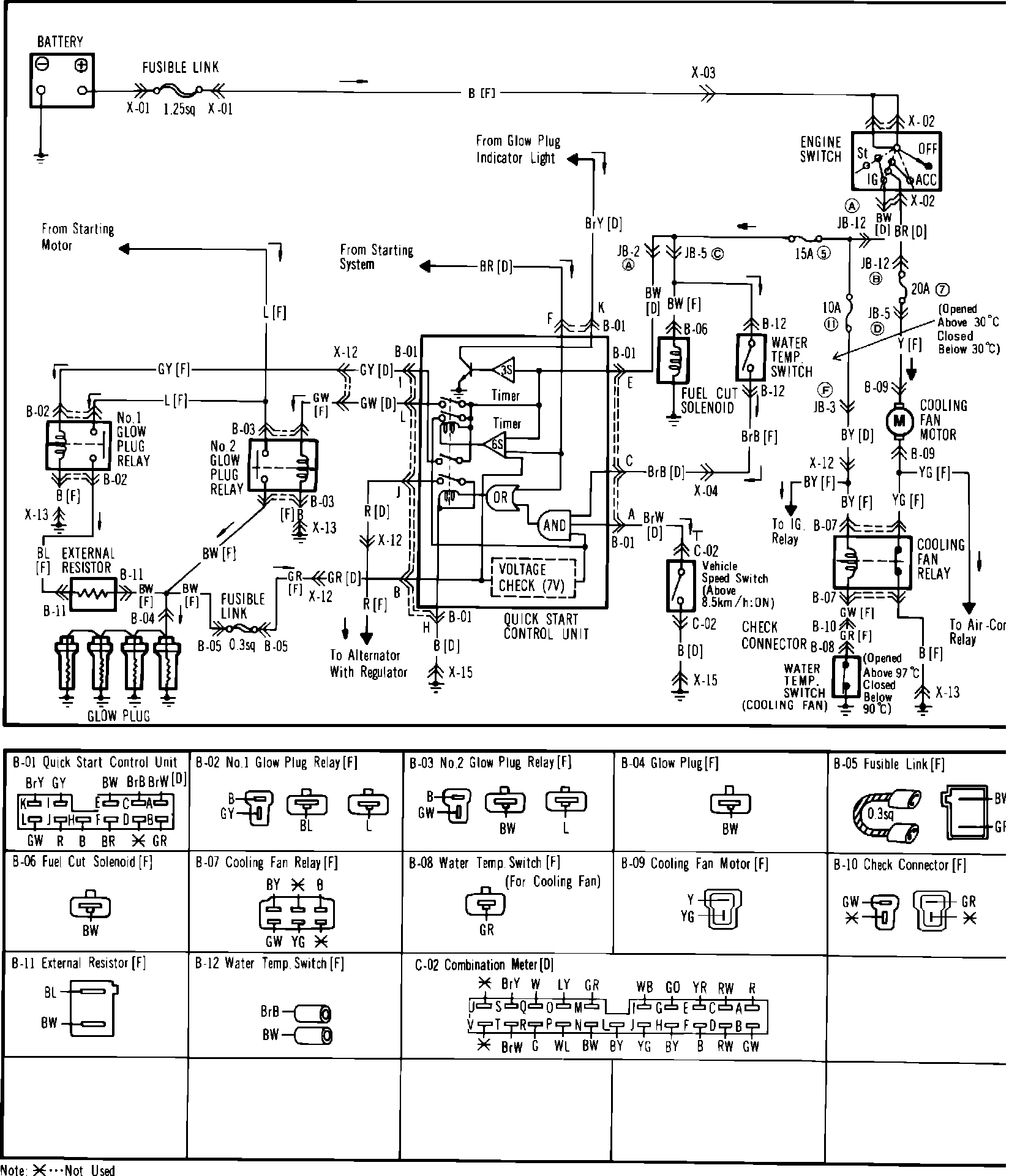

=� Fig. 55b Cooling Fan, Fuel Cut Solenoid & Quick Start System Wiring Circuit. W/Diesel Engine:
