Torque Specifications

Torque Chart:

Torque Chart:

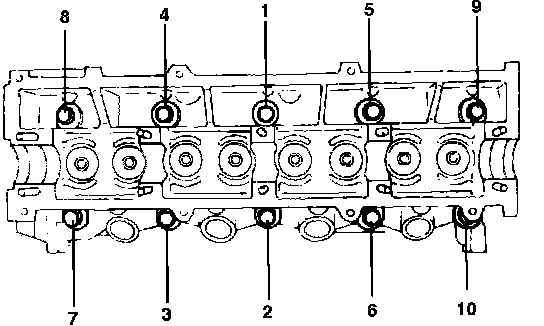

Fig. 24 Cylinder head torquing sequence:

Torque head bolts to 30 Nm. in order shown in Fig. 24
Tighten each head bolt an additional 90° then an additional 90°.


Intake Manifold 12-17 ft.lbs.
Exhaust Manifold 16-20 ft.lbs.
