Interior Lighting Module

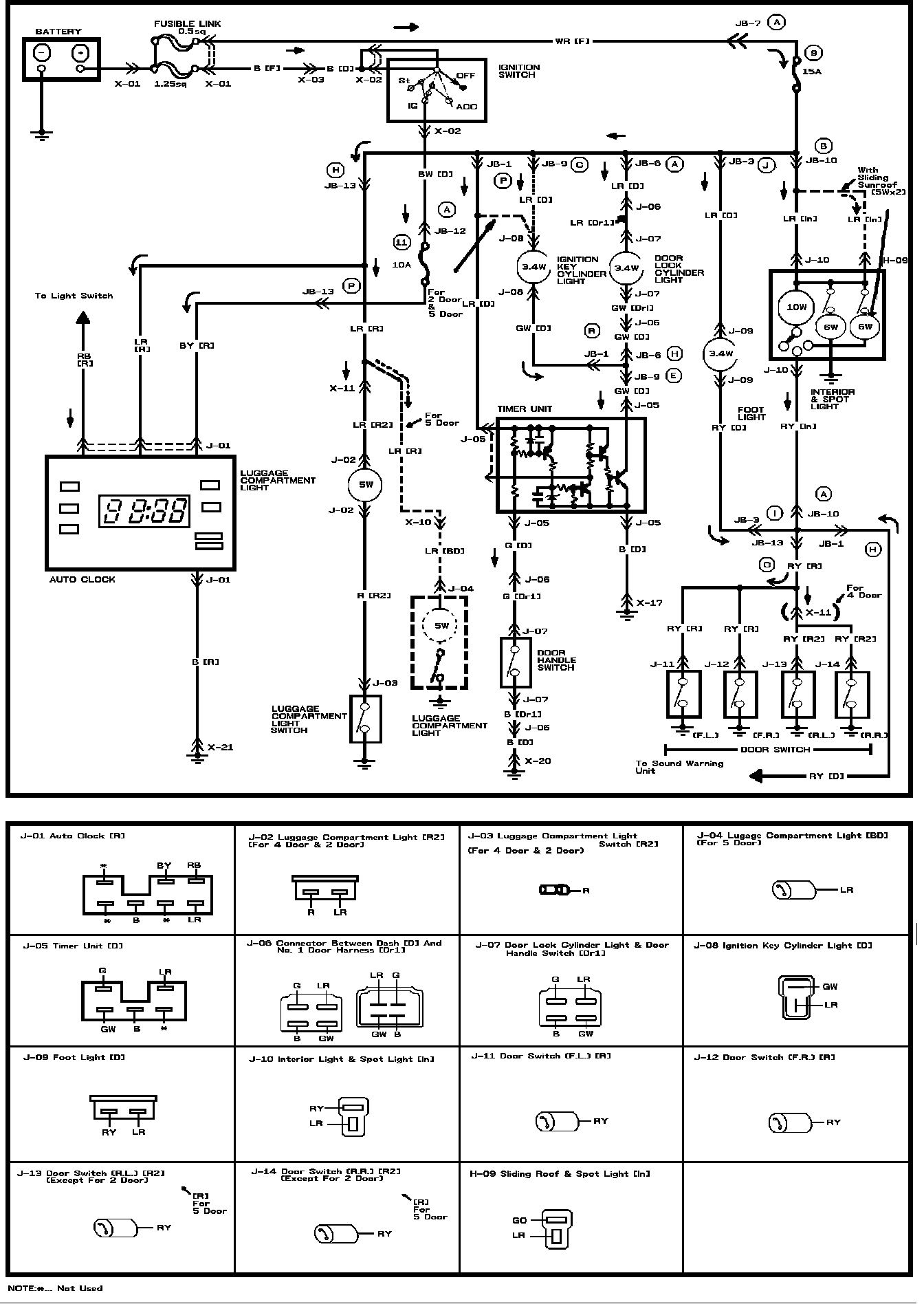

Fig. 60 Door Lock Cylinder, Foot, Ignition Key, Interior, Luggage Compartment & Spot Light & Clock Wiring Circuit:
