Barometric Pressure Sensor: Testing and Inspection

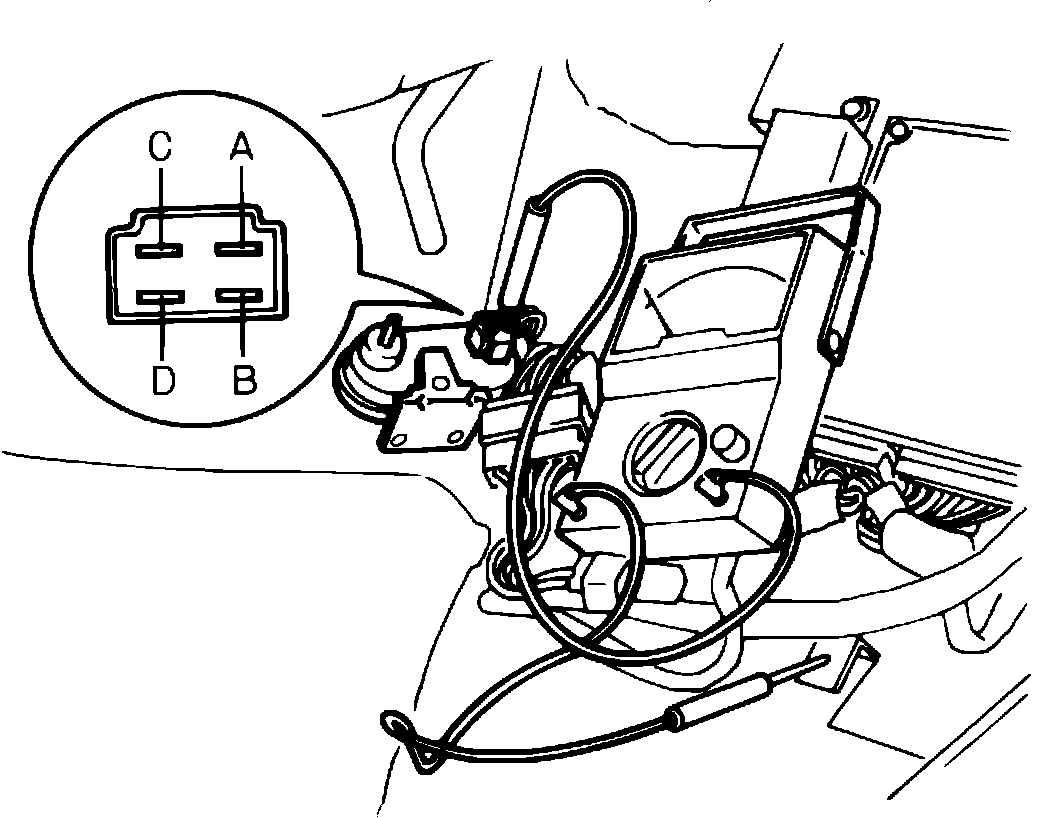

Fig. 49 Testing atmospheric pressure sensor.:

1. Connect voltmeter to sensor terminal D and ground, Fig. 49.
2. Turn ignition switch On and observe voltage reading.
3. Voltage should read approximately 4 volts at sea level and approximately 3 volts at altitudes above 6,500 ft.
