Emission Control Systems: Locations

Fig. 3a Engine compartment reference diagram.:

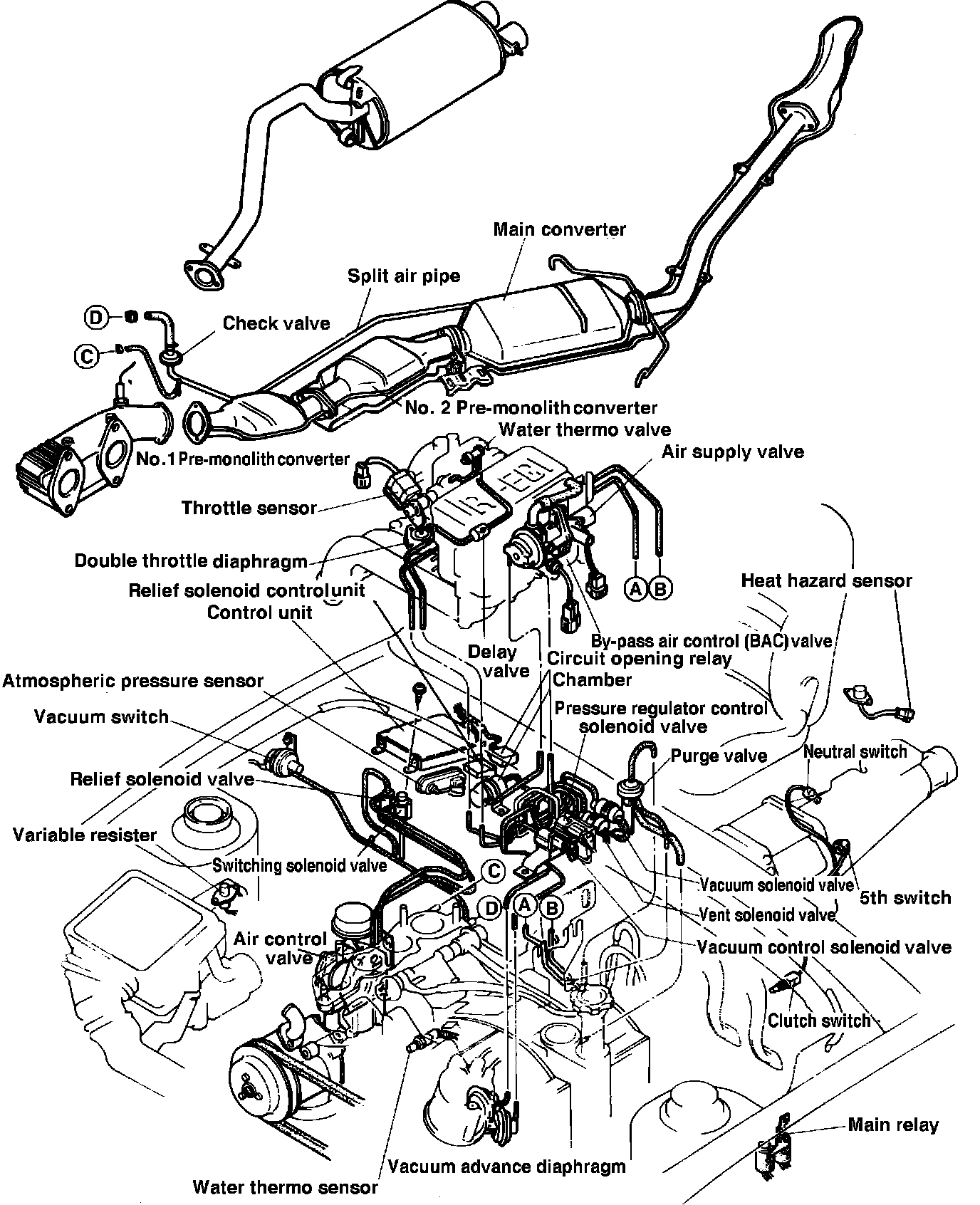

Fig. 4 Engine compartment reference diagram.:
