Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Cruise Control Unit | Under instrument cluster, near relay block. See Figure . |

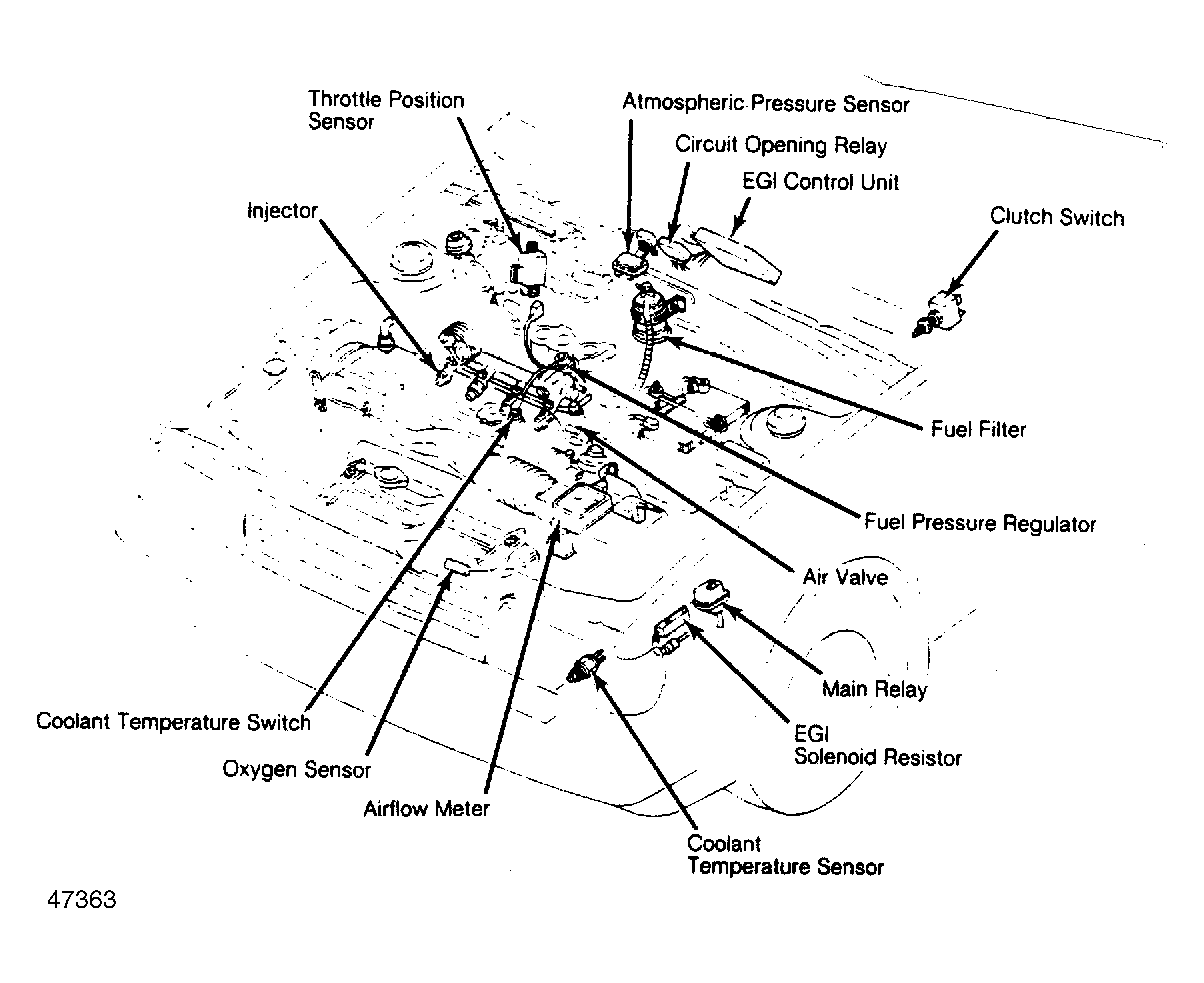

| Electronic Gasoline Injection (EGI) Control Unit | Behind center of dash. See Figure & Figure . |
| Idle-Up Control Unit | Under EGI control unit. See Figure . |
| Intermittent Wiper Unit | Mounted inside steering column. See Figure . |
| Oscillator Unit | Under left side of dash, behind instrument cluster. See Figure . |
