Computers and Control Systems: Description and Operation

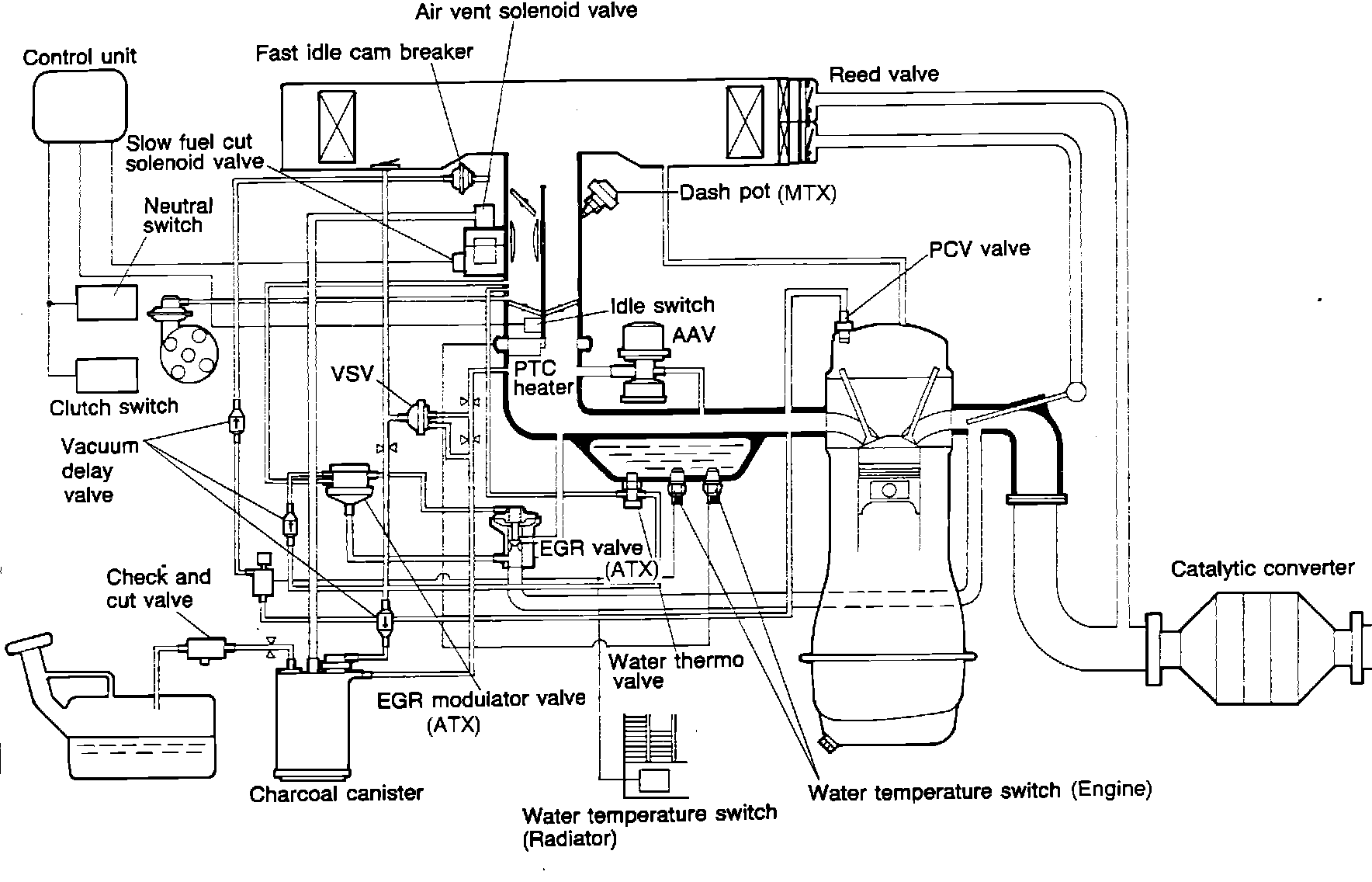

System Diagram:





This system, Fig. 5 consist of a control unit, slow cut solenoid valve, clutch and neutral switch, and idle switch. It regulates fuel flow depending on engine load and ignition shut down preventing "run on".
