Service Indicator & Warning Lights: Notes

NOTE: All warning lights will come on when the ignition is turned on as a bulb check. Any warning light which does not come with the ignition must be checked and repaired. If the system is correct, light should go out when the engine is started.

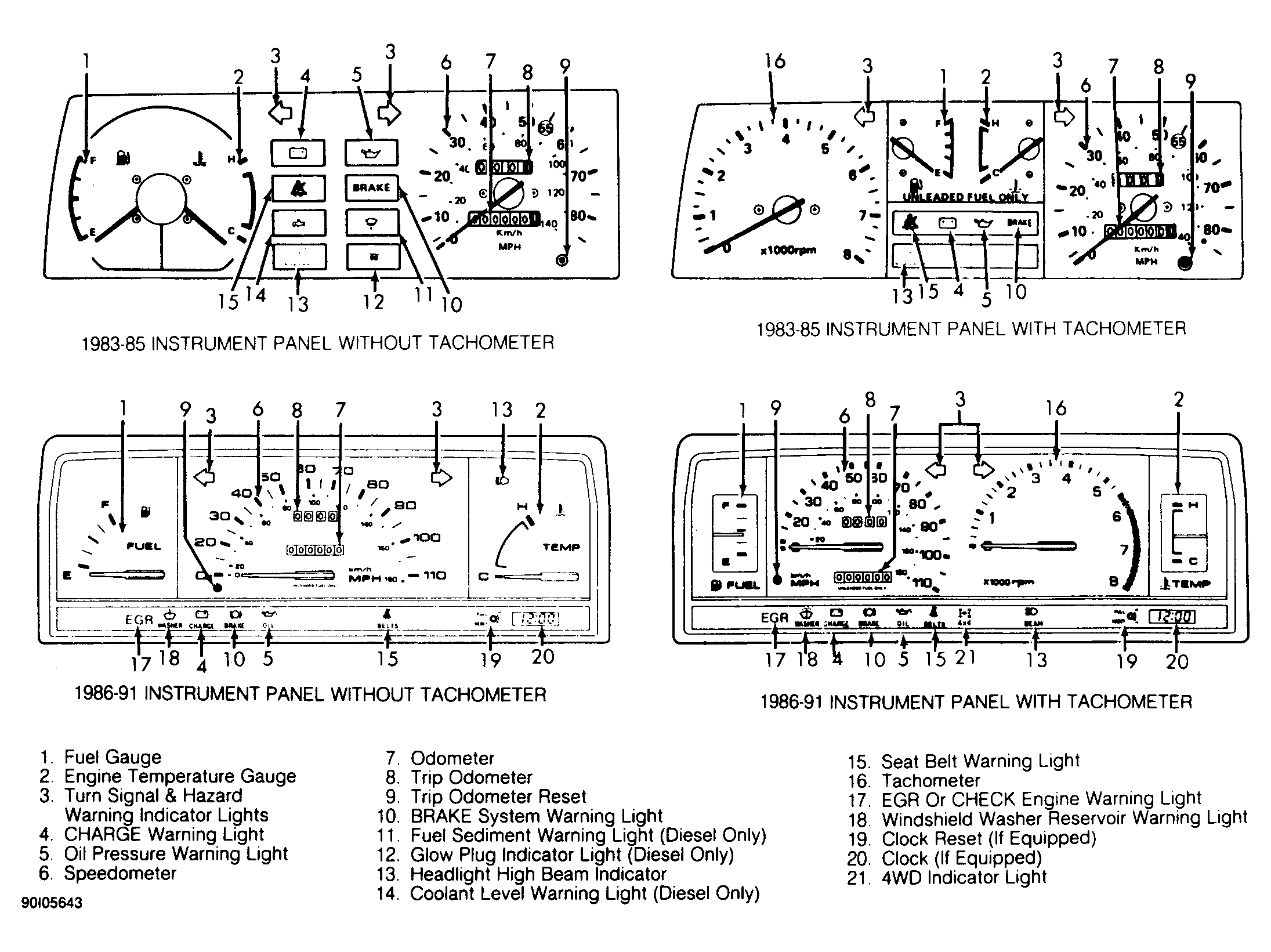

Fig 1: Instrument Panel & Warning Lights
G90I05643Courtesy of MAZDA MOTOR OF AMERICA INC.
