Anti-Lock Brake System: Description

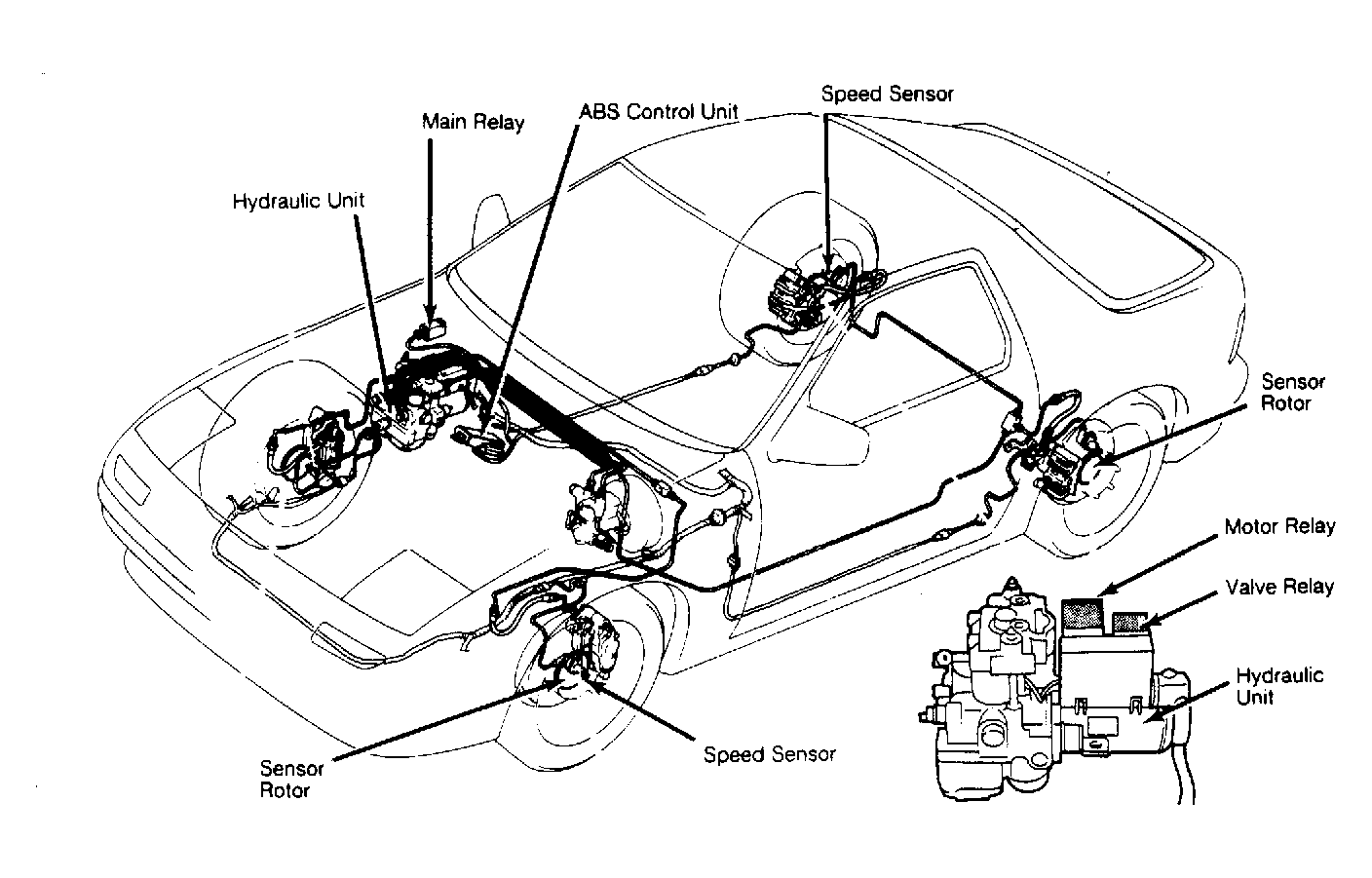

The anti-lock brake system consists of hydraulic unit, 4 speed sensors and sensor rotors, main relay, valve relay, motor relay, pump motor, and ABS control unit. A warning light is located on the instrument panel. An operating sound of pump motor, heard as vehicle speed exceeds 3.8 MPH, is normal.
