Electric Load Sensor: Testing and Inspection

Fig. 86 E/L control unit terminal identification.:

1. Connect voltmeter between E/L control unit and ground, Fig. 86.

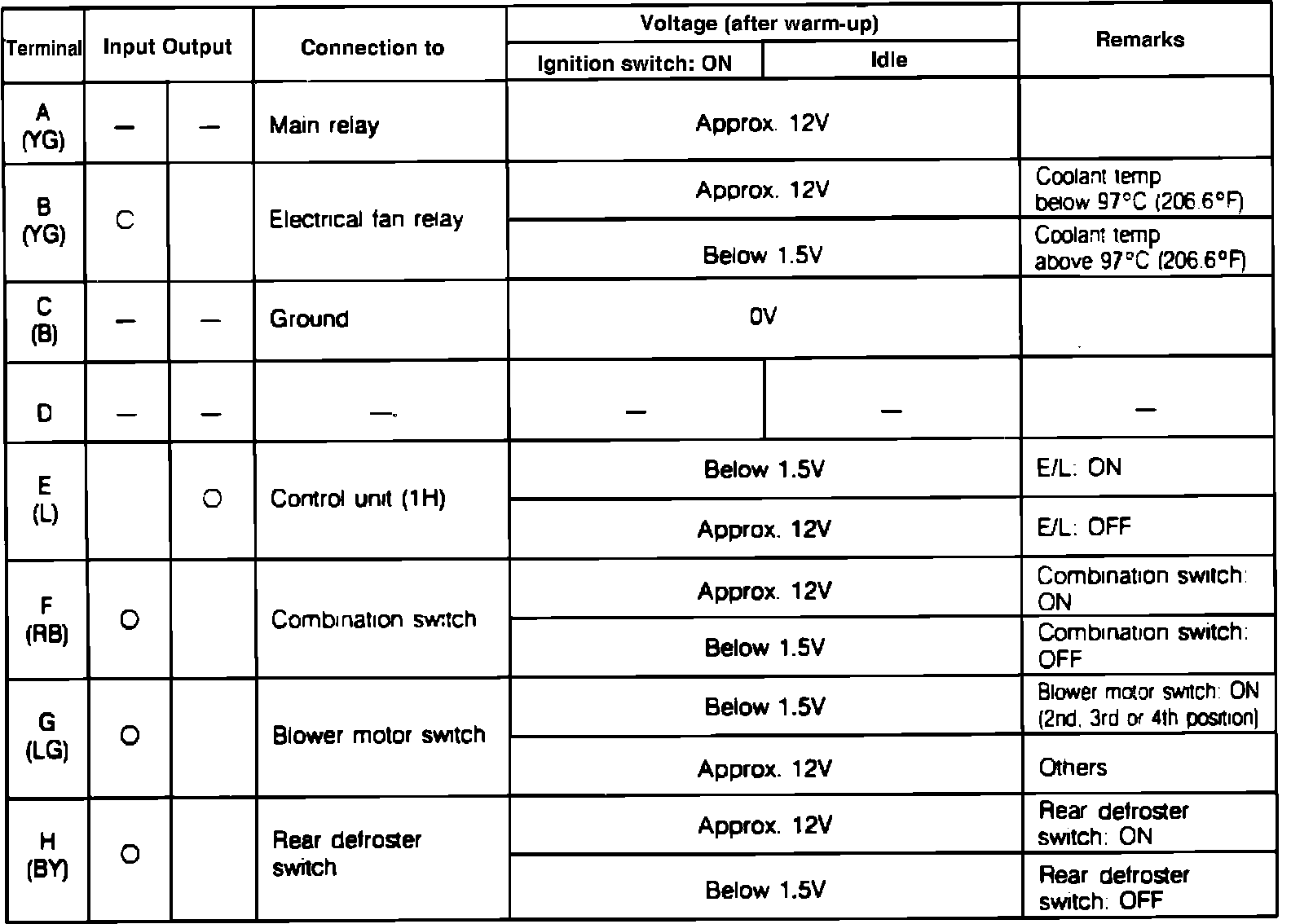

Fig. 87 E/L control unit terminal voltage specification chart. Exc. turbo:

2. Start engine and check terminal voltages, Fig. 87.
