Switch Monitor Function, Inspection Procedure

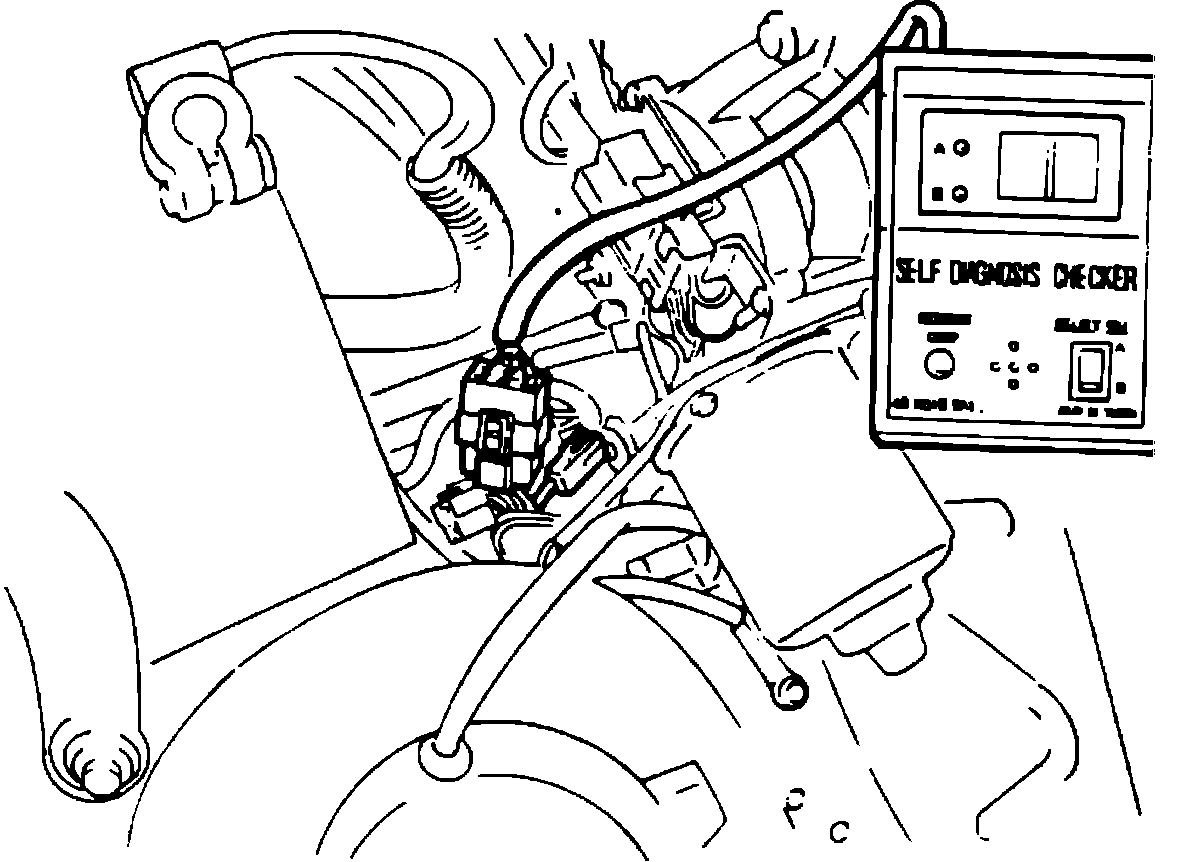

Fig. 22 Connecting system checker.:

Fig. 4 Individual switch chart.:

1. Start engine and allow to reach operating temperature, then turn engine off.
2. Connect system checker to green, 6 pin check connector and negative battery terminal Fig. 22..
3. Connect jumper wire between green, 1 pin test connector and ground.
4. Turn ignition switch to On position, then check that monitor lamp illuminates when each switch is made to function according to ``Testing Procedures.'' If even one of the switches is activated, the monitor lamp will stay on. Do not start engine.
