Distributor: Service and Repair

REMOVAL

1. Remove high tension leads.
2. Disconnect vacuum hose and wiring.
3. Turn crankshaft so that No. 1 cylinder is at TDC of compression.
4. Remove distributor. Do not turn crankshaft after distributor has been removed.

INSTALLATION

Reverse removal procedure to install, noting the following:
1. Coat O-ring with engine oil.
2. Ensure No. 1 cylinder is at TDC.
3. Align distributor blade with small oil holes, then install distributor.
4. After completing installation, adjust ignition timing.

DISTRIBUTOR EXPLODED VIEWS

88 323 1.6L DOHC

Fig. 17 Exploded view of distributor:

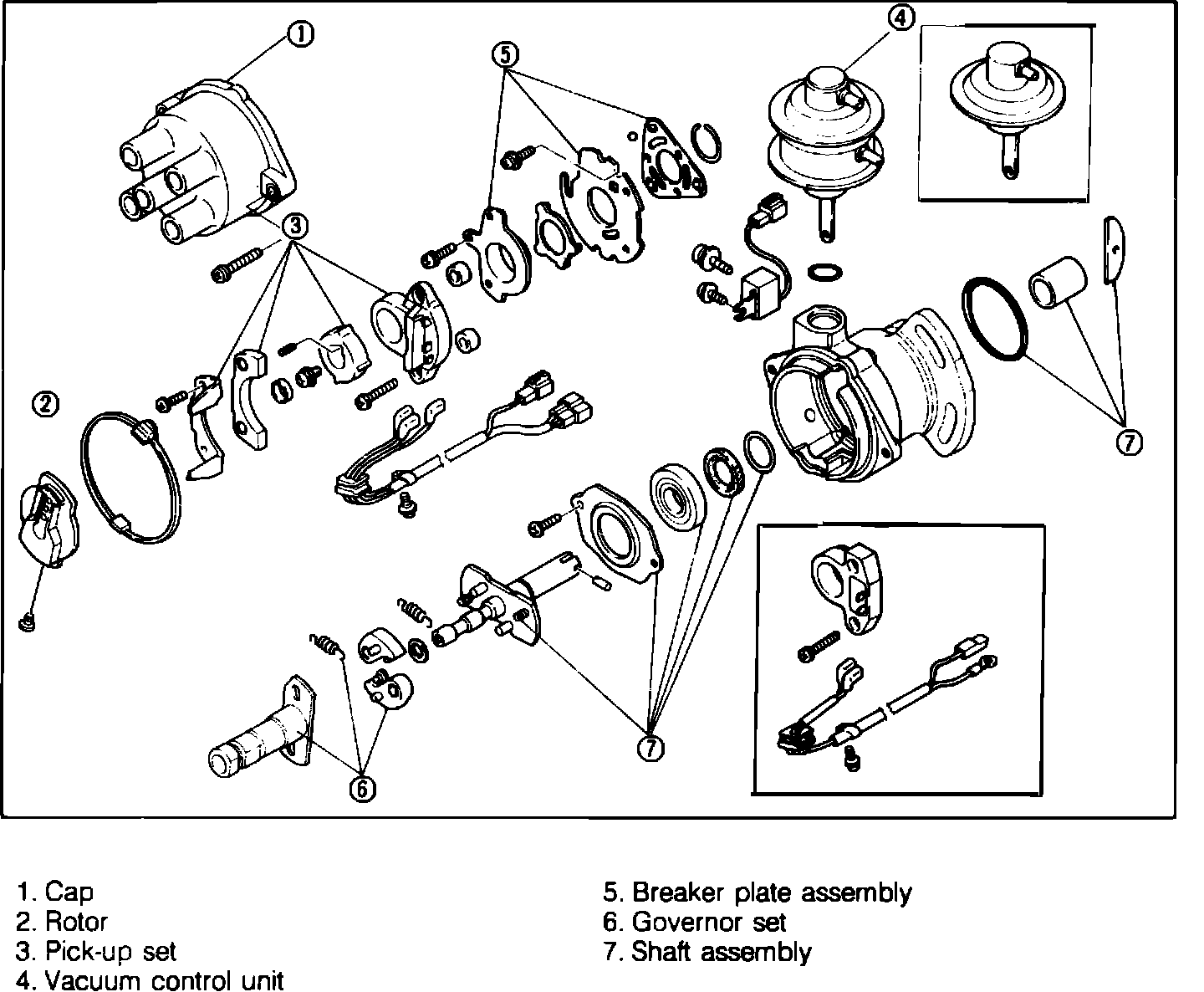

86-88 323 1.6L

Fig. 4 Disassembled view of breakerless type distributor.:
