Non-Turbo Trouble Codes

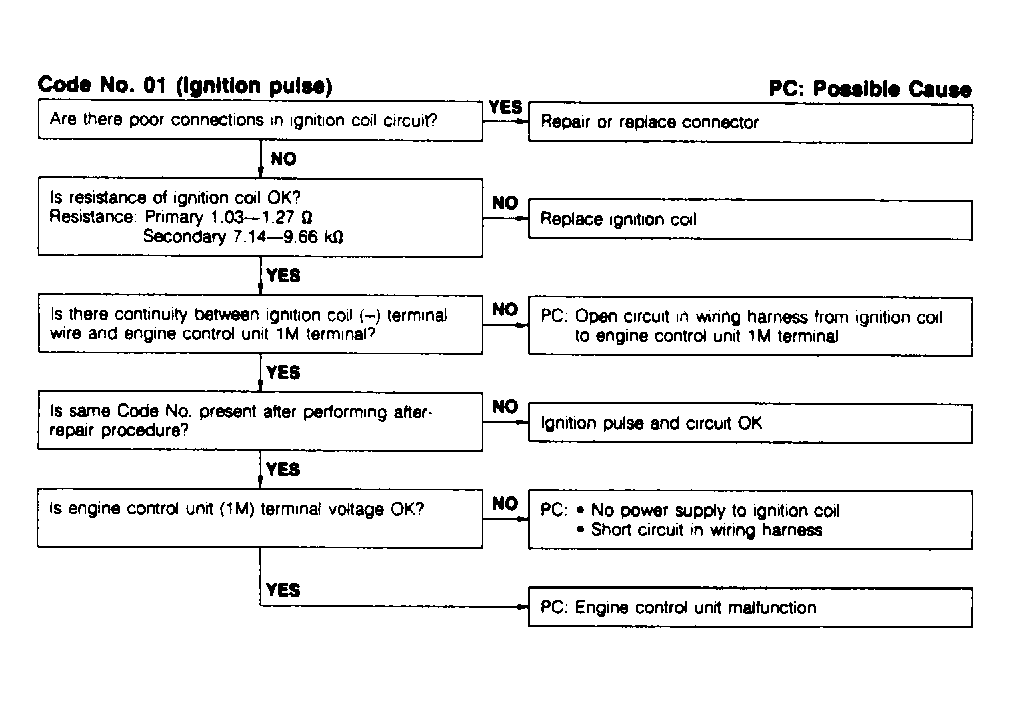

Fig 1: Code 01, Ignition Pulse

Fig 2: Code 08, Air Flow Meter

Fig 3: Code 09, Water Thermo Sensor

Fig 4: Code 10, Intake Air Thermo Sensor

Fig 5: Code 12, Throttle Sensor

Fig 6: Code 14, Atmospheric Pressure Sensor

Fig 7: Code 15, Oxygen Sensor

Fig 8: Code 17, Feedback System

Fig 9: Code 25, Solenoid Valve - Pressure Regulator

Fig 10: Code 26, Solenoid Valve - Purge

Fig 11: Code 28, Solenoid Valve - EGR

Fig 12: Code 34, Solenoid Valve - Idle Speed Control Valve (ISC)
