Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse Block

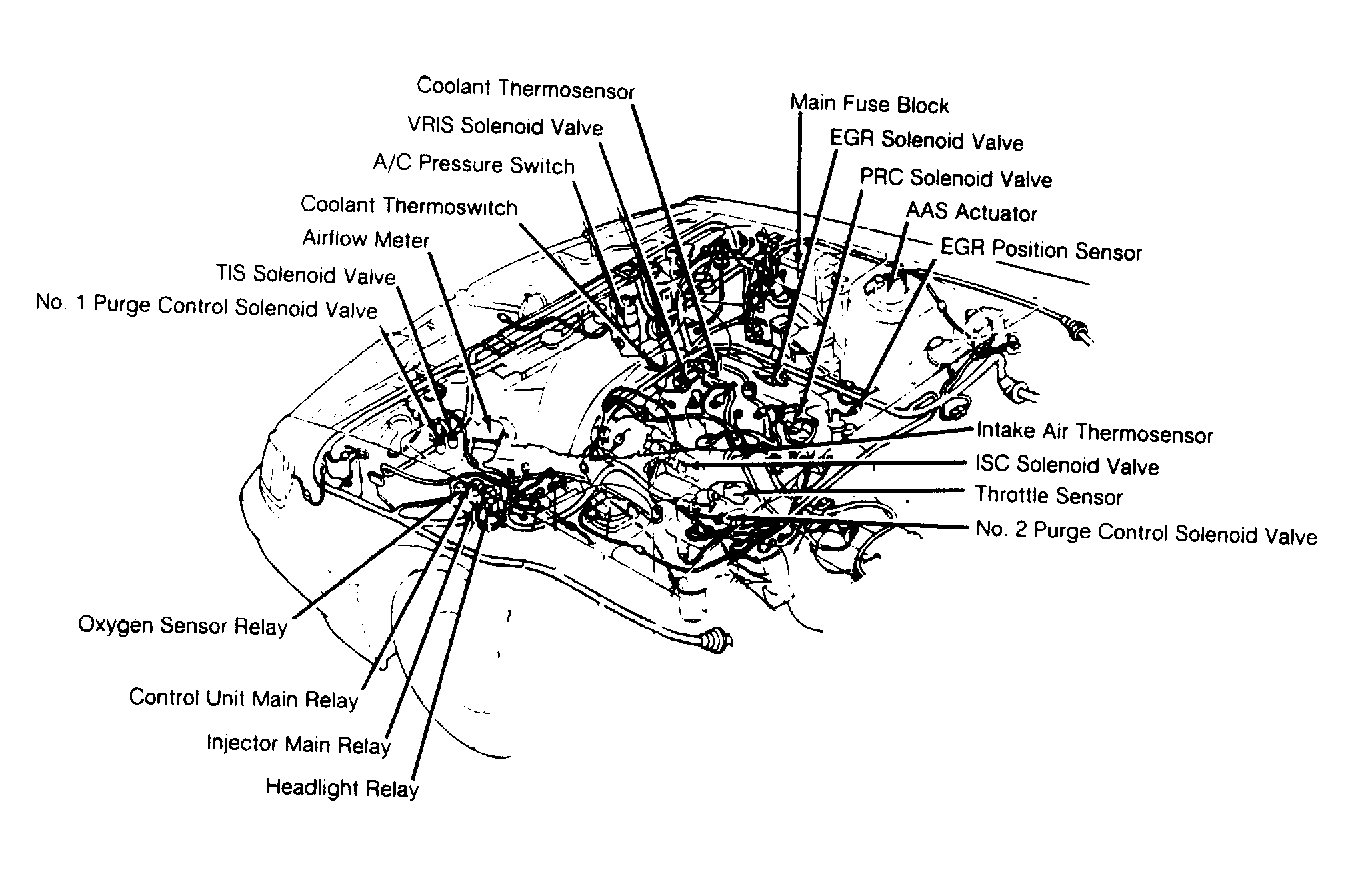

Engine Compartment On right front fender apron. See Figure .

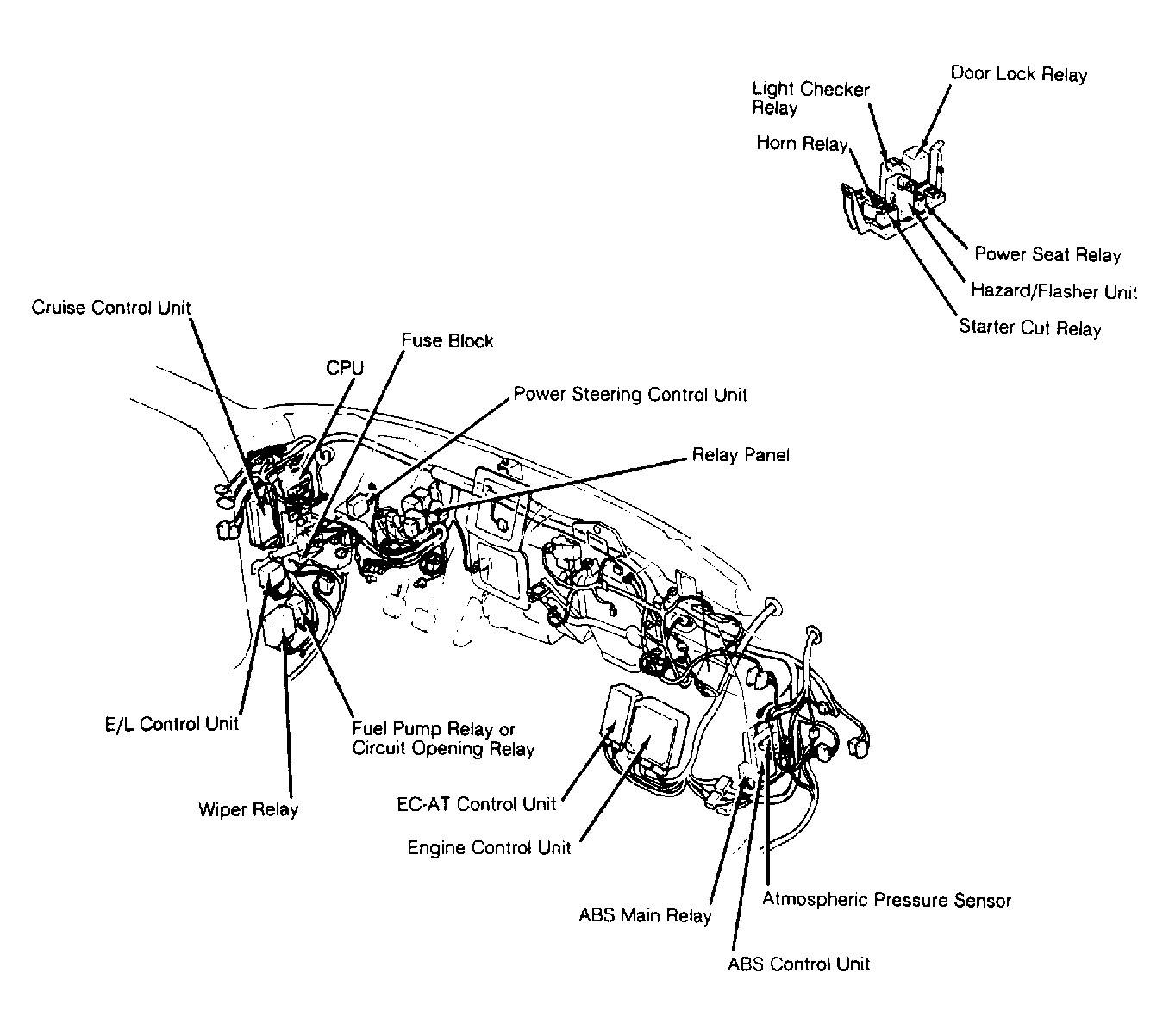

Passenger Compartment On left side kick panel. See Figure .
Relay Panel
Engine Compartment On left front fender apron. See Figure .
Passenger Compartment Under dash, right of steering column. See Figure .
