Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Under right side of dash, at kick panel. See Figure . |

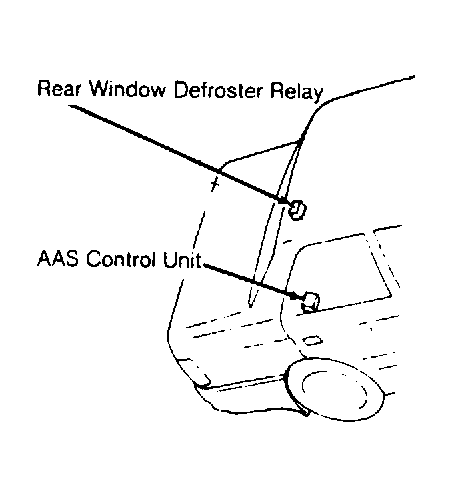

| AAS Control Unit | On right rear passenger side. See Figure . |
| Central Processing Unit (CPU) | On left side kicke panel, next to cruise control unit. See Figure . |
| Cruise Control Unit | On left side kick panel. See Figure . |
| Electrical Load (E/L) Control Unit | On left side kick panel. See Figure . |
| Electronic Control Automatic Transmission (EC-AT) Control Unit | Under glove box, next to engine control unit. See Figure . |
| Engine Control Unit | Under glove box. See Figure . |
| Power Steering Control Unit | Under steering column support. See Figure . |
