Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| A/C Pressure Switch | In A/C line at receiver-drier. See Figure . |
| Coolant Thermoswitch | Right side of radiator. See Figure . |

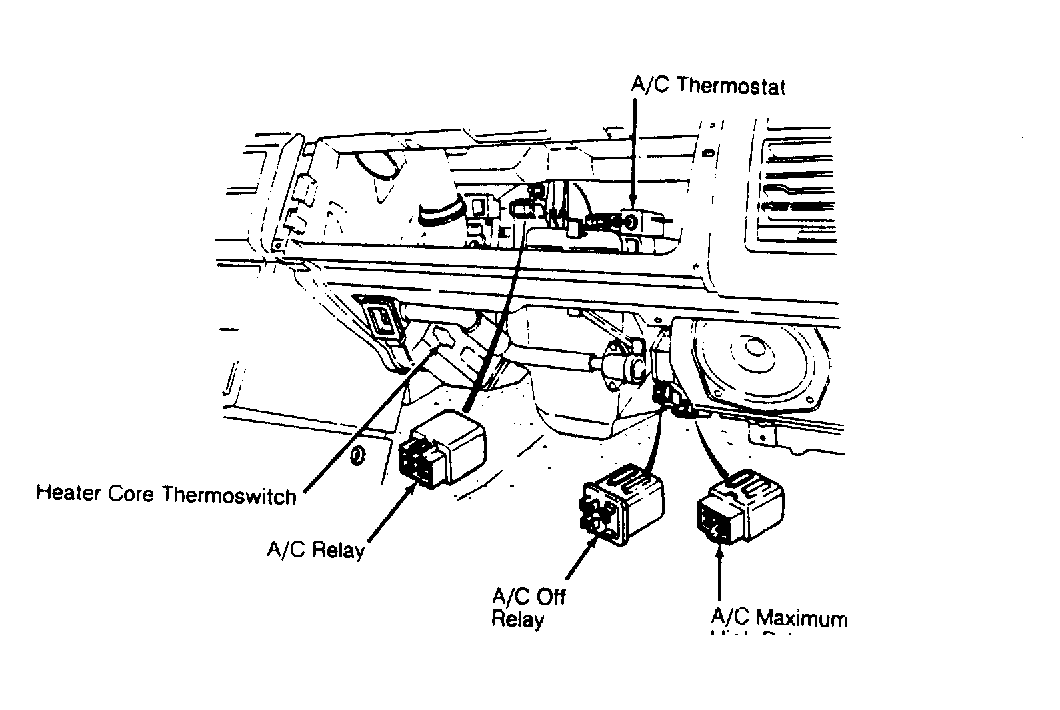

| Heater Core Thermoswitch | Under dash, left of evaporator. See Figure . |
| Idle Switch | Part of throttle sensor. |
| Oil Pressure Switch | On oil filter adapter. |
