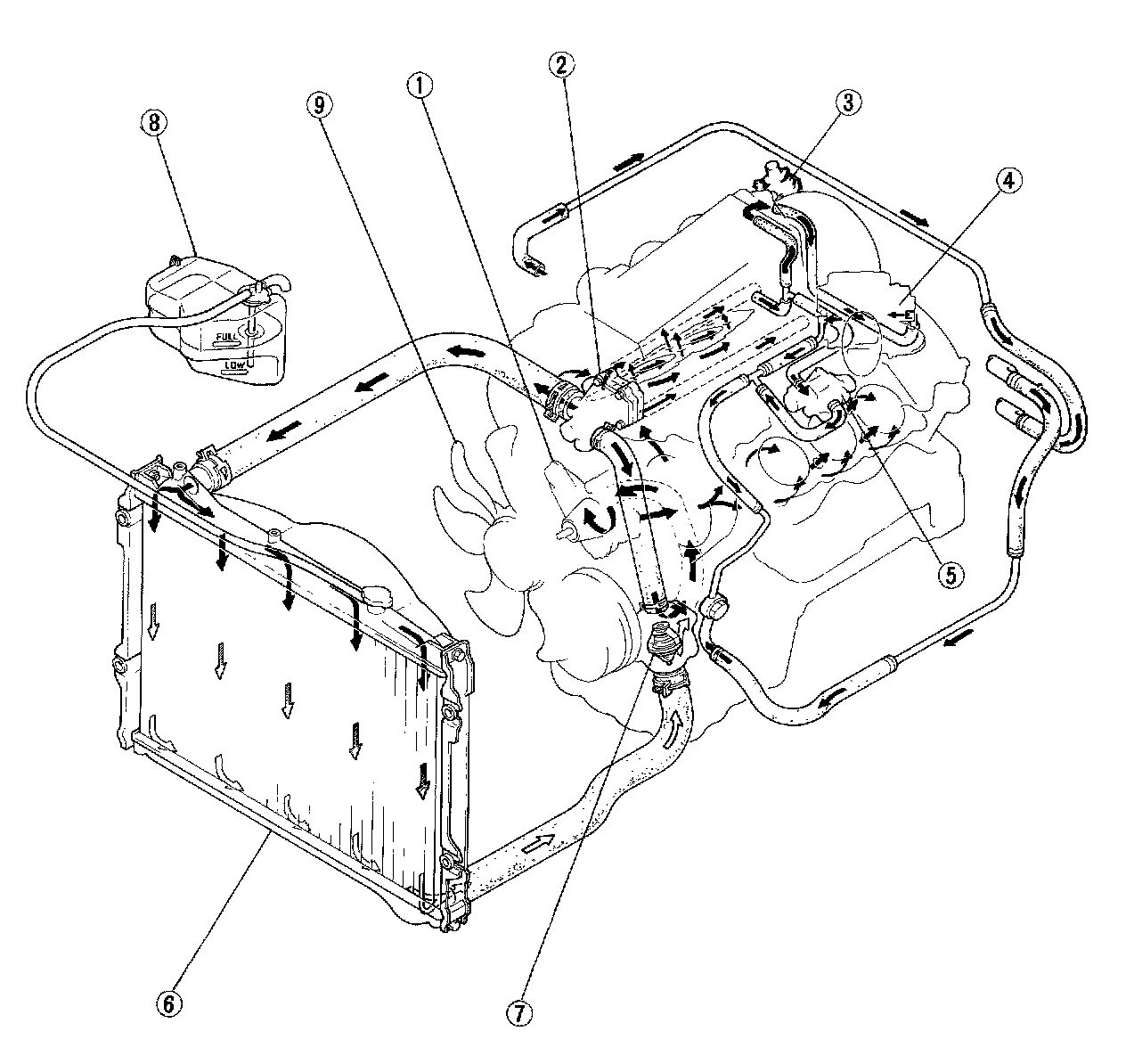

Cooling System





1. Water pump
2. Water outlet
3. EGR position sensor
4. Throttle body
5. BAC valve
6. Radiator
7. Thermostat
8. Coolant reservoir
9. Cooling tan
