Torque Specifications

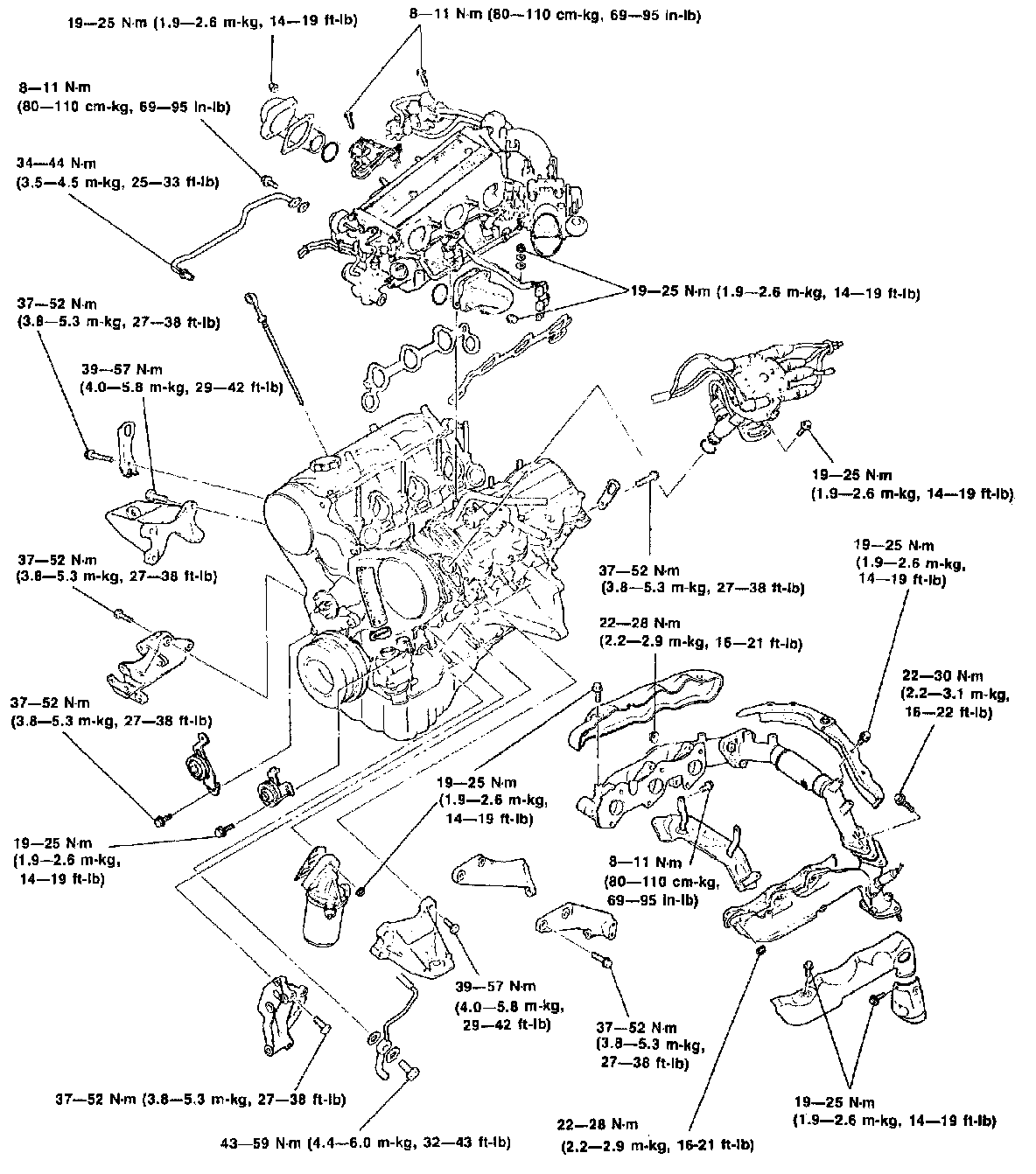

Intake & Exhaust:

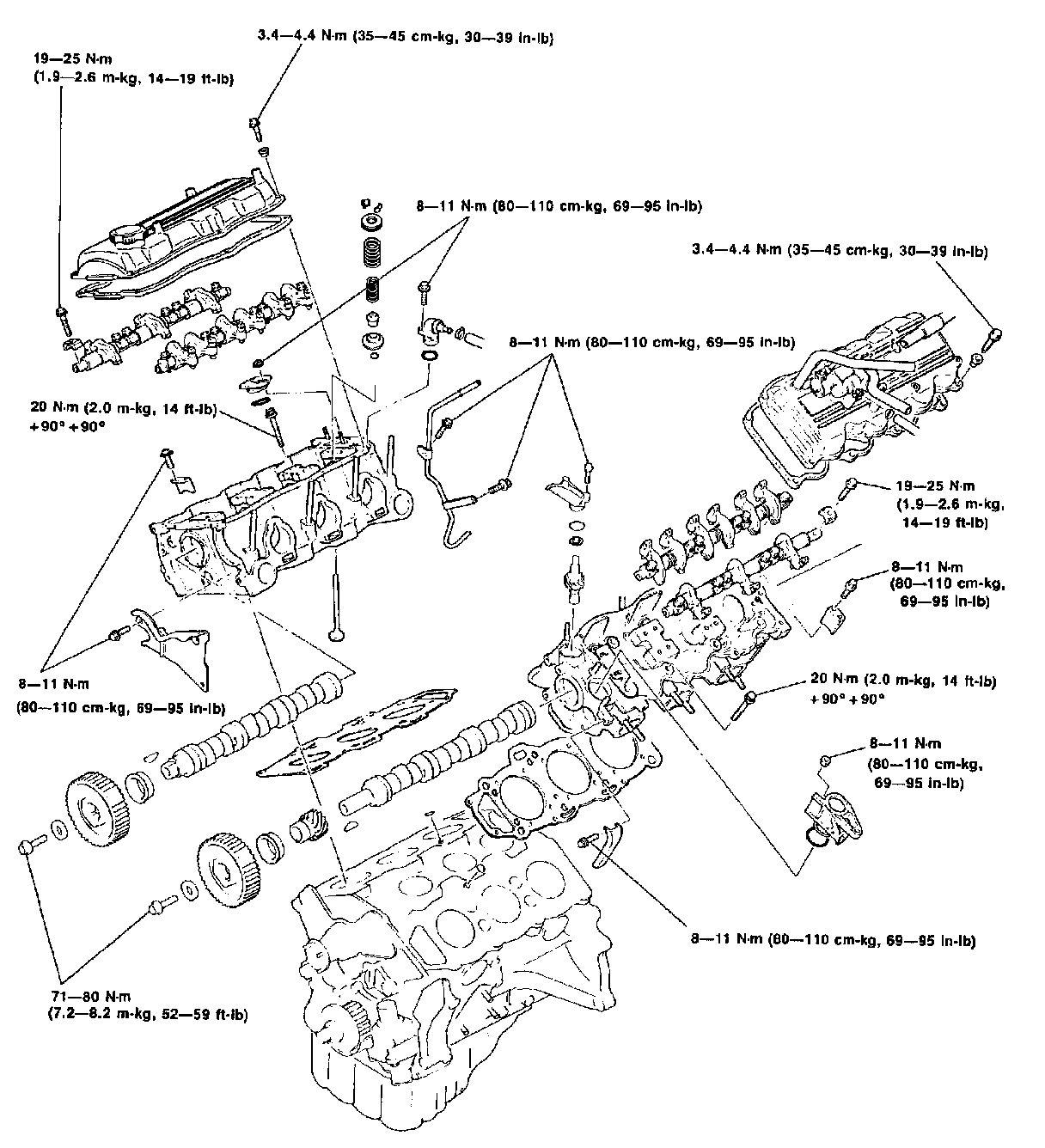

Upper Engine:

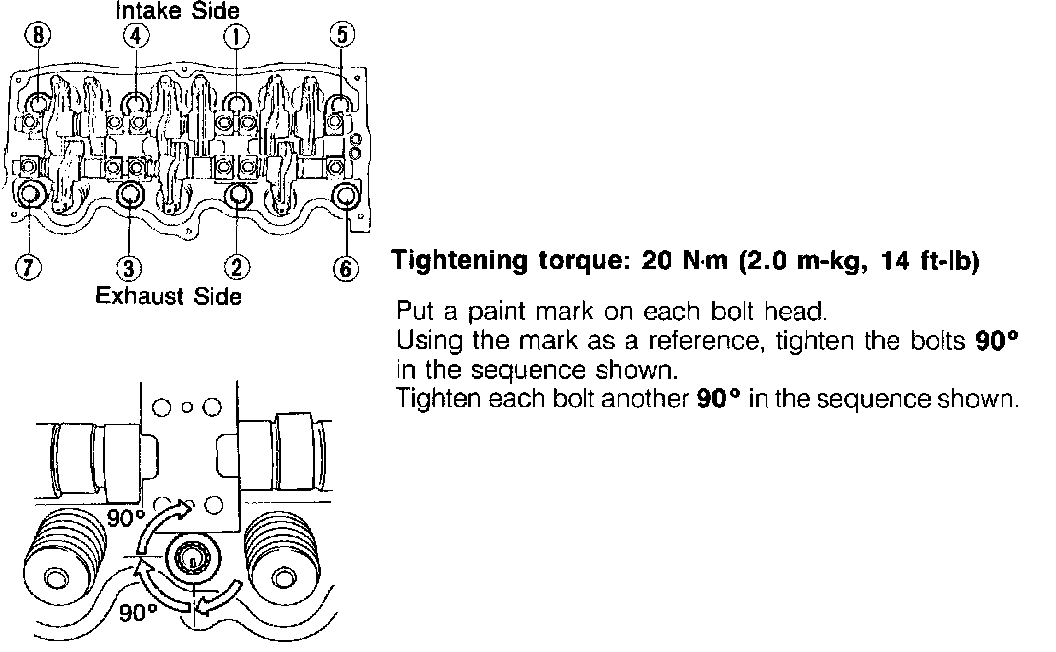

Head Bolt Torque/Sequence:






Timing Components:






Positive Displacement Gear - Oil Pump Type:






Trochoid Gear - Oil Pump Type:

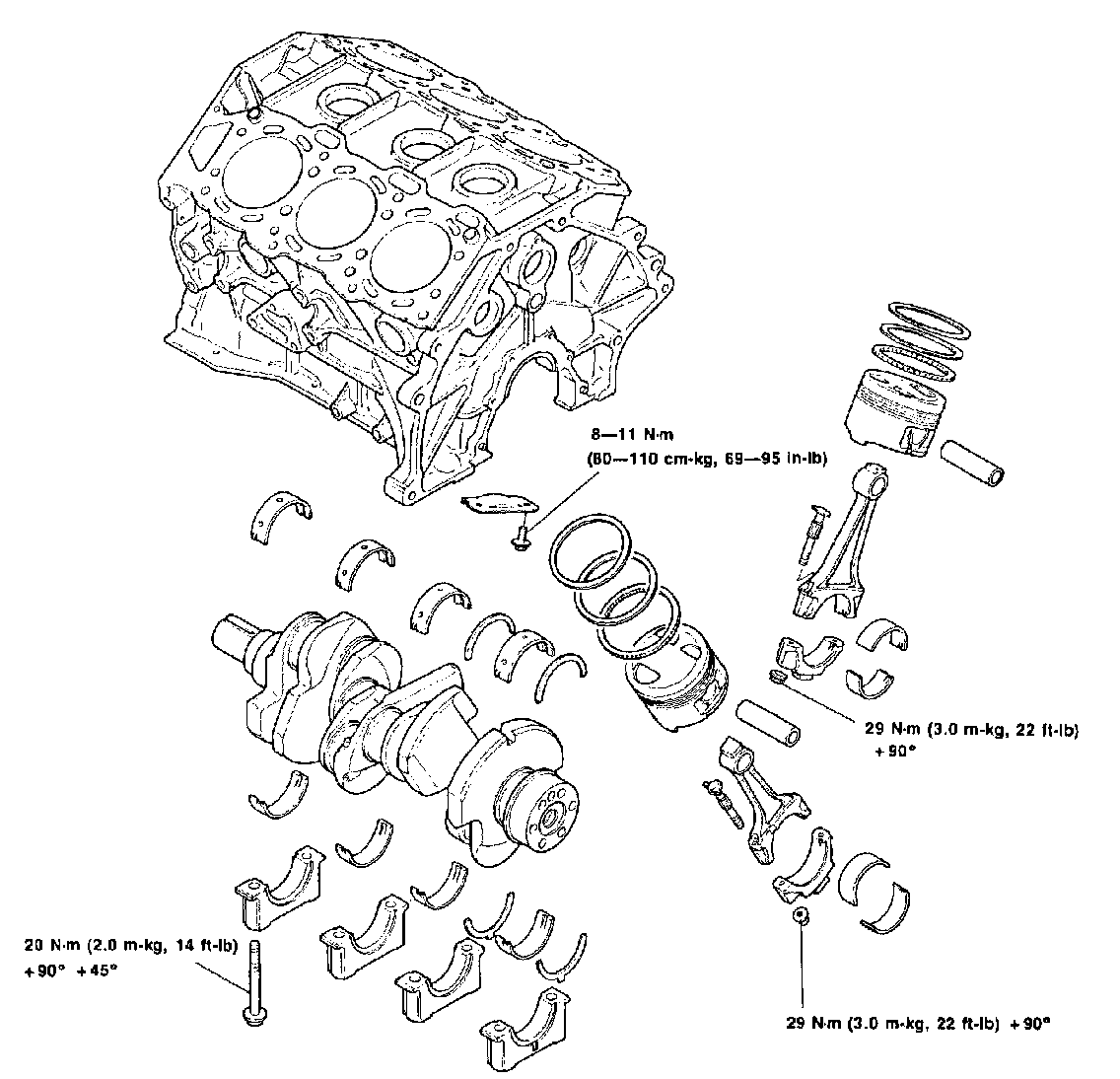

Lower Engine:






Main Bolt Torque/Sequence:
