Steering System - Electronic Power: Testing
NOTE:
For more information on wiring diagrams, see SUSPENSION - ELECTRONIC article.

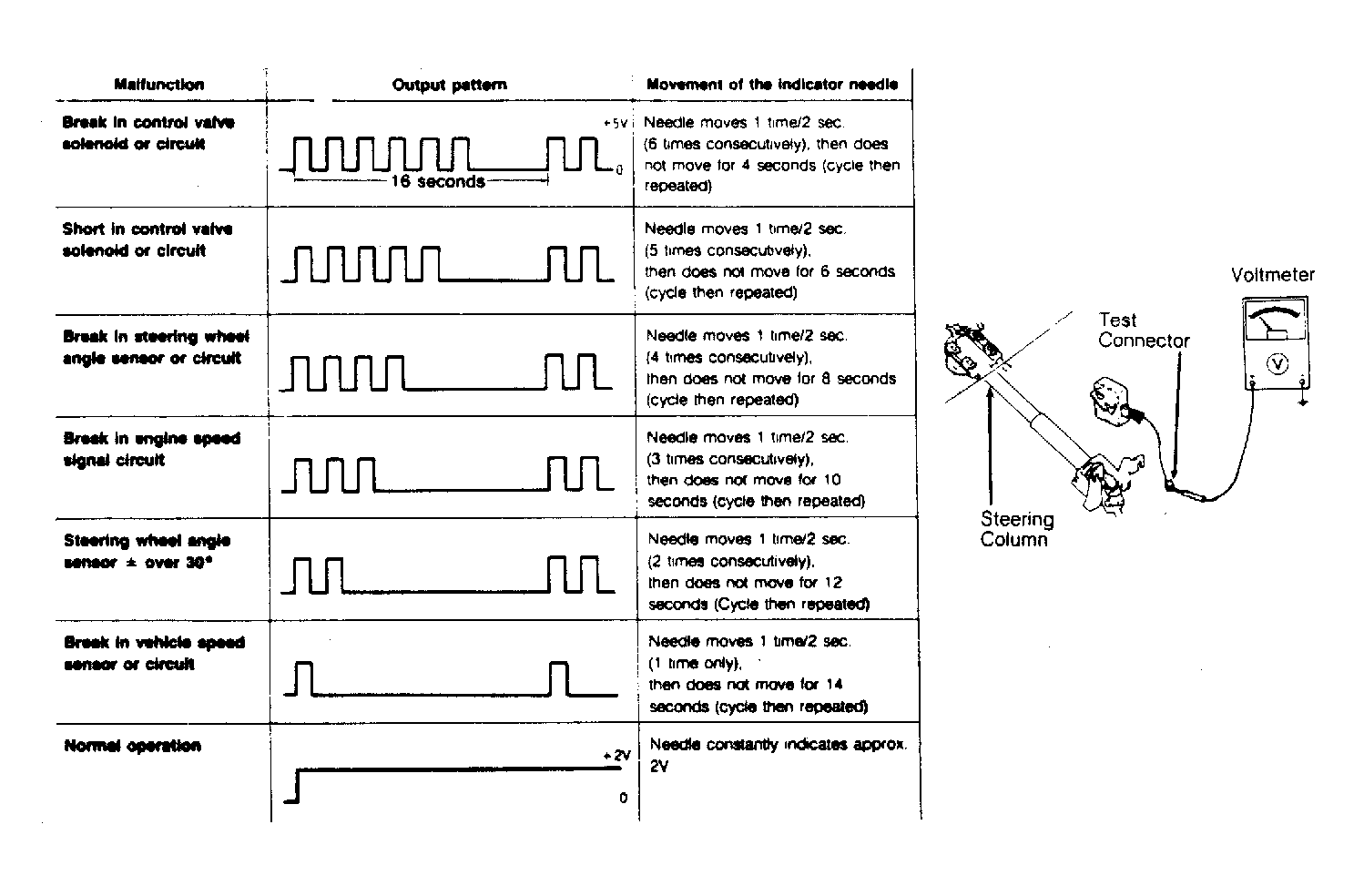

To access the self diagnostic codes, connect a voltmeter between the test connector and ground. The diagnostic codes are displayed as voltage output pulses. Start the engine. Drive vehicle straight ahead at a speed greater than 6 MPH (10 KPH). Record diagnostic codes and compare to 929 DIAGNOSTIC CHART.
