Control Unit

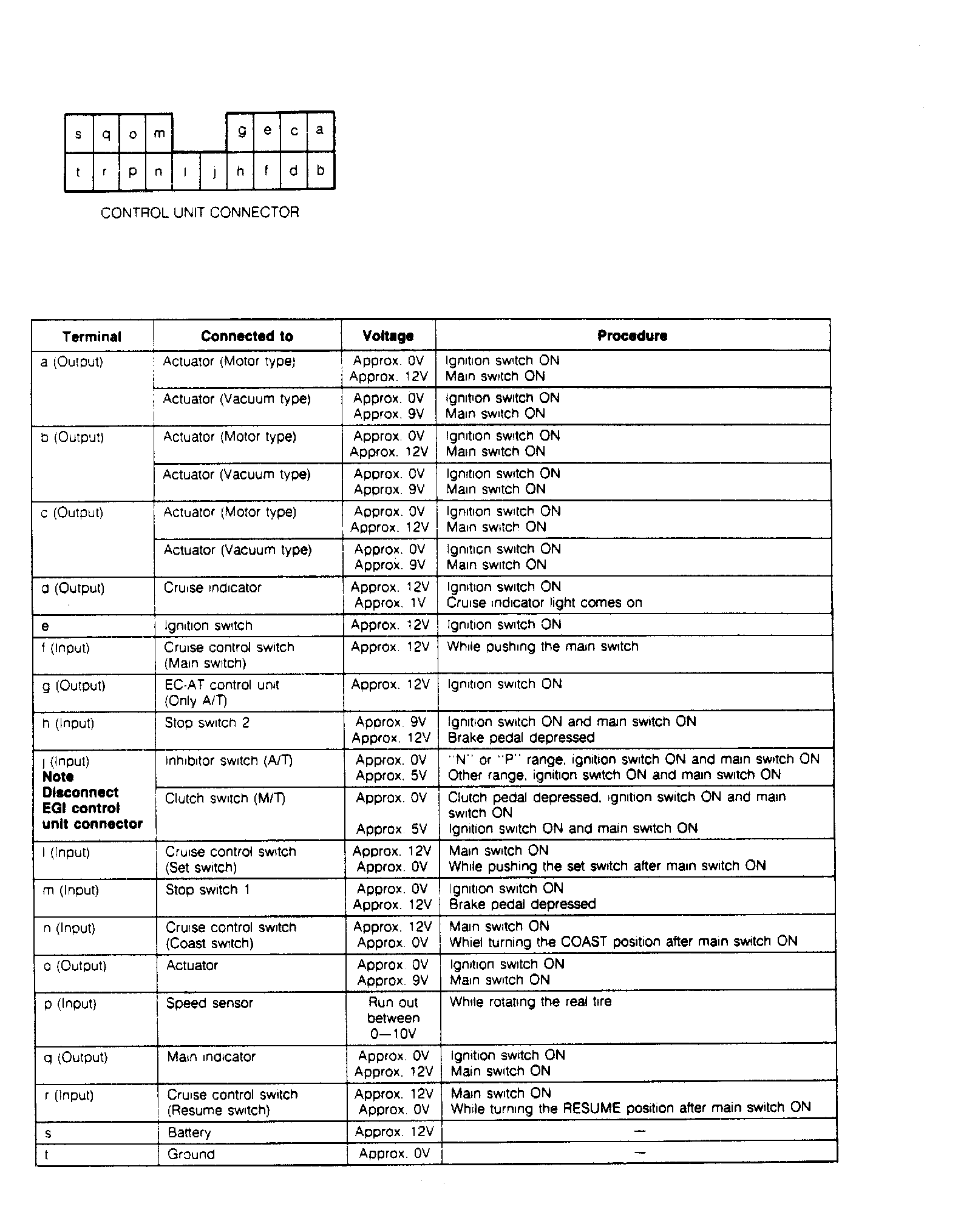

To test control unit, check terminal voltages at control unit connector terminals. Use a voltmeter to check terminal voltages. Ensure ignition switch is in the "ON" position. See Figure .
