Main Relay (Computer/Fuel System): Locations

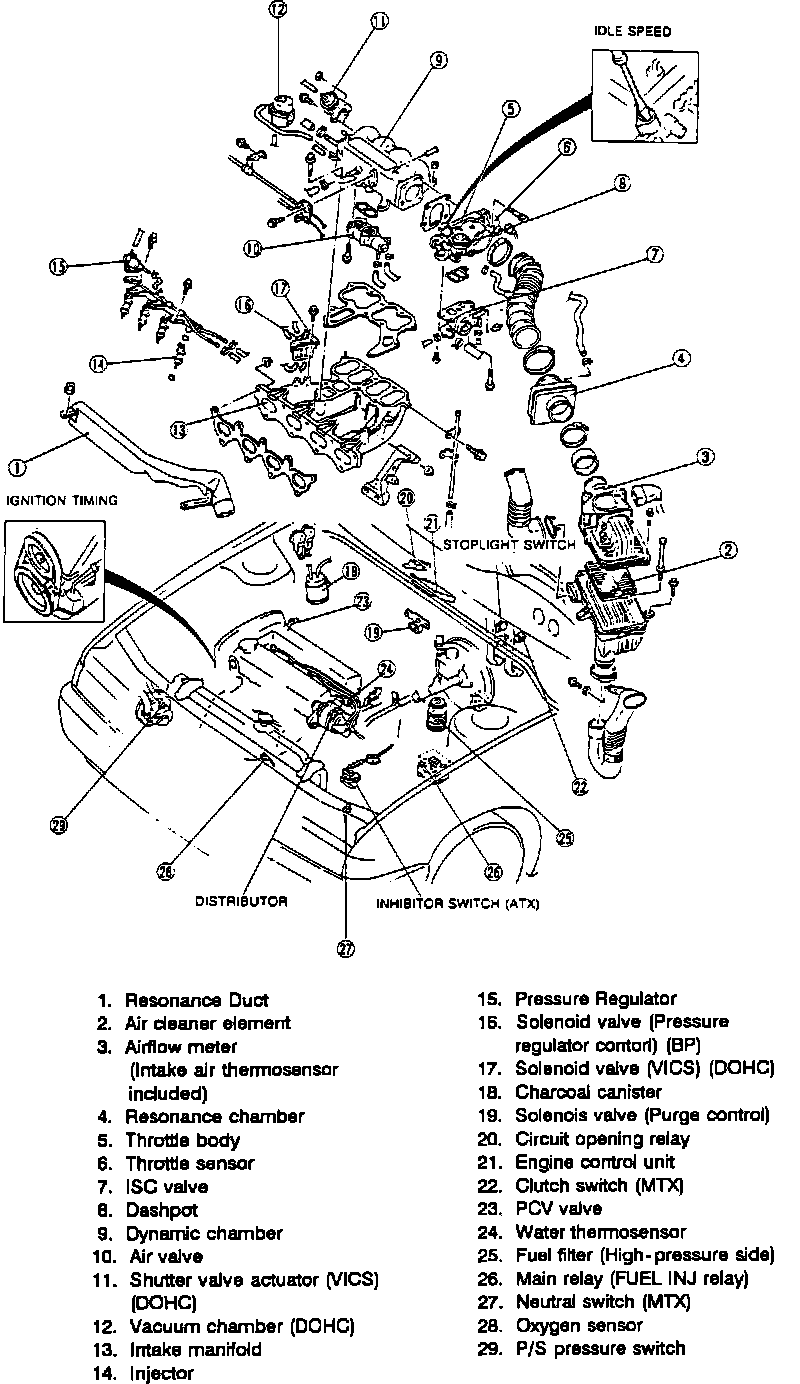

Fuel & Emission Control System:




LH Side Of Engine Compartment

Applicable to: 1990 Models
