Data Link Connector

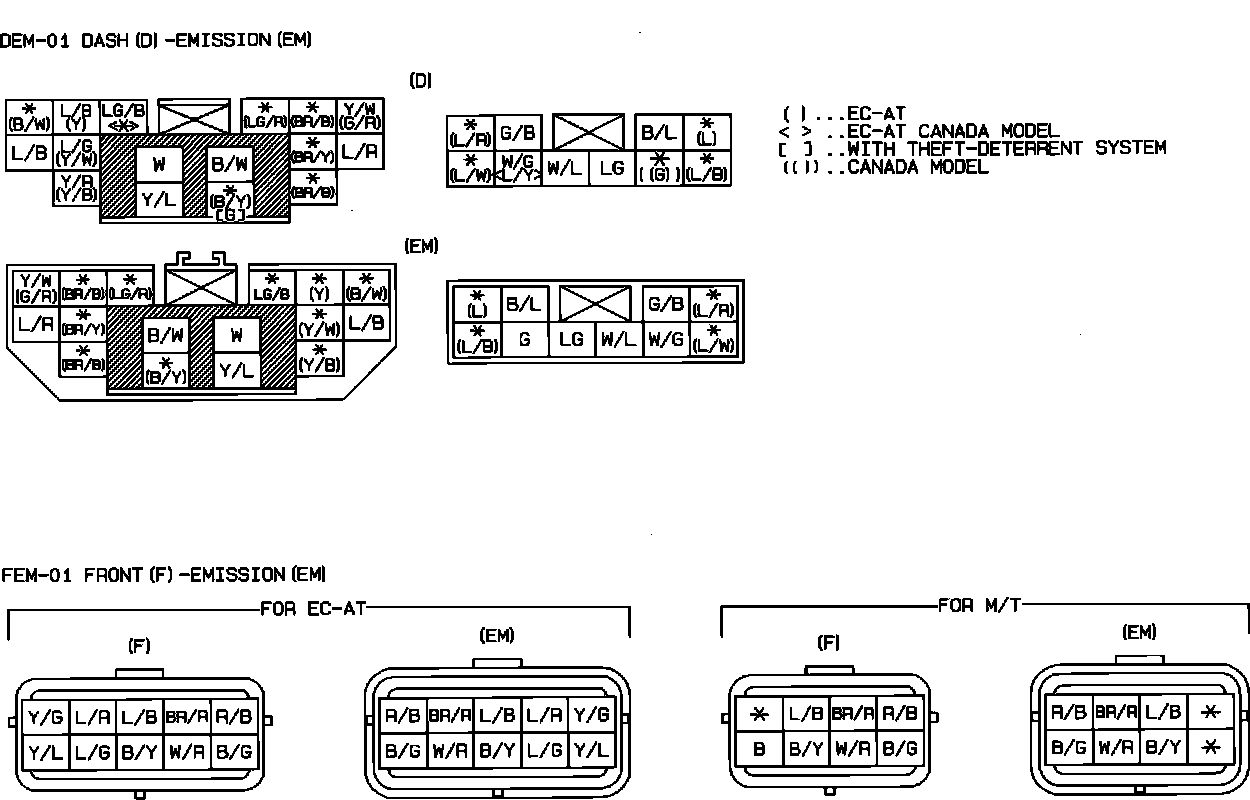

Ignition & Engine Control System. Non-Turbo. Connector Identification:

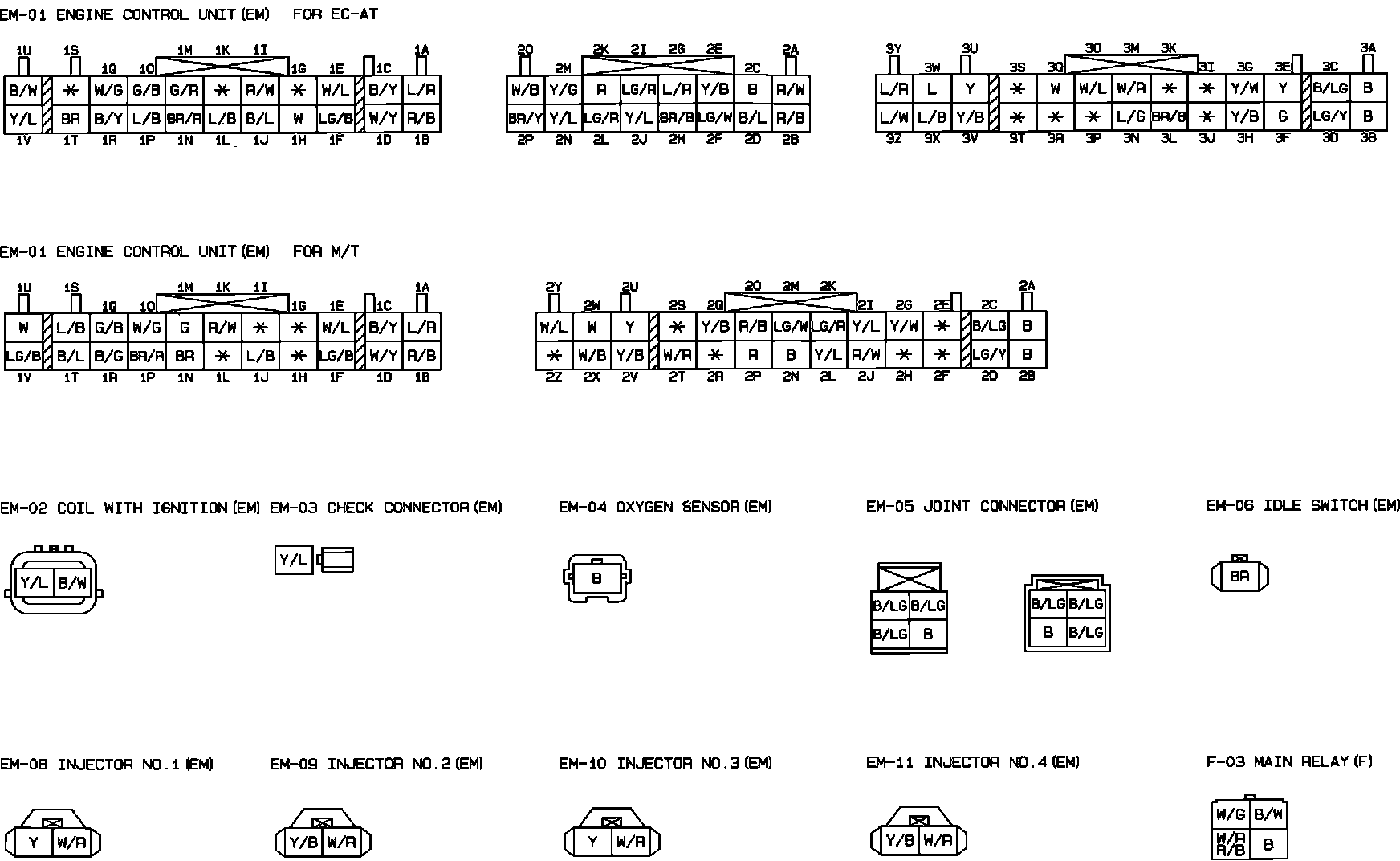

Ignition & Engine Control System. Non-Turbo. Connector Identification:
